5.

2 GRAPHIC SPATIAL ORGANIZATION

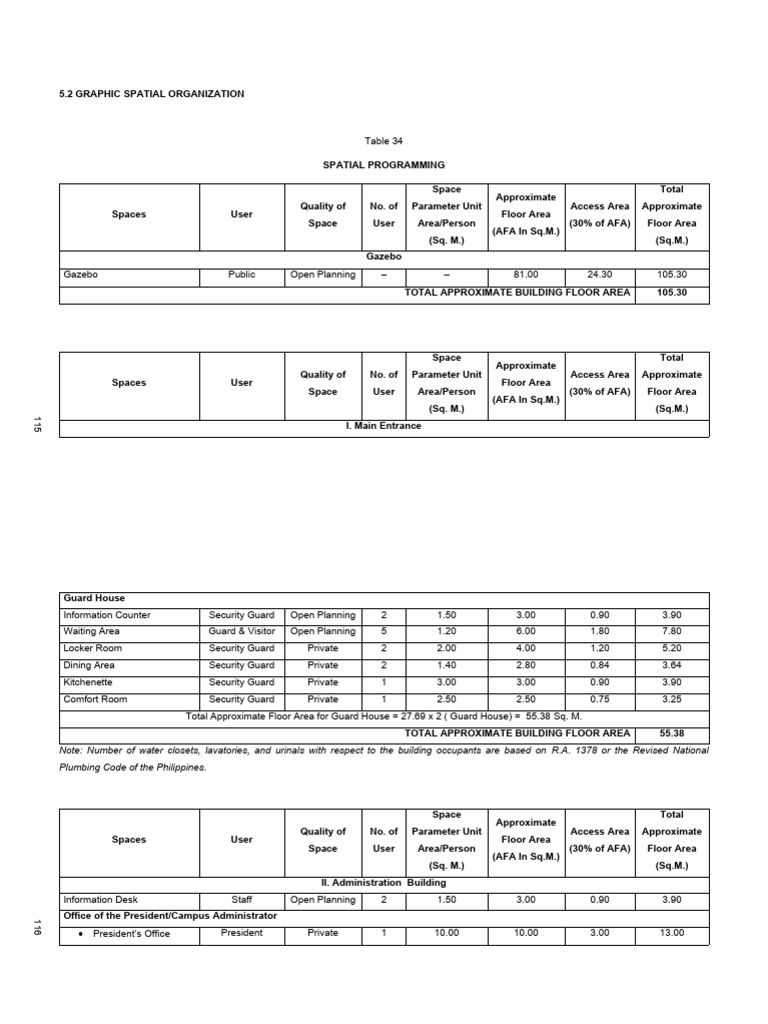

Table 34

SPATIAL PROGRAMMING

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
Gazebo
Gazebo Public Open Planning – – 81.00 24.30 105.30
TOTAL APPROXIMATE BUILDING FLOOR AREA 105.30

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
115

I. Main Entrance
 Guard House
Information Counter Security Guard Open Planning 2 1.50 3.00 0.90 3.90
Waiting Area Guard & Visitor Open Planning 5 1.20 6.00 1.80 7.80
Locker Room Security Guard Private 2 2.00 4.00 1.20 5.20
Dining Area Security Guard Private 2 1.40 2.80 0.84 3.64
Kitchenette Security Guard Private 1 3.00 3.00 0.90 3.90
Comfort Room Security Guard Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Guard House = 27.69 x 2 ( Guard House) = 55.38 Sq. M.
TOTAL APPROXIMATE BUILDING FLOOR AREA 55.38
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
II. Administration Building
Information Desk Staff Open Planning 2 1.50 3.00 0.90 3.90
Office of the President/Campus Administrator
116

 President’s Office President Private 1 10.00 10.00 3.00 13.00

  Staff Working Area Staff Open Planning 2 5.00 10.00 3.00 13.00
 Lounge Staff & Visitor Open Planning 5 1.50 7.50 2.25 9.75
 Kitchenette President & Staff Semi-Private 1 3.00 3.00 0.90 3.90
 Meeting Room/ President, Staff, Semi-Private 10 1.50 15.00 4.5 19.50
Conference Room & Faculty
 Comfort Room President & Staff Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Office of the President = 62.40 Sq. M.
Vice President for Academic Affairs Office
 VPAA Office Vice President Private 1 10.00 10.00 3.00 13.00
 Staff Working Area Staff Open Planning 2 5.00 10.00 3.00 13.00
 Lounge Staff & Visitor Open Planning 5 1.50 7.50 2.25 9.75
 Kitchenette Vice President & Semi-Private 1 3.00 3.00 0.90 3.90
Staff
 Comfort Room Vice President & Private 1 2.50 2.50 0.75 3.25
Staff
Total Approximate Floor Area for Office of the VPAA = 42.90 Sq. M.
Office of the Cashier
 Cashier & Staff Cashier & Staff Open Planning 3 5.00 15.00 4.50 19.50
Working Area
117

 Visitor’s Waiting Area Visitor Semi-Private 10 1.20 12.00 3.60 15.60

 Total Approximate Floor Area for Office of the Cashier = 35.10 Sq. M.
Office of the Auditor / Accounting Office
 Auditor & Staff Auditor & Staff Open Planning 2 5.00 10.00 3.00 13.00
Working Area
 Visitor’s Waiting Area Visitor Open Planning 5 1.20 6.00 1.80 7.80
Total Approximate Floor Area for Office of the Auditor = 20.80 Sq. M.
Office of the Registrar
 Registrar & Staff Registrar & Staff Open Planning 4 5.00 20.00 6.00 20.00
Working Area
 Visitor’s Waiting Area Visitor Open Planning 10 1.20 12.00 3.60 15.60
Total Approximate Floor Area for Office of the Registrar = 35.60 Sq. M.
Records Room Staff Open Planning 1 10.00 10.00 3.00 13.00
Archives Room Staff Open Planning 1 10.00 10.00 3.00 13.00
Admission Office
 Admission Officer & Admission Open Planning 3 5.00 15.00 4.50 19.50
Staff Working Area Officer & Staff
 Visitor’s Waiting Area Visitor Open Planning 10 1.20 12.00 3.60 15.60
Total Approximate Floor Area for Admission Office = 35.10 Sq. M.
Office of the Guidance Counselor
 Guidance Counselor Guidance Open Planning 2 5.00 10.00 3.00 7.80
118
 Counselor &
Staff
 Visitor’s Waiting Area Visitor Open Planning 5 1.20 6.00 1.80 7.80
Total Approximate Floor Area for Office of the Guidance Counselor = 15.60 Sq. M.
Office of the NSTP Coordinator
 NSTP Coordinator NSTP Private 1 5.00 5.00 1.50 6.50
Office Coordinator
 Visitor’s Waiting Area Visitor Open Planning 5 1.20 6.00 1.80 7.80
Total Approximate Floor Area for Office of the NSTP Coordinator = 14.30 Sq. M.
Student Organization Office
 Student Affairs Office Student Private 2 5.00 10.00 3.00 13.00
 Student Lounge Student Open Planning 10 1.50 15.00 4.50 19.50
 Conference Room Student Semi-Private 10 1.50 15.00 4.50 19.50
 Comfort Room Student Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Student Organization Office = 55.25 Sq. M.
CCTV Monitoring Room Employee Private 2 5.00 10.00 3.00 13.00
Public Male Comfort Room Student & Visitor Private 4 2.50 10.00 3.00 13.00
Public Female Comfort Room Student & Visitor Private 4 2.50 10.00 3.00 13.00
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
119
 Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 400.90
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
III. Academic and Faculty Buildings

Bachelor of Technical-Vocational Teacher Education (BTVTEd) Major in Computer Hardware Servicing Building

Classrooms/Lecture Rooms Student = 40 Semi-Private 41 1.20 49.2 14.76 63.96

(5) Professor = 1

Total Approximate Floor Area for Classrooms/Lecture Rooms = 63.96 x 5 (Rooms) = 319.80 Sq. M.
Laboratory Room (1) Student = 40 Semi-Private 41 2.00 82.00 24.00 104.00
Professor = 1
Program Head/Dean’s Office & Faculty Room
120

 Program Head/Dean’s Dean Private 1 10.00 10.00 3.00 13.00

 Office
 Faculty Working Area Faculty Open Planning 8 5.00 40.00 12.00 52.00
 Lounge Dean, Faculty & Semi-Private 5 1.50 7.5 2.25 9.75
Visitor
 Meeting Room/ Dean & Faculty Private 10 1.50 15.00 4.50 19.50
Conference Room
 Kitchenette Dean & Faculty Semi-Private 2 3.00 6.00 1.80 7.80
 Storage Room Dean & Faculty Private 1 4.00 4.00 1.20 5.20
 Comfort Room Dean & Faculty Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Deans Office & Faculty Room = 111.00 Sq. M.
Public Male Comfort Room Student Private 8 2.50 20.00 6 26.00
Public Female Comfort Room Student Private 11 2.50 27.50 8.25 35.75
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 611.50
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.
121
 Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
Bachelor of Science in Information System (BSIS) Building

Classrooms/Lecture Rooms Student = 40 Semi-Private 41 1.20 49.2 14.76 63.96

(4) Professor = 1
Total Approximate Floor Area for Classrooms/Lecture Rooms = 63.96 x 4 (Rooms) = 255.84 Sq. M.
Laboratory Rooms (2) Student = 40 Semi-Private 41 2.00 82.00 24.6 106.6
Professor = 1
Total Approximate Floor Area for Laboratory Rooms = 106.6 x 2 (Rooms) = 213.20 Sq. M.
Program Head/Dean’s Office & Faculty Room
 Program Head/Dean’s Dean Private 1 10.00 10.00 3.00 13.00
Office
 Faculty Working Area Faculty Open Planning 8 5.00 40.00 12.00 52.00
 Lounge Dean, Faculty, & Semi-Private 5 1.50 7.5 2.25 9.75
Visitor
 Meeting Room/ Dean & Faculty Private 10 1.50 15.00 4.50 19.50
Conference Room
122

 Kitchenette Dean & Faculty Semi-Private 2 3.00 6.00 1.80 7.80

  Storage Room Dean & Faculty Private 1 4.00 4.00 1.20 5.20
 Comfort Room Dean & Faculty Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Deans Office & Faculty Room = 111.00 Sq. M.
Public Male Comfort Room Student Private 8 2.50 20.00 6.00 26.00
Public Female Comfort Room Student Private 11 2.50 27.50 8.25 35.75
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 656.74
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
Bachelor of Technical-Vocational Teacher Education (BTVTEd) Major in Food Service Management Building
123

Classrooms/Lecture Rooms Student = 40 Semi-Private 41 1.20 49.2 14.76 63.96

 (4) Professor = 1
Total Approximate Floor Area for Classrooms/Lecture Rooms = 63.96 x 5 (Rooms) = 319.80 Sq. M.
Laboratory Rooms (2) Student = 40 Semi-Private 41 2.50 102.50 30.75 133.25
Professor = 1
Total Approximate Floor Area for Laboratory Rooms = 133.25 x 2 (Rooms) = 266.50 Sq. M.
Faculty Room
 Faculty Working Area Faculty Open Planning 8 5.00 40.00 12.00 52.00
 Lounge Dean, Faculty, & Semi-Private 5 1.50 7.5 2.25 9.75
Visitor
 Meeting Room/ Dean & Faculty Private 10 1.50 15.00 4.50 19.50
Conference Room
 Kitchenette Dean & Faculty Semi-Private 2 3.00 6.00 1.80 7.80
 Storage Room Dean & Faculty Private 1 4.00 4.00 1.20 5.20
 Comfort Room Dean & Faculty Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Faculty Room = 97.50 Sq. M.
Public Male Comfort Room Student Private 8 2.50 20.00 6.00 26.00
Public Female Comfort Room Student Private 11 2.50 27.50 8.25 35.75
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
124
 Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 760.50
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
IV. Library Building
Information Desk Staff Open Planning 2 1.50 3.00 0.90 3.90
Library Administrative Room
 Librarian & Staff Librarian & Staff Open Planning 4 5.00 20.00 6.00 26.00
Working Area
 Comfort Room Librarian & Staff Private 1 2.50 2.50 0.75 3.25
Total Approximate Floor Area for Library Administrative Room = 29.25 Sq. M.
Bookshelves Area Student & Visitor Open Planning 200 0.25 50.00 15.00 65.00
(Shelves) (Shelves Area)
Reading Area 10% of the total Open Planning 96 1.50 144.00 43.20 187.20
125
 enrollment
Total Projected Enrollees after 8 years = 960 x 10% = 96
E-Library 5% of the total Open Planning 48 2.00 96.00 28.80 124.80
enrollment
Total Projected Enrollees after 8 years = 960 x 5% = 48
Public Male Comfort Room Student & Visitor Private 4 2.50 10.00 3.00 13.00
Public Female Comfort Student &Visitor Private 5 2.50 12.50 3.75 16.75
Room
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Storage Room Librarian & Staff Private 1 5.00 5.00 1.50 6.50
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.5 6.50
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 448.35
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Spaces User Quality of No. of Space Approximate Access Area Total

126

Space User Parameter Unit Floor Area (30% of AFA) Approximate

 Area/Person Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
V. School Clinic Building
Waiting Area Student Open Planning 10 1.20 12.00 3.60 15.60
Consultation Area Medical Officer & Semi-Private 2 3.00 6.00 1.80 7.80
Patient
Treatment/Patient Bed Medical Officer & Semi-Private 2 6.00 12.00 3.60 15.60
Patient
Supply Room Medical Officer & Private 1 4.00 4.00 1.20 5.20
Staff
Medical Officer’s Quarter Medical Officer & Private 2 3.00 6.00 1.80 7.80
Staff
Kitchenette Medical Officer & Private 2 3.00 6.00 1.80 7.80
Staff
Comfort Room Medical Officer, Private 1 3.50 3.50 1.05 4.55
Staff & Patient
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 74.75
127
 Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
VI. School Canteen Building
Rentable Spaces Tenant Private 5 16.00 80.00 24.00 104.00
Dining Area 10% of the total Open Planning 96 1.40 134.40 40.32 174.72
enrollment
Total Projected Enrollees after 8 years = 960 (students) x 10% = 96
Public Male Comfort Room Costumer & Private 3 2.50 7.50 2.25 9.75
Tenant
Public Female Comfort Room Costumer & Private 4 2.50 10.00 3.00 13.00
Tenant
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
128

Room
 TOTAL APPROXIMATE BUILDING FLOOR AREA 316.42
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
VII. Educational Center
TESDA Assessment, Training, & Seminar Center
 Assessment, Training Applicant & Staff Semi-Private 10 10.90 109 32.7 141.70
& Seminar Room
 Comfort Room Public Private 1 3.50 3.50 1.05 4.55
 Storage Room Staff Private 1 5.00 5.00 1.50 6.50
 Office Room Staff Private 1 10.00 10.00 3.00 13.00
 Utility Room Employee Private 1 3.00 3.00 0.90 3.90
 Electrical & Solar Employee Private – 3.00 3.00 0.90 3.90
Battery Room
Total Approximate Floor Area for TESDA Assessment & Seminar Center = 173.55 Sq. M.
129
 Audio-Visual Hall
 Stage/Platform Public Open Planning – – 60.00 18.00 78.00
 Seating Area 10% of the total Open Planning 96 1.00 96.00 28.80 124.80
enrollment
Total Projected Enrollees after 8 years = 960 (students) x 10% = 96
 Equipment Room Employee Private – – 15.00 4.5 19.50
 Projection Control Employee Private 2 10.00 20.00 6.00 26.00
Room
Public Male Comfort Room Public Private 3 2.50 7.50 2.25 9.75
Public Female Comfort Room Public Private 4 2.50 10.00 3.00 13.00
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Utility Room Employee Private 1 3.00 3.00 0.90 3.90
Electrical & Solar Battery Employee Private – 5.00 5.00 1.50 6.50
Room
Total Approximate Floor Area for Audio-Visual Hall = 286.00 Sq. M.
TOTAL APPROXIMATE BUILDING FLOOR AREA 459.55
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.
130
 Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
VIII. Gymnasium
Playing Area Public Open Planning – – 420.00 126 546.00
Spectators Seating Area 10% of the total Open Planning 96 1.20 115.20 34.56 149.76
enrollment
Total Projected Enrollees after 8 years = 960 (students) x 10% = 96
Lockers/Dress Room Athletes & Private 15 2.00 30.00 9.00 39.00
Coaches
 Shower Room Athletes & Private 7 1.50 10.50 3.15 13.65
Coaches
 Comfort Room Athletes & Private 1 2.50 2.50 0.75 3.25
Coaches
Total Approximate Floor Area for Locker/Dress Room = 55.90 Sq. M.
Public Male Comfort Room Public Private 3 2.50 7.50 2.25 9.75
Public Female Comfort Room Public Private 4 2.50 10.00 3.00 13.00
Public PWD Comfort Room PWD Private 1 3.50 3.50 1.05 4.55
Storage Room Employee Private – 12.00 12.00 3.60 15.60
131

Utility Room Employee Private – 6.00 6.00 1.80 7.80

 Electrical & Solar Battery Employee Private – 5.00 5.00 1.5 6.5
Room
TOTAL APPROXIMATE BUILDING FLOOR AREA 808.86
Note: Number of water closets, lavatories, and urinals with respect to the building occupants are based on R.A. 1378 or the Revised National
Plumbing Code of the Philippines.

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
IX. Waste Management Facility
Sorting Area Employee Semi-Private 5 3.00 15.00 4.5 19.5
General Dry Waste Area Employee Private – 1.50 6.00 1.80 7.80
General Wet Waste Area Employee Private – 1.50 6.00 1.80 7.80
Paper & Recyclable Materials Employee Private – 1.50 6.00 1.80 7.80
Collection Area
Bay Hand Washing Employee Semi-Private 2 1.00 2.00 0.6 2.60
132
 Utility Room Employee Private 1 3.00 3.00 0.9 3.90
TOTAL APPROXIMATE BUILDING FLOOR AREA 49.40

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
X. Power House
Generator Room (1 Unit) Employee Private – – 16.00 4.80 20.80
Transformer Area Employee Private – – 16.00 4.80 20.80
TOTAL APPROXIMATE BUILDING FLOOR AREA 41.60

Space Total
Approximate
Quality of No. of Parameter Unit Access Area Approximate
Spaces User Floor Area
Space User Area/Person (30% of AFA) Floor Area
(AFA In Sq.M.)
(Sq. M.) (Sq.M.)
133

Parking Area
 Car Parking Area Public Open Planning – – 12.50 – 12.50
Total Approximate Floor Area for Car Parking Area = 12.50 x 20 (Parking Slots) = 250.00 Sq. M.
School Bus Parking Area Public Open Planning – – 43.20 – 43.20
Total Approximate Floor Area for School Bus Parking Area = 43.20 x 5 (Parking Slots) = 216.00 Sq. M.
TOTAL APPROXIMATE FLOOR AREA 466.00
134
