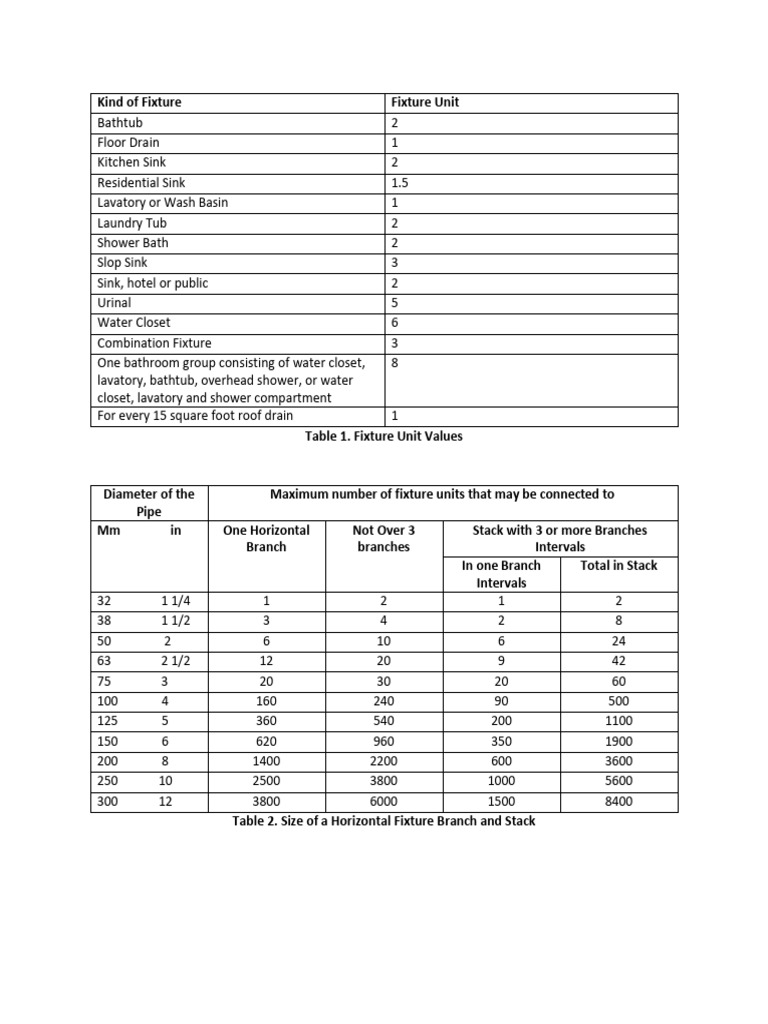

Kind of Fixture Fixture Unit

Bathtub 2
Floor Drain 1
Kitchen Sink 2
Residential Sink 1.5
Lavatory or Wash Basin 1
Laundry Tub 2
Shower Bath 2
Slop Sink 3
Sink, hotel or public 2
Urinal 5
Water Closet 6
Combination Fixture 3
One bathroom group consisting of water closet, 8
lavatory, bathtub, overhead shower, or water
closet, lavatory and shower compartment
For every 15 square foot roof drain 1
Table 1. Fixture Unit Values

Diameter of the Maximum number of fixture units that may be connected to


Pipe
Mm in One Horizontal Not Over 3 Stack with 3 or more Branches
Branch branches Intervals
In one Branch Total in Stack
Intervals
32 1 1/4 1 2 1 2
38 1 1/2 3 4 2 8
50 2 6 10 6 24
63 2 1/2 12 20 9 42
75 3 20 30 20 60
100 4 160 240 90 500
125 5 360 540 200 1100
150 6 620 960 350 1900
200 8 1400 2200 600 3600
250 10 2500 3800 1000 5600
300 12 3800 6000 1500 8400
Table 2. Size of a Horizontal Fixture Branch and Stack
