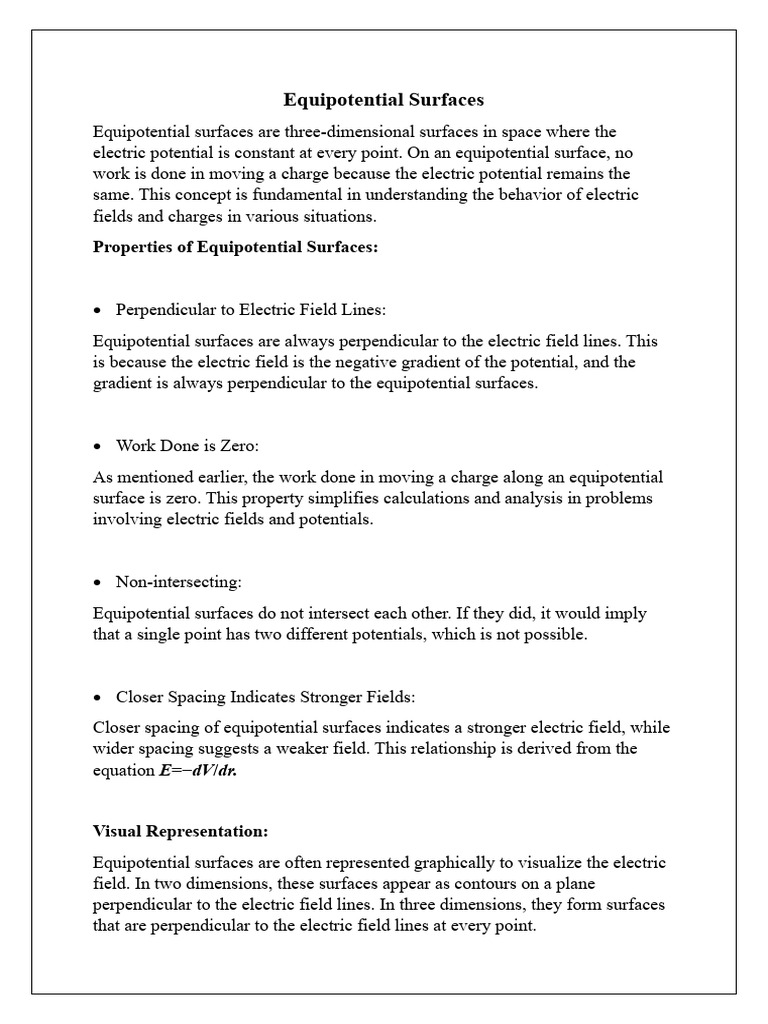

Equipotential Surfaces

Equipotential surfaces are three-dimensional surfaces in space where the

electric potential is constant at every point. On an equipotential surface, no
work is done in moving a charge because the electric potential remains the
same. This concept is fundamental in understanding the behavior of electric
fields and charges in various situations.
Properties of Equipotential Surfaces:

 Perpendicular to Electric Field Lines:

Equipotential surfaces are always perpendicular to the electric field lines. This
is because the electric field is the negative gradient of the potential, and the
gradient is always perpendicular to the equipotential surfaces.

 Work Done is Zero:

As mentioned earlier, the work done in moving a charge along an equipotential
surface is zero. This property simplifies calculations and analysis in problems
involving electric fields and potentials.

 Non-intersecting:
Equipotential surfaces do not intersect each other. If they did, it would imply
that a single point has two different potentials, which is not possible.

 Closer Spacing Indicates Stronger Fields:

Closer spacing of equipotential surfaces indicates a stronger electric field, while
wider spacing suggests a weaker field. This relationship is derived from the
equation E=−dV/dr.

Visual Representation:
Equipotential surfaces are often represented graphically to visualize the electric
field. In two dimensions, these surfaces appear as contours on a plane
perpendicular to the electric field lines. In three dimensions, they form surfaces
that are perpendicular to the electric field lines at every point.
Applications:
1. Capacitors:
In capacitor configurations, equipotential surfaces help in understanding the
distribution of charges on the conductive plates. The electric field between the
plates is perpendicular to the equipotential surfaces.

2. Electrostatic Shielding:
Equipotential surfaces play a role in electrostatic shielding, where conducting
surfaces are connected to maintain the same potential. This prevents the
penetration of electric fields into specific regions.

3. Electrocardiography (ECG):
In medical applications, equipotential surfaces are used in electrocardiography
to represent the electrical activity of the heart. The equipotential maps help in
diagnosing cardiac conditions.

4. Safety in Electrical Devices:

Equipotential surfaces are essential in ensuring the safety of electrical devices.
For example, in power plants, electrical panels, and other installations,
equipotential surfaces are established to prevent the occurrence of potential
differences that could lead to electric shocks.

5. Electronic Circuit Design:

Equipotential surfaces are considered in the design of electronic circuits to
control the distribution of electric potential. This is critical for the proper
functioning of electronic components.

Examples of Equipotential Surfaces:

 Point Charge: Consider a positive point charge Q. The equipotential

surfaces around this charge are concentric spheres. As we move away
 from the charge, the potential decreases, but every point on a particular
sphere has the same potential.

 Uniform Electric Field: In a uniform electric field, parallel equipotential

surfaces are created. These surfaces are planes perpendicular to the
direction of the electric field. The potential difference between adjacent
surfaces is constant.

 Parallel Plates Capacitor: In a parallel plates capacitor, the equipotential

surfaces are parallel planes. The potential difference between these
surfaces is determined by the voltage applied to the capacitor.

Experiments with Equipotential Surfaces:

 Mapping Equipotential Surfaces: One common experiment involves

mapping equipotential surfaces around a point charge using a probe
connected to a voltmeter. By measuring the potential at various points,
one can draw equipotential lines and surfaces.

 Parallel Plates Capacitor Experiment: In this experiment, students can

study equipotential surfaces between the plates of a capacitor. By
applying different voltages and measuring potentials at various points,
they can visualize and understand the concept of equipotential surfaces.

 Electric Field Mapping: Equipotential surfaces are directly related to

electric field lines. Students can experimentally determine the electric
field lines and equipotential surfaces using techniques like the method of
mixtures or by employing charged particles in a controlled environment.

CONCLUSION:
Equipotential surfaces serve as indispensable tools in the realm of
electromagnetism, providing a conceptual framework for understanding the
distribution of electric potential in space. These imaginary surfaces, where the
electric potential remains constant at every point, offer valuable insights into the
behavior of electric fields and charges. The perpendicular orientation of
equipotential surfaces to electric field lines, their non-intersecting nature, and
the absence of work done along these surfaces simplify the analysis of complex
electrical systems.
The practical applications of equipotential surfaces are diverse, ranging from
the design of capacitors to the shielding of electric fields in various
technological and medical contexts. Their visualization in two or three
dimensions aids in interpreting the intricate interplay between electric fields and
potentials, facilitating problem-solving and analysis.
Equipotential surfaces contribute significantly to our comprehension of the
electrostatic environment, enabling advancements in fields such as physics,
engineering, and medicine. Whether applied to the design of electronic circuits,
the interpretation of electrocardiograms, or the understanding of fundamental
electromagnetic principles, equipotential surfaces remain a fundamental concept
with broad-reaching implications. As we continue to explore and innovate in
these scientific and technological domains, the understanding and manipulation
of equipotential surfaces will likely play an enduring role in shaping our
capabilities and applications in the realm of electromagnetism.
 Potential energy of system of charges
Potential energy in a system of charges arises from the electrostatic interactions
between the charges. This concept is a fundamental aspect of classical
electromagnetism and is crucial for understanding the behavior of charged
particles in various situations. In a system of charges, the potential energy can
be described using the concept of electric potential and the principles of work
done against or by electric forces.
Electric Potential Energy:
Coulomb's Law:
The foundation of potential energy in a system of charges lies in Coulomb's
Law, which describes the force between two point charges. According to
Coulomb's Law, the force F between two point charges q1 and q2 separated by a
distance r is given by:
F=k⋅∣q1⋅q2∣/r^2
where k is Coulomb's constant (k≈8.99×109 N m2/C2).
Electric Potential Energy:
The electric potential energy (U) associated with a system of charges is a
measure of the work done to assemble the configuration of charges. It depends
on the configuration of charges and their relative positions. The potential energy
between two point charges q1 and q2 separated by a distance r is given by:
U=k⋅∣q1⋅q2∣/r
This equation signifies that the potential energy is inversely proportional to the
separation distance between charges. As charges move closer, the potential
energy increases, and as they move apart, the potential energy decreases.
System of Charges:
Multiple Charges:
For a system of multiple charges, the total potential energy (Utotal) is the sum of
the individual potential energies:

, where N is the number of charges, qi and qj are the

magnitudes of the charges, and rij is the separation distance between charges i
and j.
Electric Potential:
The concept of electric potential (V) is related to electric potential energy.
Electric potential is the electric potential energy per unit charge.
Mathematically, it is expressed as:
V=qU,
where q is a test charge. The unit of electric potential is volts (V).
Work and Energy:
The potential energy of a system of charges is intimately connected to the work
done in assembling the system or in moving charges within the system. The
work done (W) is given by the negative change in potential energy:
W=−ΔU.
This equation indicates that work is done against the electric forces to separate
charges (increasing potential energy) and work is done by the electric forces
when charges come closer (decreasing potential energy).
Applications:
Understanding the potential energy of a system of charges is crucial in various
areas of physics and engineering. It is used in the analysis of electric circuits,
the behavior of atoms and molecules, and the design of electronic devices.
Additionally, it plays a significant role in understanding phenomena such as
electrostatic discharge, where accumulated charges are released, causing a
sudden change in potential energy.
1. Capacitors: In a capacitor, which consists of two conductive plates
separated by a dielectric material, the potential energy is stored in the
electric field between the plates. The formula for the potential energy (U)
in a capacitor is U=1/2CV^2, where C is the capacitance and V is the
voltage across the plates.
2. Ionization and Chemical Reactions: In chemical systems, the potential
energy of electrons in different energy levels around an atomic nucleus
can be thought of in terms of electrostatic potential energy. In chemical
reactions, the rearrangement of electrons among atoms involves changes
in potential energy.
3. Electric Potential Energy in Fields: When charges move in an electric
field, they can experience changes in potential energy. For example, a
 charged particle moving in an electric field will gain kinetic energy as it
moves from a region of higher potential to a region of lower potential.
4. Electrostatic Motors and Generators: Devices like motors and
generators convert electrical potential energy into mechanical energy (in
the case of motors) or vice versa (in the case of generators).

Experiments:
1. Charged Pendulum: Hang a charged object (such as a small ball with a
known charge) from a string and place another charged object nearby.
The interaction between the charges will affect the motion of the
pendulum. By measuring the angles and displacements, you can infer the
potential energy changes in the system.
2. Parallel Plate Capacitor: In this experiment, two parallel plates are
charged with opposite charges, creating an electric field between them.
The potential energy stored in this capacitor system.
Conclusion:
The potential energy of a system of charges is a fundamental concept with wide-
ranging implications for understanding the behavior of charged particles and the
interactions between them. It plays a central role in classical electrostatics,
energy conservation principles, and the design of electrical systems and devices.
 Potential Energy in an External Field
Potential energy in an external field is a concept that plays a crucial
role in various branches of physics, including classical mechanics and
electromagnetism. This idea is fundamental for understanding the
behavior of objects and particles in the presence of external forces. In
this discussion, we will explore potential energy in the context of
classical mechanics and electromagnetic fields.
Classical Mechanics: In classical mechanics, potential energy is
associated with the position of an object in a force field. The force
field could be gravitational, electric, or magnetic, among others. The
potential energy (U) of an object in a conservative force field is
defined as the work done by the force when the object undergoes a
displacement. Mathematically, this relationship is expressed as:
U=−W
where U is the potential energy, and W is the work done by the
external force. The negative sign indicates that work is done against
the force, storing energy in the system.
Gravitational Potential Energy: Consider a mass m located at a height
h above the Earth's surface. The gravitational potential energy (Ugravity)
is given by:
Ugravity =mgh
where g is the acceleration due to gravity. This formula shows that the
potential energy of an object in a gravitational field depends on its
mass, height, and the strength of the gravitational field.
Electrostatic Potential Energy: In the context of electric fields, the
potential energy (Uelectric) of a charged particle in an electric field (E)
is given by:
Uelectric =qV
where q is the charge of the particle and V is the electric potential. The
electric potential is related to the electric field by V=Ed, where d is
the separation between the charges. This expression indicates that the
potential energy depends on the charge of the particle, the electric
potential, and the distance between charges.
Magnetic Potential Energy: In a magnetic field, the potential energy
(Umagnetic) associated with a magnetic moment (μ) is given by:
Umagnetic =−μ⋅B
where B is the magnetic field. The negative sign reflects the fact that
the magnetic potential energy is minimized when the magnetic
moment aligns with the magnetic field.
The concept of potential energy in classical mechanics provides a
powerful framework for understanding the behavior of objects in
various force fields. This understanding extends into the realm of
electromagnetism, where electric and magnetic fields govern the
interactions between charged particles and magnetic moments.
Electromagnetic Fields: In electromagnetism, the interaction
between charged particles involves both electric and magnetic fields.
The combined effect is described by the electromagnetic field, and the
potential energy associated with the interaction between charges and
currents can be quite intricate.
For a charged particle moving in both electric and magnetic fields, the
total potential energy (Utotal) is the sum of the electric and magnetic
contributions:
Utotal=Uelectric + Umagnetic
Understanding the potential energy in electromagnetic fields is crucial
in various practical applications. For example, in the design of
electrical circuits, the potential energy associated with charges and
currents is manipulated to perform useful work.
In summary, potential energy in an external field is a fundamental
concept in physics that helps explain the behavior of objects and
particles in the presence of forces. Whether in the context of classical
mechanics or electromagnetic fields, potential energy provides a
valuable framework for understanding and prediction.
 Potential Energy of a Dipole
When a dipole is placed in an external field, it experiences a potential energy
due to the interaction with that field. A dipole consists of two charges of equal
magnitude but opposite sign separated by a certain distance. The potential
energy (U) of a dipole in an external electric field (E) can be expressed as:
U=−p⋅E
Here,
 p is the electric dipole moment, which is the product of the charge
magnitude (q) and the separation distance (d) between the charges, i.e.,
p=q⋅d.
 E is the external electric field.
The negative sign in the formula indicates that the potential energy is minimized
when the dipole is aligned with the external field (p and E are parallel), and it is
maximized when the dipole is oriented opposite to the field (p and E are
antiparallel).
In the case of a gravitational field, a similar concept applies, where the potential
energy of a dipole in a gravitational field is given by:
U=−p⋅g
Here,
 p is the gravitational dipole moment, which is analogous to the electric
dipole moment and is the product of the mass (m) and the separation
distance (d) between the masses, i.e., p=m⋅d.
 g is the gravitational field.
Again, the negative sign indicates that the potential energy is minimized when
the dipole is aligned with the gravitational field and maximized when the dipole
is antiparallel to the field.
Conclusion:
In conclusion, the potential energy of a dipole in an external field is determined
by the orientation of the dipole with respect to the field. The concept is
fundamental in understanding how dipoles respond to external influences and
plays a crucial role in various physical phenomena and applications.
