It's Time to Break-Up With Multiple Pass Estimation for Classification (lazymodellingcrew.

com)

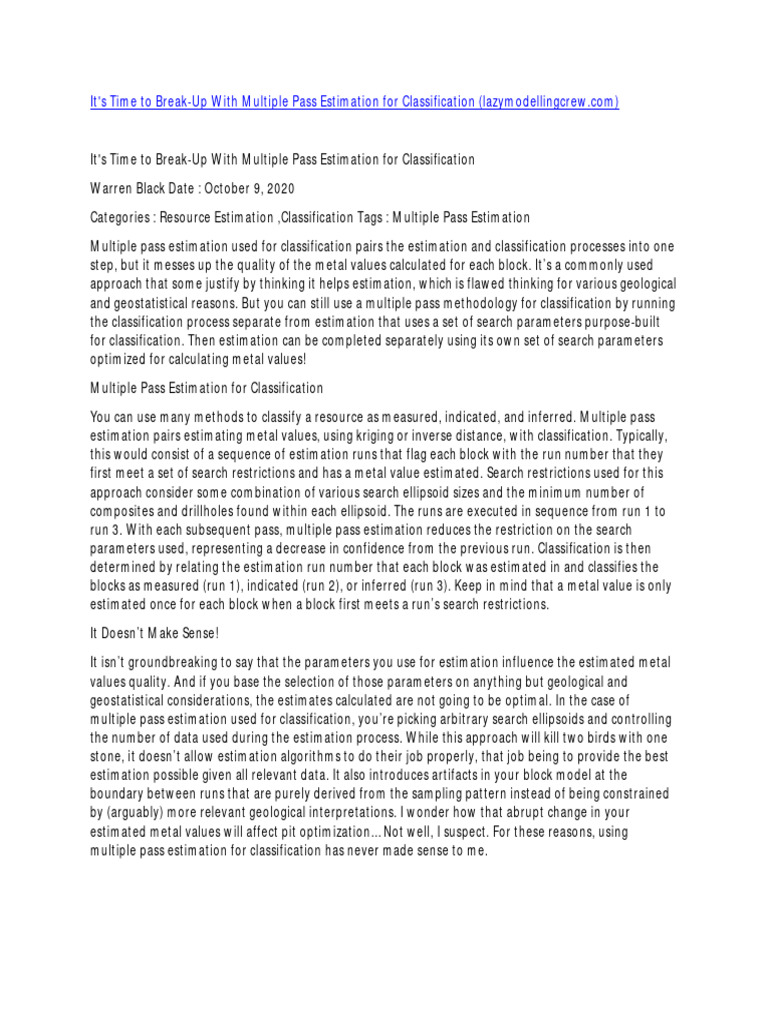

It's Time to Break-Up With Multiple Pass Estimation for Classification

Warren Black Date : October 9, 2020

Categories : Resource Estimation ,Classification Tags : Multiple Pass Estimation

Multiple pass estimation used for classification pairs the estimation and classification processes into one
step, but it messes up the quality of the metal values calculated for each block. It’s a commonly used
approach that some justify by thinking it helps estimation, which is flawed thinking for various geological
and geostatistical reasons. But you can still use a multiple pass methodology for classification by running
the classification process separate from estimation that uses a set of search parameters purpose-built
for classification. Then estimation can be completed separately using its own set of search parameters
optimized for calculating metal values!

Multiple Pass Estimation for Classification

You can use many methods to classify a resource as measured, indicated, and inferred. Multiple pass
estimation pairs estimating metal values, using kriging or inverse distance, with classification. Typically,
this would consist of a sequence of estimation runs that flag each block with the run number that they
first meet a set of search restrictions and has a metal value estimated. Search restrictions used for this
approach consider some combination of various search ellipsoid sizes and the minimum number of
composites and drillholes found within each ellipsoid. The runs are executed in sequence from run 1 to
run 3. With each subsequent pass, multiple pass estimation reduces the restriction on the search
parameters used, representing a decrease in confidence from the previous run. Classification is then
determined by relating the estimation run number that each block was estimated in and classifies the
blocks as measured (run 1), indicated (run 2), or inferred (run 3). Keep in mind that a metal value is only
estimated once for each block when a block first meets a run’s search restrictions.

It Doesn’t Make Sense!

It isn’t groundbreaking to say that the parameters you use for estimation influence the estimated metal
values quality. And if you base the selection of those parameters on anything but geological and
geostatistical considerations, the estimates calculated are not going to be optimal. In the case of
multiple pass estimation used for classification, you’re picking arbitrary search ellipsoids and controlling
the number of data used during the estimation process. While this approach will kill two birds with one
stone, it doesn’t allow estimation algorithms to do their job properly, that job being to provide the best
estimation possible given all relevant data. It also introduces artifacts in your block model at the
boundary between runs that are purely derived from the sampling pattern instead of being constrained
by (arguably) more relevant geological interpretations. I wonder how that abrupt change in your
estimated metal values will affect pit optimization… Not well, I suspect. For these reasons, using
multiple pass estimation for classification has never made sense to me.
Why is it so commonly used!?

This approach for classification is rampant within the resource reporting world. Enough so that it
charges me up enough to go on a rant about it! Anecdotally, the vast majority of the 43-101 reports I’ve
reviewed have used multiple pass estimation for classification. But if you don’t trust my account of its
popularity, Silva and Boisvert (2013) surveyed 281 NI 43-101 technical reports published in 2012 to
determine the prevalence of methods used to perform resource classification. The authors only used
120 of the reports in their study and did not consider the remaining 161 reports because of one of the
following reasons:

 it didn’t have any classification (huh?);

 the report resources only reported inferred resources;
 it was a report for a deposit already considered in one of the 120 reports; or
 the report didn’t document the classification methodology used adequately to know what was
done (okaaaayyyy… ).

Of the 120 reports, 50% used a multiple pass search approach for classification. Unfortunately, the
authors didn’t specifically tabulate the number of cases where classification was completed in
combination with estimation or completed as a separate process. However, they did note that most of
those 60 reports did combine the two, using multiple pass estimation for classification.

I’m not sure why this classification method is so popular, as it takes a simple thought experiment to
guide practitioners away from it. I guess that it’s just something that people have just always done,
creating a precedent and justification for people to keep using it? Is that valid rationale, though, given all
the issues with the approach? I don’t think so…

Alternative Methods for Classification

Classification is a hard balance between being as technically precise and accurate as possible and
communicating the method to the public and other interested parties clearly and concisely. Suppose
you get too cute and do some crazy complicated classification method that considers your data’s
underlying spatial structure, the deposits anisotropy, irregular spaced data, and your geological
understanding, creating the most robust classification scheme. In that case, it’s going to be very hard for
others to understand it truly. But if you get too simple, you can do something like create tubes of
indicated or measured that follow drillhole traces that look ridiculous and communicate you don’t
understand the deposit or how to control the method you are using for classification.

Multiple Pass Classification

The name of the method I’m about to explain will be a bit confusing at first, but stick with me! The
easiest classification method for people to switch to if they use multiple pass estimation is what I call
“multiple pass classification.” The keyword that is different here is “classification,” not “estimation.” The
distinction between the two schemes is that multiple pass estimation combines the metal estimation
process with classification, while multiple pass classification separates the two. Here is how you’d go
about using multiple pass classification.
First, determine the set of search parameters optimized for estimating the best possible metal value
with krigin (or inverse distance… I guess ), given the problem at hand. In the case of a resource
estimate used to report the contained metal of a deposit, those parameters would probably include a
single search ellipsoid while restricting the maximum number of data and the maximum number of data
drillhole. This parameter configuration will help deal with smoothing issues, so your grade tonnage
curves will be right once a lower-cutoff is considered. For more info on how to determine those
parameters, check out this post by Clayton and Jared here, particularly what they call an “interim
estimate.”

Second, establish what the combination of search parameters will be for each classification run that will
be used to assign the different confidence levels of measured, indicated, and inferred. This set of
parameters would be similar to what you’d use if you were doing estimation simultaneously. However,
now you have far more flexibility in the parameters you can use, as you’re not worried about the quality
of the metal values estimated by kriging!

So by separating the two processes, the best of both worlds! You can see the brutal artifacts produced
by multiple pass estimation in the image below and how you can apply the same classification ontop of
estimation completed using optimal parameters! Way better!

Conclusion

There are many ways to classify and resource block models, some better than others. Going through
alternatives such as data spacing paired with uncertainty models would have ballooned this post, so
look for us to cover some simple and more complex options in the future. Ultimately, it’s up to the
resource geologist or engineer’s discretion to determine what is reasonable and defendable. If it were
easy to define a “golden rule” for classification, I would have rambled on about some other topic!
Instead, we have to do the best we can given the available data, understanding, techniques, and, most
regrettably, the amount of time available to us.

Additional Readings and Resources

Deutsch, C. V., & Deutsch, J. L. (2015). Introduction to Choosing a Kriging Plan. In J. L. Deutsch (Ed.),
Geostatistics Lessons. Retrieved from http://www.geostatisticslessons.com/lessons/introkrigingplan

Rossi, M. E., & Deutsch, C. V. (2014). Mineral Resource Estimation. Edmonton AB: Springer Netherlands.
https://doi.org/10.1007/978-1-4020-5717-5

Silva, D. S. F., & Boisvert, J. B. (2013). Mineral Resource Classification (NI 43 - 101): An Overview and a
New Evaluation Technique (Vol. 2013). http://www.ccgalberta.com
 Introduction to Choosing a Kriging Plan
Clayton Deutsch
University of Alberta

Jared Deutsch
University of Alberta

October 30, 2015

Learning Objectives
 Classify estimates according to their purpose: interim estimation, final decisions,
visualization, and probabilistic prediction.
 Know best practice in choosing a fit-for-purpose kriging plan.
 Understand stationarity, kriging performance measures, and other concerns when choosing a
kriging search plan.

Introduction
This lesson relates primarily to mining where estimation is still widely practiced for resource and
reserve estimation. Kriging is the primary technique for the estimation of grades. Kriging is a linear
unbiased estimator that minimizes the estimation variance using a site-specific variogram model of
spatial variability accounting for anisotropy and other spatial features (Journel & Huijbregts, 1978).
The number of data and locations of data used to inform the estimate compose the kriging search
plan. The kriging search plan is typically restricted due to concerns about computational time,
stationarity, conditional bias, and histogram reproduction. These restrictions and concerns are the
subject of this lesson.

There is no doubt that the prerequisites to kriging are more important than the details of the kriging
plan. These prerequisites include ensuring data quality, compositing, managing outliers, subdividing
the data into reasonable subsets (domains), establishing an appropriate coordinate system for
estimation, choosing the correct block size for estimation, and managing large scale trends and
contacts between estimation domains. Nevertheless, details of the kriging plan are important
provided these prerequisites have been met in a reasonable fashion.

The choice of a kriging search plan is dictated by the purpose of the estimate; there is no universal
best kriging plan. Best practice in choosing a kriging search plan depends on the estimate purpose.
This lesson addresses the selection of a kriging search plan for four types of estimates, and discusses
concerns of stationarity, kriging measures, and other common practices.
Purpose of the Estimate
We classify the purpose of estimates into four categories: 1) interim estimates, 2) final estimates, 3)
visualization and trend models, and 4) probabilistic predictions. Each of these estimation purposes
has a different set of criteria for choosing the best kriging search plan.

Interim Estimates
Interim estimates are estimates awaiting more data. Early in the life cycle of a mineral deposit there
are relatively few data available for estimation. At the time of mining, many more data are available
in the form of blast holes and drill holes. This disparity in available data is termed the information
effect (Rossi & Deutsch, 2013). One goal of interim estimates is to provide close estimates of ore
tonnage, ore grade and waste tonnage within reasonably large production volumes (sometimes called
mining panels). A too-large search will result in over smoothing of the grades and inaccurate
estimation of tonnage and grade. The search could be restricted to improve the estimate of tonnage
and grade; however, this will come at a cost of conditional bias. This cost is not severe since interim
estimates are not final estimates; these may be used in the mine plan and for technical and economic
evaluation; however, additional information will be available prior to mining and final grade control
decisions.

Final Estimates
Final estimates are an interesting time in a mining context; the classification of material as ore or
waste (grade control) will have a direct and final economic impact on the mine. The emphasis is on
the minimization of conditional bias, minimization of mean squared error and minimization of Type
I and Type II errors (Isaaks, 2005). Final estimates are constructed with the goal of making the best
possible estimate according to our mean squared error criterion. Final estimates are made with all
data that will be available; no additional data is expected prior to use of the estimate.

Interim estimates in an underground mining context may be considered as near-final estimates

depending on the flexibility of the mining method. If there is little future flexibility, then concerns of
conditional bias and Type I/II errors are important and estimates could be considered as final.

Visualization and Trend Model Estimates

Visualization and trend models include all models where the goal is a smooth, interpretable map of
the properties of interest. The purpose is to understand the entire spatial distribution of the property
being estimated, not discrete estimates one at a time as in resource and reserve estimation.
Visualization estimates are commonly used with geologic mapping to evaluate our conceptual
geologic model, and draw conclusions on the presence and nature of trends in the data. The
requirement for these models is that they be free of numerical artifacts to permit reliable
interpretation.

Probabilistic Prediction Estimates

Probabilistic predictions, including multigaussian kriging (Verly, 1984) and indicator
kriging (Journel, 1983) within an estimation or simulation context constitute the fourth type of
estimate. In this case, the kriging equations are used to construct a conditional probability
distribution at an unsampled location in the presence of correlated data. For multigaussian kriging,
the kriging equations are typically referred to as the normal equations. The normal equation
formalism is used throughout Gaussian and probabilistic geostatistics. The goal of probabilistic
predictions is to infer the most accurate set of probabilities, free from any conditional bias or
artifacts. Smoothing is not a concern since the predicted distribution represents the uncertainty and
variability.

Best Practice
As discussed earlier, best practice for all estimate types is to only apply estimation within a decided
stationary domain. All prerequisites including composite length selection, block size selection, and
stationary domain selection must be considered prior to estimation. The decision of stationarity has
typically been made long before the application of kriging; this decision is made as soon as data are
grouped together for analysis.

Best Practice: Interim Estimates

Best practice for interim estimates is to use a restricted search with ordinary kriging to compute
estimates that closely matches the anticipated grade tonnage curve (Parker, 1979). Ordinary kriging
provides direct control on the smoothing; a small number of data in the search will lead to a
histogram of estimates with little smoothing. The spatial distribution of estimates will always be
smooth, but the histogram of estimates can be controlled. The search should be restricted by limiting
the maximum number of data used to compute the kriging estimate. A known histogram of values at
the scale of interest (such as the selective mining unit size) is targeted. This histogram may be
calibrated from production data, if any are available, and by volume variance relations. The impact of
restricting the number of search data is sketched in the following figure.

Effect of restricting the maximum number of search data used in kriging estimates compared to
the target histogram. The maximum number of search data used for each histogram is annotated
(5, 10, 40). The desired histogram corresponds to the dispersion variance of blocks within the
domain.
There are additional considerations when restricting the search for ordinary kriging. The number of
data used from each drill hole may be restricted. This is common when making estimates in a 3D
domain with vertical drilling and a relatively short composite length; much more data is collected in
the vertical direction compared to the horizontal plane. A maximum per drill hole avoids using data
from only a single drill hole when making an estimate with very few data. The search range may also
be restricted; the range of the variogram is a common choice for the search range, but in practice
restricting the number of data used in an estimate is a more reliable method of restricting the search.

The consequence of restricting the number of data used in the kriging estimate is conditional bias.
High grade areas are overestimated because local high grade values are given more weight. Low
grade areas are correspondingly underestimated because of additional weight given to low grade
values. There will be no global bias and there should be no bias in ore tonnes and ore grade at the
targeted cutoff. Conditional bias is not a problem for interim estimates as they will be updated before
final decisions are made; however, care should be taken not to use this type of estimate for final
decisions.

Best Practice: Final Estimates

The kriging plan for final estimates is chosen to minimize mean squared error and conditional bias.
Best practice for making a final estimate is to use ordinary kriging with a large number of search data
to minimize the estimation error. Simple kriging is typically not as effective due to an overly strong
dependence on the global mean. This is shown in the following figure plotting the mean squared
error from cross validation as a function of the maximum number of search data used in kriging a
copper porphyry deposit. Using additional search data results in only a marginal improvement past a
certain amount of data, but does not result in a worse estimate. Specific concerns about stationarity
and performance measures are addressed later in this lesson.

Mean squared error in cross validation as a function of the number of search data included for a
copper porphyry deposit, using data from (Deutsch, Szymanski, & Deutsch, 2014).
The specific number of search data chosen when making a final estimate is a function of the
computational time required for the estimate. Choosing 40 search data in a 3D estimation context, or
24 in a 2D context, is often a reasonable number to balance the computational time and desire for
the best estimate. The number of data used weakly depends on the support of the data. More data of
small support could be considered.

The search range should be set at the variogram range or even larger to include the required number
of data. Often, production data are reasonably closely spaced and the effective search range that will
get the required number of data is reasonably small. Limiting the kriging search range to an arbitrary
value that excludes data from the estimate is not best practice. The search radius should consider the
variogram anisotropy.

Best Practice: Visualization and Trend Model Estimates

Best practice for visualization and trend model estimates is similar to final estimates. The goal of a
smoothly varying interpretable map is best met by kriging with a large search. Typically simple
kriging is used to reduce the impact of local means in sparsely sampled and peripheral areas which
could influence our interpretation. Ideally global kriging is used, but a very large number of search
data may be used if there are too many data for global kriging (about 10,000). Limiting the number
of search data results in “shadows” and numerical artifacts, as shown in the following figure.
Artifacts are visible particularly in the upper portion of the map which is undesirable for
interpretation.

Smoothly varying visualization map (left) and a restricted search map (right) with visible
shadows and artifacts.
Best Practice: Probabilistic Prediction Estimates
Probabilistic prediction estimates, including multigaussian and indicator kriging, are made with the
goal of inferring the best probability distribution. Best practice is to use a large search to include all
data that should influence the predicted probability distribution. Simple kriging is the correct kriging
type for prediction in a multivariate Gaussian context. This is true for both multigaussian kriging for
local uncertainty characterization or within simulation. Ordinary kriging is more often applied for
indicator kriging. Simple kriging is required to ensure covariance reproduction; however,
stationarity concerns are often considered more important and there are no strong theoretical
requirements as with the multivariate Gaussian distribution. Concerns such as over-smoothing for
interim estimates are not applicable in a probabilistic estimation context where the parameters of
probability distributions are being estimated. Limiting the number of search data results in
suboptimal estimates of the probability distributions.

Considerations
As kriging has been widely applied since the 1960s, a large number of specific considerations have
been discussed by geostatistical practitioners. Some of these considerations, including stationarity,
kriging performance measures, and multipass kriging are discussed here as they relate to best
practices for estimation.

What About Stationarity?

One might think that the number of search data should be reduced to account for local fluctuations
in stationarity. The logic is that a limited search will produce a better estimate of the local mean for
estimation. This has not been observed in practice; using more search data does not result in a worse
(higher mean squared error) estimate. The apparent improvement due to locally adapting to
variations in the mean is not backed up in jackknife, cross validation, or when checking with
production data. Final estimates benefit from a reasonably large number of data despite concerns
about smoothing.

What About Kriging Performance Measures?

Measures of kriging performance are variably popular. The slope of regression, kriging efficiencies,
the prevalence of negative weights, and weight to the simple kriging mean are often cited as
important measures and used in the selection of kriging plans (Vann, Jackson, & Bertoli, 2003).

The slope of regression of estimates against true values is used as an approximation of the
conditional bias of the kriging estimate. Simple kriging, which is an unbiased estimator, has a slope
of regression of exactly one. In ordinary kriging, where a Lagrange multiplier is used, the slope of
regression is typically less than one indicating a conditional bias. Increasing deviation from a slope of
one indicates an increased conditional bias. Although the slope of regression is often documented; it
is of little utility when choosing a kriging search plan. In an interim estimation context, the most
important parameter is matching the desired histogram. In a final, visualization, or probabilistic
estimation context, a very large number of search data is used to minimize the mean squared error
and conditional bias is essentially zero. Ideally the conditional bias is eliminated for a final estimate,
but this may not always be possible (Isaaks, 2005).

Kriging efficiency (Krige, 1997) is a measure of the proportion of variance explained. The related
measure of the statistical efficiency of kriging (Deutsch, Szymanski, & Deutsch, 2014) provides a
measure of the effectiveness of an estimator relative to the optimal global simple kriging estimator.
These measures may be mapped over the domain of interest. Application of these efficiency
measures for decision making is challenging due to large differences between mineral deposits (Rossi
& Deutsch, 2013). When mapped, the kriging efficiency is relatively low in sparsely sampled areas,
and high in densely sampled areas. It is evident that estimates are worse when data are widely
spaced. The kriging variance is a robust measure of data spacing and may be used in place of the
kriging efficiency.

What About Negative Kriging Weights?

Negative kriging weights are applied to data that are screened behind other data more highly
correlated to the location being estimated. Most negative kriging weights improve estimation
because local trends in the data are more accurately interpolated. There are concerns, however, when
the negative weights become extreme and when they cause negative grade estimates. Clearly,
negative grade estimates should be reset to zero. A significant proportion of negative estimates in an
estimated model implies that the variogram may have been modeled too continuously.

Closely related to negative kriging weights is the so-called string effect where samples at the ends of a
string of data receive more weight than data within the string. These strings of data are caused by the
search for data along a drill hole. Cross validation should identify this problem with some large
errors. Limiting the number of data used in the kriging plan per drill hole will mitigate this problem.

What About…?
There are some other considerations. In general, except for interim estimates, the practitioner
should err on the side of using more data in the kriging. The kriging equations will sort out the
optimal weight for the data; data far from the unsampled location or screened by closer data will not
receive any significant weight.

The use of multiple search passes is aimed at the important problem of classification and at
restricting estimation to use nearby data in areas of more data. This practice introduces artifacts
where one search strategy ceases to be satisfied and another is considered. Choosing a fairly large
search and restricting the maximum number of data accounts for varying data density. The estimates
may be better classified by data spacing calibrated to simulation-based uncertainty measures.

There may be a need to carefully clip a kriged model to avoid estimating too far from the data, below
the deepest drill holes or at the margins. There may be a need to account for soft boundaries and
many other practical details. These concerns warrant additional discussion, and will be addressed in
future lessons; this lesson forms an introduction to choosing a kriging plan.

References
Deutsch, J., Szymanski, J., & Deutsch, C. (2014). Checks and measures of performance for kriging
estimates. Journal of the Southern African Institute of Mining and Metallurgy, 114(3), 223–223.

Isaaks, E. (2005). The kriging oxymoron: A conditionally unbiased and accurate predictor (2nd
edition). In O. Leuangthong & C. V. Deutsch (Eds.), Geostatistics banff 2004 (Vol. 14, pp. 363–374).
Springer Netherlands.

Journel, A. G. (1983). Nonparametric estimation of spatial distributions. Journal of the

International Association for Mathematical Geology, 15(3), 445–468. Journal Article.

Journel, A. G., & Huijbregts, Ch. J. (1978). Mining geostatistics (p. 600). book, Blackburn Press.

Krige, D. (1997). A practical analysis of the effects of spatial structure and of data available and
accessed, on conditional biases in ordinary kriging. Geostatistics Wollongong, 96, 799–810.
Parker, H. (1979). The volume variance relationship: A useful tool for mine planning. Engineering
and Mining Journal, 180, 106–126.

Rossi, M. E., & Deutsch, C. V. (2013). Mineral resource estimation. Springer Science & Business
Media.

Vann, J., Jackson, S., & Bertoli, O. (2003). Quantitative kriging neighbourhood analysis for the
mining geologist–a description of the method with worked case examples. In 5th international
mining geology conference (Vol. 8, pp. 215–223). Bedigo: AUSIMM.

Verly, G. (1984). The block distribution given a point multivariate normal distribution. In G. Verly,
M. David, A. G. Journel, & A. Marechal (Eds.), Geostatistics for natural resources
characterization (pp. 495–515). Springer Netherlands.
