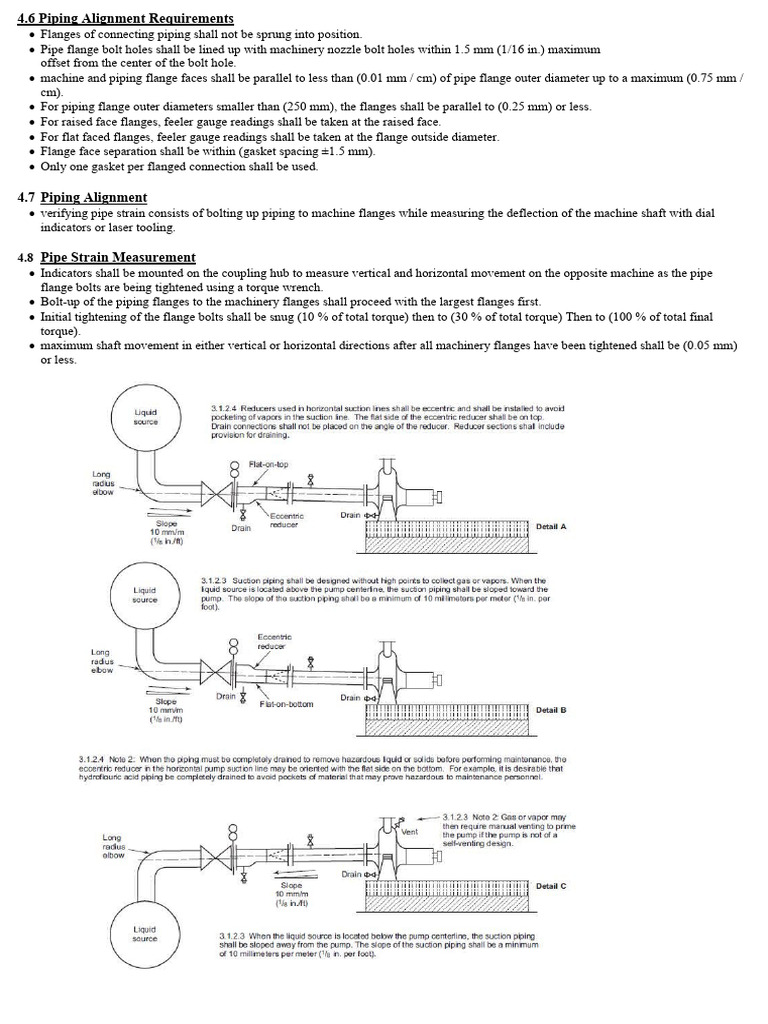

4.

6 Piping Alignment Requirements


 Flanges of connecting piping shall not be sprung into position.
 Pipe flange bolt holes shall be lined up with machinery nozzle bolt holes within 1.5 mm (1/16 in.) maximum
offset from the center of the bolt hole.
 machine and piping flange faces shall be parallel to less than (0.01 mm / cm) of pipe flange outer diameter up to a maximum (0.75 mm /
cm).
 For piping flange outer diameters smaller than (250 mm), the flanges shall be parallel to (0.25 mm) or less.
 For raised face flanges, feeler gauge readings shall be taken at the raised face.
 For flat faced flanges, feeler gauge readings shall be taken at the flange outside diameter.
 Flange face separation shall be within (gasket spacing ±1.5 mm).
 Only one gasket per flanged connection shall be used.

4.7 Piping Alignment


 verifying pipe strain consists of bolting up piping to machine flanges while measuring the deflection of the machine shaft with dial
indicators or laser tooling.

4.8 Pipe Strain Measurement


 Indicators shall be mounted on the coupling hub to measure vertical and horizontal movement on the opposite machine as the pipe
flange bolts are being tightened using a torque wrench.
 Bolt-up of the piping flanges to the machinery flanges shall proceed with the largest flanges first.
 Initial tightening of the flange bolts shall be snug (10 % of total torque) then to (30 % of total torque) Then to (100 % of total final
torque).
 maximum shaft movement in either vertical or horizontal directions after all machinery flanges have been tightened shall be (0.05 mm)
or less.
