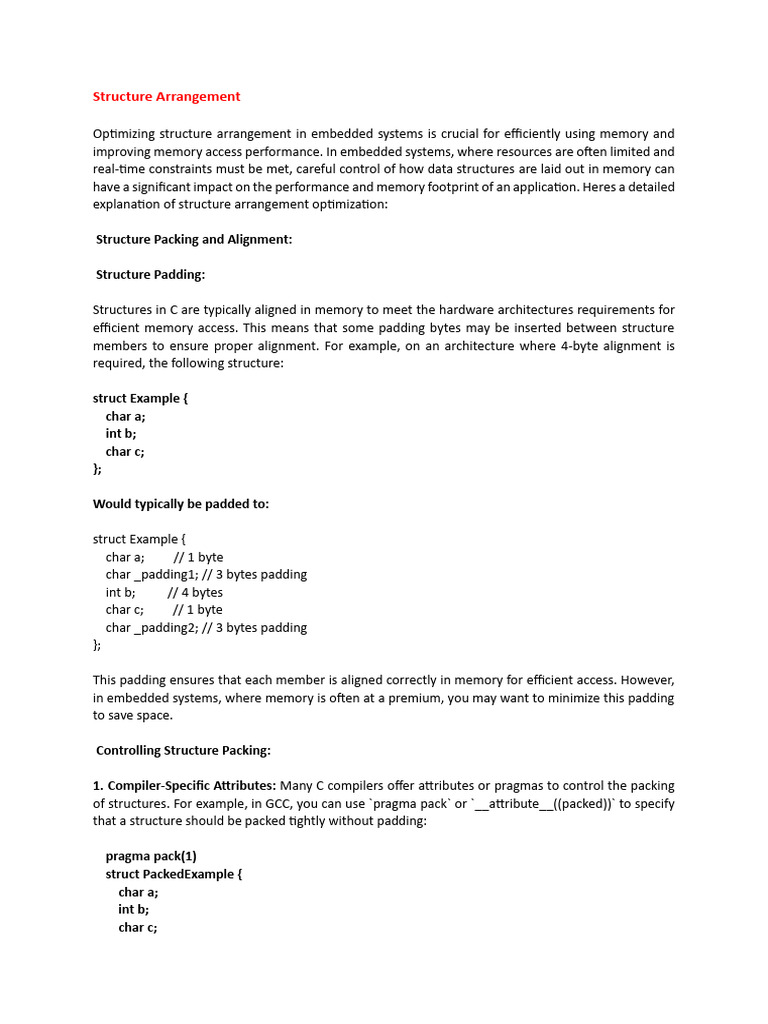

Structure Arrangement

Optimizing structure arrangement in embedded systems is crucial for efficiently using memory and
improving memory access performance. In embedded systems, where resources are often limited and
real-time constraints must be met, careful control of how data structures are laid out in memory can
have a significant impact on the performance and memory footprint of an application. Heres a detailed
explanation of structure arrangement optimization:

Structure Packing and Alignment:

Structure Padding:

Structures in C are typically aligned in memory to meet the hardware architectures requirements for
efficient memory access. This means that some padding bytes may be inserted between structure
members to ensure proper alignment. For example, on an architecture where 4-byte alignment is
required, the following structure:

struct Example {
char a;
int b;
char c;
};

Would typically be padded to:

struct Example {
char a; // 1 byte
char _padding1; // 3 bytes padding
int b; // 4 bytes
char c; // 1 byte
char _padding2; // 3 bytes padding
};

This padding ensures that each member is aligned correctly in memory for efficient access. However,
in embedded systems, where memory is often at a premium, you may want to minimize this padding
to save space.

Controlling Structure Packing:

1. Compiler-Specific Attributes: Many C compilers offer attributes or pragmas to control the packing
of structures. For example, in GCC, you can use `pragma pack` or `__attribute__((packed))` to specify
that a structure should be packed tightly without padding:

pragma pack(1)
struct PackedExample {
char a;
int b;
char c;
 };

2. Compiler Flags: Compiler flags can also be used to control structure packing. For instance, GCC
supports the `-mno-ms-bitfields` flag to disable Microsoft-style bitfields, which can lead to inefficient
packing.

3. Manual Packing: In situations where precise control over structure packing is required, you can
manually pack the structure by explicitly ordering the members to minimize padding. However, this
approach may be less portable and harder to maintain.

Alignment:

Proper alignment of data structures is essential for efficient memory access on most architectures.
Misaligned data access can result in performance penalties or even hardware exceptions. In embedded
systems, where performance is critical, you should be mindful of data alignment.

Controlling Alignment:

1. Compiler Attributes: Some compilers provide attributes to control alignment. For example, in GCC,
you can use `__attribute__((aligned(N)))` to specify the alignment of a structure:

struct AlignedStruct {
int a;
double b;
} __attribute__((aligned(16))); // Align to a 16-byte boundary

This can be especially useful when dealing with hardware registers or memory-mapped I/O.

2. Compiler Flags: Compiler flags can also be used to control alignment, but they may have
architecture-specific behavior. For example, GCC provides the `-malign-double` flag to align `double`
and `long double` types to 8 bytes, which can be essential on some platforms.

3. Manual Padding: In some cases, you may need to manually add padding to ensure proper
alignment, especially when dealing with custom hardware or communication protocols. This approach
requires careful consideration of the target architectures requirements.

Optimizing structure arrangement in embedded systems involves balancing memory efficiency and
access speed. You can control structure packing and alignment through compiler-specific attributes,
pragmas, flags, or manual adjustments. Careful consideration of the target architecture and the
specific requirements of your embedded application is crucial for achieving optimal memory usage
and performance.
Bit-fields:

Optimizing code in embedded systems requires careful consideration of various factors, including bit-
fields, unaligned data access, and endianness. These aspects play a crucial role in memory
management and data representation on resource-constrained embedded platforms. Here's a detailed
explanation of each of these optimization considerations:

Bit-fields allow you to specify the size of individual fields within a structure in terms of the number of
bits. This feature is especially valuable in embedded systems where memory is often limited, and you
need to efficiently use every bit of storage:

1. Memory Efficiency: Bit-fields can be used to pack data tightly, reducing memory usage. For example,
consider a data structure that represents configuration settings for a device:

struct Configuration {
unsigned int enableFeature1 : 1;
unsigned int enableFeature2 : 1;
unsigned int temperature : 10;
unsigned int reserved : 20;
};

2. Access Efficiency: While bit-fields help save memory, accessing individual bit-fields may require
additional instructions or bit manipulation operations. This can introduce some overhead in terms of
access time. However, in many embedded systems, the memory savings outweigh the access time
penalty.

3. Endian-Dependent: Be cautious when using bit-fields across different endianness platforms. The
arrangement of bits within a bit-field may differ, leading to compatibility issues when exchanging data
between systems with different endianness.

Unaligned Data and Endianness:

Unaligned Data Access:

Some processors have strict alignment requirements, meaning that data must be accessed at specific
memory addresses that are multiples of the data size (e.g., 2-byte alignment for 16-bit data, 4-byte
alignment for 32-bit data). Accessing data that is not correctly aligned can result in performance
penalties or even hardware exceptions:

1. Alignment Constraints: Compilers should generate code that adheres to the alignment
requirements of the target architecture. This ensures that data is accessed efficiently and without
alignment-related issues.

int alignedData; // Properly aligned on most platforms

 Some compilers provide attributes or pragmas to specify alignment explicitly, which can be beneficial
when dealing with hardware-specific alignment requirements.

Endianness Handling:

Endianness refers to the byte order in which multibyte data types are stored in memory. There are two
common types of endianness: big-endian and little-endian. It's essential to consider endianness when
dealing with data exchange between embedded systems with different architectures:

1. Endianness Conversion: In situations where data must be exchanged between systems with
different endianness, compilers often provide built-in functions or compiler flags to handle byte
swapping.

For example, GCC provides built-in functions like `__builtin_bswap16`, `__builtin_bswap32`, and
`__builtin_bswap64` for byte swapping of 16, 32, and 64-bit values, respectively.

2. Endian-Dependent Code: Be cautious when writing code that relies on specific endianness. If
portability across different architectures is a concern, consider using byte manipulation techniques or
predefined macros to ensure correct data representation.

Division:

Division operations can be relatively slow and resource-intensive on some embedded platforms.
Optimizing division is crucial to improve overall performance and resource efficiency:

1. Strength Reduction: Compilers often apply strength reduction techniques to replace division
operations with faster operations like multiplication or bitwise shifts. For example, instead of dividing
by 2, compilers will generate code to shift bits right by 1 position.

// Original division
result = value / 2;

// Strength reduction (compiler optimization)

result = value >> 1; // Equivalent, but faster

2. Constant Division: When the divisor is a constant value, compilers can often perform the division at
compile-time, further improving performance:

// Constant division
result = value / 4; // Compiler can compute this as value >> 2

3. Look for Recurrence: In some cases, division operations can be transformed into a series of additions
or subtractions that reduce the number of actual division operations. This technique, called
recurrence, can be applied in cases where it provides a performance benefit.
4. Use Hardware Division: If the target hardware provides hardware-accelerated division instructions
(e.g., an FPU), compilers can generate code that utilizes these instructions, resulting in significantly
faster division operations.

Floating Point:

Floating-point operations can be resource-intensive on embedded systems, where hardware support

for floating-point may be limited or non-existent:

1. Floating-Point Unit (FPU) Usage: If the target embedded platform includes an FPU, compilers should
be configured to generate code that leverages the FPU for floating-point operations. This can lead to
substantial performance improvements.

2. Floating-Point Emulation: In cases where there is no FPU available, compilers may provide options
to use software-based floating-point emulation libraries. While this adds overhead, it allows you to
perform floating-point calculations on platforms lacking native support.

3. Fixed-Point Arithmetic: In some embedded systems, using fixed-point arithmetic instead of floating-
point can significantly improve both performance and code size. Fixed-point numbers can be
represented and manipulated as integers, reducing the need for costly floating-point operations.

Inline Functions and Inline Assembly:

Embedded systems often require low-level control over hardware, and inline functions and assembly
code can be powerful tools for optimization:

1. Inline Functions: Compilers support inline functions that can be expanded at the call site, reducing
function call overhead. This is beneficial for small, frequently called functions in embedded systems.
Use the `inline` keyword or compiler-specific attributes to hint to the compiler that a function should
be inlined.

inline int add(int a, int b) {

return a + b;
}

2. Inline Assembly: In situations where direct hardware control is required, compilers allow inline
assembly code. This code is written in assembly language and can be used for architecture-specific
optimizations or direct hardware interaction.

int result;
asm volatile (
"MUL %[value1], %[value2], %[result]" :
[result] "=r" (result) :
[value1] "r" (a), [value2] "r" (b)
);
3. Caution with Inline Assembly: While inline assembly can provide significant optimization
opportunities, it should be used sparingly, as it can make code less portable and harder to maintain.

Portability

Portability is a significant concern when optimizing code for embedded systems. Embedded systems
often use specific hardware platforms and may have different architectures, making it essential to
consider how optimizations affect code portability across different systems. Here's a detailed
explanation of portability issues and considerations in embedded systems:

Portability Concerns in Embedded Systems:

1. Architecture Differences: Embedded systems can use various CPU architectures (e.g., ARM, x86,
MIPS, RISC-V), each with its own instruction set and optimization characteristics. Code optimized for
one architecture may not perform well on another or may not even be compatible.

2. Compiler Variations: Different C compilers for the same architecture may produce different
assembly code and optimizations. This can lead to portability issues when switching compilers or when
the same code is compiled with different compiler versions.

3. Operating Systems: Some embedded systems run on real-time operating systems (RTOS), while
others operate with bare-metal code. The presence or absence of an OS can impact code portability,
especially if code relies on OS-specific features.

4. Hardware Dependencies: Many embedded systems interact closely with specific hardware
peripherals and memory-mapped registers. Code that directly accesses hardware is often highly non-
portable and may need significant changes when ported to a different system.

Strategies for Addressing Portability Issues:

1. Use Compiler Flags: Compilers provide flags to specify the target architecture and enable or disable
specific optimizations. These flags help ensure that the code generated by the compiler is tailored to
the target system. However, be cautious when using non-standard flags, as they can limit portability.

2. Conditional Compilation: The use of preprocessor directives like `ifdef` can help isolate architecture-
specific code, ensuring that it's only compiled when targeting a specific architecture or platform.

ifdef TARGET_ARM
// ARM-specific code
endif

3. Abstraction Layers: Implementing hardware abstraction layers (HALs) or using hardware abstraction
libraries can provide a common interface to hardware peripherals. These abstractions can make it
easier to port code across different hardware platforms by isolating hardware-specific code.

4. Write Portable Code: Strive to write code that adheres to C and C++ standards without relying on
compiler-specific or architecture-specific features. Avoid using non-standard language extensions or
compiler-specific optimizations unless they are critical for performance and portability can be
maintained.

5. Testing and Validation: Rigorous testing and validation on the target hardware are essential to
ensure that the code behaves correctly and efficiently on the specific embedded platform. This helps
identify and address any portability issues early in the development process.

6. Profile and Refine: Profiling the code on the target hardware can reveal performance bottlenecks
and architecture-specific issues. After profiling, you can refine the code to optimize for the target
system while maintaining portability.

7. Documentation: Clearly document any architecture-specific or platform-specific code, as well as any

compiler flags or optimization options that were used. This documentation can be invaluable when
porting the code to different systems or when revisiting the code in the future.
 ARM programming using Assembly Language
ARM assembly language programming is a low-level programming language used to write
code for ARM microprocessors, which are commonly used in embedded systems, mobile
devices, and other applications. Writing ARM assembly code, profiling, and cycle counting are
essential aspects of developing efficient and optimized code for ARM-based systems. Here's
an explanation of each of these components:

Writing Assembly Code for ARM:

1. Instruction Set Architecture (ISA): ARM processors support various instruction set
architectures, such as ARMv6, ARMv7, ARMv8, etc. The choice of ISA depends on the specific
ARM processor you are targeting. Each ISA has its own set of instructions and features.

2. Registers: ARM processors have a set of general-purpose registers (R0-R15), and specific
registers serve particular purposes (e.g., program counter, stack pointer, status register).
Understanding the register architecture is essential when writing assembly code.

3. Data Types: ARM assembly supports various data types, including integers, floating-point
numbers, and vectors. You need to specify the appropriate data type and register when
performing operations.

4. Condition Codes: ARM instructions can set condition codes (flags) based on the results of
operations. These condition codes are used for conditional branching and control flow in your
code.

5. Load and Store Instructions: Memory access in ARM assembly is primarily performed using
load (LDR) and store (STR) instructions. You need to specify memory addresses and data
registers correctly when using these instructions.

6. Branch Instructions: Control flow in assembly code is managed using branch (B)
instructions. You use branch instructions to jump to different parts of your code based on
conditions or to call functions.

7. Procedure Calls: ARM assembly uses a stack to manage procedure calls. When you call a
function, you typically push relevant registers onto the stack and pop them when returning
from the function.

8. Directives: Assembly code often includes directives for defining constants, data sections,
and other non-executable parts of the code. Directives vary depending on the assembly
language syntax (e.g., ARM Assembly, Thumb-2).
Profiling and Cycle Counting:

Profiling and cycle counting are crucial for optimizing ARM assembly code:

1. Profiling: Profiling involves measuring the performance of your code to identify bottlenecks
and areas that can be optimized. Profiling tools, such as profilers and instrumentation code,
can help you gather data on execution time, memory usage, and function call frequencies.

2. Cycle Counting: In assembly language programming, understanding the number of clock

cycles required for each instruction is essential for precise timing and optimization. ARM
processors have predictable instruction timings, which allows you to estimate the execution
time of your code accurately.

- To perform cycle counting, you need to consult the processor's technical reference manual,
which provides cycle counts for each instruction.

- You can use cycle counting to optimize code for minimal execution time, especially in real-
time systems where timing is critical.

Optimization Techniques:

When writing ARM assembly code, you can employ several optimization techniques:

1. Instruction Selection: Choose instructions that execute efficiently on the target processor.
Use conditional execution and predication to minimize branching.

2. Register Allocation: Efficiently use registers and minimize memory accesses. Carefully
manage the register stack and avoid excessive register spills.

3. Loop Optimization: Optimize loops by unrolling, vectorizing, or using loop-related

instructions like `LDMDA` and `STMDA`.

4. Data Alignment: Ensure proper data alignment to improve memory access performance.

5. Branch Prediction: Understand the branch prediction behavior of your processor and
structure your code to minimize branch mispredictions.

6. Pipeline Optimization: Write code that minimizes pipeline stalls and optimizes instruction
scheduling.

7. Use Intrinsics: Some ARM processors support SIMD (Single Instruction, Multiple Data)
operations through intrinsics. These allow you to write high-performance code that operates
on multiple data elements in parallel.

8. Inline Assembly: Use inline assembly code for architecture-specific optimizations when
necessary.
Profiling and cycle counting help identify performance bottlenecks, and optimization
techniques help you write efficient code that meets the performance requirements of your
ARM-based system.

Instruction Scheduling:

Instruction scheduling in ARM assembly involves arranging instructions in a way that

minimizes pipeline stalls and maximizes the utilization of execution units within the processor.
Key considerations for instruction scheduling include:

- Dependency Analysis: Identify data dependencies between instructions. Instructions that

depend on the results of previous instructions cannot be executed until those results are
available.

- Instruction-Level Parallelism (ILP): ARM processors often have multiple execution units, such
as arithmetic/logic units and load/store units. Exploit ILP by scheduling independent
instructions to execute in parallel.

- Avoiding Pipeline Stalls: Minimize situations that cause pipeline stalls, such as cache misses,
branch mispredictions, or data hazards. You can use techniques like instruction reordering,
loop unrolling, and software pipelining to mitigate stalls.

- Optimizing Memory Access: Arrange memory operations strategically to minimize memory

latency and improve cache locality. For instance, load instructions can be scheduled earlier to
overlap with other computations.

Register Allocation:

Register allocation is essential for efficient use of CPU registers in ARM assembly. ARM
processors typically have a limited number of registers, and managing them effectively is
crucial for performance optimization. Considerations for register allocation include:

- Use of Registers: Select registers judiciously for temporary variables and frequently used
values. Minimize register spills (saving values to memory) to prevent memory access delays.

- Avoiding Register Overuse: Be mindful of register pressure, especially in loops and functions
with many local variables. If you run out of registers, it can lead to spills and reloads, which
impact performance.

- Register Renaming: Some ARM processors support register renaming, where the hardware
provides additional "virtual" registers, reducing the likelihood of register pressure.

Conditional Execution:

ARM assembly offers a unique feature called "conditional execution," which allows
instructions to be executed based on the state of condition flags (e.g., zero flag, carry flag).
This feature can improve code efficiency:
- Use of Condition Codes: Conditionally execute instructions when appropriate. For example,
you can execute an instruction only if a certain condition is met, reducing the need for explicit
branches.

- Avoiding Unnecessary Branches: Minimize branch instructions when conditional execution

can achieve the same result more efficiently.

Looping Constructs:

Loops are fundamental in programming, and optimizing loops in ARM assembly can lead to
substantial performance improvements:

- Loop Unrolling: Unrolling a loop involves replicating loop code to reduce the number of
branches and overhead associated with loop control. It can improve instruction-level
parallelism and eliminate some loop control overhead.

- Loop Tiling: Divide large loops into smaller blocks, or tiles, to improve cache usage and
reduce memory access latency. This is particularly relevant when optimizing for memory-
bound operations.

- Vectorization: Some ARM processors support SIMD (Single Instruction, Multiple Data)
operations. Use vectorized instructions and data to perform multiple computations in parallel
within a loop.

- Loop Exit Conditions: Optimize loop exit conditions to minimize overhead. Avoid redundant
checks and use the simplest and fastest condition that satisfies the loop's requirements.

- Use of Loop Counters: Utilize loop counters efficiently to minimize the number of
instructions required to control the loop.
