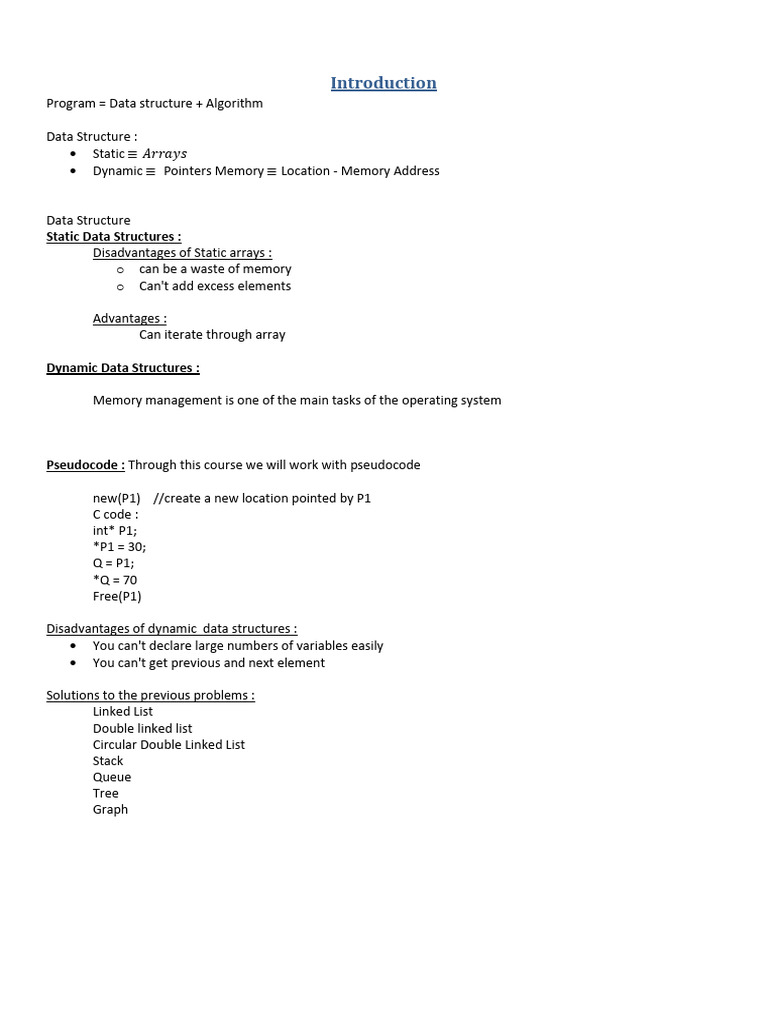

Introduction

Program = Data structure + Algorithm

Data Structure :
 Static ≡ 𝐴𝑟𝑟𝑎𝑦𝑠
 Dynamic ≡ Pointers Memory ≡ Location - Memory Address

Data Structure
Static Data Structures :
Disadvantages of Static arrays :
o can be a waste of memory
o Can't add excess elements

Advantages :
Can iterate through array

Dynamic Data Structures :

Memory management is one of the main tasks of the operating system

Pseudocode : Through this course we will work with pseudocode

new(P1) //create a new location pointed by P1

C code :
int* P1;
*P1 = 30;
Q = P1;
*Q = 70
Free(P1)

Disadvantages of dynamic data structures :

 You can't declare large numbers of variables easily
 You can't get previous and next element

Solutions to the previous problems :

Linked List
Double linked list
Circular Double Linked List
Stack
Queue
Tree
Graph
 Linked Lists

Initialize(list)
//create new empty linked list
list = Null

__________________
Add(list, x)
new(P)
P->data = x
P->Next = list
List = P
Searching Linked Lists :
Fig 3.1

Search(list, x, found)
P = list
While(P!=NULL) and (P->data != x)
P = P->Next
If(P==NULL)
Found = False
Else
Found = True
Deleting from Linked List:
Fig 3.2

Delete(list, x, Done)
q=p=list
While((p!=NULL) and (p->data != x))
q=p
p=P->Next
If(p==null)
Done = False
Else
Done = True
q->Next = p->Next
If(list==p)
List=list->Next
Free(p)
 Double Linked List and Circular Double Linked List
Fig 3.3

Circular linked list is better than double

 If you want to get last node you just move backwards from First node

Search Circular Double Linked List :

Search(CDList, x, found)
found = false
If(CDList != NULL)
P = CDlist

Do
If(P->Data == x)
found = true
Else
P = P->Next
While((P!= CDList) and (found ==false))
 Stack

Fig 5.1

Input order : 20, 10, 50, 30

Output order : 30, 50, 10, 20
Last in first out(LIFO)

Uses of stack :
1. ALU(Arithmetic and Logic Unit)
2. Expression Evaluation
By converting infix notation to postfix notation, then putting the operands and operators on stack
Example : (a+b) / (c-d)
Postfix notation : ab+cd-/
3. Recursion

Fig 5.2 : Growing of Stack

Operations on Stack :

Initialize(S)
// create new empty stack S
S = NULL

Push(S, x)
New P
P->data = x
p->next = S
S=P
Fig 5.3 Push Operation
Pop(S, x, Empty)
If(S==NULL)
Empty = True
Else
{
Empty = False
X = S->data
P=S
S = S->Next
Free(P)
}
Fig 5.4 : Pop Operation
Implementing a search operation on a stack using the Stack interface :
Search(S, y, found)
Intialize(T)
Pop(S, x, Empty)
While(Empty==False and x!=y )
{
Push(T, x)
Pop(S,x, Empty)
}
If(Empty==True)
Found=Flase
Else
{
Found = True
Push(S, x)
}

//putting back the elements that were popped :

Pop(T,x, Empty)
While(Empty==False)
{
Push(S,x)
Pop(T,x, Empty)
}

Stack Serch(Modified by Fady) :

Search(Stack, y, found)
Intialize(TempStack)
Pop(Stack, x, Empty)
While(Empty==False and x!=y )
{
Push(TempStack, x)
Pop(Stack,x, Empty)
}

found = !Empty

If(!Empty)
Push(Stack, x)

//putting back the elements that were popped :

Pop(TempStack,x, Empty)
While(Empty==False)
{
Push(Stack,x)
Pop(TempStack ,x , Empty)
}
 Queue

Input : 20, 50, 10, 30

Output : 20, 50, 10, 30

First In - First Out(FIFO)

Uses of Queue :
 CPU Scheduling
 Queue Simulation
o Flow Rate
o Waiting Time
o Average Waiting Time
o Queue Length
 Queuing Theory
 Operation Research
 Multi Queue - Multi Server
Operations on Queue :

Initialize(Q)
H = T = NULL

Add(Q, X)
New(P)
P->data = X
P->Next = NULL
If(T==NULL)
H=T=P
Else
T->Next = P
T=P
Remove(Q, X, Empty)
If(H==NULL)
Empty = True
Else
Empty = False
X = H->data
P=H
H = H->Next
If(H==NULL)
T = NULL
Free(P)
Search(Q, Y, found)
Initialize(T) //Temporary Queue
Found = false
Remove(Q, X, Empty)
While(Empty==False)
{
If((X==Y)
Found = True
Add(T, X)
Remove(Q, X, Empty)
}

Remove(T, X, Empty)
While(Empty==False)
{
Add(Q, X)
Remove(T, X, Empty)
}
Trees
The previous binary tree can be redrawn simplified :
Binary Search Trees :

By adding the following Elements in order :

50, 10, 70, 15, 30, 55, 60, 90, 12, 100, 95, 25, 28, 50
The resulting binary search tree is :

Balanced Binary Trees :

A binary tree is balanced when the difference in height between it's left and right subtrees is not more than 1

Diff( height(left) - height(right) ) = ±1

Example of balanced binary search trees :

AVL Tree(Adelson-Velskii and Landis' tree, named after the inventors)
It is a self-balancing binary search tree
Tree Algorithms :

Search(Root, x, found)
{
P = Root
While((P!=NULL) and (P->data!=x))
{
If (x>P->data)
P = P->right;
else
p=p->left;
}
If(p==NULL)
Found=false;
Else
Found = true;
}

Add(root, x)
{
New(q);
q->data = x;
q->left = q->right = NULL;
If(root==NULL)
Root = q;
Else
{
P1=P2 = Root
While(P1!=NULL)
{
P2 = P1;
If (x>P1->data)
P1 = P1->right;
else
p1=p1->left;
}
If(x>p2->data)
P2->right = q;
Else
P2->left = q;
}
}
Tree Traversal :

Preorder(Root) Inorder(root) Postorder(root)

If(root!=NULL) If(root!=NULL) If(root!=NULL)

{ { {
Print(root->data) Inorder(root->left) Postorder(root->left)
Preorder(root->left) Print(root->data) Postorder(root->right)
Preorder(root->right) Inorder(root->right) Print(root->data)
} }
}

50, 10, 15, 12, 30, 25, 28, 50, 70, 10, 12, 15, 25, 28, 30, 50, 55, 60, 12, 28, 25, 50, 30, 15, 10, 60, 55, 95, 100, 70,
55, 70 50
60, 90, 100, 95 90, 95, 100

Advantages of search trees :

Search O(𝑙𝑜𝑔2 𝑛)
For example : finding an element a binary search tree of 1000,000 nodes can be done in no more than
𝑙𝑜𝑔2 1000000 = 20 steps !

Traversal like problems :

Example :
 sum of all the elements of the tree
 Count the nodes of the tree

Using Binary Trees to convert mathematical infix expression to postfix expression :

Consider the following mathematical expression :
𝑎+𝑏
𝑐 −𝑑

It's postfix Equivalent is :

𝑎𝑏 + 𝑐𝑑 −/

Can be obtained by using postorder traversal of the following tree :

 Graphs

Note : in graph node label cannot be repeated

Graph Concepts :

Node
Node Label
1
a b

2 3
c d
Branch
(Edge)
4 5
Directed Graph

Undirected(Bidirectional) Graph

0
12

20
1 2
50
Weight
3 30
13

80
4 6

90
Complete Graph
5

Weighted Graph

Representation of Graphs :
The graph can be represented using :
 Adjacency Matrix
 Adjacency List

Sparse Matrix : In very large graphs it is inefficient to represent the whole matrix
It is more efficient to use sparse matrix instead
Note that Undirected(Bidirectional) graph is represented by a symmetric matrix
Notice that matrix Representation of Directed Graph is not symmetric

Note : In an undirected graph, half of the matrix is enough to represent the graph
Traversal of Graphs :

Consider the following graph :

Breadth First Search(BFS) : 1 → 2 → 3 → 5 → 4

Depth First Search(DFS) : 1 → 2 → 5 → 3 → 4
