VOLKSWAGEN Polo V 1.

4 MPI (CGGB) 2010 - 2014 June 03, 2023

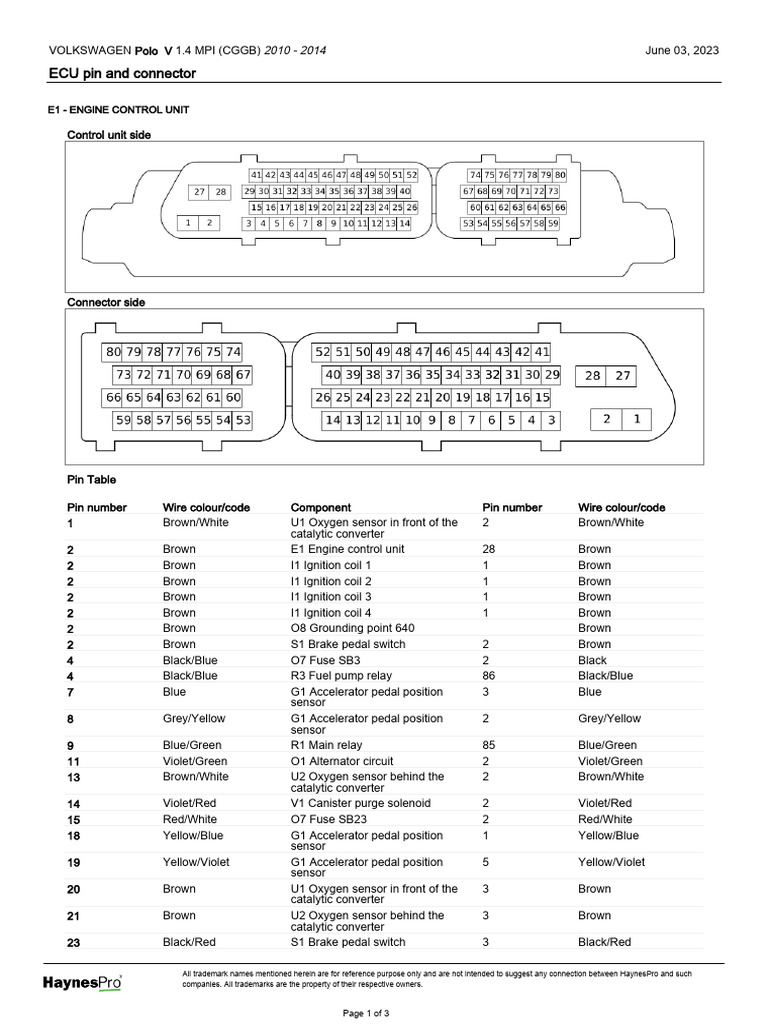

ECU pin and connector

E1 - ENGINE CONTROL UNIT

Control unit side

Connector side

Pin Table

Pin number Wire colour/code Component Pin number Wire colour/code

1 Brown/White U1 Oxygen sensor in front of the 2 Brown/White
catalytic converter
2 Brown E1 Engine control unit 28 Brown
2 Brown I1 Ignition coil 1 1 Brown
2 Brown I1 Ignition coil 2 1 Brown
2 Brown I1 Ignition coil 3 1 Brown
2 Brown I1 Ignition coil 4 1 Brown
2 Brown O8 Grounding point 640 Brown
2 Brown S1 Brake pedal switch 2 Brown
4 Black/Blue O7 Fuse SB3 2 Black
4 Black/Blue R3 Fuel pump relay 86 Black/Blue
7 Blue G1 Accelerator pedal position 3 Blue
sensor
8 Grey/Yellow G1 Accelerator pedal position 2 Grey/Yellow
sensor
9 Blue/Green R1 Main relay 85 Blue/Green
11 Violet/Green O1 Alternator circuit 2 Violet/Green
13 Brown/White U2 Oxygen sensor behind the 2 Brown/White
catalytic converter
14 Violet/Red V1 Canister purge solenoid 2 Violet/Red
15 Red/White O7 Fuse SB23 2 Red/White
18 Yellow/Blue G1 Accelerator pedal position 1 Yellow/Blue
sensor
19 Yellow/Violet G1 Accelerator pedal position 5 Yellow/Violet
sensor
20 Brown U1 Oxygen sensor in front of the 3 Brown
catalytic converter
21 Brown U2 Oxygen sensor behind the 3 Brown
catalytic converter
23 Black/Red S1 Brake pedal switch 3 Black/Red

All trademark names mentioned herein are for reference purpose only and are not intended to suggest any connection between HaynesPro and such
companies. All trademarks are the property of their respective owners.

Page 1 of 3
VOLKSWAGEN Polo V 1.4 MPI (CGGB) 2010 - 2014 June 03, 2023

ECU pin and connector

Pin number Wire colour/code Component Pin number Wire colour/code

26 Blue/Yellow R3 Fuel pump relay 85 Blue/Yellow
27 Black/Yellow O7 Fuse SB35 2 Black/Yellow
28 Brown E1 Engine control unit 2 Brown
28 Brown I1 Ignition coil 1 1 Brown
28 Brown I1 Ignition coil 2 1 Brown
28 Brown I1 Ignition coil 3 1 Brown
28 Brown I1 Ignition coil 4 1 Brown
28 Brown O8 Grounding point 640 Brown
28 Brown S1 Brake pedal switch 2 Brown
29 Grey/White E6 Power supply control unit C 37 Grey/White
31 Orange/Black O2 CAN system H Orange/Black
32 Orange/Brown O2 CAN system L Orange/Brown
33 Brown/Green G1 Accelerator pedal position 4 Brown/Green
sensor
38 White/Red S3 Clutch switch 1 White/Red
45 Brown/Red G1 Accelerator pedal position 6 Brown/Red
sensor
46 Green U1 Oxygen sensor in front of the 4 Green
catalytic converter
47 Green U2 Oxygen sensor behind the 4 Green
catalytic converter
51 Black/Green S1 Brake pedal switch 1 Black/Green
53 White X4 Crankshaft position sensor (Hall 2 White
Effect/MRE type)
54 Brown/Blue L4 MAP and air temperature sensor 1 Brown
54 Brown/Blue T1 Coolant temperature sensor 2 Brown
54 Brown/Blue X5 Camshaft position sensor (Hall 3 Brown
Effect/MRE type)
55 Black H3 Throttle control motor with 2 Black
position sensor
55 Black X5 Camshaft position sensor (Hall 1 Black
Effect/MRE type)
56 Green L4 MAP and air temperature sensor 2 Green
57 Green/Brown I1 Ignition coil 1 4 Green/Brown
59 Violet/Green A1 Injector 2 2 Violet/Green
60 Yellow X5 Camshaft position sensor (Hall 2 Yellow
Effect/MRE type)
61 White H3 Throttle control motor with 6 White
position sensor
62 Red/Green L4 MAP and air temperature sensor 3 Red/Green
62 Red/Green X4 Crankshaft position sensor (Hall 1 Green
Effect/MRE type)
63 Blue I2 Knock sensor 2 Blue
65 Violet/Blue A1 Injector 4 2 Violet/Blue
66 Brown H3 Throttle control motor with 5 Brown
position sensor
67 Brown X4 Crankshaft position sensor (Hall 3 Brown
Effect/MRE type)
68 Grey H3 Throttle control motor with 1 Grey
position sensor
70 Brown/White L4 MAP and air temperature sensor 4 Brown/White
71 Violet/Black I1 Ignition coil 3 4 Violet/Black
72 Green/Yellow I1 Ignition coil 2 4 Green/Yellow
73 Violet/Yellow A1 Injector 3 2 Violet/Yellow
74 Blue T1 Coolant temperature sensor 1 Blue
75 Green H3 Throttle control motor with 4 Green
position sensor
76 Black/Yellow I1 Ignition coil 4 4 Black/Yellow

All trademark names mentioned herein are for reference purpose only and are not intended to suggest any connection between HaynesPro and such
companies. All trademarks are the property of their respective owners.

Page 2 of 3
VOLKSWAGEN Polo V 1.4 MPI (CGGB) 2010 - 2014 June 03, 2023

ECU pin and connector

Pin number Wire colour/code Component Pin number Wire colour/code

77 Grey I2 Knock sensor 1 Grey
79 Violet/Brown A1 Injector 1 2 Violet/Brown
80 Blue H3 Throttle control motor with 3 Blue
position sensor
