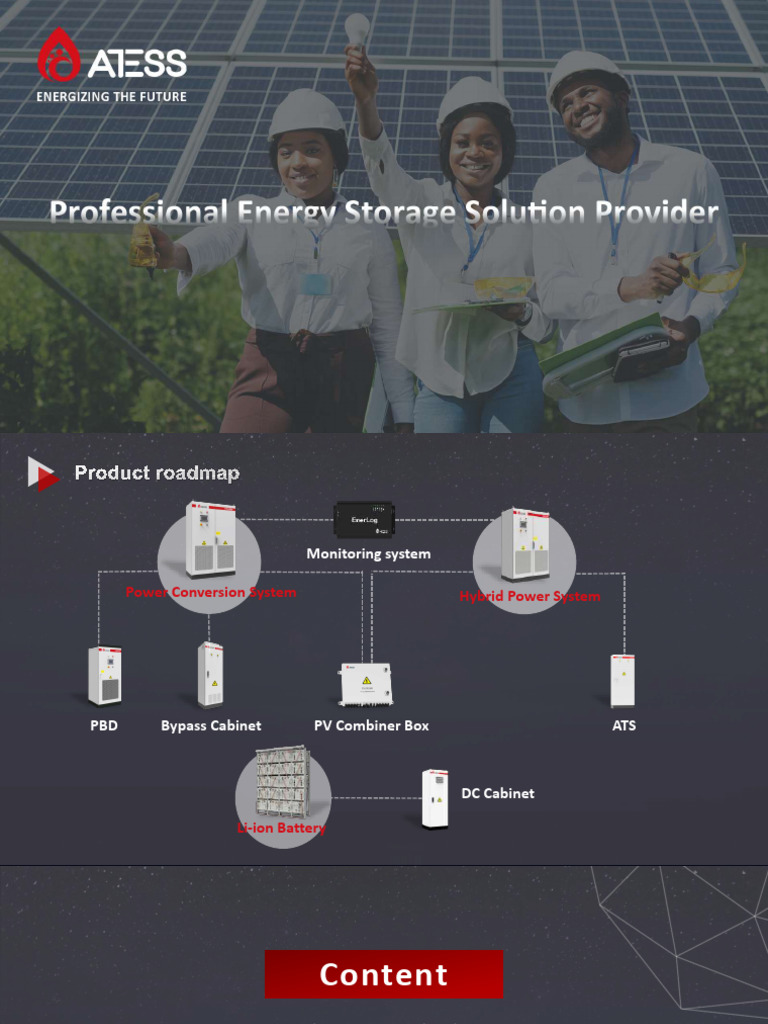

Monitoring system

Power Conversion System Hybrid Power System

PBD Bypass Cabinet PV Combiner Box ATS

DC Cabinet

Li-ion Battery
 Content
1. Medium to Large Scale Solutions
2. Medium Scale Solutions
3. Small Scale Solutions
4. Battery Solutions
5. Monitoring Solutions
6. New-generation solutions
 01
Medium to Large Scale Solutions
Bi-directional Battery Inverter

◼ Full capacity range

100/250/500/630kW single unit

◼ Flexible configuration
Can be used alone or combined with other devices for different purpose

◼ Expandable
Multiple in parallel to form MW level system

◼ Touch screen
Convenient for parameter setting and viewing
Solar Charge Controller

◼ Modular design
Multiple paralleling, easy maintenance

◼ Up to 5 MPPTs
Flexible PV array design, high yields
◼ Scalable
Configure MW level system by paralleling multiple units
On/off-grid Switching and Energy
Management Unit
◼ Seamless transfer
10ms switching time, reliable supply

◼ Comprehensive sensors
Load, PV, grid, battery sensors inbuild
◼ Energy management
Communicate and control PCS or other system units

◼ Flexible customization
For different application
 PV-CB8/16M

◼Lightning protection

◼Optional string monitoring function

◼IP65 environment compatibility

◼Flexible design, 8, 16 inputs optionalRS485 communication interface

◼Input fuse for over current protection

 Weather Station

◼Pyranometer

◼Wind direction sensor

◼Wind speed sensor

◼Environment temperature sensor

◼PV module temperature sensor

Large Scale Off-grid：
Remote islands or villages where grid is not
available, solar storage system works as the main
power source, DG as backup, the solution can
reduce fuel cost and air pollution

Features：
1. DC coupled, more stable and reliable

2. Modular design, easier system expansion

3. Firm new energy, improve power quality

AC coupled system, work with third party PV inverters
1. PCS selection: Peak load power should be lower than the rated power of PCS
Note: If the load contains too much inductive load, either add VFD to the load, or increase the capacity of
the PCS according to the actual situation.

2. Bypass selection: If the grid is not stable or there is generator

Note: The number of Bypass should be equal to PCS

3. Battery selection: LFP and Lead-acid are available

Note:
-Lead-acid: No BMS system
-LFP: Should match ATESS BMS protocol
-The battery voltage should be within the battery range of PCS (Min ~ Max)
-Back up time: When only battery run the load, How much load and how long does the battery need to run?
-Confirm the discharging power of the battery can meet the peak load demand (Unless pure on grid)
-Usable energy of battery = Nominal battery energy * Battery DOD * Inverter efficiency * (1 - Cables loss)
-When there are too many battery strings, DC combiner is required
4. PBD selection: Depends on the total PV capacity
Note:
-PV charging power = Usable battery energy/Charging efficiency/Insolation

https://www.gaisma.com/en/
-Total PV power = PV charging power + PV power running the load (Within the insolation time)
-Recommended PV power = 1.1 * Total PV power
-The MPPT voltage of PV string should be within 480~850V
-Recommended MPPT voltage of PV string is about 500V
-The open circuit voltage of PV string should lower than the nominal voltage of battery
-Each PBD has 5 MPPT, different MPPT can accept different orientations and angles

5. PV combiner box selection

Note: According the above calculation results, you can get the selection of PV combiner box
 02
Medium Scale Solutions
All-in-one Solar Hybrid Inverter

◼ Seamless on/off grid transfer 20ms

◼ Compact design

◼ Touchscreen 7″

◼ Support remote control of DG

◼ Programmable working mode

◼ Support multi-machine parallel

= + +

1=3 smart integrated solution

Automatic transfer switch

◼HPS compatible

◼Transfer automatically between grid and generator

◼Flexible management

◼Support remote control of generator

Back-up：
Storage battery provide back up power supply
for unstable grid, during grid failure, seamless
switches to off-grid mode within 20ms to realize
uninterruptable supply

Features：
1. Seamless transfer, reliable and
uninterruptable

2. Comprehensive battery protection

3. Automatic disconnection and reconnection

System advantages:
• Reduce the overall investment in the power station.

• Utilize the PV power generation of the system to

reduce the power demand of the grid and reduce the
cost of grid electricity.

• The installation position is flexible. There is only one

set of 485 communication cables between the meter
and the HPS. The length of the communication cable
can be up to 1KM.

• Clear management, you can get the electricity

consumption of critical loads and non-critical loads
(daily, monthly, cumulative), as well as the electricity
consumption distribution of the power grid.
AC coupled system, work with third party PV inverters
1. HPS selection: Peak load power should be lower than the rated power of HPS
Note: If the load contains too much inductive load, either add VFD to the load, or increase the capacity of
the HPS according to the actual situation.

2. ATS selection: If the grid and the generator will be connected to the system at the
same time
Note: The power of HPS should be lower than the power of ATS

3. Battery selection: LFP and Lead-acid are available

Note:
-Lead-acid: No BMS system
-LFP: Should match ATESS BMS protocol
-The battery voltage should be within the battery range of HPS (Min. 352V ~ Max. 600V)
-Back up time: When only battery run the load, How much load and how long does the battery need to run?
-Confirm the discharging power of the battery can meet the peak load demand (Unless pure on grid)
-Usable energy of battery = Nominal battery energy * Battery DOD * Inverter efficiency * (1 - Cables loss)
-When there are too many battery strings, DC combiner is required
4. PV calculation: Depends on the total PV capacity
Note:
-The max accessible PV power is 1.5 times the rated power of HPS
-PV charging power = Usable battery energy/Charging efficiency/Insolation

https://www.gaisma.com/en/
-Total PV power = PV charging power + PV power running the load (Within the insolation time)
-Recommended PV power = 1.1 * Total PV power
-The MPPT voltage of PV string should be within 480~800V
-The MPPT voltage of PV string should be 50~200V higher than the maximum voltage of battery
-Only one MPPT, the orientations and angles of PV strings should be the same
5. PV combiner box selection
Note: According the above calculation results, you can get the selection of PV combiner box
6. Smart meter and CT selection
Note: Smart meter for HPS30-150, CT200 for HPS30-50, CT500 for HPS100-150 (Only support single unit)
 03
Small Scale Solution
◼All in one hybrid inverter

◼Touchscreen LCD

◼Programmable working mode

◼Seamless transfer

◼Compact design

◼Dry contact output

 Small Commercial and industrial

HPS15000/20000/30000/40000TL
 All-in-one design

STS
MPPT controller

Energy
management Battery inverter
 Uninterruptable power supply

Once the utility grid fails,

switch to off-grid mode
within 10ms.
Supports remote control of DG.
 Three-phase unbalanced load

Each phase works independently

Work in single-phase or three-phase
Transformer-less design
• Reduce 70%-90% on size
• Reduce 75%-90% on weight
• Easy to transport
Size & weight
• Easy to install

Model Dimensions(mm) Weight(Kg)

HPS15000TL 450/635/225 45
HPS20000TL 450/635/225 45
HPS30000TL 600/1000/315 90
HPS40000TL 600/1000/315 90
 Apply high-frequency switch
• Less stand-by consumption
• Efficiency up to 98%

Load Efficiency Weight EU

(BAT to Load) efficiency

5% 80.876% 3% 2.42628%
10% 94.455% 6% 5.66730%
20% 97.694% 13% 12.70022%
30% 97.767% 10% 9.77670%
50% 97.817% 48% 46.95216%
100% 98.410% 20% 19.68200%

97.20466%
Multiple MPPTs
• More flexible PV panel layout
• Applicable for multiple angles and directions
of PV arrays

Model MPPT
HPS10000TL-LV 2
HPS15000TL 2
HPS20000TL 2
HPS30000TL 3
HPS40000TL 3
Strong environment adaptability

• Higher IP protection class

• Less noise

Protection class: IP54

Noise: <60dB（A）@1m
Wide battery voltage range

• Increased battery input voltage range

• More flexible battery configuration

Item Specifications
Voltage range 260~700V
Battery capacity of 30kWh~172kWh
single string
High performance DSP &
High speed CPLD

• Rapid response of dynamic performance

• Be able to run RCD load and inductive load

Inductive load Capacitive load Resistive load

04
Battery Solutions
 Integrated Battery
Solutions

Battery Battery Battery Battery Battery

Cell Module Rack Cabinet Container
Smart Li-ion Battery Solution

◼ Safe and reliable

Self-designed 3 level BMS BMS
◼ Easy installation and maintenance ◼Cell voltage

Standard rack and module, front maintenance ◼ Cell low/high voltage

◼ Cell temperature
◼ High power density
◼ charge and discharge current
LFP battery，≥130Wh/kg
◼ Total battery voltage
◼ Flexible customization
◼ Battery SOC
For different application and installation ◼ Fault warning
 • 0.5C Charge & Discharge
Cell: 3.2V 100Ah Cell: 3.2V 280Ah
• 1C Charge & Discharge
• Active Balancing
• Passive Balancing

Module: 38.4V 200Ah Module: 76.8V 100Ah Module: 51.2V 280Ah

Battery Rack Battery Rack Battery Rack

05
Monitoring Solution
◼Support multip inverters connection

◼Multi-function and high performance

◼Support external sensor to realize zero-export function

◼Local web server for easy configuration

Quick and easy overview Detail report downloadable

Professional analysis PC and modile phone accessible

Real-time monitoring Online control and mantenance

 06
New-generation solutions
HPS
◼All in one hybrid inverter

◼Touchscreen LCD

◼Programmable working mode

◼Seamless transfer

◼Compact design

◼Dry contact output

Three Phase Four Wire Wye Three Phase Four Wire Delta
Battery
Battery Cell Battery Module
3.2V 280Ah 51.2V 280Ah Battery Rack
◼Aesthetic design

◼Single module capacity increased

◼Modules are connected by copper bars

◼All wiring ports are protected by shell

◼All modules integrate cooling fans

◼Over 166Wh/kg
• Modules: ATESS ESS-BM-51.2-280R-A
ATESS ESS-BM-51.2-280R-B

• Charging and discharging rate: 0.5C

• DC cabinet: ATESS Batt-Master Cabinet9R-1C

ATESS Batt-Master Cabinet15R-1C

• Battery rack for HPS: BR114R/129R/143R/157R

• Battery rack for PCS: BR172R/186R/200R/215R

• Battery rack for container: BR114R for container

 For HPS with container

For PCS
For HPS
PCS
◼ Higher capacity

◼ Compact design

◼ Excellent performance

◼ Easy installation and maintenence
