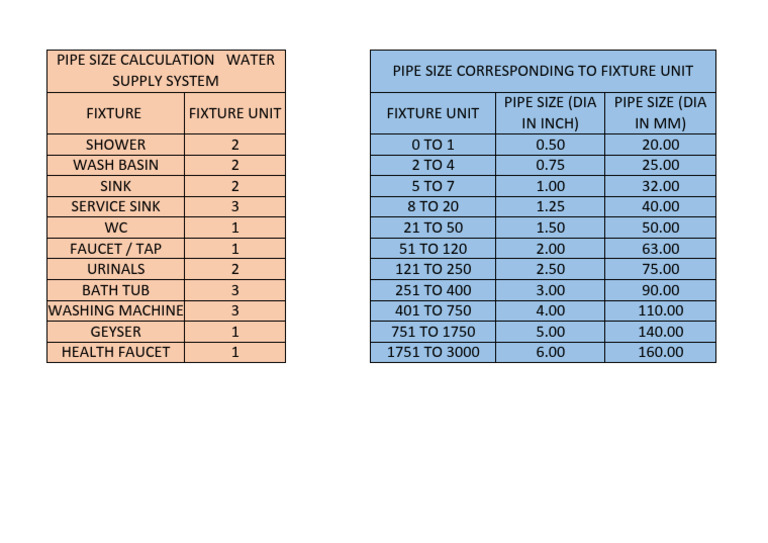

PIPE SIZE CALCULATION WATER

PIPE SIZE CORRESPONDING TO FIXTURE UNIT


SUPPLY SYSTEM
PIPE SIZE (DIA PIPE SIZE (DIA
FIXTURE FIXTURE UNIT FIXTURE UNIT
IN INCH) IN MM)
SHOWER 2 0 TO 1 0.50 20.00
WASH BASIN 2 2 TO 4 0.75 25.00
SINK 2 5 TO 7 1.00 32.00
SERVICE SINK 3 8 TO 20 1.25 40.00
WC 1 21 TO 50 1.50 50.00
FAUCET / TAP 1 51 TO 120 2.00 63.00
URINALS 2 121 TO 250 2.50 75.00
BATH TUB 3 251 TO 400 3.00 90.00
WASHING MACHINE 3 401 TO 750 4.00 110.00
GEYSER 1 751 TO 1750 5.00 140.00
HEALTH FAUCET 1 1751 TO 3000 6.00 160.00
