PDC (Steps in Parallel Algorithm Design)

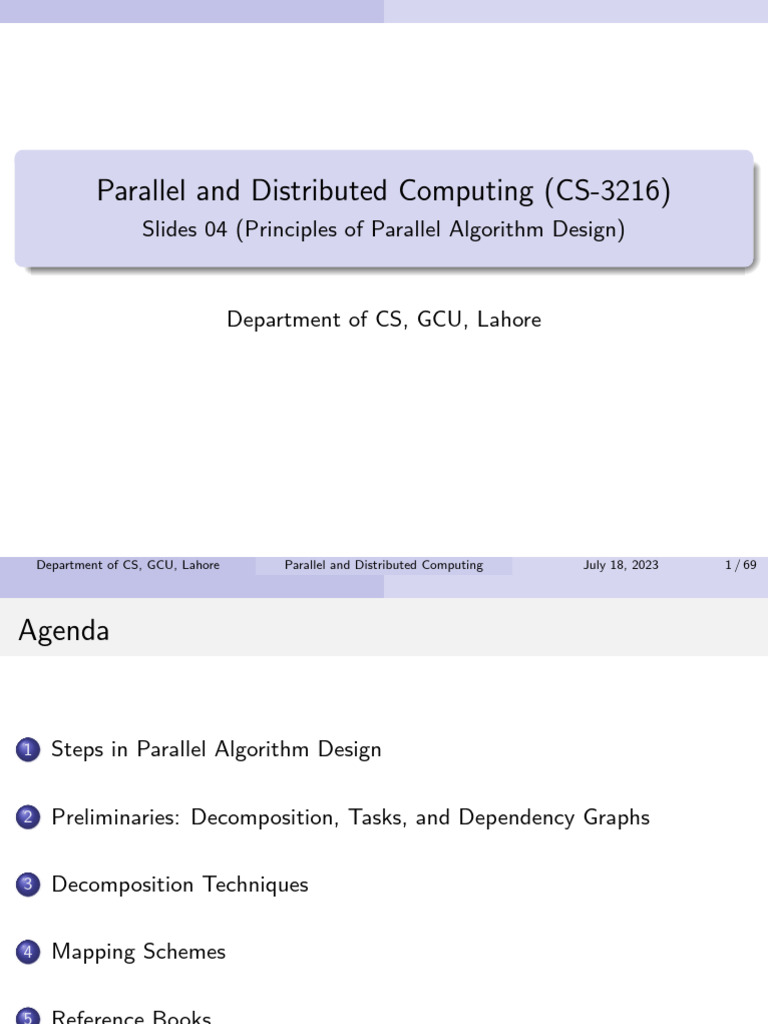

Parallel and Distributed Computing (CS-3216)
Slides 04 (Principles of Parallel Algorithm Design)
Department of CS, GCU, Lahore
Department of CS, GCU, Lahore Parallel and Distributed Computing July 18, 2023 1 / 69
Agenda
1 Steps in Parallel Algorithm Design
2 Preliminaries: Decomposition, Tasks, and Dependency Graphs
3 Decomposition Techniques
4 Mapping Schemes
5 Reference Books
Steps in Parallel Algorithm Design
Agenda
4 Mapping Schemes
5 Reference Books
1. Identification
Identifying portions of the work that can be performed concurrently.

The work-units are also known as tasks
E.g., Initializing two mega-arrays are two tasks and can be performed
in parallel
2. Mapping
The process of mapping concurrent pieces of the work or tasks onto

multiple processes running in parallel.
Multiple processes can be physically mapped on a single processor
3. Data Partitioning
Distributing the input, output, and intermediate data associated with the
program.
One way is to copy whole data at each processing node
Memory challenges for huge-size problems
Other way is to give fragments of data to each processing node
Communication overheads
4. Defining Access Protocol
Managing accesses to data shared by multiple processors (i.e.,

managing communication)
5. Synchronizing
Synchronizing the processes at various stages of the parallel program

execution
Preliminaries: Decomposition, Tasks, and Dependency Graphs
Agenda
4 Mapping Schemes
5 Reference Books
Decomposition
The process of dividing a computation into smaller parts, some or all

of which may potentially be executed in parallel
A given problem may be docomposed into tasks in many different
ways
Tasks
Programmer-defined units of computation into which the main

computation is subdivided by means of decomposition
Tasks can be of arbitrary size, but once defined, they are regarded as
indivisible units of computation
The tasks into which a problem is decomposed may not all be of the
same size
Concurrent execution of multiple tasks is the key to reducing the time
required to solve the entire problem
Tasks
Programmer-defined units of computation into which the main

computation is subdivided by means of decomposition
Tasks can be of arbitrary size, but once defined, they are regarded as
indivisible units of computation
The tasks into which a problem is decomposed may not all be of the
same size
Concurrent execution of multiple tasks is the key to reducing the time
required to solve the entire problem
Example: Multiplying a Dense Matrix with a Vector
A b y
0 1 n
Task 1
2
n-1
Task n
Figure: (3.1) Decomposition of dense-matrix multiplication into n tasks where n

is the number of rows in the matrix. The portion of the matrix and input, output
vector accessed by Task 1 are highlighted.
Example (2): Multiplying a Dense Matrix with a Vector
A b y
0 1 ... n
Task 1
Task 2
Task 3
Task 4
Figure: (3.4) Decomposition of dense-matrix multiplication into 4 tasks. The

portion of the matrix and input, output vector accessed by Task 1 are highlighted.
Task-Dependency Graph
The tasks in the previous examples are independent and can be

performed in any sequence.
In most of the problems, there exist some sort of dependencies
between the tasks.
An abstraction used to express such dependencies among tasks and
their relative order of execution is known as a task-dependency
graph
It is a directed acyclic graph in which node are tasks and the
directed edges indicate the dependencies between them
The task corresponding to a node can be executed only when all the
predecessor [parent] tasks complete their execution

between the tasks.
graph

between the tasks.
graph
Table: A database storing information about used vehicles.
ID# Model Year Color Dealer Price

4523 Civic 2002 Blue MN $ 18,000
3476 Corolla 1999 White IL $ 15,000
7623 Camry 2001 Green NY $ 21,000
9834 Prius 2001 Green CA $ 18,000
6734 Civic 2001 White OR $ 17,000
5342 Altima 2001 Green FL $ 19,000
3845 Maxima 2001 Blue NY $ 22,000
8354 Accord 2000 Green VT $ 18,000
4395 Civic 2001 Red CA $ 17,000
7352 Civic 2002 Red WA $ 18,000
Example: Task Dependency Graph

ID# Year
ID# Model ID# Color
7623 2001
4523 Civic 6734 2001 ID# Color 7623 Green
6734 Civic 5342 2001 9834 Green
4395 Civic 3845 2001 3476 White 5342 Green
Civic 2001 White Green
ID# Color
ID# Model Year 3476 White

7623 Green
6734 Civic 2001 Civic AND 2001 White OR Green 9834 Green
4395 Civic 2001 6734 White
5342 Green
8354 Green
Civic AND 2001 AND (White OR Green)
ID# Model Year Color

6734 Civic 2001 White
Figure: (3.2) Decomposing the given query into a number of tasks.

Example (2): Task Dependency Graph

ID# Year
ID# Model ID# Color
7623 2001
4523 Civic 6734 2001 ID# Color 7623 Green
6734 Civic 5342 2001 9834 Green
Civic 2001 White Green
ID# Color
White OR Green 3476 White

7623 Green
9834 Green
6734 White
5342 Green
8354 Green
2001 AND (White or Green) ID# Color Year

7623 Green 2001
6734 White 2001
5342 Green 2001
Civic AND 2001 AND (White OR Green)
ID# Model Year Color

6734 Civic 2001 White
Figure: (3.3) Alternate decomposition of the given query into a number of tasks.
Granularity
The number and sizes of tasks into which a problem is decomposed

determines the granularity of the decomposition
A decomposition into a large number of small tasks is called
fine-grained
A decomposition into a small number of large tasks is called
coarse-grained
For matrix-vector multiplication Figure 3.1 would usually be
considered fine-grained
Figure 3.4 shows a coarse-grained decomposition as each task
computes n4 entries of the output vector of length n
Granularity
The number and sizes of tasks into which a problem is decomposed

determines the granularity of the decomposition
A decomposition into a large number of small tasks is called
fine-grained
A decomposition into a small number of large tasks is called
coarse-grained
For matrix-vector multiplication Figure 3.1 would usually be
considered fine-grained
Figure 3.4 shows a coarse-grained decomposition as each task
computes n4 entries of the output vector of length n
Maximum degree of concurrency
The maximum number of tasks that can be executed concurrently in

a parallel program at any given time is known as its maximum degree
of concurrency
Usually, it is normally less than total number of tasks due to
dependencies
E.g., max-degree of concurrency in the task-graphs of Figures 3.2 and
3.3 is 4
Maximum degree of concurrency
Figure: Determine Maximum Degree of Concurrency?
Average degree of concurrency
A relatively better measure for the performance of a parallel program

The average number of tasks that can run concurrently over the
entire duration of execution of the program
The ratio of the total amount of work to the critical path length
So, what is the critical path in the graph?
Critical Path: The longest directed path between any pair of start
and finish nodes is known as the critical path
Critical Path Length: The sum of the weights of nodes along this
path
the weight of a node is the size, or the amount of work associated with
the corresponding task
A shorter critical path favors a higher average degree of concurrency
Both, maximum and average degree of concurrency increases as tasks
become smaller(finer)
Task 4 Task 3 Task 2 Task 1 Task 4 Task 3 Task 2 Task 1
10 10 10 10 10 10 10 10
6 Task 5
9 Task 6 6 Task 5
11 Task 6
8 Task 7 7 Task 7
(a) (b)
Figure: Abstractions from task graphs from Figures 3.2 and 3.3 respectively

10 10 10 10 10 10 10 10
6 Task 5
9 Task 6 6 Task 5
11 Task 6
8 Task 7 7 Task 7
(a) (b)
Figure: Abstractions from task graphs from Figures 3.2 and 3.3 respectively
Critical path lengths: 27 and 34

Total amount of work: 63 and 64
Average degree of concurrency: 2.33 and 1.88
Figure: Determine critical path length and average concurrency assuming the
wight on each node is one?
Task Interact Graph
Depicts pattern of interaction between the tasks

Dependency graphs only show that how output of first task becomes
input to the next level task
But how the tasks interact with each other to access distributed data
is only depicted by task interaction graphs
The nodes in a task-interaction graph represent tasks
The edges connect tasks that interact with each other
Task Interact Graph
Depicts pattern of interaction between the tasks

Dependency graphs only show that how output of first task becomes
input to the next level task
But how the tasks interact with each other to access distributed data
is only depicted by task interaction graphs
The nodes in a task-interaction graph represent tasks
The edges connect tasks that interact with each other
Task Interact Graph
The edges in a task interaction graph are usually undirected (but

directed edges can be used to indicate the direction of flow of data, if
it is unidirectional)
The edge-set of a task-interaction graph is usually a superset of the
edge-set of the task-dependency graph
In database query processing example, the task interaction graph is
the same as the task dependency graph
Task Interact Graph
A b 0
2 3
0 1 2 3 4 5 6 7 8 9 1011 1
Task 0
5
4 4 6
7
8
9
Task 11 8 10 11
(a) (b)
Figure: (3.6) A decomposition for sparse matrix-vector multiplication and the

corresponding task-interaction graph. In the decomposition Task i computes
Σ11
j=0 A[i, j].b[j] where A[i, j] ̸= 0
Processes and Mapping
Logical processing or computing agent that performs tasks is called

process
The process of assigning tasks to logical computing agents (i.e.,
processes) is called mapping
Processes and Mapping
10 10 10 10 10 10 10 10
P3 P2 P1 P0 P3 P2 P1 P0
P0 6 Task 5
P2 9 Task 6 P0 6 Task 5
P0 11 Task 6
P0 8 Task 7 P0 7 Task 7
(a) (b)
Figure: (3.7) Mappings of the task graphs of Figure 3.5 onto four processes.
Processes and Processors
Processes are logical computing agents that perform tasks

Processors are the hardware units that physically perform
computations
Depending on the problem, multiple processes can be mapped on a
single processor
But, in most of the cases, there is one-to-one correspondence between
processors and processes)
So, we assume that there are as many processes as the number of
physical CPUs on the parallel computer
Decomposition Techniques
Agenda
4 Mapping Schemes
5 Reference Books
The process of decomposing larger problems into smaller tasks for

concurrent executions, is known to as decomposition
The techniques that facilitate this decomposition are known to as
decomposition techniques
Common techniques:
Recursive
Data-decomposition
Exploratory decomposition
Speculative decomposition
Hybrid
Recursive and data decomposition are [relatively] general purpose
Exploratory and speculative are special purpose in nature

Common techniques:
Recursive
Data-decomposition
Hybrid

Common techniques:
Recursive
Data-decomposition
Hybrid
Recursive Task Decomposition
Recursive decomposition is a method for inducing concurrency in the

problems that can be solved using divide and conquer strategy
Divides each problem into a set of independent subproblems
Each one of these subproblems is solved by recursively applying a
similar division into smaller subproblems followed by a combination of
their results
A natural concurrency exists as different subproblems can be solved
concurrently
Recursive decomposition is a method for inducing concurrency in the

problems that can be solved using divide and conquer strategy
Divides each problem into a set of independent subproblems
Each one of these subproblems is solved by recursively applying a
similar division into smaller subproblems followed by a combination of
their results
A natural concurrency exists as different subproblems can be solved
concurrently

Example
5 12 11 1 10 6 8 3 7 4 9 2
1 3 4 2 5 12 11 10 6 8 7 9
1 2 3 4 5 6 8 7 9 12 11 10
1 2 3 4 5 6 7 8 9 10 12 11
5 6 7 8 10 11 12
11 12
Figure: (3.8) The quicksort task-dependency graph based on recursive

decomposition for sorting a sequence of 12 numbers.

Modifying simple problem to support recursive decomposition
min(1,2)
min(4,1) min(8,2)
min(4,9) min(1,7) min(8,11) min(2,12)
Figure: (3.9) The task-dependency graph for finding the minimum number in the
sequence 4, 9, 1, 7, 8, 11, 2, 12. Each node in the tree represents the task of
finding the minimum of a pair of numbers.

1. procedure SERIAL MIN (A, n)

2. begin
3. min = A[0];
4. for i := 1 to n − 1 do
5. if (A[i] < min) min := A[i];
6. endfor;
7. return min;
8. end SERIAL MIN

We can rewrite the loop as follows:
1. procedure RECURSIVE MIN (A, n)

2. begin
3. if (n = 1) then
4. min := A[0];
5. else
6. lmin := RECURSIVE MIN (A, n/2);
7. rmin := RECURSIVE MIN (&(A[n/2]), n − n/2);
8. if (lmin < rmin) then
9. min := lmin;
10. else
11. min := rmin;
12. endelse;
13. endelse;
14. return min;
15. end RECURSIVE MIN
Data Decomposition
Powerful and commonly used method

Two step procedure:
1 Partition data on which computation is to be performed
2 This data partitioning is used to induce a partitioning of the
computations into tasks
Data Decomposition
Partitioning output data
Used where each element of the output can be computed

independently of others as a function of the input.
Partitioning of the output data automatically induces a decomposition
of the problems into tasks
each task is assigned the work of computing a portion of the output
Data Decomposition
Consider the problem of multiplying two n × n matrices A and B to yield

matrix C . The output matrix C can be partitioned into four tasks as
follows:

A1,1 A1,2 B1,1 B1,2 C1,1 C1,2
. →
A2,1 A2,2 B2,1 B2,2 C2,1 C2,2
Task 1: C1,1 = A1,1 B1,1 + A1,2 B2,1

Task 2: C1,2 = A1,1 B1,2 + A1,2 B2,2
Task 3: C2,1 = A2,1 B1,1 + A2,2 B2,1
Task 4: C2,2 = A2,1 B1,2 + A2,2 B2,2
Data Decomposition
A partitioning of output data does not result in a unique decomposition into

tasks. For example, for the same problem as in previous foil, with identical output
data distribution, we can derive the following two (other) decompositions
Decomposition I Decomposition II
Task 1: C1,1 = A1,1 B1,1 Task 1: C1,1 = A1,1 B1,1

Task 2: C1,1 = C1,1 + A1,2 B2,1 Task 2: C1,1 = C1,1 + A1,2 B2,1
Task 3: C1,2 = A1,1 B1,2 Task 3: C1,2 = A1,2 B2,2
Task 5: C2,1 = A2,1 B1,1 Task 5: C2,1 = A2,2 B2,1
Task 7: C2,2 = A2,1 B1,2 Task 7: C2,2 = A2,1 B1,2
Data Decomposition
(a) Transactions (input), itemsets (input), and frequencies (output)
A, B, C, E, G, H A, B, C 1
B, D, E, F, K, L D, E 3
Itemset Frequency
Database Transactions
A, B, F, H, L C, F, G 0
Itemsets
D, E, F, H A, E 2
F, G, H, K, C, D 1
A, E, F, K, L D, K 2
B, C, D, G, H, L B, C, F 0
G, H, L C, D, K 0
D, E, F, K, L
F, G, H, L
(b) Partitioning the frequencies (and itemsets) among the tasks
Itemset Frequency
Itemset Frequency
A, B, C, E, G, H A, B, C 1 A, B, C, E, G, H C, D 1
Itemsets
Itemsets
B, D, E, F, K, L D, E 3 B, D, E, F, K, L D, K 2
A, B, F, H, L C, F, G 0 A, B, F, H, L B, C, F 0
D, E, F, H A, E 2 D, E, F, H C, D, K 0
F, G, H, K, F, G, H, K,
A, E, F, K, L A, E, F, K, L
B, C, D, G, H, L B, C, D, G, H, L
G, H, L G, H, L
D, E, F, K, L D, E, F, K, L
F, G, H, L F, G, H, L
task 1 task 2
Figure: (3.12) Computing itemset frequencies in a transaction database.

Data Decomposition
Partitioning input data
In many algorithms, it is impossible or undesirable to partition the

output data.
The output may be a single unknown value. Such as in case of finding
sum, minimum, maximum or frequencies of a number.
It is sometimes possible to partition the input data, and then use this
partitioning to induce concurrency
A task is created for each partition of the input data and this task
performs as much computation as possible using these local data
Then local solutions are combined to generate a global solution In
many algorithms, it is impossible or undesirable to partition the
output data
Data Decomposition
In many algorithms, it is impossible or undesirable to partition the

output data.
The output may be a single unknown value. Such as in case of finding
sum, minimum, maximum or frequencies of a number.
It is sometimes possible to partition the input data, and then use this
partitioning to induce concurrency
A task is created for each partition of the input data and this task
performs as much computation as possible using these local data
Then local solutions are combined to generate a global solution In
many algorithms, it is impossible or undesirable to partition the
output data
Data Decomposition
Partitioning the transactions among the tasks

A, B, C, E, G, H A, B, C 1 A, B, C 0
Itemset Frequency
Itemset Frequency
B, D, E, F, K, L D, E 2 D, E 1
A, B, F, H, L C, F, G 0 C, F, G 0
Itemsets
Itemsets
D, E, F, H A, E 1 A, E, F, K, L A, E 1
F, G, H, K, C, D 0 B, C, D, G, H, L C, D 1
D, K 1 G, H, L D, K 1
B, C, F 0 D, E, F, K, L B, C, F 0
C, D, K 0 F, G, H, L C, D, K 0
task 1 task 2
Figure: (3.13a) Input decompositions for computing itemset frequencies in a

transaction database.
Data Decomposition
Partitioning both input and output data
Consider the problems where output data partitioning is possible

Here, partitioning the input also, can offer additional concurrency
The next example shows 4-way decomposition of the previous
example based on both input-output partitioning
Data Decomposition
Partitioning both input and output data
Partitioning both transactions and frequencies among the tasks
A, B, C, E, G, H A, B, C 1 A, B, C, E, G, H
Itemset Frequency
Itemset Frequency
B, D, E, F, K, L D, E 2 B, D, E, F, K, L
A, B, F, H, L C, F, G 0 A, B, F, H, L
Itemsets
Itemsets
D, E, F, H A, E 1 D, E, F, H
F, G, H, K, F, G, H, K, C, D 0
D, K 1
B, C, F 0
C, D, K 0
task 1 task 2
A, B, C 0
Itemset Frequency
Itemset Frequency
D, E 1
C, F, G 0
Itemsets
Itemsets
A, E, F, K, L A, E 1 A, E, F, K, L
B, C, D, G, H, L B, C, D, G, H, L C, D 1
G, H, L G, H, L D, K 1
D, E, F, K, L D, E, F, K, L B, C, F 0
F, G, H, L F, G, H, L C, D, K 0
task 3 task 4
Figure: (3.13b) Input decompositions for computing itemset frequencies in a

transaction database.
Data Decomposition
The Owner Computes Rule
Task decomposition based on data-partitioning is widely known as owner

compute rule. Two types of partitioning hence, two definitions
1 If we assign partitions of the input data to tasks:
The rule means that a task performs all the computations that can be
done using these data
2 If we assign partition of output data to the tasks:
The rule means that a task computes all the data in the partition
assigned to it (portion of the output)
Data Decomposition
The Owner Computes Rule
Task decomposition based on data-partitioning is widely known as owner

compute rule. Two types of partitioning hence, two definitions
1 If we assign partitions of the input data to tasks:
The rule means that a task performs all the computations that can be
done using these data
2 If we assign partition of output data to the tasks:
The rule means that a task computes all the data in the partition
assigned to it (portion of the output)
Exploratory Decomposition
In many cases, the decomposition of the problem goes hand-in-hand

with its execution
Specially used to decompose the problems having underlying
computation like search-space exploration
Steps:
1 Partition the search space into smaller parts
2 Search each one of these parts concurrently, until the desired solutions
are found
Example
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
5 6 8 5 6 7 8 5 6 7 8 5 6 7 8
9 10 7 11 9 10 11 9 10 11 9 10 11 12
13 14 15 12 13 14 15 12 13 14 15 12 13 14 15
(a) (b) (c) (d)
Figure: A simple application of exploratory decomposition is in the solution to a

15 puzzle (a tile puzzle). We show a sequence of three moves that transform a
given initial state (a) to desired final state (d)
Example
1 2 3 4
5 6 7 8
9 10 11
13 14 15 12
1 2 3 4 1 2 3 4
task 4
5 6 7 8 5 6 7
9 10 11 9 10 11 8
13 14 15 12 13 14 15 12
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15
1 2 3 4
5 6 7 8
9 10 11
13 14 15 12
1 2 3 4
5 6 7 8
1 2 3 4 9 10 11
5 6 7 8 13 14 15 12
9 10 11 1 2 3 4
13 14 15 12 5 7 8
task 3
9 6 10 11
13 14 15 12
1 2 3 4
5 6 7 8
1 2 3 4 9 14 10 11
5 6 7 8 13 15 12
9 10 11
13 14 15 12 1 2 3 4
5 6 8
9 10 7 11
13 14 15 12
1 2 3 4
5 6 8
1 2 3 4 9 10 7 11
5 6 8 13 14 15 12
task 2
9 10 7 11 1 2 4
13 14 15 12 5 6 3 8
9 10 7 11
13 14 15 12
1 2 3 4
5 6 7 8
9 10 11
13 14 15 12
1 2 3 4
5 6 7 8
9 10 15 11
13 14 12
1 2 3 4 1 2 3 4
5 6 7 8 5 6 7 8
task 1
9 10 15 11 9 10 15 11
13 14 12 13 14 12
1 2 3 4
5 6 7 8
9 10 11
13 14 15 12
Figure: The state space can be explored by generating various successor states of
the current state and to view them as independent tasks
Example
m m m m m m m m
Solution
Total serial work: 2m+1 Total serial work: m
Total parallel work: 1 Total parallel work: 4m
(a) (b)
Figure: An illustration of anomalous speedups resulting from exploratory

decomposition
Speculative Decomposition
Usually used in the problems where different input values or output of

previous stage causes many computationally intensive branches.
Speculation is something like Gamble or Risk or preliminary guess
Steps:
Speculate(guess) the output of previous stage
Start performing computations in the next stage before even the
completion of the previous stage.
After availability of the output of previous stage, if speculation was
correct than most of the computation for next step would have already
been done
Usually used in the problems where different input values or output of

previous stage causes many computationally intensive branches.
Speculation is something like Gamble or Risk or preliminary guess
Steps:
Speculate(guess) the output of previous stage
Start performing computations in the next stage before even the
completion of the previous stage.
After availability of the output of previous stage, if speculation was
correct than most of the computation for next step would have already
been done
Switch Example Algorithm

Calculate expression for the switch condition task 0
Case 0: Multiply vector b with matrix A task 1
Case 1: Multiply vector c with matrix A task 2
Case 2: Multiply vector d with matrix A task 3
display result task 4
Example
C
System Inputs
A D
System Output
E G I
B
F H
System Components
Figure: A simple network for discrete event simulation
Hybrid Decomposition
Often, a mix of decomposition techniques is necessary for decomposing a

problem
Data
3 7 2 9 11 4 5 8 7 10 6 13 1 19 3 9
decomposition
2 1 Recursive
decomposition
Figure: Hybrid decomposition for finding the minimum of an array of size 16 using
four tasks
Mapping Schemes
Agenda
4 Mapping Schemes
5 Reference Books
Mapping Schemes
Static Mapping techniques
Distributing the tasks among the processes before execution of the

program
E.g., usually used in situation where total number of tasks and their
sizes are known before the execution of the program
Easy to implement in massage passing paradigm
Mapping Schemes
Dynamic Mapping
When total number of tasks are not known a priori

(OR) when task sizes are unknown
In this case static mapping can lead to serious load imbalances
Both static and Dynamic Mappings are equally easy in shared
memory paradigm
Mapping Schemes
Schemes for Static Mapping

Mappings based on Data Partitioning (Array Distribution Schemes)
In a decomposition based on partitioning data, mapping the relevant

data onto the processes is equivalent to mapping tasks onto processes
Commonly used array mapping schemes
Block distribution (1D and 2D)
Cyclic and block cyclic
Mapping Schemes

Block distribution (1D)

row-wise distribution column-wise distribution
p0
p1
p2
p3 p0 p1 p2 p3 p4 p5 p6 p7
p4
p5
p6
p7
Figure: Examples of one-dimensional partitioning of an array among eight

processes.
Mapping Schemes

Block distribution (2D)
p0 p1 p2 p3
p0 p1 p2 p3 p4 p5 p6 p7
p4 p5 p6 p7
p8 p9 p10 p11
p8 p9 p10 p11 p12 p13 p14 p15
p12 p13 p14 p15
(a) (b)
Figure: Examples of two-dimensional distributions of an array, (a) on a 4 x 4

process grid, and (b) on a 2 x 8 process grid.
Mapping Schemes

A B C
p0
p1
p2
p3
p4
p5
p6
X = p7
p8
p9
p10
p11
p12
p13
p14
p15
(a)
A B C
p0 p1 p2 p3
p4 p5 p6 p7
X =
p8 p9 p10 p11
p12 p13 p14 p15
(b)
Figure: Data sharing needed for matrix multiplication with (a)one-dimensional

and (b) two-dimensional partitioning of the output matrix. Shaded portions of
the input matrices A and B are required by the process that computes the shaded
portion of the output matrix C.
Mapping Schemes

Cyclic distribution (extremely fine-grained partition)
Mapping Schemes

Block-Cyclic distribution (1D and 2D)

p0
p0 p1 p0 p1
p1
p2
p2 p3 p2 p3
p3
p0
p0 p1 p0 p1
p1
p2
p2 p3 p2 p3
p3
(a) (b)
Figure: Examples of one- and two-dimensional block-cyclic distributions among

four processes. (a) The rows of the array are grouped into blocks each consisting
of two rows, resulting in eight blocks of rows. These blocks are distributed to four
processes in a wraparound fashion. (b) The matrix is blocked into 16 blocks each
of size 4 x 4, and it is mapped onto a 2 x 2 grid of processes in a wraparound
fashion.
Mapping Schemes

Block-Cyclic distribution (Issue)
Figure: Using the block-cyclic distribution shown in (b) to distribute the

computations performed in array (a) will lead to load imbalances.
Mapping Schemes

Block-Cyclic distribution (Solution 1D)

Randomized-Block distribution (solution 1D)
Generate many more tasks than the processes (like cyclic)
Assign uniform number of random blocks to each process
Figure: A one-dimensional randomized block mapping of 12 blocks onto four

process (i.e., α = 3).
Mapping Schemes

Randomized-Block distribution (solution 2D)
Figure: Using a two-dimensional random block distribution shown in (b) to

distribute the computations performed in array (a), as shown in (c).
Mapping Schemes

Why randomized bock cyclic distribution is not always used?
Reference Books
Agenda
4 Mapping Schemes
5 Reference Books
Reference Books
Reference Books
Introduction to Parallel Computing, Second Edition, by Ananth

Grama
Parallel programming in C with MPI and OpenMP by Michael J.
Quinn
An Introduction to Parallel Programming by Peter S. Pacheco
Professional CUDA C Programming by John Cheng

PDC (Steps in Parallel Algorithm Design)

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

PDC (Steps in Parallel Algorithm Design)

Uploaded by

Copyright:

Available Formats

Parallel and Distributed Computing (CS-3216)

Slides 04 (Principles of Parallel Algorithm Design)

Department of CS, GCU, Lahore

1 Steps in Parallel Algorithm Design

2 Preliminaries: Decomposition, Tasks, and Dependency Graphs

1 Steps in Parallel Algorithm Design

2 Preliminaries: Decomposition, Tasks, and Dependency Graphs

Identifying portions of the work that can be performed concurrently.

The process of mapping concurrent pieces of the work or tasks onto

4. Defining Access Protocol

Managing accesses to data shared by multiple processors (i.e.,

Synchronizing the processes at various stages of the parallel program

1 Steps in Parallel Algorithm Design

2 Preliminaries: Decomposition, Tasks, and Dependency Graphs

The process of dividing a computation into smaller parts, some or all

Programmer-defined units of computation into which the main

Programmer-defined units of computation into which the main

Example: Multiplying a Dense Matrix with a Vector

Figure: (3.1) Decomposition of dense-matrix multiplication into n tasks where n

Example (2): Multiplying a Dense Matrix with a Vector

Figure: (3.4) Decomposition of dense-matrix multiplication into 4 tasks. The

The tasks in the previous examples are independent and can be

The tasks in the previous examples are independent and can be

The tasks in the previous examples are independent and can be

Table: A database storing information about used vehicles.

ID# Model Year Color Dealer Price

Example: Task Dependency Graph

Civic 2001 White Green

ID# Model Year 3476 White

Civic AND 2001 AND (White OR Green)

ID# Model Year Color

Figure: (3.2) Decomposing the given query into a number of tasks.

Example (2): Task Dependency Graph

Civic 2001 White Green

White OR Green 3476 White

2001 AND (White or Green) ID# Color Year

Civic AND 2001 AND (White OR Green)

ID# Model Year Color

The number and sizes of tasks into which a problem is decomposed

The number and sizes of tasks into which a problem is decomposed

Maximum degree of concurrency

The maximum number of tasks that can be executed concurrently in

Maximum degree of concurrency

Figure: Determine Maximum Degree of Concurrency?

Average degree of concurrency

A relatively better measure for the performance of a parallel program

Average degree of concurrency

Average degree of concurrency

Task 4 Task 3 Task 2 Task 1 Task 4 Task 3 Task 2 Task 1

Average degree of concurrency

Critical path lengths: 27 and 34

Average degree of concurrency

Task Interact Graph

Depicts pattern of interaction between the tasks

Task Interact Graph

Depicts pattern of interaction between the tasks

Task Interact Graph

The edges in a task interaction graph are usually undirected (but

Task Interact Graph

Figure: (3.6) A decomposition for sparse matrix-vector multiplication and the

Processes and Mapping

Logical processing or computing agent that performs tasks is called

Processes and Mapping

Task 4 Task 3 Task 2 Task 1 Task 4 Task 3 Task 2 Task 1
