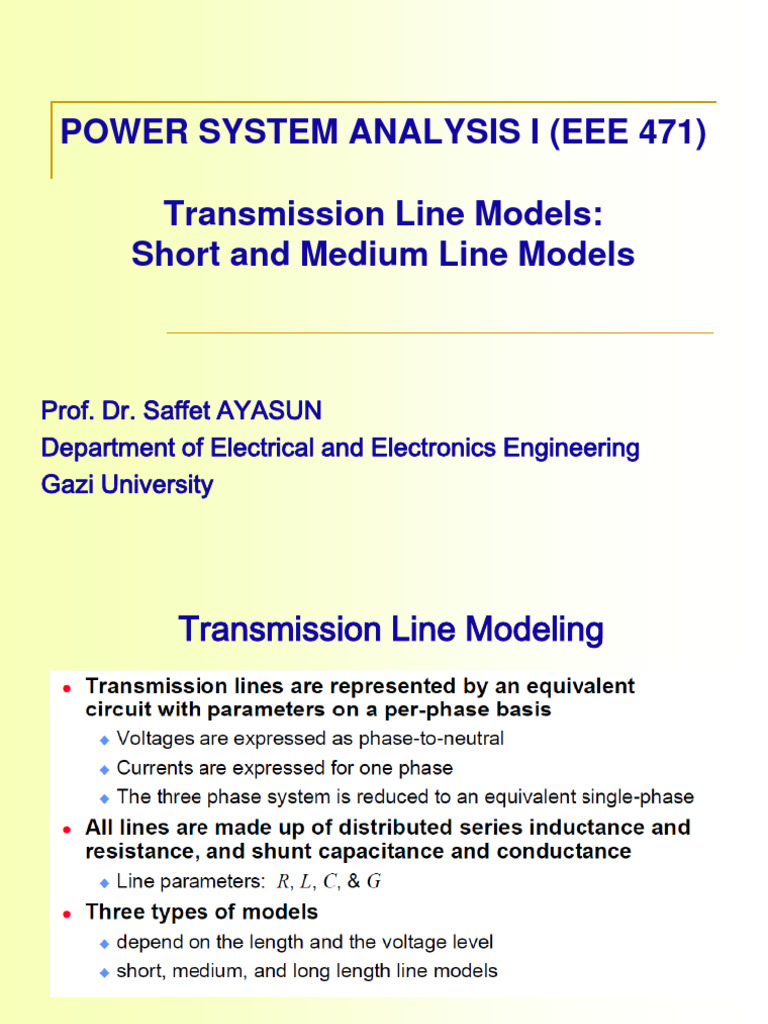

POWER SYSTEM ANALYSIS I (EEE 471)
Transmission Line Models:
Short and Medium Line Models
Prof. Dr. Saffet AYASUN
Department of Electrical and Electronics Engineering
Gazi University
Transmission Line Modeling
16.11.2022 Sayasun 2
Classification of Overhead Transmission Lines
A transmission line has three constants R, L and C
distributed uniformly along the whole length of the line.
The resistance and inductance form the series impedance.
The capacitance existing between conductors for 1-phase
line or from a conductor to neutral for a 3-phase line forms
a shunt path throughout the length of the line.
Short transmission lines: When the length of an overhead transmission line is upto
about 50 km and the line voltage is comparatively low (< 20 kV), it is usually
considered as a short transmission line. Due to smaller length and lower voltage, the
capacitance effects are small and hence can be neglected. Therefore, while studying
the performance of a short transmisison line, only resistance and inductance of the
line are taken into account.
16.11.2022 Sayasun 3
Classification of Overhead Transmission Lines
Medium transmission lines: When the length of an
overhead transmission line is about 50- 150 km and the line
voltage is moderatly high (>20 kV < 100 kV), it is
considered as a medium transmission line. Due to sufficient
length and voltage of the line, the capacitance effects are
taken into account. For purposes of calculations, the
distributed capacitance of the line is divided and lumped in
the form of condensers shunted across the line at one or
more points.
16.11.2022 Sayasun 4
Classification of Overhead Transmission Lines
Long transmission lines: When the length of an overhead
transmission line is more than 150 km and line voltage is
very high (> 100 kV), it is considered as a long transmission
line. For the treatment of such a line, the line constants are
considered uniformly distributed over the whole length of
the line and rigorous methods are employed for solution.
16.11.2022 Sayasun 5
ABCD Two-Port Network
16.11.2022 Sayasun 6
Performance Analysis: Voltage Regulation
While studying the performance of a transmission line, it
is desirable to determine its voltage regulation and
transmission efficiency.
Voltage regulation.
Transmission efficiency
16.11.2022 Sayasun 7
Performance Analysis: Efficiency
Sending end power
Total line power losses:
Transmission line efficiency:
16.11.2022 Sayasun 8
Short Transmission Line Model
16.11.2022 Sayasun 9
Short Transmission Line Model
16.11.2022 Sayasun 10
Two-Port Representation
16.11.2022 Sayasun 11
Phasor Diagram of Short Line Model
16.11.2022 Sayasun 12
Example 1
16.11.2022 Sayasun 13
Example 1
16.11.2022 Sayasun 14
Example 2
A three-phase, 50Hz, transmission line has a length of 20 km, the impedance per
phase is 1.8 10-4 + j 3.6 10-4 ohm/m. 3000kVA delivered to the load where
receiving-end voltage is given by 12 kV, load power factor is 0.80 lagging,
determine the followings:
a) ABCD Line Parameters
b) Receiving End Current
c) Sending End Voltage
d) Sending End Current
e) Sending End Active Power
f) Sending End Reactive Power
g) Percent Voltage Regulation
h) Active Power Line Losses
i) Reactive Power Line Losses
j) Transmission Line Efficiency
It will solved on the board….
16.11.2022 Sayasun 15
Example 3 (Reactive Power Compensation)
A three-phase, 50Hz, transmission line has a length of 20 km, the impedance per
phase is 1.8 10-4 + j 3.6 10-4 ohm/m. 3000kVA delivered to the load where
receiving-end voltage is given by 12 kV, load power factor is 0.99 lagging,
determine the followings:
a) ABCD Line Parameters
b) Receiving End Current
c) Sending End Voltage
d) Sending End Current
e) Sending End Active Power
f) Sending End Reactive Power
g) Percent Voltage Regulation
h) Active Power Line Losses
i) Reactive Power Line Losses
j) Transmission Line Efficiency
It will solved on the board….
16.11.2022 Sayasun 16
Example 4
16.11.2022 Sayasun 17
Example 4
16.11.2022 Sayasun 18
Medium Transmission Line Models
16.11.2022 Sayasun 19
Medium Transmission Line Model
16.11.2022 Sayasun 20
Two-Port Representation
16.11.2022 Sayasun 21
Example 1
16.11.2022 Sayasun 22
Example I
16.11.2022 Sayasun 23
Example I
16.11.2022 Sayasun 24
Example 2
16.11.2022 Sayasun 25
Example 2
16.11.2022 Sayasun 26
Example 3
16.11.2022 Sayasun 27
Example 3
16.11.2022 Sayasun 28
Example 3
16.11.2022 Sayasun 29
Example 4
16.11.2022 Sayasun 30
Example 4
16.11.2022 Sayasun 31
USE OF MATLAB PROGRAMS
Two MATLAB functions are written for computation of transmission
matrix.
Function [ Z, Y, ABCD ] = rlc2abcd(r, L, C, g, r, Length)
is used when resistance in ohm, inductance in mH and capacitance
in mF per unit length are specified
Function [Z, Y, ABCD ] = zy2abcd(z, y, Length)
is used when series impedance in ohm and shunt admittance in
siemens per unit length are specified.
16.11.2022 Sayasun 32
USE OF MATLAB PROGRAM: EXAMPLE I
16.11.2022 Sayasun 33
USE OF MATLAB PROGRAM: RESULTS
16.11.2022 Sayasun 34
USE OF MATLAB PROGRAM: EXAMPLE II
16.11.2022 Sayasun 35
USE OF MATLAB PROGRAM: EXAMPLE II
16.11.2022 Sayasun 36
USE OF MATLAB PROGRAM: RESULTS
16.11.2022 Sayasun 37
Homework: Medium Line Model
16.11.2022 Sayasun 38
Homework: Medium Line Model
16.11.2022 Sayasun 39
Homework: Medium Line Model
16.11.2022 Sayasun 40
