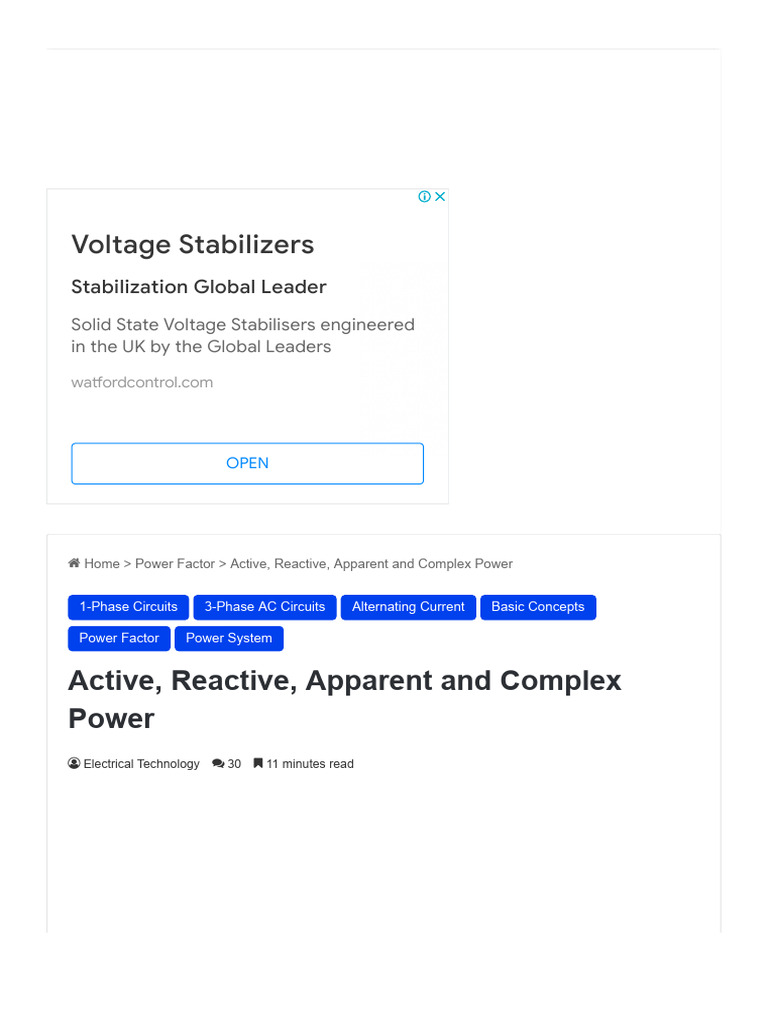

Active, Reactive, Apparent and Complex

Power
 Electrical Technology  30  11 minutes read
:
 Stabilization Global Leader
Voltage Stabilizers
Contact the specialists in Voltage
Stabilization with over 70 years of experience

wa!ordcontrol.com

OPEN

What is Active, Reactive, Apparent and Complex Power?

Table of Contents

1. What is Active Power: (P)

1.1. Active Power in DC Circuits:
1.2. Active Power in AC Circuits:
1.3. Active Power Formulas:
2. What is Reactive Power: (Q)
2.1. Reactive Power Formulas:
3. What is Apparent Power: (S)
3.1. Apparent Power Formulas:
4. What is Complex Power ? (S = P+jQ or S=VI*)
4.1. Complex Power Formulas:
4.1.1. Complex Power in Capacitive Loads
4.1.2. Complex Power in Inductive Loads
4.1.3. Good to know:
5. Power Triangle
6. Role of Active Power and Reactive Power
6.1. Rating of Voltage Controller at Your Home:

What is Active Power: (P)

:
Active Power is the actual power which is really transferred to the load such as
transformer, induction motors, generators etc and dissipated in the circuit.

See more results like this page

Capacitor

Power Factor Calculation 3 Phase

ELECTRICAL
Formula  
TECHNOLOGY
Capacitor Formula

Apparent Power Calculation

Alternative words used for Real Power (Actual Power, True Power, Watt-full Power,
Useful Power, Real Power, and Active Power) and denoted by (P) and measured in
units of Watts (W) i.e. The unit of Real or Active power is Watt where 1W = 1V x 1 A.
.

Active Power in DC Circuits:

In DC Circuits, power supply to the DC load is simply the product of Voltage across the
load and Current flowing through it i.e., P = V I because in DC Circuits, there is no
concept of phase angle between current and voltage. In other words, there is no
frequency (f) or Power factor in DC Circuits.

Active Power in AC Circuits:

But the situation in Sinusoidal or AC Circuits is more complex because of phase
difference (θ) between Current and Voltage. Therefore average value of power (Real

Power) is P = VI Cosθ is in fact supplied to the load.

       
:
 Voltage Optimisation
Equipment

Contact the specialists in Voltage

Stabilization with over 70 years of
experience

wa!ordcontrol.com

Open

In AC circuits, When circuit is pure resistive, then the same formula used for power as
used in DC as P = V I.

Related Post: Power Formulas in DC, AC Single Phase and and AC Three Phase
Circuits.

Active Power Formulas:

P=VxI (In DC circuits)
:
 P = V x I x Cosθ (in Single phase AC Circuits)
P = √3 x VLx IL x Cosθ or (in Three Phase AC Circuits)
P = 3 x VPh x IPhx Cosθ
P = √ (S2 – Q2)or
P =√ (VA2 – VAR2) or

Real or True Power or Active Power = √ (Apparent Power2 – Reactive Power2) or

kW = √ (kVA2 – kVAR2)

Where:

Voltage Regulators
High Powered Product Range of Digital
Voltage Stabilisers
watfordcontrol.com

P = Power in Watts
V = Voltages in Volts
I = Current in Amperes
Cosθ = Power Factor (Phase angle Difference)
VL = Line Voltage
IL = Line Current
S = Apparent Power in VA (Volt Ampere)
Q = Reactive Power in VAR (Volt Ampere Reactive)
:
Must Read: Why Transformer Does not Work on DC Supply instead of AC?

What is Reactive Power: (Q)

Also known as (Use-less Power, Watt less Power)

The powers that continuously bounce back and forth between source and load is known
as reactive Power (Q)

Power merely absorbed and returned in load due to its reactive properties is referred to
as reactive power.

Reactive Power represent that the energy is first stored and then released in the form
of magnetic field or electrostatic field in case of inductor and capacitor respectively.

Voltage Regulators
High Powered Product Range of Digital
Voltage Stabilisers
watfordcontrol.com

Reactive power is given by Q = V I Sinθ which can be positive (+ve) for inductive
loads and negative (-ve) for capacitive load.

The unit of Reactive Power is Volt-Ampere reactive i.e. VAR where 1 VAR = 1V x
1A.

In more simple words, in Inductor or Capacitor, how much magnetic or electric field
:
produced by 1A x 1V is known as the unit of Reactive Power.

Must read: Is Reactive Power Useful?

Reactive Power Formulas:

Q = V I Sinθ
Reactive Power = √ (Apparent Power2– True power2)
VAR = √ (VA2 – P2)
kVAR = √ (kVA2 – kW2)

Where:

θ = Phase angle

What is Apparent Power: (S)

The Product of voltage and current if and only if the phase angle differences
between current and voltage are ignored.

Voltage Optimisation Equipment

Contact the specialists in Voltage Stabilization
with over 70 years of experience
watfordcontrol.com

Total power in an AC circuit, both dissipated and absorbed/returned is referred to as

apparent power
:
The combination of reactive power and true power is called apparent power

In an AC circuit, the product of the r.m.s voltage and the r.m.s current is called
apparent power which is denoted by (S) and measured in units of Volt-amp (VA).

It is the product of Voltage and Current without phase angle.

The unit of Apparent power (S) VA i.e. 1VA = 1V x 1A.

Voltage Optimisation Equipment

Contact the specialists in Voltage Stabilization
with over 70 years of experience
watfordcontrol.com

When the circuit is pure resistive, then apparent power is equal to real or true power,
but in inductive or capacitive circuit, (when Reactances exist) then apparent power is
greater than real or true power.

Apparent Power Formulas:

S=VI
S = √ (P + Q2)
Apparent Power = √ (True power2 + Reactive Power2)
kVA = √kW2 + kVAR2

What is Complex Power ? (S = P+jQ or S=VI*)

The Complex sum of Real Power (P) and Reactive Power (Q) is known as Complex
:
Power which can be expressed like S = P+jQ and measured in terms of Volt Amps
Reactive (generally in kVAR).

It may also be expressed as S=VI* where “I*” is the conjugate of the complex current I.
This current “I” flows through a reactive load Z caused by the Voltage.

Complex Power Formulas:

Complex Power in Capacitive Loads
Z = R – jXC
I = IP + jIQ
Cosθ = R / |Z| (leading)
I* = IP – jIQ
S = P – jQ

A Capacitive Load provide Leading VARS (i.e. it eliminates VARS and improves the
overall power factor of the system). That’s why capacitors are used to correct and
improve the power factor.

Complex Power in Inductive Loads

Z = R + jXL
I = IP – jIQ
Cosθ = R / |Z| (lagging)
I* = IP + jIQ
S = P + jQ

Where:
:
 Z = Impedance
R = Resistance
XL = Inductive Reactance
XC = Capacitive Reactance
Cosθ = Power Factor
P = Active Power
S = Apparent Power
Q = Reactive Power

An Inductive Load provide lagging VARS (i.e. it added VARS and decrease the overall
power factor.)

Complex power can also be expressed by the following formula.

 Good to know:

Resistor absorbs the real power and dissipates in the form of heat and
:
 light.

Inductor absorbs the reactive power and dissipates in the form of

magnetic field

Capacitor absorbs the reactive power and dissipates in the form of electric
or electrostatic filed

Power Triangle
∴ Active, Reactive, Apparent Power and Power factor are trigonometrically related to
each other as shown in below figure (Power Triangle).
:
For easy explanation, all the related quantities can be easily understand by the funny
Lays Chips and Beer Analogy for Real or True or Active Power, Reactive Power ,
Apparent Power and power factor.

Lays Chips Analogy of Active, Reactive, Apparent

power & power factor

Beer Analogy of Active power, Reactive

power, Apparent Power and Power factor

Role of Active Power and Reactive Power

There is an important relationship between active and reactive power and the post
below will help to understand that why active power (P) is called true power and
reactive power (Q) is called imaginary power. Explanations given in this article are
rarely available in the books.
:
First understand what is a coil and inductor. Take an iron rod, wrapped (i.e. winding) it
with copper wire. It is a coil or you can say inductor, electromagnet etc. If current
passes through the copper wire then iron rod gets magnetized. More will be the current,
more the magnetism in the iron rod (i.e. more the flux in iron rod & more the magnetic
field around it). Or, it can be said that more the current, more the energy stored by the
inductor. (Energy stored by the inductor is given by

where ‘L’ is the inductance of inductor and ‘I’ is the magnitude of current through the
inductor).

(1) Now consider the following R-L circuit as shown on Figure-1. All the value of current
and voltage are also shown in the Figure.

Figure-1

Active power consumed by the circuit is I2R = 222x6 = 2904 Watt. What is the meaning
of this power? Please note that “Watt= Joule/second”. Therefore it means that resistor
in the circuit is consuming 2904 Joule energy per second and dissipating it in the air. It
is not storing any energy. So you can say it is the true power, or actual power which is
used. (If you will keep your finger near the resistor, you will find it hot, because it is
dissipating energy in the air, i.e. electrical energy is converted into thermal energy).

Now what about inductor?

It is an AC Circuit, current is changing continuously. Therefore in the first quarter cycle

inductor consumes energy, because current is increasing (energy stored by the inductor
is
:
In next quarter cycle, energy is released by the inductor because there is a decrease in
current. In next quarter cycle (third quarter) current is increasing (in reverse direction),
so again energy is stored by the inductor. In next quarter cycle (fourth quarter) current is
decreased, so, again energy is released by the inductor. This procedure is explained in
Figure-2.

Figure-2

So, inductor is consuming energy in a quarter cycle (taking it from voltage source) and
giving back energy in next quarter cycle to the voltage source or you can say it is
exchanging energy with the voltage source. In this case, it can be said that Inductor is
consuming reactive power and voltage source is generating the reactive power. But
note that it is an energy exchange between voltage source and inductor. There is no
power consumed by inductor. This is the reason reactive power is called imaginary
power.

(2) Now take another example. Consider following RLC circuit (Figure-3):
:
 Figure-3

In this circuit, value of inductive reactance and capacitive reactance is same. If you will
calculate Power Factor (PF) of this circuit, then you will find it unity. Energy stored by
the inductor is

as written earlier. Energy stored by a capacitor is given by

(V is magnitude of voltage across capacitor; here onward it will be denoted by ‘Vc’). In

AC circuit both ‘I’ and ‘Vc’ are changing continuously. If you will draw the wave form of
current ‘I’ and ‘Vc’ then you will find that when ‘I’ is increasing at the same time ‘Vc’ is
decreasing and vice-versa. It implies that in a particular quarter cycle if inductor is
storing the energy, at the same time capacitor is releasing the energy. In next quarter
cycle reverse will happen, i.e. capacitor will store the energy and inductor will release
the energy. So, there is an energy exchange continuously between inductor & capacitor.

It is called:

Inductor consumes reactive power and capacitor generates reactive

power.

But it is an energy exchange between two elements. No true power is consumed or

generated; this is the reason reactive power (Q) is called imaginary power.

Note that:
:
 Inductor consumes reactive power and capacitor generates reactive power. It is
the conventions made by Scholars of Electrical Engineering. Reactive power is
imaginary power; neither it is consumed nor can be generated.
In power system, most of the loads are inductive load (induction motors, coils etc.),
due to this reason, the convention ‘reactive power is consumed by inductor’ is
developed.
In power system, to calculate complex power, formula S=VI* is used instead of
S=V*I. It is because to allocate plus sign to reactive power consumption to
inductors/coils/induction motors etc.

(3) Now consider the following circuit (Figure 4):

Figure-4

Now you can understand easily that in this case half of the total reactive power
consumed by inductor will be supplied by voltage source and half reactive power will be
supplied by capacitor. (It implies that inductor will exchange the energy both with
voltage source and capacitor).

Consider the circuit diagram shown in Figure-5:

Figure-5
:
Value of current shown in the figure can be verified by the readers, it is –j5 A. If one
ammeter is inserted in the circuit, what will be its reading? Its reading will be 5 Amp.,
while no true power is consumed by circuit. So, for the purpose of energy exchange,
between voltage source and inductor, current flows in the circuit. You can understand
that inductor is consuming reactive power (imaginary power), no true power is
consumed despite that flow of current is necessary. If wattmeter is inserted in this circuit
(current coil in series with voltage source and pressure coil across voltage source), its
reading can be found to be zero.

You can understand concepts of active power & reactive power with one more example.
Consider Figure-6:

Figure-6

It has one synchronous generator (alternator) supplying power to induction motor with
3Ø line. Synchronous generator is taking 20 KW Mechanical input (through steam
supply), its total losses are 2 KW and electrical output is 18 KW. 2 KW losses means,
2KJ energy per second is dissipating in the air; or we can say electrical energy is
converted into the thermal energy (this is the reason you can find generator,
transformer, motor etc. hot in running condition). Synchronous generator is supplying 10
KVAR reactive power, but it can be seen that to generate reactive power, no mechanical
input is required. Induction motor is consuming 10 KVAR reactive power (because
induction motor has coils, so it has inductive nature)*. With the figure-6, you can
understand synchronous generator is generating reactive power (if running at high DC
excitation) and induction motor is consuming reactive power, but in fact it is just an
:
energy exchange between generator and induction motor.

Suppose a transformer is inserted in Figure-6, between synchronous generator &

induction motor, what will be the load on transformer? Answer is 20.59 KVA. It can be
calculated as

The exact explanation is, To exchange the energy between synchronous generator &
induction motor (i.e. to supply reactive power by the generator), flow of current is
necessary (as explained through Figure-5); So load on transformer is just not active
power, it is combination of active & reactive power. Of course, active & reactive power
cannot be simply added. Their addition follows the equation:

Rating of Voltage Controller at Your Home:

In your house, suppose you have an air-conditioner, having consumption of 2 kW
power. You may require a stabilizer (voltage controller) with this. Stabilizer is just a
transformer. Stabilizer should be installed between voltage supply and the air-
conditioner. What may be the rating of stabilizer? Rating of stabilizer maybe around 4
KVA. The reason is that air-conditioner consumes reactive power also (it has a motor
inside it). So, the kVA rating of stabilizer is certainly more than 2 kVA. Though the
reactive power is imaginary power i.e. exchange of energy between air-conditioner and
voltage supply but for this exchange of energy, current flows between air-conditioner
and stabilizer, that passes through the winding of stabilizer (transformer), therefore just
a 2 kVA stabilizer is not sufficient.

In most of the countries, the meters installed in residential areas are KW-Hr meter; so
you have to pay electricity bill of active power; reactive power is free; but any
transformer or voltage controller is to be installed accommodates reactive power also,
hence rated in kVA (apparent power). Therefore in aforesaid example, a consumer has
to pay bill of 2 kW power (as it is true power), reactive power is free (as it is imaginary
power), but while installing any transformer or voltage controller, reactive power cannot
:
be ignored.

Note a few more important points:

1. Induction motor always runs at lagging power factor as it always consumes

reactive power along with active power.
2. Synchronous generator can run at leading, lagging or unity Power factor.
Synchronous generator is a generator, so it always supply active power, but if
running on low excitation, it consumes reactive power, in this condition it can be
said it is running at leading PF.
3. Synchronous generator shown in figure-6 is running at lagging Power factor
4. It is a common question of students, if synchronous generator is generating
reactive power, how you have termed it as lagging Power factor. The reason is that
suppose induction motor terminal voltage is 1∠0pu and current consumed by it is
0.9∠-30°pu. It is lagging current, so, we can say motor is running under lagging PF.
Same current is supplied by generator & same is terminal voltage of generator,
hence relation between terminal voltage of generator and current supplied by it is
lagging, hence its PF of generator is also lagging.

Or, simply if direction of P & Q is same it is lagging PF. If direction of P & Q is opposite it
is leading PF.

* You can ask Synchronous motor also has coils, it has no capacitor inside it, how it can
generate reactive power. The answer is that it has field winding, which can increase the
flux in the synchronous motor. The induction motor has no field winding.

By: Electrical Techology

Updated By: Dr. Vipin Jain Ph.D in Electrical Engineering

Related Posts:

What is Electrical Power? Types of Electric Power and their Units

Power Factor
Causes of low Power Factor
:
 Advantages of Power factor improvement and Correction
Disadvantages of Low Power Factor
Power Factor improvement Methods with Their advantages & Disadvantages
How to Calculate the Suitable Capacitor Size in Farads & kVAR for Power factor
Improvement
How to Convert Capacitor Farads into kVAR and Vice Versa (For Power factor
improvement)
CAPACITOR BANKS – CHARACTERISTICS AND APPLICATIONS
Analysis of Reactive Power in Power System

 Tags Active Power Apparent Power Complex Power Power Factor Reactive Power

           

Related Articles
:
How to Size a Single Phase and Three Phase Thevenin’s Theorem. Step by Step Procedure
Transformer in kVA? Calculator with Solved Example

Why is a Transformer Rated in kVA, but Not Why are Air-Conditioners (AC) Rated in Tons,
in kW? Not in kW or kVA?

How to Calculate the Suitable Capacitor Size Difference between Star and Delta
in µ-Farads & kVAR for P.F Improvement Connections – Comparison Of Y/Δ

SHOW ALL COMMENTS

:
  FOLLOW US
:
 2.7M 5k 218k 202k
FANS FANS FANS FANS

2.9k 3k 4k 1k
FANS FANS FANS POSTS

Voltage Regulators
High Powered Product Range of Digital
Voltage Stabilisers
watfordcontrol.com

 Home > Electrical Machines > Batteries > Why Can’t We Store AC in
Batteries instead of DC?

AC Fundamentals Basic Concepts Batteries DC Circuits

Questions - Answers

Why Can’t We Store AC in

Batteries instead of DC?
 Electrical Technology  45  1 minute read
:
  Electrical Technology  45  1 minute read

Why AC Can’t be Stored in Batteries like DC?

We cannot store AC in batteries because AC changes their
polarity up to 50 (When frequency = 50 Hz) or 60 (When
frequency = 60 Hz) times in a second. Therefore the battery
terminals keep changing i.e. Positive (+ve) becomes Negative (-
Ve) and vice versa, but the battery cannot change their terminals
with the same speed so that’s why we can’t store AC in
Batteries.

Related Post: What Happens When an AC Line Touches

a DC Line?

In addition, when we connect a battery with AC Supply, then it

will charge during positive half cycle and discharge during
negative half cycle, because the Positive (+ve) half cycle
cancels the Negative (-Ve) half cycle, so the average voltage
or current in a complete cycle is Zero. So there is no chance
to store AC in the Batteries.

Related Post: Difference Between a Battery and a

Capacitor

Good to know: Average Voltage x Average Current ≠ Average

Power.
:
 You may also read:

Why Can’t a 12V Car Battery Electrocute You?

Why Power Plant Capacity Rated in MW and not in MVA?
Why Motor rated in kW instead of kVA?
Why Battery rated in Ah (Ampere hour) and not in VA.
Why Transformer Rated In kVA, Not in KW?
AC or DC – Which One is More Dangerous And Why ?
Why Do Electronic Circuits Use DC Current instead of AC?
Which One is More Dangerous? 50Hz or 60Hz in
120V/230V & Why?

SHOW ALL COMMENTS

Subscribe to Blog via Email

Enter Your Email Address to Subscribe to this Blog and Receive Notifications of New Posts by
Email.

Email Address

SUBSCRIBE
:
:
