SENSORS

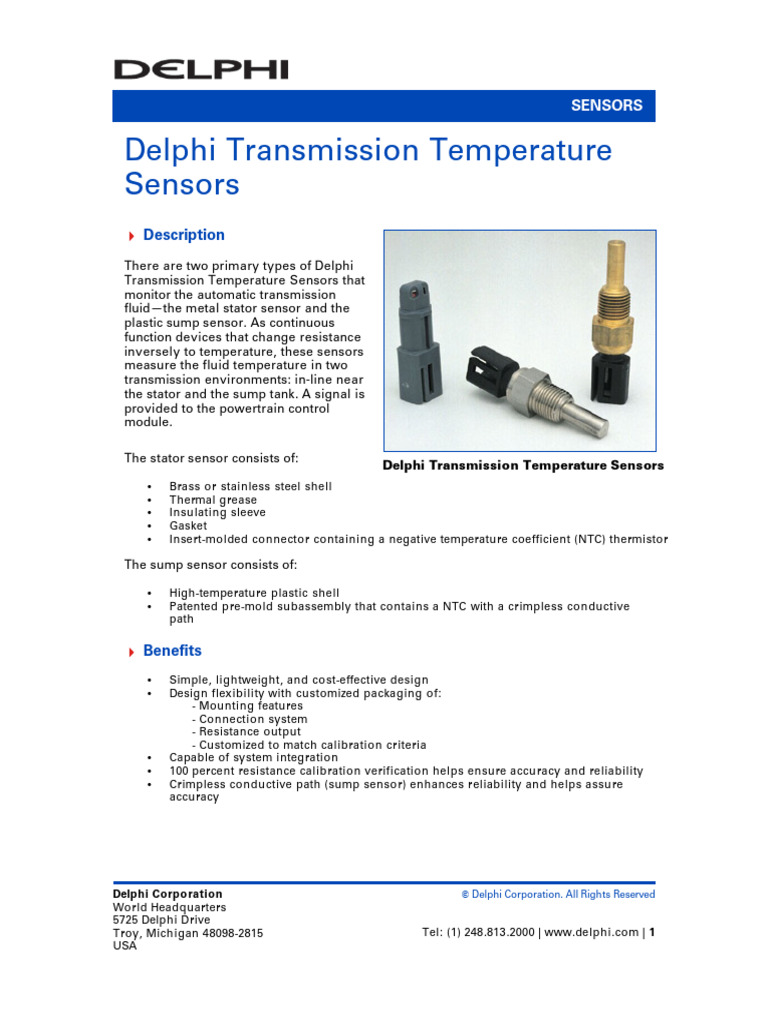

Delphi Transmission Temperature

Sensors
 Description

There are two primary types of Delphi

Transmission Temperature Sensors that
monitor the automatic transmission
fluid—the metal stator sensor and the
plastic sump sensor. As continuous
function devices that change resistance
inversely to temperature, these sensors
measure the fluid temperature in two
transmission environments: in-line near
the stator and the sump tank. A signal is
provided to the powertrain control
module.

The stator sensor consists of:

Delphi Transmission Temperature Sensors
 Brass or stainless steel shell
 Thermal grease
 Insulating sleeve
 Gasket
 Insert-molded connector containing a negative temperature coefficient (NTC) thermistor

The sump sensor consists of:

 High-temperature plastic shell

 Patented pre-mold subassembly that contains a NTC with a crimpless conductive
path

 Benefits
 Simple, lightweight, and cost-effective design
 Design flexibility with customized packaging of:
- Mounting features
- Connection system
- Resistance output
- Customized to match calibration criteria
 Capable of system integration
 100 percent resistance calibration verification helps ensure accuracy and reliability
 Crimpless conductive path (sump sensor) enhances reliability and helps assure
accuracy

Delphi Corporation © Delphi Corporation. All Rights Reserved

World Headquarters
5725 Delphi Drive
Troy, Michigan 48098-2815 Tel: (1) 248.813.2000 | www.delphi.com | 1
USA
 SENSORS

Delphi Transmission Temperature

Sensors
 Specifications for Transmission Stator Temperature Sensor

Thermal and electrical properties

 Typical voltage supply: 5 V DC

 Operating temperature: -40°C to +200°C (sensor tip); -40°C to +150°C (connector)
 Resistance at 25°C: 11150 ohms
 Thermal time constant: 10 seconds in silicone oil
 Accuracy (±°C): 1.8 to 1.1 (-40°C to +135°C); 1.1 to 1.7 (+135°C to +200°C)

Mechanical characteristics

 Sensor housing material: stainless steel or brass

 Sensor connector material: PA66 HS IM
 Hex size: 12.70 mm (1⁄2 in.)
 Thread size: 1⁄8 in. - 27 PTF
 Mating connector: P⁄N 12047662
 Mating connector TPA: P⁄N 12047664
 Overall weight: 11.6 grams

Transmission Stator Temperature Sensor Diagram

Transmission Stator Temperature Sensor Diagram
Note: All measurements are in millimeters.
Note: All measurements are in millimeters.

Delphi Corporation © Delphi Corporation. All Rights Reserved

World Headquarters
5725 Delphi Drive
Troy, Michigan 48098-2815 Tel: (1) 248.813.2000 | www.delphi.com | 2
USA
 SENSORS

Delphi Transmission Temperature

Sensors
 Specifications for Transmission Sump Temperature Sensor

Thermal and electrical properties

 Typical voltage supply: 5 V DC

 Operating temperature: -40°C to +135°C
 Resistance at 25°C: 2795 ohms
 Thermal time constant: 5 seconds in silicone oil
 Accuracy (±°C): 0.56 to 0.77 (-40°C to +100°C); 0.77 to 1.24 (+100°C to +150°C)

Mechanical characteristics

 Sensor body material: PA66 HS IM

 Color: gray
 Overall weight: 2.8 grams
 Mating connector: P⁄N 12047662
 Mating connector TPA: P⁄N 12047664

Transmission Sump Temperature Sensor Diagram

Note: All measurements are in millimeters.
