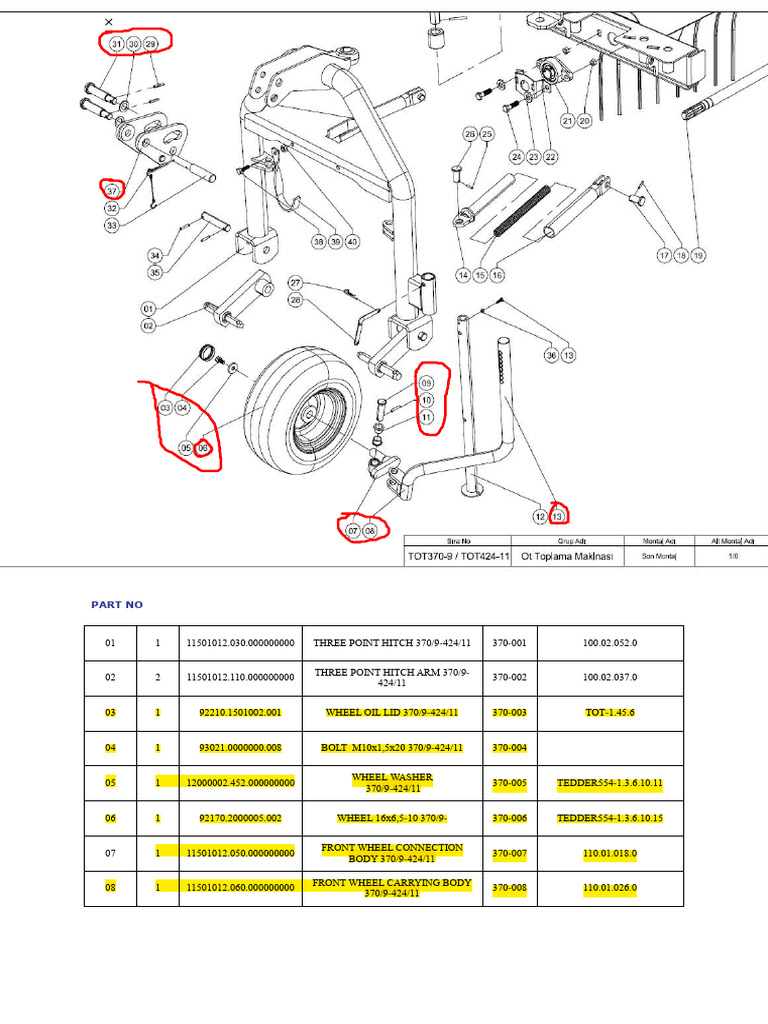

PART NO

01 1 11501012.030.000000000 THREE POINT HITCH 370/9-424/11 370-001 100.02.052.0

THREE POINT HITCH ARM 370/9-

02 2 11501012.110.000000000 370-002 100.02.037.0
424/11

03 1 92210.1501002.001 WHEEL OIL LID 370/9-424/11 370-003 TOT-1.45.6

04 1 93021.0000000.008 BOLT M10x1,5x20 370/9-424/11 370-004

WHEEL WASHER
05 1 12000002.452.000000000 370-005 TEDDER554-1.3.6.10.11
370/9-424/11

06 1 92170.2000005.002 WHEEL 16x6,5-10 370/9- 370-006 TEDDER554-1.3.6.10.15

FRONT WHEEL CONNECTION

07 1 11501012.050.000000000 370-007 110.01.018.0
BODY 370/9-424/11

FRONT WHEEL CARRYING BODY

08 1 11501012.060.000000000 370-008 110.01.026.0
370/9-424/11
09 1 92160.1501010.012 WHEEL PIN 370/9-424/11 370-009 110.01.030.0

10 1 93200.0000000.007 Y PIN Ø6x30 370/9-424/11 Opsiyonel 370-010

11 2 93250.0000000.008 2015 P11 370/9-424/11 370-011

12 1 11501012.122.000000000 SUPPORT LEG 370/9-424/11 370-012 100.02.046.1

BOLT M6x1x16 370/9-424/11

13 1 93021.0000000.139 370-013
Opsiyonel

SUSPENSION INNER PART 370/9-

14 2 11501012.080.000000000 370-014 100.02.058.0
424/11
PRESSURE SPRING
15 2 92060.1501010.003 TELØ4xDIŞØ25xBOY440mm 370/9- 370-015 100.02.061.0
424/11
SUSPENSION OUTER PART 370/9-
16 2 11501012.070.000000000 370-016 100.02.031.0
424/11

17 2 92160.1501010.003 TENSION SHORT PIN 370/9-424/11 370-017 100.02.067.0

18 2 93200.0000000.002 Y PIN Ø5x36 370/9-424/11 370-018

11501011.100.000000000 MIDDLE TAIL AXLE 370/9-1040mm 370-019 370/9 KUYRUK MİLİ

19 1
11501012.160.000000000 BIG TAIL AXLE 424/11-1120mm 424-001 424/11 KUYRUK MİLİ

20 2 93082.0000000.005 NUT M14x2 370/9-424/11 370-020

21 1 93077.0000000.007 BEARING UCFL207 370/9-424/11 370-021

BEARING CONNECTING SHEET

22 1 92150.1501005.001 370-022 OTP344M-1.7
370/9-424/11

23 2 93062.0000000.006 WASHER DÜZ M14 370/9-424/11 370-023

BOLT AKB M14x2x90x35 370/9-

24 2 93021.0000000.085 370-024
424/11

25 2 93200.0000000.002 Y PIN Ø5x36 370/9-424/11 370-025

26 2 92160.1501010.013 TENSION LONG PIN 370/9-424/11 370-026 100.02.064.0

27 1 93100.0000000.001 F M Ø3 370/9-424/11 370-027

28 1 92160.1501010.007 WHEEL LOCKING PIN 370/9-424/11 370-028 100.02.066.0

29 2 93200.0000000.007 Y PIN Ø6x30 370/9-424/11 370-029

30 2 92150.1501010.059 WASHER Ø21xØ35x1,5 370/9-424/11 370-030 100.02.065.0

UPPER CONNECTION PIN 370/9-

31 2 92160.1501010.021 370-031 110.01.038.0
424/11
32 1 12000002.460.000000000 HOOK Ø4 370/9-424/11 370-032

THREE POINT HITCH PIN 370/9-

33 1 92160.2000002.001 370-033 TEDDER554-1.4.27
424/11

34 4 93200.0000000.014 Y PIN Ø8x40 370/9-424/11 370-034

35 2 92160.1501010.011 SWING PIN 370/9-424/11 370-035 100.02.055.0

36 1 93082.0000000.014 NUT M6x1 370/9-424/11 370-036

THREE POINT UPPER SWING

37 1 11501012.150.000000000 370-037 110.01.032.0
370/9-424/11 Opsiyonel

38 1 93021.0000000.010 BOLT AKB M10x1,5x30 370/9-424/11 370-038

39 1 12000002.171.000000000 SHAFT HOLDER 370/9-424/11 370-039 TEDDER554-1.4.35

NUT
40 1 93082.0000000.001 370-040
M10x1,5 370/9-424/11
PART NO

11501011.050.000000000 MIDDLE PROTECTING BODY 370-9 370-041 101.04.002.0

01 1
11501012.140.000000000 BIG PROTECTING BODY 424-11 424-002 100.04.026.0

CUFF 84x30x60-Ø34
02 2 92070.1501010.001 370-042
370-9/424-11

METAL SHEET
03 2 92150.1501010.058 370-043
370-9/424-11
PULLING SPRING
04 1 92060.1501010.001 TELØ7mmxDIŞØ50xBOY254mm 370-044 100.04.043.0
370-9/424-11
NUT M8x1,25
05 4 93082.0000000.015 370-045
370-9/424-11

CONNECTING METAL SHEET

06 1 92150.1501010.016 370-046 100.04.039.0
370-9/424-11

BOLT AKB M8x1,25x60x25

07 4 93021.0000000.300 370-047
370-9/424-11
PRESSURE SPRING
08 2 92060.1501010.002 TELØ2.5mmxDIŞØ21.5mmxBOY50mm 370-048 100.04.041.0
370-9/424-11
Y PIN Ø5x36
09 2 93200.0000000.002 370-049
370-9/424-11
 SIDE PROTECTING LOCKING PIN
10 2 92160.1501010.008 370-050 100.04.034.0
370-9/424-11

11501011.090.000000000 EXTENSION ARM 370-9 370-051 101.04.015.0

11 1
11501012.100.000000000 EXTENSION ARM 424-11 424-003 100.04.047.0

PROFILE PRESSING SHEET

12 1 92150.1501010.056 370-052 100.04.038.0
370-9/424-11

LOCKING SHEET
13 1 92190.1501012.001 370-053 100.04.045.0
370-9/424-11

LOCKING PIN
14 1 92160.1501010.009 370-054 100.04.042.0
370-9/424-11

NUT M10x1,5
15 1 93082.0000000.001 370-055
370-9/424-11

WASHER M10
16 1 93062.0000000.004 370-056
370-9/424-11

STICK
17 1 11501005.050.011000000 370-057 OTP344M-1.27.3
370-9/424-11

TARPAULIN
18 1 92090.1501005.001 370-058 OTP344M-1.27.04
370-9/424-11

BIG SPRING
19 1 92060.1150105.001 370-059 OTP344M-1.27.6
370-9/424-11

NUT M10x1,5
20 10 93082.0000000.001 370-060
370-9/424-11

WASHER M10
21 20 93062.0000000.004 370-061
370-9/424-11

BOLT M10x1,5x25
22 10 93021.0000000.009 370-062
370-9/424-11

SMALL SPRING
23 2 92060.1150105.002 370-063 OTP344M-1.27.8
370-9/424-11

WIDE SHEET
24 1 92150.1501010.014 370-064 100.04.052.0
370-9/424-11

BOLT M10x1,5x25
25 2 93021.0000000.009 370-065
370-9/424-11

WASHER DÜZ M10

26 4 93062.0000000.004 370-066
370-9/424-11

NUT M10x1,5
27 2 93082.0000000.001 370-067
370-9/424-11
PART NO
11501011.040.000000000 MAIN BODY 370-9 370-068 101.02.002.0
01 1
11501012.020.000000000 MAIN BODY 424-11 424-004 100.02.050.0

11501011.060.000000000 MIDDLE PROTECTING BODY 370-9 370-069 101.04.010.0

02 1
11501012.130.000000000 BIG PROTECTING BODY 424-11 424-005 100.04.020.0

Y NUT M50X1.5
03 2 92160.1202509.004 370-070 TDRAM3001-1.1.8
370-9/424-11

WASHER M50x1,25 MB10

04 2 93065.0000000.004 370-071
370-9/424-11

NUT M14x2
05 4 93082.0000000.005 370-072
370-9/424-11

WASHER
06 4 92150.1501005.002 370-073 OTP344M-1.20
370-9/424-11

93021.0000000.260 BOLT M14x2x55 370-9 370-074

07 4
93021.0000000.079 BOLT M14x2x60 424-11 424-006

RUBBER STOPPER 50x30 M10

08 2 93025.0000000.005 370-075
370-9/424-11

NUT M10x1,5
09 2 93082.0000000.001 370-076
370-9/424-11

NUT M10x1,5 8.8

10 2 93081.0000000.001 370-077
370-9/424-11
 122.0000.1501002.130.001 GEARBOX 9 ARM 370-078
01 1
122.0000.1501006.130.001 GEARBOX 11 ARM 424-007
18 Y PIN Ø12x50 370-9 370-079
02 93200.0000000.018
22 Y PIN Ø12x50 424-11 424-008
18 Y PIN Ø7x50 370-9 370-080
03 93200.0000000.012
22 Y PIN Ø7x50 424-11 424-009
9 11501011.010.030000000 COLLECTING EXTENSION SHORT ARM 370-9 370-081 101.01.010.0
04
11 11501006.090.010000000 COLLECTING EXTENSION SHORT ARM 424-11 424-010 OTP414M-1.26.4
9 SPRING CONNECTING ARM 370-9 370-082
05 11501006.090.020000000 OTP414M-1.26.13
11 SPRING CONNECTING ARM 424-11 424-011
9 PIN Ø10 370-9 370-083
06 93240.0000000.003
11 PIN Ø10 424-11 424-012
27 BOLT M12x1,75x70x35 370-9 370-084
07 93021.0000000.051
44 BOLT M12x1,75x70x35 424-11 424-013
27 WASHER M12 370-9 370-085
08 93062.0000000.005
44 WASHER M12 424-11 424-014
27 COLLECTOR SPRING 370-9 370-086
09 92060.1501004.001 OTP344M-1.26.9
44 COLLECTOR SPRING 424-11 424-015

27 CONNECTING BUSHE 370-9 370-087

10 11501005.090.042000000 OTP344M-1.26.12
44 CONNECTING BUSHE 424-11 424-016

27 CONNECTING WASHER 370-9 370-088

11 11501005.090.032000000 OTP344M-1.26.11
44 CONNECTING WASHER 424-11 424-017

27 NUT M12x1,75 370-9 370-089

12 93082.0000000.003
44 NUT M12x1,75 424-11 424-018
 THREE POINT WELDED BODY
01 1 11501012.010.022000000 370-090 100.02.024.0
370-9/424-11

THREE POINT BUSHE

02 1 92160.1501010.002 370-091 100.02.025.0
370-9/424-11

Y PIN Ø8x50
03 1 93200.0000000.016 370-092
370-9/424-11

BOL M8x1,25x20
04 1 93021.0000000.157 370-093
370-9/424-11

WASHER M8
05 1 93062.0000000.013 370-094
370-9/424-11
 DOUBLE WHEEL CARRIER BODY
01 1 11501011.080.000000000 RIGHT 370-095 100.07.010.0
370-9/424-11
DOUBLE WHEEL CARRIER AXLE
11501011.011.010000000 370-9 370-096 101.07.021.0
02 1
11501006.060.020000000 DOUBLE WHEEL CARRIER AXLE 424-019 OTP414M-1.25.14
424-11
DOUBLE WHEEL CARRIER BODY
03 1 11501011.070.000000000 LEFT 370-097 100.07.015.0
370-9/424-11
SLIDING HOUSING HUB 25x28x20
04 4 93250.0000000.003 P10 370-098
370-9/424-11
DISTANCE WASHER
05 1 92150.1501005.012 370-099 OTP344M-1.18.11
370-9/424-11

WHEEL DISTANCE WASHER

06 1 92160.1501005.009 370-100 OTP344M-1.18.13
370-9/424-11

BEARING 51205 WBF

07 1 93074.0000000.005 370-101
370-9/424-11

DISTANCE WASHER
08 1 92150.1501005.011 370-102 OTP344M-1.18.08
370-9/424-11
 Y PIN Ø6x36
09 1 93200.0000000.009 370-103
370-9/424-11
LEVEL ADJUSTMENT TURNING
11501005.162.000000000 SHAFT 370-9 370-104 OTP344M-1.18.4
10 1
11501006.040.022000000 LEVEL ADJUSTMENT TURNING 424-020 OTP414M-1.18.4
SHAFT 424-11
WEDGE 10x7x110 A DIN6885
11 2 93150.0000000.001 370-105
370-9/424-11

TURNING ARM LOCKING ARM

12 1 92190.1501005.018 370-106 OTP344M-1.18.17
370-9/424-11

Y PIN Ø8x30
13 1 93200.0000000.020 370-107
370-9/424-11
LEVEL ADJUSTMENT TURNING
14 1 11501005.040.021000000 ARM 370-108 OTP344M-1.18.2
370-9/424-11
GREASESOR M8
15 2 93110.0000000.006 370-109
370-9/424-11

RAKE
16 1 92210.1501005.001 370-110 OTP344M-1.18.14
370-9/424-11
TOTA-1.14.03
11501002.250.031000000 WHEEL RIM COVER 370-9 370-111
17 4 TEDDER554-
12000002.141.000000000 WHEEL RIM COVER 424-11 424-021
1.3.6.10.07
TOTA-1.14.06
92170.1501002.001 WHEEL 15x6x6,00 370-9 370-112
18 4 TEDDER554-
92170.2000005.002 WHEEL 16x6,5 424-11 424-022
1.3.6.10.15
WHEEL WASHER
19 4 92150.1501005.007 370-113 OTP344M-1.25.4
370-9/424-11

BOLT AKB M10x1,5x20

20 4 93021.0000000.008 370-114
370-9/424-11

WHEEL OIL LID

21 4 92210.1501002.001 370-115 TOT-1.45.6
370-9/424-11

BOLT M8x1,25x16
22 2 93027.0000000.002 370-116
370-9/424-11

HOUSING SHAFT
23 2 92160.1501005.002 370-117 OTP344M-1.25.3
370-9/424-11

CUFF 76 – 92
24 1 93160.0000000.012 370-118
370-9/424-11

PLASTIC TAP
25 2 92070.1501005.006 370-119 OTP344M-1.18.12
370-9/424-11
AXLE INNER DISTANCE BUSHE
11501011.011.010020000 370-9 25mm 370-120
26 1
11501012.010.030000000 AXLE INNER DISTANCE BUSHE 424-023
424-11 14mm
3,2lt SAE 140 OIL 370-9 370-121
27 93130.0000000.001
6,8lt SAE 140OIL 424-11 424-024
