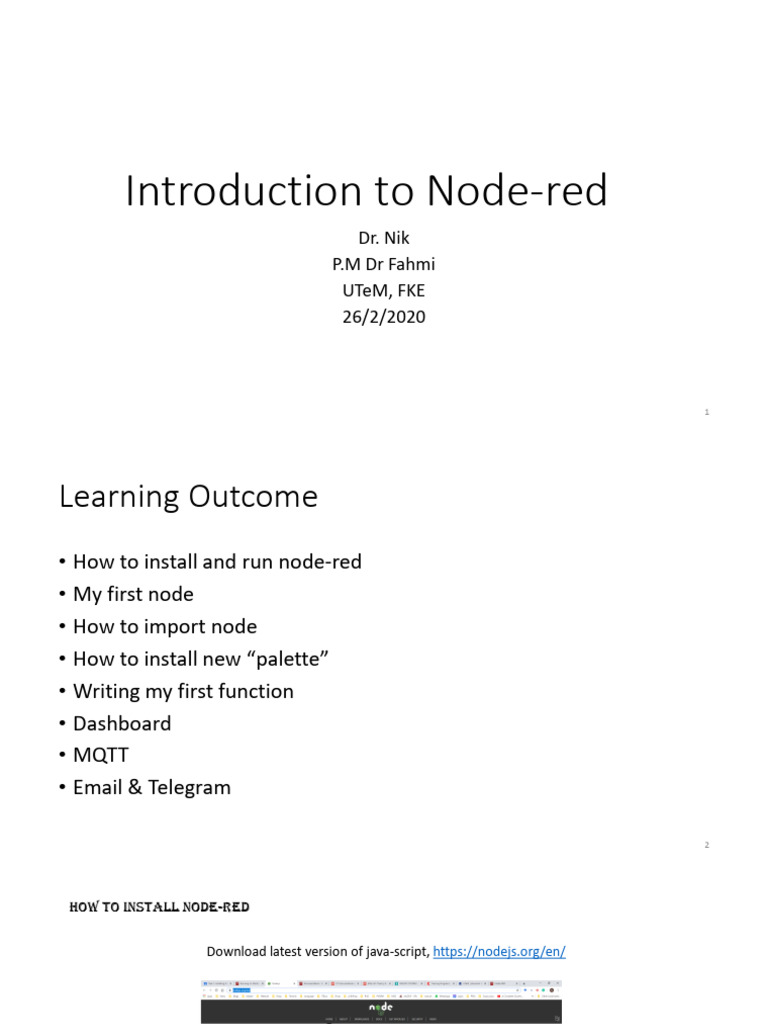

Introduction to Node-red

Dr. Nik
P.M Dr Fahmi
UTeM, FKE
26/2/2020

1
Learning Outcome
• How to install and run node-red
• My first node
• How to import node
• How to install new “palette”
• Writing my first function
• Dashboard
• MQTT
• Email & Telegram

2
How to install node-red

Download latest version of java-script, https://nodejs.org/en/

3
node-red INSTALLATION Next install node-red
Refer: https://nodered.org/docs/getting-started/windows

4
How to run node-red

Go to command prompt by typind ‘cmd’ …

go to the path where node-red is installed, in my case:
C:\Users\01238\AppData\Roaming\SPB_Data\.node-red

Type ‘node-red’

5
Go to web-browser and type the IP –address of the node-red server

By default, node-red is run at port 1880

6
 How to stop node-red server

Push “ctrl + c” to stop the server, then push “Y”

Next, try running node-red at different port (1888) by typing

Node-red –p 1888 NIK_task2.json

7
My first node

Epoch time

Don’t forget to Deploy first…

8
Importing node

Choose file or Copy & paste in the field

Click9 Import
Importing node

10
How to install new “palette”

Search for “node-red-contrib-ibm-watson-iot”

11
Try opening the Watson link in your phone too 12
Writing my first function

Now choose the function node, and write a function to generate random number:

Copy this into the function node

var zufall;
zufall=Math.floor(Math.random()*100+1);
msg.payload=zufall;
return msg;

Random number in Watson IOT website

The function is written in javascript language, here is
a good reference to learn more about javascript:
https://www.w3schools.com/js/
13
Dashboard
First install the Dashboard palette.

Add a chart

14
 Dashboard

Add new group. Give name “MSD” Add new tab. Give any name.

15
Dashboard

Click on ‘layout’ to change dashboard layout.

Change ‘width’ to any value.

16
 Dashboard

Click here to
show dashboard

List of “Tabs”

17
MQTT = Message Queuing Telemetry Transport

PUBLIC
MQTT = Message Queuing Telemetry Transport

List of free to use MQTT servers

https://github.com/mqtt/mqtt.github.io/wiki/public_brokers

However, using public MQTT servers means your data can be viewed by the public.
Alternatively, you can use your PC as MQTT server .
Go to this website for installation:
https://mosquitto.org/download/

PRIVATE

18
MQTT = Message Queuing Telemetry Transport (continued)

19
Using Smartphone as IoT-
Sensor Module

20
Sensor Data logger
• Remotely activate start of data collection
• Live data monitoring (at slower rate)
• Start data logging (at higher rate, no live monitoring)
• Stop
• or Specify duration (in mins) and stop automatically
• Data is stored in .csv
• Retrieve the .csv data by email

21
How to split JSON into individual values (source FB)
a = JSON.parse(msg.payload);
var t = { payload: parseFloat(a.temp)};
t.topic = "Temp";
var rh = { payload: parseInt(a.rh) };
rh.topic = "Humidity";
var co2 = { payload: parseInt(a.co2) };
co2.topic = "CO2";
var r = { payload: parseInt(a.r1) };
r.topic = "relay";
return [co2,t,rh,r];
