UNIVERSIDADE TECNOLÓGICA FEDERAL DO PARANÁ

Campus Curitiba
Tecnologia em Sistemas de Telecomunicações – Redes Locais

DualStack – IPv4 e IPv6

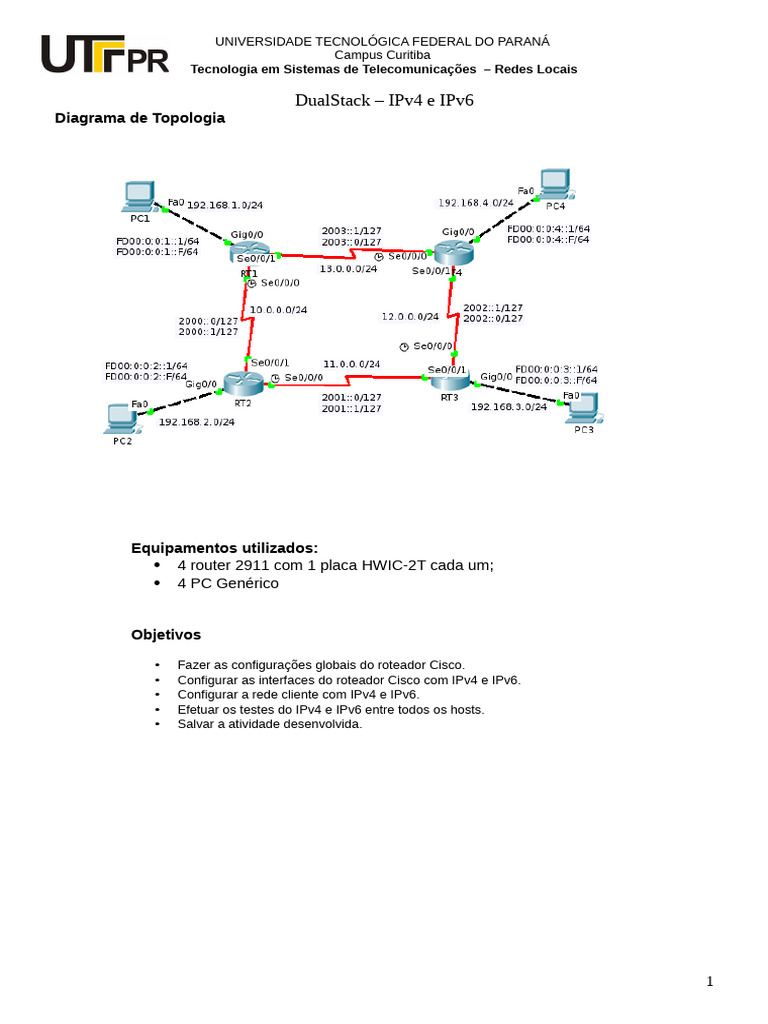

Diagrama de Topologia

192.168.1.0/24 192.168.4.0/24

13.0.0.0/24

10.0.0.0/24
12.0.0.0/24

11.0.0.0/24
192.168.2.0/24 192.168.3.0/24

Equipamentos utilizados:
 4 router 2911 com 1 placa HWIC-2T cada um;
 4 PC Genérico

Objetivos

• Fazer as configurações globais do roteador Cisco.

• Configurar as interfaces do roteador Cisco com IPv4 e IPv6.
• Configurar a rede cliente com IPv4 e IPv6.
• Efetuar os testes do IPv4 e IPv6 entre todos os hosts.
• Salvar a atividade desenvolvida.

1
Tabela de Roteamento

Dispositivo Interface Endereço GW Endereço GW

IPv6 IPv6 IPv4 IPv4
G0/2 FD00:0:0:1::F/64 N/A 192.168.1.1/24 N/A
RT1 S0/0/0 2000::0/127 N/A 10.0.0.1/24 N/A
S0/0/1 2003::1/127 N/A 13.0.0.2/24 N/A
G0/2 FD00:0:0:2::F/64 N/A 192.168.2.1/24 N/A
RT2 S0/0/0 2001::0/127 N/A 11.0.0.1/24 N/A
S0/0/1 2000::1/127 N/A 10.0.0.2/24 N/A
G0/2 FD00:0:0:3::F/64 N/A 192.168.3.1/24 N/A
RT3 S0/0/0 2002::0/127 N/A 12.0.0.1/24 N/A
S0/0/1 2001::1/127 N/A 11.0.0.2/24 N/A
G0/2 FD00:0:0:4::F/64 N/A 192.168.4.1/24 N/A
RT4 S0/0/0 2003::0/127 N/A 13.0.0.1/24 N/A
S0/0/1 2002::1/127 N/A 12.0.0.2/24 N/A
PC1 NIC FD00:0:0:1::1/64 FD00:0:0:1::F 192.168.1.2/24 192.168.1.1
PC2 NIC FD00:0:0:2::1/64 FD00:0:0:2::F 192.168.2.2/24 192.168.2.1
PC3 NIC FD00:0:0:3::1/64 FD00:0:0:3::F 192.168.3.2/24 192.168.3.1
PC4 NIC FD00:0:0:4::1/64 FD00:0:0:4::F 192.168.4.2/24 192.168.4.1
= clock rate interface que liga o cabo DCE
Configuração:
Router RT1 Router RT2

Configurar o protocolo de Roteamento OSPFv3 Configurar o protocolo de Roteamento OSPFv3

(IPv6):
Router>enable
Router#configure terminal
Router(config)#hostname RT1
RT1(config)#ipv6 unicast-routing
RT1(config)#ipv6 router ospf 1
RT1(config-rtr)#router-id 1.1.1.1
RT1(config-rtr)#exit
(IPv6):
Router>enable
Router#configure terminal
Router(config)#hostname RT2
RT2(config)#ipv6 unicast-routing
RT2(config)#ipv6 router ospf 1
RT2(config-rtr)#router-id 2.2.2.2
RT2(config-rtr)#exit

Configurar as Interfaces: Configurar as Interfaces:

RT1>enable
RT1#configure terminal
RT1(config)#interface serial 0/0/0
RT1(config-if)#ip address 10.0.0.1 255.255.255.0
RT1(config-if)#ipv6 address 2000::0/127
RT1(config-if)#clock rate 64000
RT1(config-if)#ipv6 ospf 1 area 0
RT1(config-if)#no shutdown
RT1(config-if)#exit
RT1(config)#interface serial 0/0/1
RT1(config-if)#ip address 13.0.0.2 255.255.255.0
RT1(config-if)#ipv6 address 2003::1/127
RT1(config-if)#ipv6 ospf 1 area 0
RT1(config-if)#no shutdown
RT1(config-if)#exit
RT1(config)#interface gig 0/2
RT1(config-if)#ipv6 address FD00:0:0:1::F/64
RT1(config-if)#ip address 192.168.1.1
255.255.255.0
RT1(config-if)#ipv6 ospf 1 area 0
RT1(config-if)#no shutdown
RT1(config-if)#end
RT2>enable
RT2#configure terminal
RT2(config)#interface serial 0/0/0
RT2(config-if)#ip address 11.0.0.1 255.255.255.0
RT2(config-if)#ipv6 address 2001::0/127
RT2(config-if)#clock rate 64000
RT2(config-if)#ipv6 ospf 1 area 0
RT2(config-if)#no shutdown
RT2(config-if)#exit
RT2(config)#interface serial 0/0/1
RT1(config-if)#ip address 10.0.0.2 255.255.255.0
RT2(config-if)#ipv6 address 2000::1/127
RT2(config-if)#ipv6 ospf 1 area 0
RT2(config-if)#no shutdown
RT2(config-if)#exit
RT2(config)#interface gig 0/2
RT2(config-if)#ipv6 address FD00:0:0:2::F/64
RT1(config-if)#ip address 192.168.2.1
255.255.255.0
RT2(config-if)#ipv6 ospf 1 area 0
RT2(config-if)#no shutdown
RT2(config-if)#end

Configurar o protocolo de Roteamento Configurar o protocolo de Roteamento

OSPFv2(IPv4): OSPFv2(IPv4):
RT1#configure terminal RT2#configure terminal
RT1(config)#router ospf 1 RT2(config)#router ospf 1

2
RT1(config-router)#network 192.168.1.0
0.255.255.255 area 0
RT1(config-router)#network 10.0.0.0
0.255.255.255 area 0
RT1(config-router)#network 13.0.0.0
0.255.255.255 area 0
RT1(config)#end
RT1#wr
Router RT3
Configurar o protocolo de Roteamento OSPFv3:
Router>enable
Router#configure terminal
Router(config)#hostname RT3
RT3(config)#ipv6 unicast-routing
RT3(config)#ipv6 router ospf 1
RT3(config-rtr)#router-id 3.3.3.3
RT3(config-rtr)#exit
Configurar as Interfaces:
RT3>enable
RT3#configure terminal
RT3(config)#interface serial 0/0/0
RT3(config-if)#ip address 12.0.0.1 255.255.255.0
RT3(config-if)#ipv6 address 2002::0/127
RT3(config-if)#clock rate 64000
RT3(config-if)#ipv6 ospf 1 area 0
RT3(config-if)#no shutdown
RT3(config-if)#exit
RT3(config)#interface serial 0/0/1
RT3(config-if)#ip address 11.0.0.2 255.255.255.0
RT3(config-if)#ipv6 address 2001::1/127
RT3(config-if)#ipv6 ospf 1 area 0
RT3(config-if)#no shutdown
RT3(config-if)#exit
RT3(config)#interface gig 0/2
RT3(config-if)#ip address 192.168.3.1
255.255.255.0
RT3(config-if)#ipv6 address FD00:0:0:3::F/64
RT3(config-if)#ipv6 ospf 1 area 0
RT3(config-if)#no shutdown
RT3(config-if)#end
Configurar o protocolo de Roteamento
OSPFv2(IPv4):
Router#configure terminal
RT3(config)#router ospf 1
RT3(config-router)#network 192.168.3.0
0.255.255.255 area 0
RT3(config-router)#network 12.0.0.0
0.255.255.255 area 0
RT3(config-router)#network 11.0.0.0
0.255.255.255 area 0
RT3(config)#end
RT3#wr
RT2(config-router)#network 192.168.2.0
0.255.255.255 area 0
RT2(config-router)#network 10.0.0.0
0.255.255.255 area 0
RT2(config-router)#network 11.0.0.0
0.255.255.255 area 0
RT2(config)#end
RT2#wr
Router RT4
Configurar o protocolo de Roteamento OSPFv3:
Router>enable
Router#configure terminal
Router(config)#hostname RT4
RT4(config)#ipv6 unicast-routing
RT4(config)#ipv6 router ospf 1
RT4(config-rtr)#router-id 4.4.4.4
RT4(config-rtr)#exit
Configurar as Interfaces:
RT4>enable
RT4#configure terminal
RT4(config)#interface serial 0/0/0
RT4(config-if)#ip address 13.0.0.1 255.255.255.0
RT4(config-if)#ipv6 address 2003::0/127
RT4(config-if)#clock rate 64000
RT4(config-if)#ipv6 ospf 1 area 0
RT4(config-if)#no shutdown
RT4(config-if)#exit
RT4(config)#interface serial 0/0/1
RT4(config-if)#ip address 12.0.0.2 255.255.255.0
RT4(config-if)#ipv6 address 2002::1/127
RT4(config-if)#ipv6 ospf 1 area 0
RT4(config-if)#no shutdown
RT4(config-if)#exit
RT4(config)#interface gig 0/2
RT4(config-if)#ip address 192.168.4.1
255.255.255.0
RT4(config-if)#ipv6 address FD00:0:0:4::F/64
RT4(config-if)#ipv6 ospf 1 area 0
RT4(config-if)#no shutdown
RT4(config-if)#end
Configurar o protocolo de Roteamento
OSPFv2(IPv4):
Router#configure terminal
RT4(config)#router ospf 1
RT4(config-router)#network 192.168.4.0
0.255.255.255 area 0
RT4(config-router)#network 12.0.0.0
0.255.255.255 area 0
RT4(config-router)#network 13.0.0.0
0.255.255.255 area 0
RT4(config)#end
RT4#wr
3
Configurar clientes Windows:

Exemplo PC0:

Preencher as opções do IPv4 e

IPv6 Configuration

Configurar como Estático

Preencher o IPv4 Address
Preencher o IPv4 Gateway
Preencher o IPv6 Address
Preencher o IPv6 Gateway

Testar as conectividades nos Routers:

Router> ping IP(v4 e v6)

Router> traceroute IP(v4 e v6)

Router> show ip interface brief

Router> show ipv6 interface brief

Router> show ip route

Router> show ipv6 route

Testar as conectividades nos clientes:

PC>ping IP(v4 e v6)
PC>tracert IP(v4 e v6)
