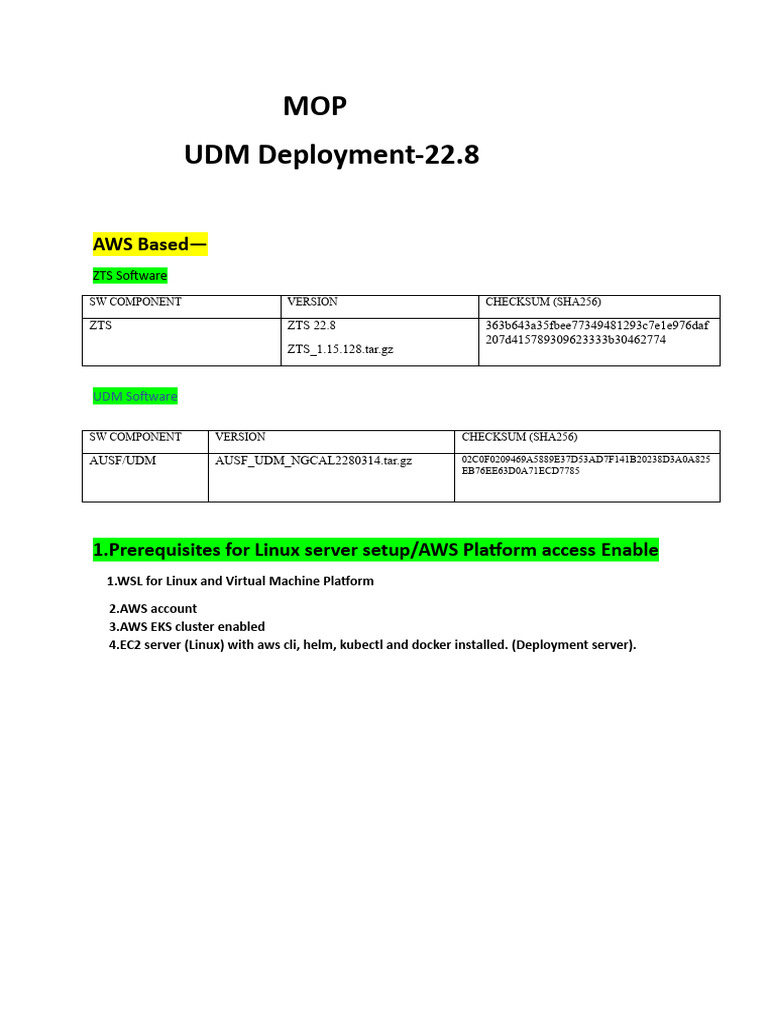

MOP

UDM Deployment-22.8

AWS Based—
ZTS Software
SW COMPONENT VERSION CHECKSUM (SHA256)

ZTS ZTS 22.8 363b643a35fbee77349481293c7e1e976daf

207d415789309623333b30462774
ZTS_1.15.128.tar.gz

UDM Software

SW COMPONENT VERSION CHECKSUM (SHA256)

AUSF/UDM AUSF_UDM_NGCAL2280314.tar.gz 02C0F0209469A5889E37D53AD7F141B20238D3A0A825

EB76EE63D0A71ECD7785

1.Prerequisites for Linux server setup/AWS Platform access Enable

1.WSL for Linux and Virtual Machine Platform

2.AWS account
3.AWS EKS cluster enabled
4.EC2 server (Linux) with aws cli, helm, kubectl and docker installed. (Deployment server).
2. Image Onboarding
1.Load the images into S3 bucket from local jump(ubantu) server.

2. Load the images from S3 bucket to local AWS CLI.

3. Tag the images for AWS Repositories.

4. Login to ECR

5. Create Repositories for each Images

6. Push the images into AWS ECR.

Image Onboard Command

3.Create Namespace for ZTS

kubectl create ns zts1

4.Prepare values.yaml and refvalues.yaml

1. values.yaml -Use PlaTo tool to generate for ZTS services—this file contains the information about
imageRegistry/storageClass/ multuscidr/ route/route_gw/ztslenvoylbip/ztslenvoylbip2/VNF
Name/WOrkwer node selector/Nodeaffinity etc.

2. ztsref_values.yaml -Use Acord tool to generate yaml ref file which contains—this file contains the
information about Replica count/memory & CPU Means Resource Information

5. Deploy ZTS via helm command

6. User add in key clock GUI
GUI Access
Install VNC Viewer from Software centre
Users --> cmadmin/ zts1user/ dauser/ imuser/ wsuser

Groups: ssadmin caadmins, SettingsAdminGroup and cmadmins

6. Generate Netconf.xml -- The netconf.xml contains all the configuration and

integration data which required for operation of the AUSF_UDM.

This file is generated through Nokia yang-based planning tool using Generic.xml & share by
Network Team.

AUSF_UDM_NGCAL2280314\INSTALL_MEDIA\SCHEMA/Generic.xml

**Note— we need to upload Netconf file in cmcontroller pod in /tmp folder

7.After this we provision the certificate

8.Onboard images for AUSF-UDM

app-pre-installer—this file contains the information About network Enable & lan Information like
ldap LAN/HTTP2 lan/LI LAN/HSM lan/Trigger Lan/ etc.

reg-helm chart value.yaml—its contains Information about Image repository/node selector/Service

Fqdn/vnf name/ZTS user information/Password etc/resource information

9. Create and deploy network service for APP_PRE_INSTALLER for AUSF-UDM

helm install app-pre-installer -f name app-pre-installer_value.yaml -n udm01

**kubectl get danmnets -n -n udm01

10. deploy AUSF UDM

helm install reg-helm-charts reg-helm-charts-228.314.0.tgz -f reg-helm-chart_value.yaml -n
udm01

Learning -1
Pods are Not Scheduled due to labels mis match with cluster nodes

- Node Selector and node Affinity to be update with correct labels for all helm charts values.yaml

Learning -2
AUSF Pod is not running fully due to Config error

-Ueauthn pod resource metrics release value is present as 2 instead of 1 for initial deployment

UDM overview---

5G Architecture – SBA (Service Based Architecture)

AUSF/UDM Services--

AUSF UDM is a service which is divided in sub service.

AUSF---Nausf ueauth—this is use for mgmt. of user identification & authorization.

UDM—Nudm-sdm—it manages all subscribers data and services. It allows to retrieve user
subscription data when required.

—Nudm-ueauth-- This service provides updated authentication related subscriber data to the
subscribed NF . For AKA based authentication, it supports 5G AKA and EAP-AKA’ algorithms.

Nudm-uecm—it is use to context data mgmt. like customer data is inside the old AMF then its use to
quay for new AMF & carried out old to new AMF,

Nudm-ee—its Allow NF consumer to subscribe to receive an event, Monitoring event, suppose

Subscriber in Roaming this kind of event is notified by EE.
Supporting service of AUSF UDM -:

NIM - NRF Interaction Module service -- This service allows AUSF_UDM services to register its
availability with NRF over Nnrf interface. The service instances are used to discover other NFs and
their services.

HTTP/2 Load balancer (LB):It acts a dedicated interface for communication between AUSF_UDM
services and external NFs

Lawful Interception (LI): This service provides both X1 and X2 interfaces for UDM and AUSF Network
functions. It is used to intercept the subscriber related events. & collect and provide
communications data of individuals or organizations to law enforcement department.

ARPF: -Authentication credential repository & processing function This service provides
Authentication vector generation logic for all AKA based authentications. It provides APIs for UDM-
UEAUTH service for requesting Authentication vectors. It also support Encrypt/De Encrypt facility for
Subscriber Key(Ki).

SIDF: Subscriber Identity De-Concealing Function (SIDF) –basically it supports de-conceals SUCI to
SUPI

Trigger: It supports LDAP interface from AUSF_UDM for Subscriber profile access from OneNDS/SDL.

----------------------------------------------------------Configuration/Integration-----------------------------------------
Let us understand with an example, below mention configuration for ldap, we need to configure at udm side, there is 4
service in UDM so we have to update below mention configuration at all service.

Step1-for udmUeauth

1.Kubectl exec -it <pod name> -n <namespace name> -c <container name> bash
2.ssh -p 2024 cmadmin/pw-xyz

3.configre terminal & copypaste configuration & wr it for save configration

REGISTERS UDMUEAUTH UdmUeauthLdapInterface HostConfigTable 200.30.221.74

PriorityValue 1

CapacityValue 1

PortValue 16611

REGISTERS UDMUEAUTH UdmUeauthLdapInterface HostConfigTable 200.30.221.75

PriorityValue 1

CapacityValue 1

PortValue 16611

Step2-for udmee

1.Kubectl exec -it <pod name> -n <namespace name> -c <container name> bash

2.ssh -p 2024 cmadmin/pw-xyz

3.configre terminal & copypaste configuration & wr it for save configration

REGISTERS UDM_EE UdmEeLdapInterface HostConfigTable 200.30.221.74

PriorityValue 1

CapacityValue 1

PortValue 16611

REGISTERS UDM_EE UdmEeLdapInterface HostConfigTable 200.30.221.75

PriorityValue 1

CapacityValue 1

PortValue 16611

Step3-for udmsdm

1.Kubectl exec -it <pod name> -n <namespace name> -c <container name> bash

2.ssh -p 2024 cmadmin/pw-xyz

3.configre terminal & copypaste configuration & wr it for save configration

REGISTERS UDM_SDM UdmSdmLdapInterface HostConfigTable 200.30.221.74

PriorityValue 1

CapacityValue 1

PortValue 16611

REGISTERS UDM_SDM UdmSdmLdapInterface HostConfigTable 200.30.221.75

PriorityValue 1

CapacityValue 1

PortValue 16611
Step4-for udmUeauth

1.Kubectl exec -it <pod name> -n <namespace name> -c <container name> bash

2.ssh -p 2024 cmadmin/pw-xyz

3.configre terminal & copypaste configuration & wr it for save configration

REGISTERS UDM_UECM UdmUecmLdapInterface HostConfigTable 200.30.221.74

PriorityValue 1

CapacityValue 1

PortValue 16611

REGISTERS UDM_UECM UdmUecmLdapInterface HostConfigTable 200.30.221.75

PriorityValue 1

CapacityValue 1

PortValue 16611

For NetAct Integration we need to give below mention information to NetAct team
