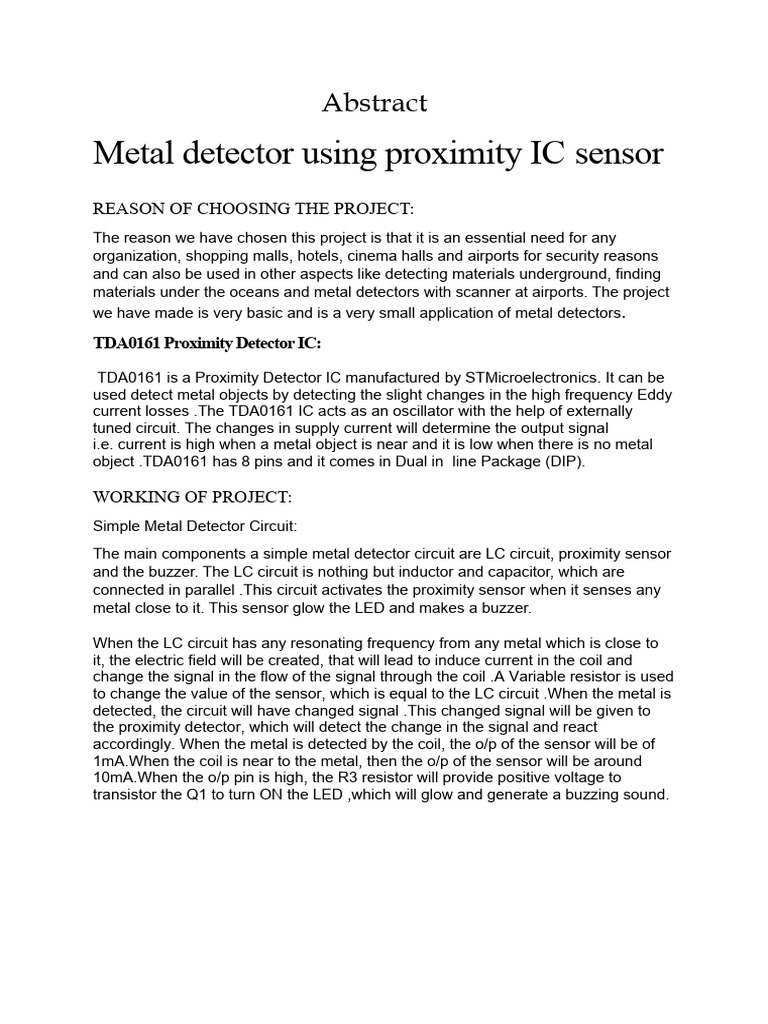

WORKING OF PROJECT:
Simple Metal Detector Circuit:
The main components a simple metal detector circuit are LC circuit, proximity sensor
and the buzzer. The LC circuit is nothing but inductor and capacitor, which are
connected in parallel .This circuit activates the proximity sensor when it senses any
metal close to it. This sensor glow the LED and makes a buzzer.
When the LC circuit has any resonating frequency from any metal which is close to
it, the electric field will be created, that will lead to induce current in the coil and
change the signal in the flow of the signal through the coil .A Variable resistor is used
to change the value of the sensor, which is equal to the LC circuit .When the metal is
detected, the circuit will have changed signal .This changed signal will be given to
the proximity detector, which will detect the change in the signal and react
accordingly. When the metal is detected by the coil, the o/p of the sensor will be of
1mA.When the coil is near to the metal, then the o/p of the sensor will be around
10mA.When the o/p pin is high, the R3 resistor will provide positive voltage to
transistor the Q1 to turn ON the LED ,which will glow and generate a buzzing sound.
Here, R2 resistor is used to limit the current flow.
Applications:
This simple Metal Detector can be used to identify metals like iron, gold, silver etc.
Since it is a simple project, we can use this in our home to scan for nails, metal
scraps etc. which are not easily spot by naked eye.
The Proximity Detector IC TDA0161 based Metal Detector Circuit is a very simple
and easy to construct metal detector that can be used to detect small metals in
our homes, offices and gardens.
Advantages:
Disadvantages:
The main disadvantage of this Metal Detector Circuit is the range of detection.
The metal object has to be at a distance of 10mm for the detector to detect it.
