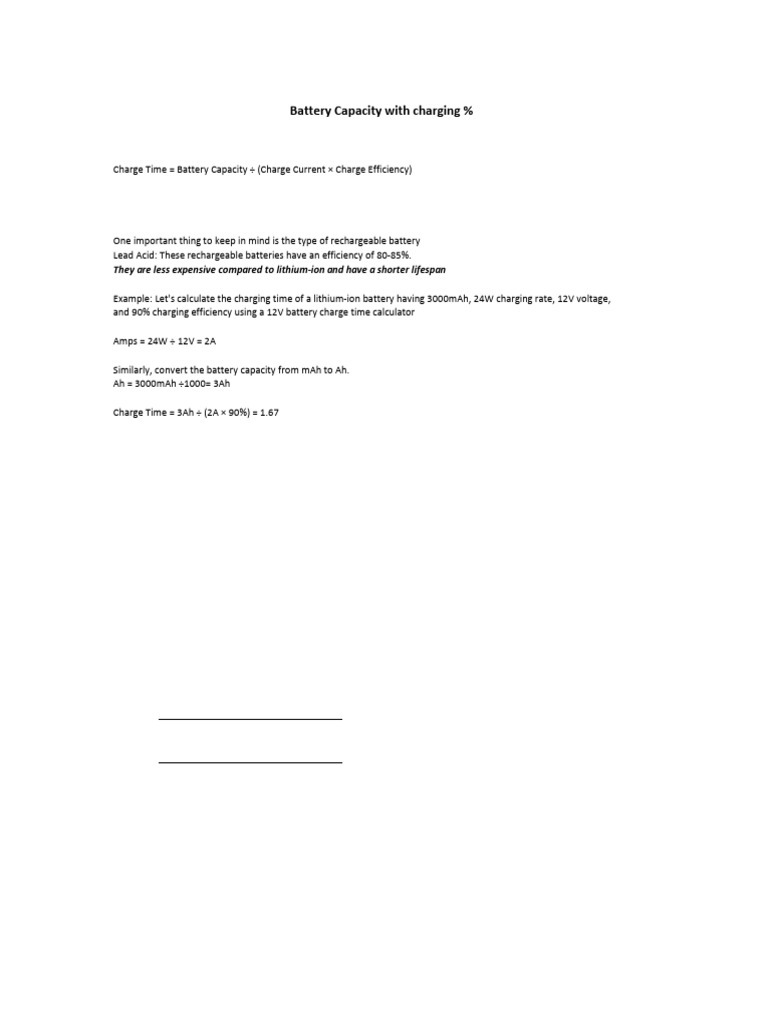

Battery Capacity with charging %

Charge Time = Battery Capacity ÷ (Charge Current × Charge Efficiency)

One important thing to keep in mind is the type of rechargeable battery


Lead Acid: These rechargeable batteries have an efficiency of 80-85%.
They are less expensive compared to lithium-ion and have a shorter lifespan

Example: Let's calculate the charging time of a lithium-ion battery having 3000mAh, 24W charging rate, 12V voltage,
and 90% charging efficiency using a 12V battery charge time calculator

Amps = 24W ÷ 12V = 2A

Similarly, convert the battery capacity from mAh to Ah.


Ah = 3000mAh ÷1000= 3Ah

Charge Time = 3Ah ÷ (2A × 90%) = 1.67


Battery Capacity with Charging Efficiency %

Battery Type = MF Battery (Lead Acid)


Capacity = 200 Ah
Volatage Battery Per unit = 12 VDC
Connectionn Volatage Operation = 24 VDC

Battery charging Capacity = 10 Ampere


Effeciency Minimum battery charging = 86 %
Voltage Output DC = Leroy Somer (NI VDC

Engine Alternator Charging = 35 Ampere


Effeciency Minimum battery charging = 90 %
Voltage Output DC = 24 VDC

Capacity Battery Engine Use = 200 Ah


Connectionn Volatage Operation = 24 VDC

Charging Sytem by External Standby operation (With Battery Charging)


Charge Time = Battery Capacity ÷ (Charge Current × Charge Efficiency)

Charge Time = 200 ÷ (10 × 86%)

= 23.3 Hr

Charging Sytem by Engine Driven Genset operation (With Battery Charging)


Charge Time = Battery Capacity ÷ (Alternator Charge Current × Charge Efficiency)

Charge Time = 200 ÷ (35 × 90%)

= 6.4 Hr
Battery Capacity with Charging Efficiency %

Load Consumption From Battery Charger

Battery Charging Capacity = 10 Ampere


Effeciency Minimum battery charging = 91,8 %
Voltage Input Power = 230 VAC
Full AC input Current Ampere = 2,2 Ampere
Voltage Output DC = 24 VDC
Leroy Somer (NIDEC)

P = I x VAC x Efficiency Curve at 10 Ampere

P = 2.2 x 230 x 91.8%

P = 464,51 WAtt

P = 0,46 kW

Efficiency Curve at Charging 10 Ampere


Material Equipment Operation Temperature Spec Sheet

Module Control Genset


Brand = Deepsea
Type = 7310 MKII
Range Power Supply = 24 VDC
Temperature Operation = -40 ℃ to +70 ℃
Temperature Storage = -40 ℃ to +85 ℃

AVR Control Genset


Brand = Leroy Somer (NIDEC)
Type = D-AVR D550
Range Power Supply = 24 VDC
Temperature Operation = -40 ℃ to +70 ℃
Temperature Storage = -40 ℃ to +70 ℃

SPEED Control Genset


Brand = Woodward
Type = Pro Act
Range Power Supply = 24 VDC
Temperature Operation = -40 ℃ to +70 ℃
Temperature Storage = -40 ℃ to +70 ℃

Battery Charging
Brand = Deepsea
Type = 9410 MKII
Range Power Supply = 220 VAC
Temperature Operation = -30 ℃ to +70 ℃
Temperature Storage = -30 ℃ to +70 ℃

Analog Matering
Brand = Howig
Type = Ampere Analog, & Voltage analog Metering
Range Power Supply = 24 VDC
Temperature Operation = -25 ℃ to +50 ℃
Temperature Storage = -40 ℃ to +70 ℃

Change Over Switch Motorize


Brand = Socomec
Type = SIRCO40 / ATYS
Range Power Supply = 220 VAC
Temperature Operation = -20 ℃ to +70 ℃
Temperature Storage = -20 ℃ to +70 ℃

Fuel Leak Module


Brand = Microthing/ AnYing Fuel Leak
Type = A-FLC1000
Range Power Supply = 24 VDC
Temperature Operation = -20 ℃ to +50 ℃
Temperature Storage = -40 ℃ to +60 ℃

Relay Control
Brand = Schneider electric
Type = RXM
Range Power Supply = 24 VDC
Temperature Operation = -40 ℃ to +55 ℃
Temperature Storage = -40 ℃ to +88 ℃

Magnetic Contactor
Brand = Schneider electric
Type = LC1D
Range Power Supply = 220 VAC
Temperature Operation = -40 ℃ to +60 ℃
Temperature Storage = -40 ℃ to +60 ℃
