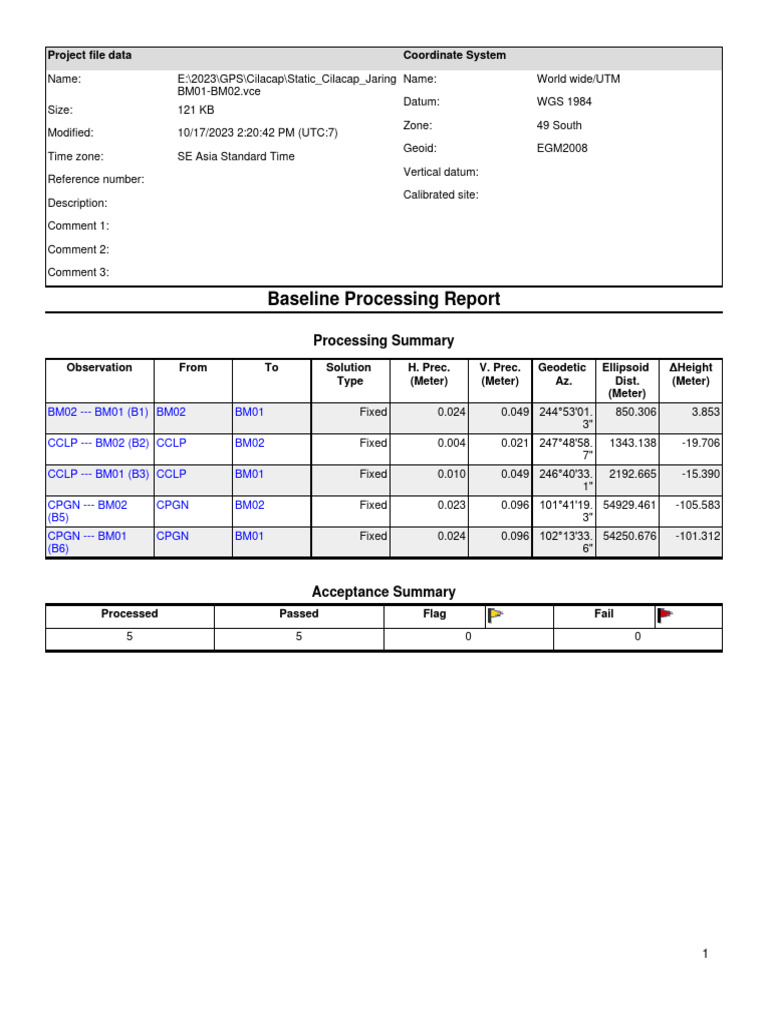

Project file data Coordinate System

Name: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring Name: World wide/UTM

BM01-BM02.vce
Datum: WGS 1984
Size: 121 KB
Zone: 49 South
Modified: 10/17/2023 2:20:42 PM (UTC:7)
Geoid: EGM2008
Time zone: SE Asia Standard Time
Vertical datum:
Reference number:
Calibrated site:
Description:

Comment 1:

Comment 2:

Comment 3:

Baseline Processing Report

Processing Summary
Observation From To Solution H. Prec. V. Prec. Geodetic Ellipsoid ΔHeight
Type (Meter) (Meter) Az. Dist. (Meter)
(Meter)
BM02 --- BM01 (B1) BM02 BM01 Fixed 0.024 0.049 244°53'01. 850.306 3.853
3"
CCLP --- BM02 (B2) CCLP BM02 Fixed 0.004 0.021 247°48'58. 1343.138 -19.706
7"
CCLP --- BM01 (B3) CCLP BM01 Fixed 0.010 0.049 246°40'33. 2192.665 -15.390
1"
CPGN --- BM02 CPGN BM02 Fixed 0.023 0.096 101°41'19. 54929.461 -105.583
(B5) 3"
CPGN --- BM01 CPGN BM01 Fixed 0.024 0.096 102°13'33. 54250.676 -101.312
(B6) 6"

Acceptance Summary
Processed Passed Flag Fail

5 5 0 0

1
 BM02 - BM01 (9:03:47 AM-3:00:12 PM) (S1)
Baseline observation: BM02 --- BM01 (B1)

Processed: 10/17/2023 1:27:02 PM

Solution type: Fixed

Frequency used: Dual Frequency (L1, L2)

Horizontal precision: 0.024 m

Vertical precision: 0.049 m

RMS: 0.037 m

Maximum PDOP: 4.298

Ephemeris used: Mixed

Antenna model: NGS Absolute

Processing start time: 10/13/2023 9:04:12 AM (Local: UTC+7hr)

Processing stop time: 10/13/2023 3:00:12 PM (Local: UTC+7hr)

Processing duration: 05:56:00

Processing interval: 15 seconds

Vector Components (Mark to Mark)

From: BM02

Grid Local Global

Easting 279299.597 m Latitude S7°44'32.00045" Latitude S7°44'32.00045"

Northing 9143680.324 m Longitude E108°59'56.00826" Longitude E108°59'56.00826"

Elevation 2.741 m Height 23.868 m Height 23.868 m

To: BM01

Grid Local Global

Easting 278531.240 m Latitude S7°44'43.74862" Latitude S7°44'43.74862"

Northing 9143315.711 m Longitude E108°59'30.88223" Longitude E108°59'30.88223"

Elevation 6.624 m Height 27.721 m Height 27.721 m

Vector

ΔEasting -768.357 m NS Fwd Azimuth 244°53'01.3" ΔX 742.574 m

ΔNorthing -364.614 m Ellipsoid Dist. 850.306 m ΔY 208.228 m

ΔElevation 3.884 m ΔHeight 3.853 m ΔZ -358.141 m

Standard Errors
Vector errors:

σ ΔEasting 0.007 m σ NS fwd Azimuth 0°00'02.3" σ ΔX 0.009 m

σ ΔNorthing 0.010 m σ Ellipsoid Dist. 0.007 m σ ΔY 0.024 m

σ ΔElevation 0.025 m σ ΔHeight 0.025 m σ ΔZ 0.010 m

2
Aposteriori Covariance Matrix (Meter²)
X Y Z

X 0.0000736480

Y -0.0001359942 0.0005742763

Z 0.0000248337 -0.0000747254 0.0001039854

Occupations
From To

Point ID: BM02 BM01

Data file: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring E:\2023\GPS\Cilacap\Static_Cilacap_Jaring

BM01-BM02\4102862.23o BM01-BM02\4072860.23o
Receiver type: V90 Plus V90 Plus

Receiver serial number: 11602410 11602407

Antenna type: V90 Plus V90 Plus

Antenna serial number: -------- --------

Antenna height (measured): 1.705 m 1.474 m

Antenna method: Bottom of antenna mount Bottom of antenna mount

3
Tracking Summary

4
5
Residuals

6
7
8
9
10
11
12
13
14
Processing style
Elevation mask: 10°00'00.0"

Auto start processing: Yes

Start automatic ID numbering: AUTO0001

Continuous vectors: No

Generate residuals: Yes

Antenna model: Automatic

Ephemeris type: Automatic

Frequency: Multiple Frequencies

Processing Interval: 15 seconds

Force float: No

GIS processing type: Automatic Carrier and Code Processing

Acceptance Criteria

Vector Component Flag Fail

Horizontal Precision > 0.050 m + 1.000 ppm 0.100 m + 1.000 ppm

Vertical Precision > 0.100 m + 1.000 ppm 0.200 m + 1.000 ppm

15
 CCLP - BM02 (9:03:47 AM-3:23:22 PM) (S2)
Baseline observation: CCLP --- BM02 (B2)

Processed: 10/17/2023 1:18:42 PM

Solution type: Fixed

Frequency used: Dual Frequency (L1, L2)

Horizontal precision: 0.004 m

Vertical precision: 0.021 m

RMS: 0.034 m

Maximum PDOP: 3.416

Ephemeris used: Mixed

Antenna model: NGS Absolute

Processing start time: 10/13/2023 9:04:12 AM (Local: UTC+7hr)

Processing stop time: 10/13/2023 3:23:12 PM (Local: UTC+7hr)

Processing duration: 06:19:00

Processing interval: 30 seconds

Vector Components (Mark to Mark)

From: CCLP

Grid Local Global

Easting 280541.175 m Latitude S7°44'15.49293" Latitude S7°44'15.49293"

Northing 9144193.379 m Longitude E109°00'36.59681" Longitude E109°00'36.59681"

Elevation 22.393 m Height 43.574 m Height 43.574 m

To: BM02

Grid Local Global

Easting 279299.597 m Latitude S7°44'32.00045" Latitude S7°44'32.00045"

Northing 9143680.324 m Longitude E108°59'56.00826" Longitude E108°59'56.00826"

Elevation 2.741 m Height 23.868 m Height 23.868 m

Vector

ΔEasting -1241.578 m NS Fwd Azimuth 247°48'58.7" ΔX 1204.537 m

ΔNorthing -513.055 m Ellipsoid Dist. 1343.138 m ΔY 321.974 m

ΔElevation -19.652 m ΔHeight -19.706 m ΔZ -499.851 m

Standard Errors
Vector errors:

σ ΔEasting 0.002 m σ NS fwd Azimuth 0°00'00.3" σ ΔX 0.004 m

σ ΔNorthing 0.002 m σ Ellipsoid Dist. 0.002 m σ ΔY 0.010 m

σ ΔElevation 0.010 m σ ΔHeight 0.010 m σ ΔZ 0.002 m

16
Aposteriori Covariance Matrix (Meter²)
X Y Z

X 0.0000124793

Y -0.0000303827 0.0000968577

Z 0.0000057707 -0.0000163682 0.0000054641

Occupations
From To

Point ID: CCLP BM02

Data file: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring E:\2023\GPS\Cilacap\Static_Cilacap_Jaring

BM01-BM02\cclp2860.23o BM01-BM02\4102862.23o
Receiver type: GR50 V90 Plus

Receiver serial number: 1871272 11602410

Antenna type: AR25 V90 Plus

Antenna serial number: 10271004 --------

Antenna height (measured): 0.000 m 1.705 m

Antenna method: Bottom of antenna mount Bottom of antenna mount

17
Tracking Summary

18
19
Residuals

20
21
22
23
24
25
26
27
28
29
30
31
32
33
Processing style
Elevation mask: 10°00'00.0"

Auto start processing: Yes

Start automatic ID numbering: AUTO0001

Continuous vectors: No

Generate residuals: Yes

Antenna model: Automatic

Ephemeris type: Automatic

Frequency: Multiple Frequencies

Processing Interval: 15 seconds

Force float: No

GIS processing type: Automatic Carrier and Code Processing

Acceptance Criteria

Vector Component Flag Fail

Horizontal Precision > 0.050 m + 1.000 ppm 0.100 m + 1.000 ppm

Vertical Precision > 0.100 m + 1.000 ppm 0.200 m + 1.000 ppm

34
 CCLP - BM01 (9:02:52 AM-3:00:12 PM) (S3)
Baseline observation: CCLP --- BM01 (B3)

Processed: 10/17/2023 2:23:09 PM

Solution type: Fixed

Frequency used: Dual Frequency (L1, L2)

Horizontal precision: 0.010 m

Vertical precision: 0.049 m

RMS: 0.025 m

Maximum PDOP: 5.765

Ephemeris used: Mixed

Antenna model: NGS Absolute

Processing start time: 10/13/2023 9:03:12 AM (Local: UTC+7hr)

Processing stop time: 10/13/2023 3:00:12 PM (Local: UTC+7hr)

Processing duration: 05:57:00

Processing interval: 30 seconds

Vector Components (Mark to Mark)

From: CCLP

Grid Local Global

Easting 280541.175 m Latitude S7°44'15.49293" Latitude S7°44'15.49293"

Northing 9144193.379 m Longitude E109°00'36.59681" Longitude E109°00'36.59681"

Elevation 22.393 m Height 43.574 m Height 43.574 m

To: BM01

Grid Local Global

Easting 278531.375 m Latitude S7°44'43.75090" Latitude S7°44'43.75090"

Northing 9143315.641 m Longitude E108°59'30.88665" Longitude E108°59'30.88665"

Elevation 7.088 m Height 28.184 m Height 28.184 m

Vector

ΔEasting -2009.799 m NS Fwd Azimuth 246°40'33.1" ΔX 1946.837 m

ΔNorthing -877.738 m Ellipsoid Dist. 2192.665 m ΔY 530.584 m

ΔElevation -15.305 m ΔHeight -15.390 m ΔZ -858.124 m

Standard Errors
Vector errors:

σ ΔEasting 0.004 m σ NS fwd Azimuth 0°00'00.4" σ ΔX 0.009 m

σ ΔNorthing 0.004 m σ Ellipsoid Dist. 0.004 m σ ΔY 0.023 m

σ ΔElevation 0.025 m σ ΔHeight 0.025 m σ ΔZ 0.006 m

35
Aposteriori Covariance Matrix (Meter²)
X Y Z

X 0.0000784193

Y -0.0001843011 0.0005497456

Z 0.0000388258 -0.0001054563 0.0000346695

Occupations
From To

Point ID: CCLP BM01

Data file: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring E:\2023\GPS\Cilacap\Static_Cilacap_Jaring

BM01-BM02\cclp2860.23o BM01-BM02\4072860.23o
Receiver type: GR50 V90 Plus

Receiver serial number: 1871272 11602407

Antenna type: AR25 V90 Plus

Antenna serial number: 10271004 --------

Antenna height (measured): 0.000 m 1.474 m

Antenna method: Bottom of antenna mount Bottom of antenna mount

36
Tracking Summary

37
38
Residuals

39
40
41
42
43
44
45
46
47
48
49
Processing style
Elevation mask: 10°00'00.0"

Auto start processing: Yes

Start automatic ID numbering: AUTO0001

Continuous vectors: No

Generate residuals: Yes

Antenna model: Automatic

Ephemeris type: Automatic

Frequency: Multiple Frequencies

Processing Interval: 15 seconds

Force float: No

GIS processing type: Automatic Carrier and Code Processing

50
 Acceptance Criteria

Vector Component Flag Fail

Horizontal Precision > 0.050 m + 1.000 ppm 0.100 m + 1.000 ppm

Vertical Precision > 0.100 m + 1.000 ppm 0.200 m + 1.000 ppm

CPGN - BM02 (9:03:47 AM-3:23:22 PM) (S5)

Baseline observation: CPGN --- BM02 (B5)

Processed: 10/17/2023 2:01:54 PM

Solution type: Fixed

Frequency used: Dual Frequency (L1, L2)

Horizontal precision: 0.023 m

Vertical precision: 0.096 m

RMS: 0.046 m

Maximum PDOP: 3.416

Ephemeris used: Mixed

Antenna model: NGS Absolute

Processing start time: 10/13/2023 9:04:12 AM (Local: UTC+7hr)

Processing stop time: 10/13/2023 3:23:12 PM (Local: UTC+7hr)

Processing duration: 06:19:00

Processing interval: 30 seconds

Vector Components (Mark to Mark)

From: CPGN

Grid Local Global

Easting 225425.957 m Latitude S7°38'30.74937" Latitude S7°38'30.74937"

Northing 9154499.727 m Longitude E108°30'40.56722" Longitude E108°30'40.56722"

Elevation 108.571 m Height 129.465 m Height 129.465 m

To: BM02

Grid Local Global

Easting 279299.624 m Latitude S7°44'31.99923" Latitude S7°44'31.99923"

Northing 9143680.362 m Longitude E108°59'56.00915" Longitude E108°59'56.00915"

Elevation 2.755 m Height 23.882 m Height 23.882 m

Vector

ΔEasting 53873.667 m NS Fwd Azimuth 101°41'19.3" ΔX -50429.382 m

ΔNorthing -10819.365 m Ellipsoid Dist. 54929.461 m ΔY -18802.683 m

ΔElevation -105.817 m ΔHeight -105.583 m ΔZ -10983.952 m

51
Standard Errors
Vector errors:

σ ΔEasting 0.009 m σ NS fwd Azimuth 0°00'00.0" σ ΔX 0.016 m

σ ΔNorthing 0.005 m σ Ellipsoid Dist. 0.009 m σ ΔY 0.046 m

σ ΔElevation 0.049 m σ ΔHeight 0.049 m σ ΔZ 0.009 m

Aposteriori Covariance Matrix (Meter²)

X Y Z

X 0.0002646104

Y -0.0006160411 0.0021610945

Z 0.0001207574 -0.0003353332 0.0000829988

Occupations
From To

Point ID: CPGN BM02

Data file: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring E:\2023\GPS\Cilacap\Static_Cilacap_Jaring

BM01-BM02\cpgn2860.23o BM01-BM02\4102862.23o
Receiver type: GR50 V90 Plus

Receiver serial number: 1871508 11602410

Antenna type: AR20 V90 Plus

Antenna serial number: 24097025 --------

Antenna height (measured): 0.097 m 1.705 m

Antenna method: Bottom of antenna mount Bottom of antenna mount

52
Tracking Summary

53
54
Residuals

55
56
57
58
59
60
61
62
63
64
65
66
Processing style
Elevation mask: 10°00'00.0"

Auto start processing: Yes

Start automatic ID numbering: AUTO0001

Continuous vectors: No

Generate residuals: Yes

Antenna model: Automatic

Ephemeris type: Automatic

Frequency: Multiple Frequencies

Processing Interval: 15 seconds

Force float: No

GIS processing type: Automatic Carrier and Code Processing

67
 Acceptance Criteria

Vector Component Flag Fail

Horizontal Precision > 0.050 m + 1.000 ppm 0.100 m + 1.000 ppm

Vertical Precision > 0.100 m + 1.000 ppm 0.200 m + 1.000 ppm

CPGN - BM01 (9:02:52 AM-3:00:12 PM) (S6)

Baseline observation: CPGN --- BM01 (B6)

Processed: 10/17/2023 2:39:09 PM

Solution type: Fixed

Frequency used: Dual Frequency (L1, L2)

Horizontal precision: 0.024 m

Vertical precision: 0.096 m

RMS: 0.050 m

Maximum PDOP: 4.217

Ephemeris used: Mixed

Antenna model: NGS Absolute

Processing start time: 10/13/2023 9:03:12 AM (Local: UTC+7hr)

Processing stop time: 10/13/2023 3:00:12 PM (Local: UTC+7hr)

Processing duration: 05:57:00

Processing interval: 30 seconds

Vector Components (Mark to Mark)

From: CPGN

Grid Local Global

Easting 225425.957 m Latitude S7°38'30.74937" Latitude S7°38'30.74937"

Northing 9154499.727 m Longitude E108°30'40.56722" Longitude E108°30'40.56722"

Elevation 108.571 m Height 129.465 m Height 129.465 m

To: BM01

Grid Local Global

Easting 278531.477 m Latitude S7°44'43.75173" Latitude S7°44'43.75173"

Northing 9143315.616 m Longitude E108°59'30.88995" Longitude E108°59'30.88995"

Elevation 7.056 m Height 28.153 m Height 28.153 m

Vector

ΔEasting 53105.519 m NS Fwd Azimuth 102°13'33.6" ΔX -49687.135 m

ΔNorthing -11184.110 m Ellipsoid Dist. 54250.676 m ΔY -18594.149 m

ΔElevation -101.515 m ΔHeight -101.312 m ΔZ -11342.282 m

68
Standard Errors
Vector errors:

σ ΔEasting 0.010 m σ NS fwd Azimuth 0°00'00.0" σ ΔX 0.018 m

σ ΔNorthing 0.005 m σ Ellipsoid Dist. 0.010 m σ ΔY 0.046 m

σ ΔElevation 0.049 m σ ΔHeight 0.049 m σ ΔZ 0.009 m

Aposteriori Covariance Matrix (Meter²)

X Y Z

X 0.0003276445

Y -0.0006912939 0.0021026281

Z 0.0001339358 -0.0003274140 0.0000788536

Occupations
From To

Point ID: CPGN BM01

Data file: E:\2023\GPS\Cilacap\Static_Cilacap_Jaring E:\2023\GPS\Cilacap\Static_Cilacap_Jaring

BM01-BM02\cpgn2860.23o BM01-BM02\4072860.23o
Receiver type: GR50 V90 Plus

Receiver serial number: 1871508 11602407

Antenna type: AR20 V90 Plus

Antenna serial number: 24097025 --------

Antenna height (measured): 0.097 m 1.474 m

Antenna method: Bottom of antenna mount Bottom of antenna mount

69
Tracking Summary

70
71
Residuals

72
73
74
75
76
77
78
79
80
81
82
83
Processing style
Elevation mask: 10°00'00.0"

Auto start processing: Yes

Start automatic ID numbering: AUTO0001

Continuous vectors: No

Generate residuals: Yes

Antenna model: Automatic

Ephemeris type: Automatic

Frequency: Multiple Frequencies

Processing Interval: 15 seconds

Force float: No

GIS processing type: Automatic Carrier and Code Processing

84
 Acceptance Criteria

Vector Component Flag Fail

Horizontal Precision > 0.050 m + 1.000 ppm 0.100 m + 1.000 ppm

Vertical Precision > 0.100 m + 1.000 ppm 0.200 m + 1.000 ppm

10/17/2023 2:41:48 PM E:\2023\GPS\Cilacap\Static_Cilacap_Jaring Trimble Business Center

BM01-BM02.vce

85
