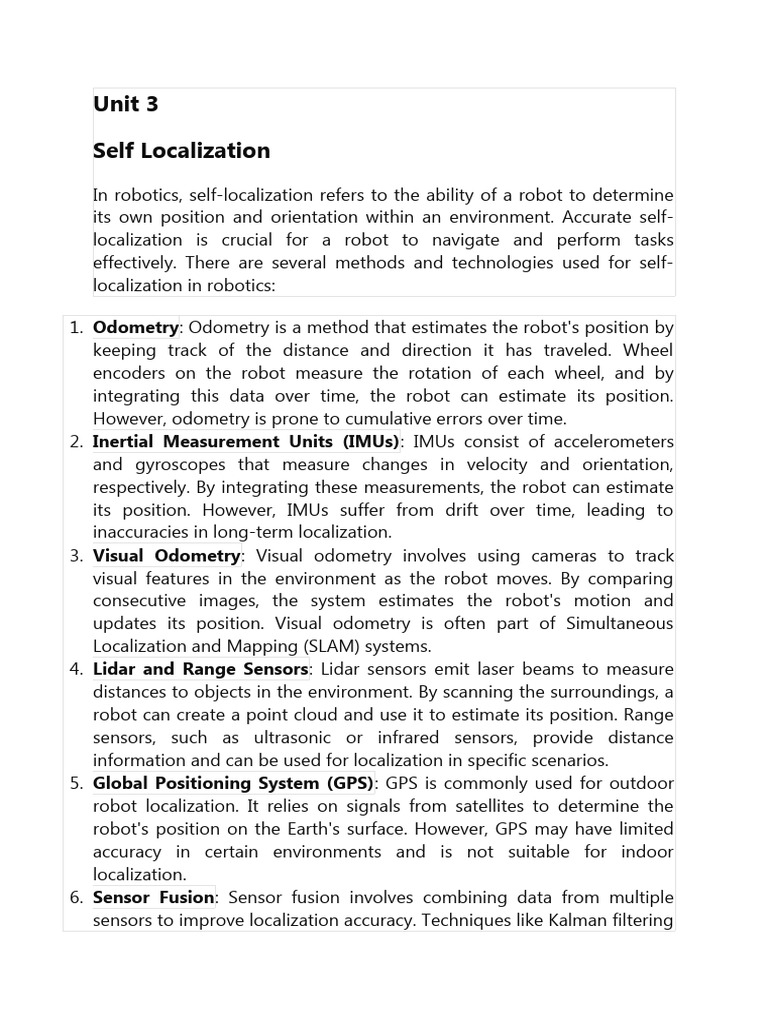

Unit 3

Self Localization
In robotics, self-localization refers to the ability of a robot to determine
its own position and orientation within an environment. Accurate self-
localization is crucial for a robot to navigate and perform tasks
effectively. There are several methods and technologies used for self-
localization in robotics:

1. Odometry: Odometry is a method that estimates the robot's position by

keeping track of the distance and direction it has traveled. Wheel
encoders on the robot measure the rotation of each wheel, and by
integrating this data over time, the robot can estimate its position.
However, odometry is prone to cumulative errors over time.
2. Inertial Measurement Units (IMUs): IMUs consist of accelerometers
and gyroscopes that measure changes in velocity and orientation,
respectively. By integrating these measurements, the robot can estimate
its position. However, IMUs suffer from drift over time, leading to
inaccuracies in long-term localization.
3. Visual Odometry: Visual odometry involves using cameras to track
visual features in the environment as the robot moves. By comparing
consecutive images, the system estimates the robot's motion and
updates its position. Visual odometry is often part of Simultaneous
Localization and Mapping (SLAM) systems.
4. Lidar and Range Sensors: Lidar sensors emit laser beams to measure
distances to objects in the environment. By scanning the surroundings, a
robot can create a point cloud and use it to estimate its position. Range
sensors, such as ultrasonic or infrared sensors, provide distance
information and can be used for localization in specific scenarios.
5. Global Positioning System (GPS): GPS is commonly used for outdoor
robot localization. It relies on signals from satellites to determine the
robot's position on the Earth's surface. However, GPS may have limited
accuracy in certain environments and is not suitable for indoor
localization.
6. Sensor Fusion: Sensor fusion involves combining data from multiple
sensors to improve localization accuracy. Techniques like Kalman filtering
 or Bayesian filtering are often used to integrate information from
odometry, IMUs, lidar, and other sensors.
7. Beacon-based Localization: In some cases, beacons or markers with
known positions are placed in the environment. The robot uses sensors
to detect these beacons and triangulate its own position based on the
known positions of the beacons.

The choice of self-localization method depends on the specific

requirements of the robot's tasks, the characteristics of the environment,
and the available sensors. Often, a combination of these methods is used
to enhance accuracy and reliability. Additionally, ongoing advancements
in sensor technologies and algorithms continue to improve the precision
and robustness of self-localization in robotics.

1. Mapping:
 Occupancy Grid Mapping: This method divides the environment
into a grid, where each cell represents the likelihood of occupancy.
Sensor measurements are used to update the probability of
occupancy for each cell.
 Feature-based Mapping: Instead of creating a grid
representation, feature-based mapping focuses on identifying and
tracking distinct features in the environment. Features could be
corners, edges, or other recognizable landmarks.
 Topological Mapping: Topological maps represent the
relationships between different locations in the environment.
Nodes and edges in a graph model represent key locations and
connections, allowing for efficient path planning.
 3D Mapping: For environments with vertical structures or multiple
floors, 3D mapping methods, often using 3D lidar or depth
cameras, provide a more comprehensive representation.

Successful SLAM systems integrate data from various sensors, fuse

information using filtering or optimization techniques (such as Extended
Kalman Filter or GraphSLAM), and continuously update the map and
robot's pose as it navigates. The choice of sensors and algorithms
depends on the specific requirements of the robotic platform and the
characteristics of the environment in which it operates.
 Localization in robotics faces various challenges, and addressing
these challenges is crucial for ensuring accurate and reliable robot
navigation. Some of the key challenges include:

1. Sensor Noise and Uncertainty: Sensors, such as wheel encoders, lidar,

and cameras, can introduce noise and uncertainties in the
measurements. This can lead to inaccuracies in estimating the robot's
position and orientation.
2. Sensor Drift: Over time, sensors like inertial measurement units (IMUs)
may experience drift, causing the estimated position to deviate from the
actual position. Drift is a common challenge in long-term localization.
3. Environmental Changes: Changes in the environment, such as dynamic
objects, moving obstacles, or alterations to the surroundings, can
challenge localization algorithms. The system must be robust enough to
adapt to these changes.
4. Limited Field of View: Sensors with a limited field of view, such as
cameras or certain lidar sensors, may struggle to capture all relevant
information in the environment, leading to partial or incomplete maps.
5. Multi-Modal Environments: In environments with diverse features,
textures, and structures, it can be challenging to extract meaningful
information for localization. Complex and irregular environments may
cause difficulties in feature matching.
6. Global Navigation Satellite System (GNSS) Limitations: GPS and
GNSS are commonly used for outdoor localization, but they may have
limited accuracy in urban canyons, dense forests, or indoor environments
due to signal blockage or reflections.
7. Map Initialization: For methods like Simultaneous Localization and
Mapping (SLAM), initializing an accurate map is crucial. Errors in the
initial map can propagate, affecting the robot's localization accuracy
throughout its operation.
8. Computational Requirements: Real-time localization and mapping can
be computationally intensive, especially when dealing with large datasets
 or high-resolution maps. Meeting real-time constraints can be
challenging, particularly on resource-constrained robotic platforms.
9. Integration of Multiple Sensors: Combining data from different
sensors (sensor fusion) is necessary for robust localization. However,
integrating diverse sensor information accurately is a complex task, and
errors may arise from mismatches or inconsistencies between sensor
modalities.
10.Adverse Weather Conditions: Harsh weather conditions, such as rain,
snow, or fog, can affect the performance of sensors like cameras and
lidar, reducing their effectiveness and impacting localization accuracy.
11.Dynamic Environments: Moving objects, such as other robots,
pedestrians, or vehicles, pose challenges for localization systems.
Tracking dynamic elements while maintaining accurate self-localization is
a non-trivial task.

Addressing these challenges often involves a combination of sensor

calibration, advanced filtering techniques (e.g., Kalman filtering), robust
algorithms, and the use of redundant or complementary sensor
modalities. Ongoing research and development in robotics focus on
overcoming these challenges to enhance the reliability and efficiency of
localization systems.

IR based Localization:
Infrared (IR) based localization in robotics involves using infrared signals
or sensors to determine the position of a robot within its environment.
This method relies on the transmission and reception of infrared signals,
and it can be employed in various ways for localization purposes. Here
are some common approaches to IR-based localization in robotics:

1. Infrared Beacons:
 Principle: Infrared beacons are placed at known locations within
the environment. These beacons emit infrared signals with unique
identifiers.
 Localization Process: The robot is equipped with infrared sensors
or receivers. By detecting the signals from multiple beacons and
 analyzing their strengths or arrival times, the robot can triangulate
its position relative to the known beacons.
 Advantages: Simple setup, suitable for indoor environments, and
can provide accurate localization when line-of-sight to multiple
beacons is maintained.
 Challenges: Susceptible to interference and obstacles blocking the
line of sight between the robot and beacons.
2. Infrared Range Sensors:
 Principle: Infrared range sensors measure the distance between
the robot and objects in the environment by emitting infrared light
and measuring the time it takes for the light to return.
 Localization Process: By scanning the surroundings with IR range
sensors, the robot can build a map of the environment and
estimate its position based on the distances to surrounding
objects.
 Advantages: Suitable for obstacle avoidance and short-range
localization.
 Challenges: Limited range and susceptibility to interference from
ambient IR sources.
3. Infrared Markers or Tags:
 Principle: The environment contains IR markers or tags with
unique patterns. These markers can be detected by the robot's
infrared sensors.
 Localization Process: The robot recognizes and localizes itself
based on the detected IR markers. The pattern or arrangement of
markers may encode information about the robot's position.
 Advantages: Flexible, as markers can be placed strategically for
specific applications.
 Challenges: Dependence on the visibility of markers, limited
coverage, and sensitivity to changes in marker positions.
4. Active Infrared Beacons for SLAM:
 Principle: Similar to traditional beacons, but with the addition of
features for Simultaneous Localization and Mapping (SLAM).
 Localization Process: IR beacons not only help in localization but
also contribute to building a map of the environment
 simultaneously. The robot uses the information from the beacons
to update its position within the map.
 Advantages: Enables the robot to create a map of the
environment while localizing itself.
 Challenges: Similar to traditional IR beacons, with additional
complexities associated with SLAM algorithms.

The effectiveness of IR-based localization depends on factors such as the

layout of the environment, the placement of IR sources, and the
characteristics of the sensors used. While IR-based methods can be
suitable for certain applications, they may have limitations in terms of
range, susceptibility to interference, and the need for line-of-sight
communication. Careful consideration of these factors is essential for the
successful implementation of IR-based localization in robotics.

Vision-based localization
Vision-based localization in robotics involves using cameras and
computer vision techniques to determine the position and orientation of
a robot within its environment. This approach leverages visual
information from the surroundings to estimate the robot's location. Here
are several common methods and techniques for vision-based
localization in robotics:
1. Visual Odometry:
 Principle: Visual odometry estimates the robot's motion by
analyzing consecutive images captured by one or more cameras. It
tracks visual features in the images and calculates the change in
position.
 Localization Process: By integrating the relative motion
information over time, the robot's trajectory and position are
estimated. Visual odometry is often used in conjunction with other
sensors to improve accuracy.
 Advantages: Relies on standard cameras, can provide accurate
short-term localization, and is suitable for indoor and outdoor
environments.
 Challenges: Susceptible to cumulative errors over time, especially
in the absence of loop closure mechanisms.
2. Simultaneous Localization and Mapping (SLAM):
  Principle: SLAM is a technique that enables a robot to build a map
of its environment while simultaneously determining its own
position within that map.
 Localization Process: Cameras capture images, and computer
vision algorithms extract features from the images to build a map.
Simultaneously, the robot estimates its position based on the
observed features and updates the map.
 Advantages: Capable of creating maps and localizing the robot
simultaneously, suitable for dynamic environments, and widely
used in both indoor and outdoor settings.
 Challenges: Requires robust feature extraction and matching, and
may be computationally demanding.
3. Feature Matching and Recognition:
 Principle: Features such as corners, edges, or distinct patterns in
the environment are extracted and matched to a pre-existing map.
 Localization Process: The robot identifies and matches features in
the captured images with features in the map. By comparing these
matches, the robot determines its position.
 Advantages: Can be used for localization in environments with
distinct visual features.
 Challenges: Sensitive to changes in lighting conditions, may
struggle in feature-poor environments.
4. Visual Landmark-based Localization:
 Principle: Landmarks, such as known objects or artificial markers,
are used for localization.
 Localization Process: The robot's camera captures images
containing the landmarks, and their positions are used to estimate
the robot's location.
 Advantages: Can provide accurate localization when distinct
landmarks are present.
 Challenges: Dependence on the visibility of landmarks and
susceptibility to changes in the environment.
5. Deep Learning-based Localization:
 Principle: Deep learning techniques, such as Convolutional Neural
Networks (CNNs), can be trained to directly predict the robot's
pose from camera images.
  Localization Process: The network learns to associate visual input
with specific poses, eliminating the need for traditional feature
extraction and matching.
 Advantages: End-to-end learning, can handle complex visual
patterns, and robust to changes in the environment.
 Challenges: Requires substantial labeled data for training,
computationally intensive, and may struggle in situations not well-
represented in the training data.

Vision-based localization has become increasingly popular due to the

widespread availability of cameras and advancements in computer vision
techniques. It is versatile and can be adapted to various robotic
platforms and environments. However, challenges such as lighting
changes, occlusions, and the need for robust feature extraction and
matching must be carefully addressed for reliable performance.

Ultrasonic-based localization
Ultrasonic-based localization in robotics involves using ultrasonic sensors
to determine the position and distance of a robot relative to its
environment. Ultrasonic sensors emit high-frequency sound waves and
measure the time it takes for these waves to bounce back after hitting an
object. This information can be used for various localization purposes.
Here are some common applications and methods of ultrasonic-based
localization in robotics:

1. Obstacle Avoidance:
 Principle: Ultrasonic sensors are placed on the robot to detect
obstacles in its path.
 Localization Process: By measuring the time-of-flight of ultrasonic
waves, the robot can estimate the distance to nearby obstacles.
Algorithms can then be used to adjust the robot's path to avoid
collisions.
 Advantages: Simple and effective for short-range obstacle
detection.
 Challenges: Limited range and susceptibility to environmental
conditions that may affect sound propagation.
2. Ultrasonic Indoor Positioning System (IPS):
  Principle: Multiple ultrasonic beacons with known positions emit
ultrasonic signals.
 Localization Process: The robot is equipped with ultrasonic
receivers and measures the time delays of signals from multiple
beacons. Triangulation is then used to estimate the robot's
position.
 Advantages: Suitable for indoor environments, can provide
relatively accurate localization.
 Challenges: Limited accuracy, especially in environments with
reflective surfaces and obstacles.
3. Ultrasonic SLAM (Simultaneous Localization and Mapping):
 Principle: Ultrasonic sensors are used to build a map of the
environment while simultaneously localizing the robot.
 Localization Process: Ultrasonic sensors measure distances to
nearby surfaces, and the robot's motion is estimated over time.
These measurements are then used to update a map of the
environment and the robot's position within that map.
 Advantages: Can operate in environments where other sensors,
like cameras, may struggle (e.g., in low-light conditions or
environments with minimal visual features).
 Challenges: Limited range and accuracy compared to other sensor
modalities, and sensitivity to environmental conditions.
4. Ultrasonic Landmark Detection:
 Principle: Ultrasonic transmitters placed on the robot emit signals,
and ultrasonic receivers detect reflections from landmarks.
 Localization Process: The robot recognizes unique patterns or
sequences of ultrasonic signals reflected by landmarks to
determine its position.
 Advantages: Simple and can be used in environments with poor
lighting conditions.
 Challenges: Dependence on the visibility of ultrasonic landmarks,
limited accuracy, and potential interference from other ultrasonic
sources.
5. Ultrasonic Array Localization:
 Principle: An array of ultrasonic sensors is used to capture the
directionality of incoming sound waves.
  Localization Process: By analyzing the time delays and intensity
differences among sensors in the array, the robot can estimate the
direction of a sound source, allowing for localization.
 Advantages: Can provide directional information, useful in
applications where the robot needs to localize with respect to a
specific sound source.
 Challenges: Sensitivity to noise and potential interference from
other ultrasonic sources.

While ultrasonic-based localization has advantages in certain scenarios,

such as low-cost implementation and operation in challenging
environments, it also comes with limitations, including limited range,
accuracy, and susceptibility to environmental conditions. Integrating
ultrasonic sensors with other sensor modalities or employing advanced
algorithms can help mitigate these challenges and enhance overall
localization performance in robotics.

Global Positioning System (GPS)

Global Positioning System (GPS) is a satellite-based navigation system

that provides location and time information to users anywhere on or
near the Earth. In robotics, GPS is commonly used for localization
purposes, especially in outdoor environments. Here's how a GPS
localization system works in robotics:

1. GPS Receiver:
 Principle: The robot is equipped with a GPS receiver that
communicates with satellites in the GPS constellation.
 Localization Process: The GPS receiver calculates the robot's
position by triangulating signals received from multiple satellites.
The distances to these satellites are determined based on the time
it takes for the signals to travel from the satellites to the receiver.
 Advantages: Provides global positioning information, enabling the
robot to determine its latitude, longitude, and altitude.
  Challenges: Limited accuracy, especially in urban canyons or areas
with obstructed views of the sky. GPS signals may also be affected
by atmospheric conditions.
2. Differential GPS (DGPS):
 Principle: DGPS is a technique that improves the accuracy of GPS
positioning by using a reference station with a known location.
 Localization Process: The reference station calculates its own
position using GPS and compares it to its known location. The
difference, or error, is transmitted to the robot's GPS receiver,
allowing it to correct its position.
 Advantages: Enhanced accuracy compared to standalone GPS,
making it suitable for applications requiring higher precision.
 Challenges: Requires access to a DGPS reference station, and the
correction signal may be subject to transmission delays or
interruptions.
3. Real-Time Kinematic (RTK):
 Principle: RTK is a GPS technique that further improves positioning
accuracy by using a fixed base station and a rover (on the robot)
with an RTK-capable GPS receiver.
 Localization Process: The base station calculates its precise
position, and this information is transmitted to the rover in real-
time, allowing for centimeter-level accuracy.
 Advantages: Very high accuracy, suitable for applications requiring
precise localization.
 Challenges: Requires a nearby RTK base station, and signal
obstructions or interference can affect performance.
4. GPS-Aided Inertial Navigation:
 Principle: GPS data is integrated with inertial measurements from
sensors like accelerometers and gyroscopes to improve localization
accuracy, especially during periods of GPS signal loss.
 Localization Process: Inertial sensors provide short-term position
updates, and when GPS signals are available, they are used to
correct and refine the position estimate.
 Advantages: Continues to provide localization information during
brief GPS outages.
  Challenges: Limited by the accuracy and drift of inertial sensors,
and the quality of localization depends on the availability of GPS
signals.

While GPS is a widely used technology for outdoor robotic localization, it

has some limitations, such as reduced accuracy in certain environments,
susceptibility to signal blockage, and the inability to provide accurate
positioning in indoor or underground settings. In applications where
high precision is critical, additional technologies, such as inertial sensors
or alternative localization methods, may be used in conjunction with GPS
to enhance overall performance.
.
