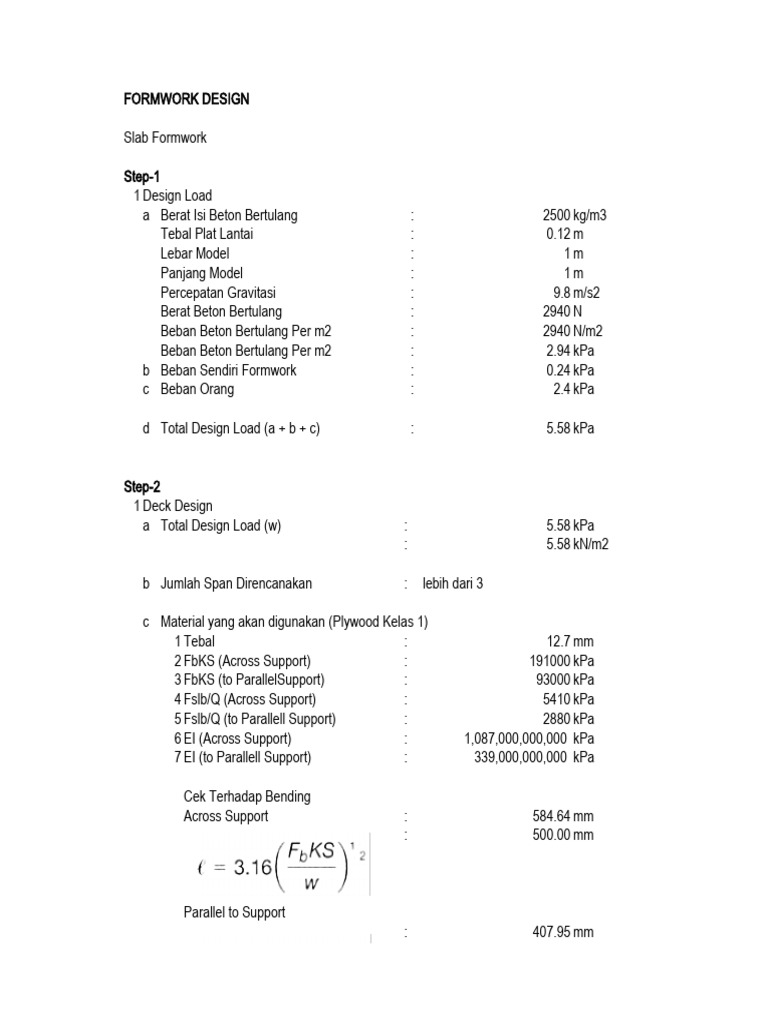

    FORMWORK DESIGN

    Slab Formwork

    Step-1
    1 Design Load
    a Berat Isi Beton Bertulang : 2500 kg/m3
    Tebal Plat Lantai : 0.12 m
    Lebar Model : 1m
    Panjang Model : 1m
    Percepatan Gravitasi : 9.8 m/s2
    Berat Beton Bertulang : 2940 N
    Beban Beton Bertulang Per m2 : 2940 N/m2
    Beban Beton Bertulang Per m2 : 2.94 kPa
    b Beban Sendiri Formwork : 0.24 kPa
    c Beban Orang : 2.4 kPa

    d Total Design Load (a + b + c) : 5.58 kPa

    Step-2
    1 Deck Design
    a Total Design Load (w) : 5.58 kPa
    : 5.58 kN/m2

    b Jumlah Span Direncanakan : lebih dari 3

    c Material yang akan digunakan (Plywood Kelas 1)


    1 Tebal : 12.7 mm
    2 FbKS (Across Support) : 191000 kPa
    3 FbKS (to ParallelSupport) : 93000 kPa
    4 Fslb/Q (Across Support) : 5410 kPa
    5 Fslb/Q (to Parallell Support) : 2880 kPa
    6 EI (Across Support) : 1,087,000,000,000 kPa
    7 EI (to Parallell Support) : 339,000,000,000 kPa

    Cek Terhadap Bending


    Across Support : 584.64 mm
    : 500.00 mm

    Parallel to Support
    : 407.95 mm
    : 400.00 mm

    CekTerhadap Geser
    Across Support
    : 1,661.54 mm
    : 1600.00 mm

    Parallel to Support
    : 904.35 mm
    : 900.00 mm

    Cek Terhadap Lendutan


    Across Support
    : 427.81 mm
    : 400.00 mm

    Parallel to Support
    : 290.12 mm
    : 200.00 mm

    Maximum Sheating Support Span : 400.00 mm

    Step-3
    1 Frame Design

    a Material Yang akan Digunakan (frame) : Kayu Kelas 1


    1 1 kg/cm2 : 98.1 kPa
    2 1 Mpa : 1000.0 kPa
    3 Fb (kayu Kelas 1) : 14,709.98 kPa
    4 Fv (kayu kelas 1) : 1,961.33 kpa
    5 d (Tinggi) : 60 mm
    6 b (lebar) : 40 mm
    7 E (Modulus Elastisitas kayu Kelas 1) : 12,258,313 kPa
    8 I (inertia) : 720,000 mm4
    9 w modelling) : 2 kPa

    b Panjang Span (Joist) : 1100 mm


    Cek Terhadap Bending
    : 1,253.82 mm
    : 1,200.00 mm

    Cek Terhadap Geser


    : 2,461 mm
    : 2,400.00 mm

    Cek Terhadap Lendutan


    : 1,167.02 mm
    : 1,100.00 mm

    c Panjang Span (Stringger) 1,200 mm


    1 Joist Span : 1100 mm
    2 w Modelling : 6.138 kPa
    3 1 kg/cm2 : 98.1 kPa
    4 1 Mpa : 1000.0 kPa
    5 Fb (kayu Kelas 1) : 14,709.98 kPa
    6 Fv (kayu kelas 1) : 1,961.33 kpa
    7 d (Tinggi) : 80 mm
    8 b (lebar) : 60 mm
    9 E (Modulus Elastisitas kayu Kelas 1) : 12,258,313 kPa
    10 I (inertia) : 2,560,000 mm4

    Cek Terhadap Bending


    : 1,234.67 mm
    : 1,200.00 mm

    Cek Terhadap Geser


    : 1,863 mm
    : 1,800.00 mm

    Cek Terhadap Lendutan


    : 1,271.37 mm
    : 1,200.00 mm

    Step-4
    1 Shore Spacing 1,091 mm
    1 Stringger Span : 1,200 mm
    : 1.20 m
    2 w Modelling : 6.70 kPa

    Shore Spacing : W Model Shore


    W Model Stringger

    : 1.090909 m
    : 1,090.91 mm

    400 mm 1100 mm

    1200 mm
