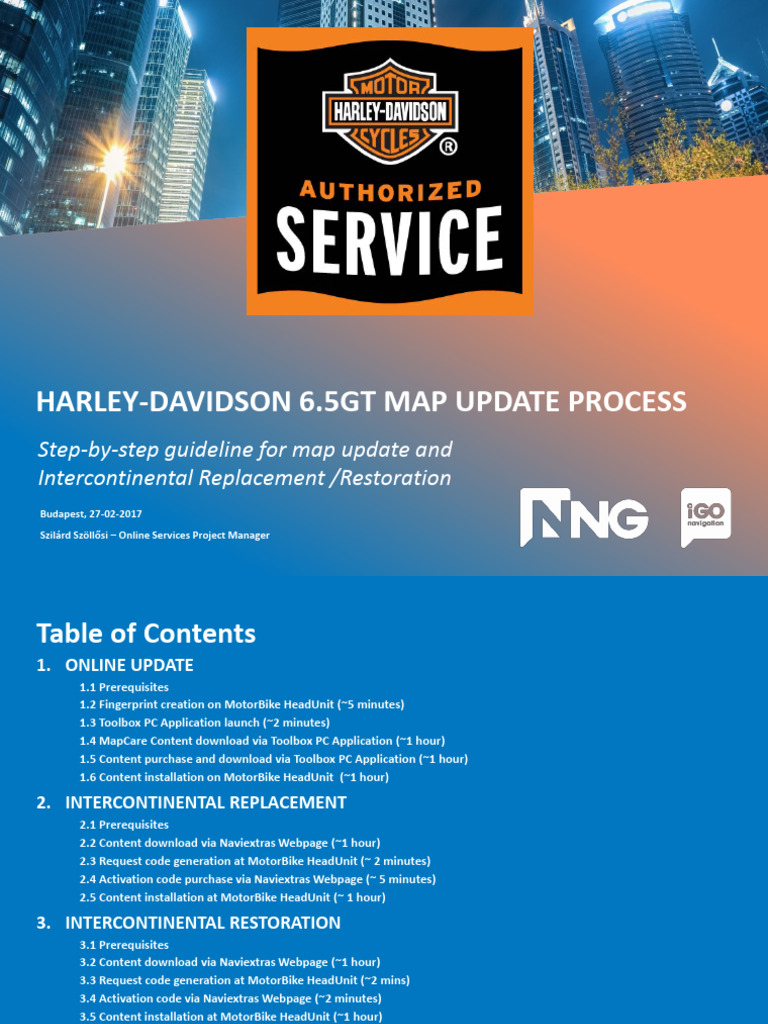

HARLEY-DAVIDSON 6.
5GT MAP UPDATE PROCESS

Step-by-step guideline for map update and
Intercontinental Replacement /Restoration
Budapest, 27-02-2017
Szilárd Szöllősi – Online Services Project Manager
Table of Contents
1. ONLINE UPDATE
1.1 Prerequisites
1.2 Fingerprint creation on MotorBike HeadUnit (~5 minutes)
1.3 Toolbox PC Application launch (~2 minutes)
1.4 MapCare Content download via Toolbox PC Application (~1 hour)
1.5 Content purchase and download via Toolbox PC Application (~1 hour)
1.6 Content installation on MotorBike HeadUnit (~1 hour)
2. INTERCONTINENTAL REPLACEMENT
2.1 Prerequisites
2.2 Content download via Naviextras Webpage (~1 hour)
2.3 Request code generation at MotorBike HeadUnit (~ 2 minutes)
2.4 Activation code purchase via Naviextras Webpage (~ 5 minutes)
2.5 Content installation at MotorBike HeadUnit (~ 1 hour)
3. INTERCONTINENTAL RESTORATION
3.1 Prerequisites
3.3 Request code generation at MotorBike HeadUnit (~2 mins)
3.4 Activation code via Naviextras Webpage (~2 minutes)
3.5 Content installation at MotorBike HeadUnit (~1 hour)
4. ONLINE EXTENSION
4.1 Prerequisites
4.3 Request code generation at MotorBike HeadUnit (~2 mins)
4.4 Activation code via Naviextras Webpage (~2 minutes)
4.5 Content installation at MotorBike HeadUnit (~1 hour)
ONLINE UPDATE
Updating the navigation system with the freshest available map
1
1.1 Prerequisits of the Online Update
Empty USB memory stick Personal Computer Harley-Davidson MotorBike

- Formatted to FAT32 file - With Windows 7, 8 or 10 - With 6.5GT HeadUnit
system Operating System
- Capacity of minimum - Installed Toolbox*
8GB
- Registered Naviextras
account**
* Toolbox can be downloaded from this link

** Account can be registered in the Toolbox or Naviextras here
1.2 Fingerprint creation at MotorBike HeadUnit
~5 minutes ~2 minutes ~1 hour ~1 hour
Create Fingerprint Toolbox Login Content Content
@ MotorBike @ PC Download Install
@ PC @ MotorBike
Create a Connect the Select or purchase Insert the USB

Fingerprint to an previously used the fresh version memory stick back
empty USB USB memory stick of the map and to the MotorBike
memory stick on to the PC and install it to the USB and install the
the MotorBike launch the Toolbox memory stick fresh map
Step 1: Connect your USB memory stick to the HeadUnit on your MotorBike and press the HOME
button
Step 2: Select the „Setup” menu in the top right corner

Step 3: Scroll down in the Setup menu and select the „System Information”
Step 4: Scroll down in the Information menu and select the „Navigation”
Step 5: Select the „Export For

Update”
Step 6: Select the name of the connected USB memory stick

Step 7: Wait until the export is finished

Step 8: When ready, press „OK” then remove the USB memory stick from the MotorBike
1.3 Toolbox PC application launch
@ PC @ MotorBike

Step 1: Connect the previously used USB memory stick to your PC

Step 2: Launch the Naviextras Toolbox from the Start menu or from the Desktop*

Step 3: Log in to the Toolbox

Step 4: On the important system update infobox click „OK”

Step 5: Wait until the installation of the system update is finished

Step 6: Click „OK” when the update process finished successfully

1.4 MapCare Content download via Toolbox PC
Application
@ PC @ MotorBike
Create a Connect the Download the Insert the USB

Fingerprint to an previously used content within memory stick back
empty USB USB memory stick MapCare, and to the MotorBike
Application
Step 1: In the main window press „Updates” on the left

Application
Step 2: Click on the „Install” button to start downloading the content to the USB memory stick
Application
Step 3: Wait until the download is completed. This takes about 1 hour
Application
Step 4: Click „OK” when the operation completed successfully

Application
Step 5: Your Device is up-to-date.

1.5 Content download via Toolbox
@ PC @ MotorBike

1.5 Content purchase and download via Toolbox
Step 1: In the main window press „Maps” on the left

Step 2: Select your region by clicking on „READ MORE” button

Step 3: Start purchasing the content by clicking on „ADD TO CART„ button

Step 4: Go to Check Out

Step 5: Check Out

Step 6: Verify your order

Step 7: Enter invoice address

Step 8: Confirm invoice address

Step 9: Choose payment method, select your language and country of your bank and click on
„Select”
Step 10: Enter credit card data for the purchase and click on „Make Payment”
Step 11: Wait for the validation of the device


Step 15: Log out from the Toolbox

Step 16: Safely remove the USB memory stick from the computer
1.6 Content installation at MotorBike HeadUnit
@ PC @ MotorBike

Step 1: Connect the previously used USB memory stick to your MotorBike and press „OK”
Step 2: Wait until the authentication process performs successfully.

Step 3: Turn ignition and do not press any button.

Step 4: Wait until the software is updated, then remove the USB memory stick.
INTERCONTINENTAL REPLACEMENT
Updating the navigation system to the freshest map of another region
2
2.1 Prerequisits of the Intercontinental Replacement

- With an original region on
- Capacity to be minimum - Registered Naviextras it that is different from
of 8GB account ** the region that will be
downloaded from
Naviextras

2.2 Content download via Naviextras Webpage
~1 hour ~2 minutes ~5 minutes ~1 hour
Content Request Activation Content
Download Code Code Install
@ Naviextras @ MotorBike @ Naviextras @ MotorBike
Select and Generate and Type in the Type in the

download the write down the Request Code and Activation Code on
region via the Request Code on purchase the the MotorBike
Naviextras the MotorBike Acitvation Code on Head Unit and
webpage Head Unit the Naviextras install the content
Step 1: Log in here (harley-davidson.naviexras.com)
** Account can be registered here

Step 2: Click on the Intercontinental Replacement item

Step 3: Select the region and click

„Download”
Step 4: Wait until the download is completed

Step 5: Click on the downloaded file to open it in a windows explorer
Note1: After the download is finished, the zip file can be found here:
C:\Users\{username}\Downloads
Note2: When the .zip is extracted and copied to the USB memory stick, the root of the stick should contain an „nng” folder and an
„swdl.iso” file.
Step 6: Select the two files and copy them to the clipboard
Note: After the download is finished, the zip file can be found here:
Step 7: Select the USB memory stick drive and paste the two files to the root
Note: When the .zip is extracted and copied to the USB memory stick, the root of the stick should contain an „nng” folder and an
Step 8: When ready, safely remove the USB memory stick from the computer
2.3 Request code generation at MotorBike HeadUnit

2.3 Request Code generation at the MotorBike

Step 3: To get the request code, click on „Next”.

Step 4: Write down the 22 digit-long request code. Leave the USB memory stick in the HeadUnit.
2.4 Activation code purchase via Naviextras Webpage

2.4 Activation code purchase via Naviextras
Step 1: Click on the „Redeem code or activate” item (harley-davidson.naviexras.com)

Step 2: Enter the 22 digit-long request code to the code redemption textbox.
XXXX-XXXX-XXXX-XXXX-XXXX-XX
Step 3: Click on the „Redeem” button.
Step 4: Doublecheck the request code and check the price. If all is ok, click on the „ACTIVATE”
button.
Step 5: Verify your order.

Step 6: Set invoice information and click on the „SENDING THE ORDER AND PAYMENT”„
Note: Invoice information can not be modified later.

Step 7: Choose payment method, language and country, then click „Select”.
Step 8: Payment: fill the form and click on „Make Payment” button.
Step 9: Payment: click on „Continue”

Step 10: Write down your activation code


Step 1: Type the activation code to the HeadUnit

Step 2: Press the „OK” button


Step 4: Wait until the software is updated, then remove the USB memory stick
INTERCONTINENTAL RESTORATION
Restoring the navigation system back to the factory map
3
3.1 Prerequisites of Intercontinental Restoration

- With an already replaced
- Capacity to be minimum - Registered Naviextras region on it
of 8GB account **


factory map via the Request Code on get the Acitvation the MotorBike
Naviextras the MotorBike Code on the Head Unit and
webpage Head Unit Naviextras install the content
Step 1: Log in here (harley-davidson.naviexras.com)
** Account can be registered here

Step 2: Click on the Intercontinental Restoration item

Step 3: Select your factory package and click „Download”
Please note that you can only restore your factory map package, nothing else. If another restoration package is downloaded, the
activation code will not match with that package so install will fail.
Step 4: Wait until the download is completed

Step 5: Click on the downloaded file to open it in a windows explorer
Note1: After the download is finished, the zip file can be found here:
Note2: When the .zip is extracted and copied to the USB memory stick, the root of the stick should contain an „nng” folder and an
Step 6: Select the two files and copy them to the clipboard
Note: After the download is finished, the zip file can be found here:
Step 7: Select the USB memory stick drive and paste the two files to the root
Note: When the .zip is extracted and copied to the USB memory stick, the root of the stick should contain an „nng” folder and an
Step 8: When ready, safely remove the USB memory stick from the computer
3.3 Request code generation at MotorBike HeadUnit


Step 3: To get the request code, click on „Next”.

Step 4: Write down the 22 digit-long request code. Leave the USB memory stick in the HeadUnit.
3.4 Activation code via Naviextras Webpage

3.4 Activation code via Naviextras
Step 1: Click on the „Redeem code or activate” item (harley-davidson.naviexras.com)

Step 2: Enter the 22 digit-long request code to the code redemption textbox.
Step 3: Click on the „Redeem” button.
Step 4: Write down your activation code
Please note that if you want to activate a content which you are eligible for (the factory map package is typically this category), payment
process is skipped.

Step 1: Type the activation code to the HeadUnit

Step 2: Press the „OK” button


Step 4: Wait until the software is updated, then remove the USB memory stick
ONLINE EXTENSION 4
Extending the current region (NA or EU) with a small ROW sub-region (e.g.
Australia)
4.1 Prerequisites of Online Extension

- Capacity of minimum - Installed Toolbox*
8GB
- Registered Naviextras
account**

4.1 Prerequisites of Online Extension
Update options – trespassing map
From / To To To To To To
EU CVO EU Premium NA CVO NA Premium ROW
From Online update with Online update with Intercontinental Intercontinental Intercontinental
Toolbox (to a newer Toolbox (to a newer replace / restore via replace / restore via replace / restore via
EU CVO content) content) Naviextras Naviextras Naviextras
OR
online extension via
Toolbox *
From Online update with Online update with Intercontinental Intercontinental Intercontinental
Toolbox (to a newer Toolbox (to a newer replace / restore via replace / restore via replace / restore via
EU Premium content) content) Naviextras Naviextras Naviextras
OR
Toolbox *
From Intercontinental Intercontinental Online update with Online update with Intercontinental
replace / restore via replace / restore via Toolbox (to a newer Toolbox (to a newer replace / restore via
NA CVO Naviextras Naviextras content) content) Naviextras
OR
Toolbox *
From Intercontinental Intercontinental Online update with Online update with Intercontinental
replace / restore via replace / restore via Toolbox (to a newer Toolbox (to a newer replace / restore via
NA Premium Naviextras Naviextras content) content) Naviextras
OR
Toolbox *
From Intercontinental Intercontinental Intercontinental Intercontinental Online update with

replace / restore via replace / restore via replace / restore via replace / restore via Toolbox (to a newer
ROW Naviextras Naviextras Naviextras Naviextras content) *
* The ROW package is purchasable and downloadable as 6 subregions via Toolbox.

Create Fingerprint Toolbox Login Extension Extension
@ PC @ MotorBike
Create a Connect the Purchase the fresh Insert the USB

Fingerprint to an previously used version of the map memory stick back
empty USB USB memory stick extension and to the MotorBike
Step 1: Connect your USB memory stick to the HeadUnit on your MotorBike and press the HOME
button
Step 2: Select the „Setup” menu in the top right corner

Step 3: Scroll down in the Setup menu and select the „System Information”
Step 4: Scroll down in the Information menu and select the „Navigation”
Step 5: Select the „Export For

Update”
Step 6: Select the name of the connected USB memory stick

Step 7: Wait until the export is finished

Step 8: When ready, press „OK” then remove the USB memory stick from the MotorBike
@ PC @ MotorBike

Step 1: Connect the previously used USB memory stick to your PC

Step 2: Launch the Naviextras Toolbox from the Start menu or from the Desktop*

Step 3: Log in to the Toolbox

Step 4: On the important system update infobox click „OK”

Step 5: Wait until the installation of the system update is finished

Step 6: Click „OK” when the update process finished successfully

4.4 Extension download via Toolbox
@ PC @ MotorBike

Step 1: In the main window press „Maps” on the left

Step 2: Select any ROW sub-region by clicking on „READ MORE” button

Step 3: Start purchasing the content by clicking on „ADD TO CART„ button*
* Please note that if you have a CVO MotorBike with valid MapCare subscription, the update will be available for you free of
charge. In this case click on „GET FOR FREE” button, and the purchase procedure will be skipped.
Step 4: Go to Check Out

Step 5: Check Out

Step 6: Verify your order

Step 7: Enter invoice address

Step 8: Confirm invoice address

Step 9: Choose payment method, select your language and country of your bank and click on
„Select”
Step 10: Enter credit card data for the purchase and click on „Make Payment”
Step 11: Wait for the validation of the device


Step 15: Log out from the Toolbox

Step 16: Safely remove the USB memory stick from the computer
@ PC @ MotorBike



Step 4: Wait until the software is updated, then remove the USB memory stick.

Harley-Davidson 6.5GT Map Update Process MAY72021

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Harley-Davidson 6.5GT Map Update Process MAY72021

Uploaded by

Copyright:

Available Formats

HARLEY-DAVIDSON 6.

5GT MAP UPDATE PROCESS

Empty USB memory stick Personal Computer Harley-Davidson MotorBike

* Toolbox can be downloaded from this link

Create a Connect the Select or purchase Insert the USB

Step 2: Select the „Setup” menu in the top right corner

Step 5: Select the „Export For

Step 6: Select the name of the connected USB memory stick

Step 7: Wait until the export is finished

Create a Connect the Select or purchase Insert the USB

Step 1: Connect the previously used USB memory stick to your PC

* Toolbox can be downloaded from this link

Step 3: Log in to the Toolbox

Step 4: On the important system update infobox click „OK”

Step 5: Wait until the installation of the system update is finished

Step 6: Click „OK” when the update process finished successfully

Create a Connect the Download the Insert the USB

Step 1: In the main window press „Updates” on the left

Step 4: Click „OK” when the operation completed successfully

Step 5: Your Device is up-to-date.

Create a Connect the Select or purchase Insert the USB

Step 1: In the main window press „Maps” on the left

Step 2: Select your region by clicking on „READ MORE” button

Step 3: Start purchasing the content by clicking on „ADD TO CART„ button

Step 4: Go to Check Out

Step 5: Check Out

Step 6: Verify your order

Step 7: Enter invoice address

Step 8: Confirm invoice address

Step 11: Wait for the validation of the device

Step 14: Click „OK” when the operation completed successfully

Step 15: Log out from the Toolbox

Create a Connect the Select or purchase Insert the USB

Step 2: Wait until the authentication process performs successfully.

Step 3: Turn ignition and do not press any button.

Empty USB memory stick Personal Computer Harley-Davidson MotorBike

** Account can be registered in the Toolbox or Naviextras here

Select and Generate and Type in the Type in the

Step 1: Log in here (harley-davidson.naviexras.com)

** Account can be registered here

Step 2: Click on the Intercontinental Replacement item

Step 3: Select the region and click

Step 4: Wait until the download is completed

Step 5: Click on the downloaded file to open it in a windows explorer

Select and Generate and Type in the Type in the

Step 2: Wait until the authentication process performs successfully.

Step 3: To get the request code, click on „Next”.

Select and Generate and Type in the Type in the

Step 1: Click on the „Redeem code or activate” item (harley-davidson.naviexras.com)

Step 3: Click on the „Redeem” button.

Step 5: Verify your order.

Note: Invoice information can not be modified later.

Step 9: Payment: click on „Continue”

Step 10: Write down your activation code

Select and Generate and Type in the Type in the

Step 1: Type the activation code to the HeadUnit

Step 2: Press the „OK” button

Step 3: Turn ignition and do not press any button.

Empty USB memory stick Personal Computer Harley-Davidson MotorBike

** Account can be registered in the Toolbox or Naviextras here

Select and Generate and Type in the Type in the

Step 1: Log in here (harley-davidson.naviexras.com)

** Account can be registered here
