2

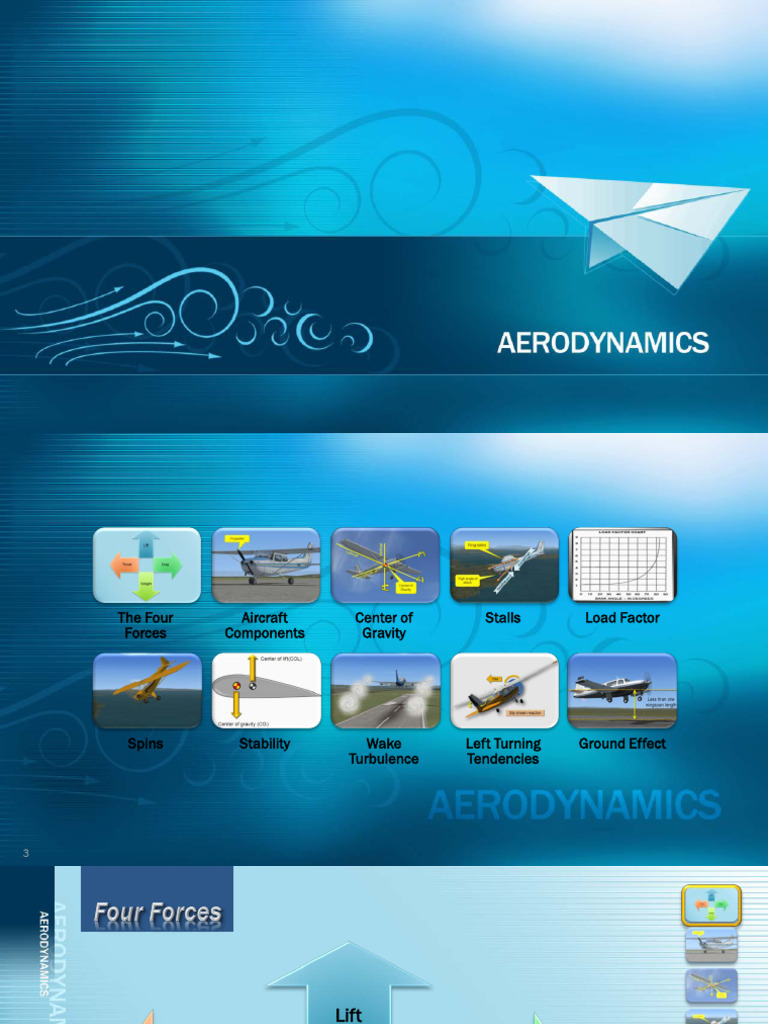

The Four Aircraft Center of Stalls Load Factor


Forces Components Gravity

Spins Stability Wake Left Turning Ground Effect


Turbulence Tendencies

3
Lift

Thrust Drag

Weight

4
5
Unrestricted tube

Restricted tube
6
Airfoil

An airfoil is a specially shaped


surface, designed to produce
aerodynamic lift as air flows
over it.

7
8
9
Layer of undisturbed air

LowConstriction Air molecules


pressure must accelerate

Higher
pressure,
thus lift

10
Lift is a function of camber and
Low airspeed.
pressure

Lift increases exponentially with


airspeed.

Higher A 210 square foot wing at 50


pressure, knots lifts a 2000 pound
airplane airborne.
thus lift

11
Lift may be created as a result of
Bernoulli’s principle alone or…

Lift

by the effect of air striking the


bottom of the wing and deflecting
down, causing an upward
counterforce.

Lift

12
13
14
15
Lift

Thrust Drag

Weight

16
17
18
What is the relationship of lift, drag, thrust, and
weight when the airplane is in straight-and-level
flight?
A. Lift equals weight and thrust equals drag.
B. Lift, drag, and weight equal thrust.
C. Lift and weight equal thrust and drag.

Lift equals weight and thrust equals drag.

19
20
21
22
Propeller

The propeller provides thrust,


one of the four forces.

23
Cowling

The cowling protects the engine


and its shape cools the engine
by directing air through and
around the engine.

24
Fuselage

The fuselage is the body of the aircraft. It starts at


the front of the cowling and goes back to the tail.

25
Wing

The wings are airfoils attached to


each side of the fuselage.

26
Airfoil

The curved shape of an airfoil


aids in the production of lift.

27
Wing root

The wings are attached to the


fuselage at the wing root.

28
29
Pitot tube

The pitot tube senses ram air


pressure.

30
Stall
Sensor

The stall sensor senses the critical


angle of attack

31
Chord line

Leading edge
Trailing edge

The chord line runs from the leading


edge to the trailing edge of the wing.

32
Ailerons
Ailerons

Ailerons affect movement around the


longitudinal axis.

33
Flaps

The flaps are located at the trailing


edge of the wing.

34
Chord line

The chord line with the flaps up.

35
Chord line

As the flaps are lowered the chord


line changes.

36
Static port

The static port provides an


undisturbed static air reference.

37
The empennage – French for “tail
feathers”

Empennage

38
Elevators down

Elevators affect movement around


the lateral axis.

39
Elevators up

Elevators affect movement around


the lateral axis.

40
The rudder affects movement around
the vertical axis.

Left rudder

41
The rudder affects movement around
the vertical axis.

Right rudder

42
Landing gear
Landing gear

Most training airplanes have a fixed


landing gear.

43
What is the purpose of the rudder on an airplane?
A. To control yaw.
B. To control overbanking tendency.
C. To control roll.

The purpose of the rudder is to control yaw. Ailerons


control overbanking, as well as roll.

44
Vertical

Center of
Gravity

45
46
47
48
Pitch is movement in which axis?
A. Lateral
B. Longitudinal
C. Vertical

Pitch is movement lateral axis (nose up and down).

49
Upper Mean-camber - A line drawn from the
camber leading edge to the trailing edge of an
airfoil, that is equidistant at all points.
Leading
edge

Angle of
attack Trailing
edge

Relative wind

Chord line
Lower
camber

50
Angle of
incidence

Angle of incidence is the angle at


which the wing is attached to the
aircraft fuselage. The pilot has no
control over this angle.
51
Angle of attack is defined as the angle between the
chord line of an airfoil and the:
A. Direction of the relative wind.
B. Pitch angle of the airfoil.
C. Rotor plane of rotation.

The direction of the relative wind defines the angle of


attack.

52
Chord
line

Angle
of
attack

Relative wind

53
Laminar
Flow
elative wind

Critical
Angle
elative wind

Wing
elative wind
Stalled

54
1 2 3

Molecules Molecules Molecules


tightly packed slightly packed loosely packed
dense air moderate air low air density
density

Low air density is referred to as high density altitude.

55
The indicated airspeed will be the same at higher
altitudes than at sea level. True airspeed will be
higher. You will not be able to tell from your indicated
airspeed that the aircraft is stalling at a higher true
airspeed.

56
At high density altitude, the wing stalls at a higher
true airspeed because there are fewer air
molecules. The airplane must be flown at a greater
angle of attack. Thus, the wing will reach the critical
angle of attack at a higher airspeed.

57
Wing stalled

High angle of
attack

A given wing will always stall at the same critical


angle of attack. The critical angle of attack can be
reached in any flight attitude and at any airspeed.

58
In a turn, some vertical lift is diverted
into horizontal lift

To maintain altitude, the angle of attack


must be increased

Load factor is the load imposed on the


wing

A load factor of 1 G = the pull of gravity,


centrifugal force is also generated

60
61
The angle of attack at which an airplane wing stalls
will:
A. Increase if the CG is moved forward.
B. Change with an increase in gross weight.
C. Remain the same regardless of gross weight.

A stall is a rapid decrease in lift caused by the separation


of airflow from the wing’s surface, brought on by exceeding
the critical angle of attack. The indicated airspeed at which
a stall occurs will be determined by weight and load factor,
but the stall always occurs at the same angle of attack.

62
Vertical
component of lift

Resultant lift

Horizontal
component of lift

Centrifugal
component of lift
Load Factor is the ratio between the
resultant lift and the aircraft’s weight.

63
Load factor at 45o.
bank.
Aircraft gross weight
is 4,500 lbs
Using the load factor
graph, calculate:

4,500 lbs x 1.5


= 6,750 lbs

64
Load factor at 60o
bank.
Using the load factor
graph calculate:

Load factor =2
Aircraft weight
Doubles!

65
During an approach to a stall, an increased load
factor will cause the airplane to:
A. Stall at a higher airspeed.
B. Have a tendency to spin.
C. Be more difficult to control.
Stall speed increases in proportion to the square root of the
load factor. Thus, with a load factor of 4, an aircraft will stall
at a speed which is double the normal stall speed.

66
Spins are the result of both wings stalling, but one wing stalling more.
As the angle of attack increases past the critical angle of attack, the
wing stalls. However, the airplane will roll and yaw towards the wing
that is in a greater stalled condition, and then will begin a rotation or
spin if the stall is not corrected.

67
As a spin becomes fully developed, its path resembles a spiral as the
plane rapidly descends.

68
To stop a spin:
 Reduce the throttle to idle.
 Apply rudder opposite to the direction of the spin.

69
When the rotation stops, reduce the angle of attack by pushing the
yoke forward.

70
To stop a spin a pilot should?
A. Add power, then pull the nose up.
B. Reduce power, then push the nose down.
C. Reduce power, apply rudder opposite the spin
direction, and release back pressure.

To stop a spin you must get the wings flying again. Thus,
stop the rotation first by applying opposite rudder, then
release back pressure to break the stall, and reduce power
to keep the aircraft from exceeding the normal airspeed.

71
Stability is the tendency of the airplane to resist movement away from
its flight path.

72
A well designed airplane is both maneuverable and stable.
The more stable an airplane, the less maneuverable it is.
The more maneuverable an aircraft is, the less stable it is.
An inherently stable airplane will requires less control effort.

73
Center of lift(COL)

Center of gravity (CG)

74
Down
force
Down
force

75
Max forward
CG

Down
force
Lift

CG COL

Weight
Down
force

76
Max aft CG

Down
force
Lift

CG COL

Weight
Down
force

77
Past aft CG limit

Lift

force
Up
COL CG

force
Up
Weight

Extreme Danger – highly unstable

78
What determines the longitudinal stability of an
airplane?
A. The location of the CG with respect to
the center of lift.
B. The effectiveness of the horizontal
stabilizer, rudder, and rudder trim tab.
C. The relationship of thrust and lift to
weight and drag.
It’s the location of the CG with respect to the center of lift,
or COL.

79
80
81
Five Knots Five Knots

82
Quartering
tailwind

27
R
9
L

27
L
R
9

83
Touchdown

Wake ends

84
Rotation

Wake starts

85
When landing behind a large aircraft, the pilot should avoid
wake turbulence by staying
A. Above the large aircraft’s final approach path and landing
beyond the large aircraft’s touchdown point.
B. Below the large aircraft’s final approach path and landing
before the large aircraft’s touchdown point.
C. Above the large aircraft’s final approach path and landing
before the large aircraft’s touchdown point.

Don’t forget, to avoid wake turbulence caused by wingtip


vortices, stay above the large aircraft's final approach path and
land beyond the aircraft's touchdown point.

86
“P” Factor

Aircraft motion

Angle of
attack

Relative Wind
Descending
Angle of blade
attack
Aircraft motion

Descending
blade

87
Torque reaction

88
Spiraling slipstream

Yaw

89
90
The left turning tendency of an airplane caused by P-factor is the
result of the:
A. Clockwise rotation of the engine and the propeller turning the
airplane counterclockwise.
B. Propeller blade descending on the right, producing more thrust
than the ascending blade on the left.
C. Gyroscopic forces applied to the rotating propeller blades acting
90 degrees in advance of the point the force was applied.
Propeller blade descending on the right, producing more thrust
than the ascending blade on the left.

91
Less than one
wingspan length

92
With less than the length of one wingspan above the
runway, the surface interferes with the airflow patterns
around the aircraft by reducing wingtip vortices. This
improves the aircraft’s aerodynamic performance.

Less than one


wingspan length

93
This improvement is primarily caused by a reduction of
induced drag.

Less than one


wingspan length

94
Any excess speed in landing causes the airplane to float
down the runway.

Less than one


wingspan length

95
Ground effect is most likely to result in which problem?
A. Settling to the surface abruptly during landing.
B. Becoming airborne before reaching recommended
takeoff speed.
C. Inability to get airborne even though airspeed is
sufficient for normal takeoff needs.
Remember, becoming airborne before reaching
recommended takeoff speed is something to be careful
of with ground effect.

96

You might also like
