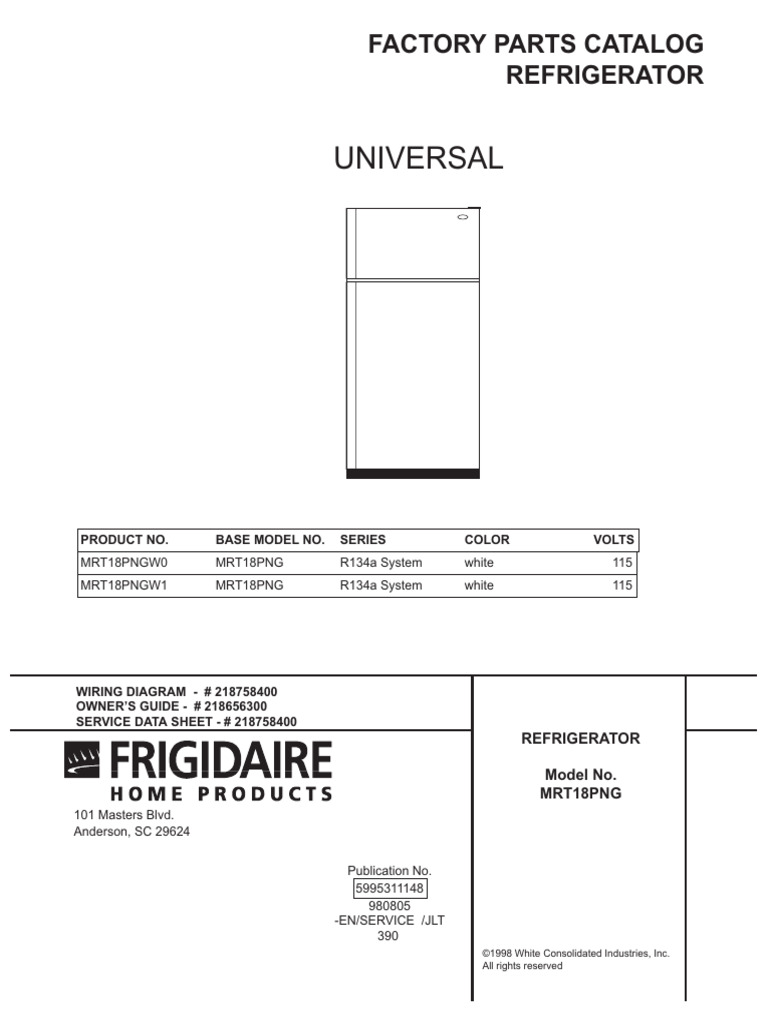

FACTORY PARTS CATALOG

REFRIGERATOR

UNIVERSAL

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

MRT18PNGW0 MRT18PNG R134a System white 115
MRT18PNGW1 MRT18PNG R134a System white 115

WIRING DIAGRAM - # 218758400

OWNER’S GUIDE - # 218656300
SERVICE DATA SHEET - # 218758400
REFRIGERATOR

Model No.
MRT18PNG
101 Masters Blvd.
Anderson, SC 29624

Publication No.
5995311148
980805
-EN/SERVICE /JLT
390
©1998 White Consolidated Industries, Inc.
All rights reserved
Publication No. MRT18PNG
5995311148
DOOR

08/98 2
 MRT18PNG Publication No.
5995311148
DOOR

A = MRT18PNG (MRT18PNGW0)
B = MRT18PNG (MRT18PNGW1)
POS. NO PART NO DESCRIPTION
1 # 215608916 A B Gasket-frzr door,white ,magnetic
2 # 218730605 A B Gasket-refr door,white ,magnetic
3 218360002 A B Panel-inner door,refr
4 218027041 A B Rack-door,23.81" x 1.62"
5 215267701 A B Support-door rack,"2-liter" ,RH/LH
5A 215473602 A B Support-door rack,RH/LH
7 218287816 A B Door-dairy,10.71" wide
9 218360101 A B Panel-inner door,frzr
10 5308000134 A B Plug-button,white ,hinge brg hole
11 5303917795 A B Panel-frzr door,white ,with insulation
12 218428201 A B Frame-nameplate,white
12* 215518000 A B Magnet-nameplate
13 218800300 A B Door Stop,plated
13A 218249001 A B Door Stop,white ,frzr section
14 5308000090 A B Plug-button,white
14A 218110901 A B Plug-button,white ,refr door front ,
upper
14B 218074001 A B Plug-button,white ,refr door front ,
lower
15 5303917797 A B Panel-refr door,white ,w/insul & brace
18 218428104 A B Handle-door,white ,refr section ,
w/block & screw
18A 218428101 A B Handle-door,white ,w/block & screw
21A 218251900 A B Screw,#8 oval head ,10-32CA x .625 ,
cross recessed
21C 218252200 A B Screw,#8 truss hd ,10-32CA x .5
22 218519300 A B Bearing-hinge
37A 218397701 A B Trim-handle,28.33" ,white ,
with mtg locks
37A* 215782300 A B * Lock-handle trim,snap-in
37A* 215940700 A B * Lock-handle trim,stick-on
58 218699800 A B Screw,truss head ,8-15A x 0.500
72 218397000 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 1/2 ,
spec/hi-lo

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

# = Fast-moving Parts 3 08/98

* = Non-Illustrated Parts
Publication No. MRT18PNG
5995311148
CABINET

08/98 4
 MRT18PNG Publication No.
5995311148
CABINET

A = MRT18PNG (MRT18PNGW0)
B = MRT18PNG (MRT18PNGW1)
POS. NO PART NO DESCRIPTION
1 218672501 A B Cover-fan
2 5303307351 A B Knob-damper control
3 5303001028 A B Nut,push-on
4 218722200 A B Damper-fan cover,black
5 # 218649000 A B Fan Blade,black
6 218448301 A B Cover,white ,lwr hinge hole
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
10 3206451 A B Cover-evap coil
10* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
11 5303208309 A B Plug-hole,factory test
12 215079000 A B Plug-harness hole,round
12 215079100 A B Plug-wtr inlet tube,round
13 # 5303310100 A - Motor-evap fan
13 # 218878701 - B Motor-evap fan
14 5303205119 A B Bracket-motor mtg,rear
17 218725700 A B Trough-drain
18 215245000 A B Support-evap cover,(2)
19 5303001198 A B Tube,rubber
22 215774901 A B Plug-button,white ,upr hinge holes
23 5303269702 A B Tube-drain,w/seal ring
24 5303207353 A B Seal Ring,drain tube
25 215774100 A B Spout-drain tube,w/mounting pins
29 5308000007 A B Washer,.34 x .62 x .05 ,nylon
29 5308000186 A B Washer,.34 x .62 x .10 ,nylon
30 3206136 A B Bracket-lower hinge
30* 215882300 A B Tapping Plate,lower hinge ,(2)
30* 218368500 A B Shim-lower hinge
32 215217701 A B Plug-button,white ,cabinet base ,(2)
35 218220101 A B Bracket-ctr hinge,light grey
36 218251300 A B Pin-center hinge
37 5303321081 A B Trim-cabinet corner,white
38 3206100 A B Bracket-upper hinge
39 5303001037 A B Shim-upper hinge
40 3206101 A B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf/rod mtg ,RH
41* 5308009759 A B Grommet,shelf mtg ,LH
42 215880100 A B Screw-hinge mtg,hex washer head ,
1/4-20 x 0.685,(2)
43 218724000 A B Roller Assy,front ,complete
43* 218703002 A B * Roller
43* 5308009761 A B * Bolt-roller adj
43* 5308009790 A B * Spring-roller adj
43* 5308011326 A B * Washer,.34 x .62 x .02 ,nylon
44 5303283014 A B Roller Assy,metal housing
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
47 218233300 A B Channel-shelf mtg,side ,(2)
48 5303292395 A B Channel-shelf mtg,center
49 215507300 A B Screw,hex washer head ,8-18AB x 1-1/2
56 218220300 A B Pin-lower hinge
58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500 ,
special
59 218188000 A B Screw,pan hd ,10-32 x 0.625 ,
hinge/mullion,thread forming
78 5303274237 A B Screw-bracket,hex wshr hd ,
8-32CA x 0.500
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
83 5308000107 A B Bracket-connector
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
98 215099701 A B Plug-button,white ,ctr hinge hole

* 5303305324 A B Paint,touch-up ,white

* 5308016571 A B Plug-button,cabinet liner

# = Fast-moving Parts 5 08/98

* = Non-Illustrated Parts
Publication No. MRT18PNG
5995311148
SHELVES

11 28
34 6
1
5
10 6 59

28

145
22B
12 23
8 17
22A 21
13 7
14
81 19
15 18
16A
44 43
37
41
36 40 47

24

43 29
44 26

37 25
36
42

123 46
26

31 67 P05S0601

08/98 6
 MRT18PNG Publication No.
5995311148
SHELVES

A = MRT18PNG (MRT18PNGW0)
B = MRT18PNG (MRT18PNGW1)
POS. NO PART NO DESCRIPTION
1 218874301 A B Mullion,white ,1
5 # 218781003 A B Heater-mullion
6 218845600 A B Tapping Plate,mullion mtg ,(2)
7 218814800 A B Top Panel-refr,HASC
7* 5303001380 A B Screw,truss head ,8-10 x 1.750
8 218814600 A B Divider,styrofoam
8* # 3018900 A - Harness-wiring,control/divider
8* # 218878500 - B Harness-wiring,control/divider
9 218814700 A B Bottom Panel-frzr
10 215667501 A B Tray-ice,plastic
11 5303288242 A B Shelf-freezer,fixed/flat ,full width ,
wire
12 218730000 A B Deflector-air
12* 5303001449 A B Seal-air deflector,foam plastic ,(2)
13 218631001 A B Cover-air deflector
14 5309918806 A B Switch-light/lamp
15 5303001179 A B Light Bulb/Lamp,40 W
16A# 5308000815 A B Socket-light/lamp
17 5303321455 A B Control Box
17* 5308016567 A B Nut-anchor
18 5303311079 A B Knob-temp control
19 # 5303286905 A B Switch-energy saver,rocker type
21 5304404821 A B Control-temperature
21* 5303001260 A B Screw-control mtg,pan hd ,6-32 x 0.250
22A 5303916855 A B Tube,plastic ,clear ,sensor sleeve
22B 218731104 A B Tube,PVC ,white ,@ air deflector ,
insulator
23 # 215267800 A B Timer-defrost
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438
24 215919161 A B Frame-full shelf,cantilever
25 5303207340 A B Cover-crisper pan,with beam ,
less insert
26 3206438 A B Pan-crisper
28 3201150 A B End Cap-shelf,protector ,
upper fzr shelf
29 218830371 A B TRIM-GLASS SHELF,FRONT
31 215742602 A B Pan-meat
34 3018945 A B Container-ice
36 215919160 A B Frame-half shelf,cantilever
37 218830369 A B TRIM-GLASS SHELF,FRONT
40 218390592 A B Glass-shelf,24.88" x 14.57"
41 215919803 A B Trim-glass shelf,24.92" ,rear
42 5304404462 A B Hanger-meat pan,LH
42 5304404463 A B Hanger-meat pan,RH
43 218390573 A B Glass-shelf,12.09" x 14.57"
44 215919809 A B Trim-glass shelf,12.13" ,rear
46 5303319069 A B Front-crisper pan
47 218390558 A B Insert-pan cover,glass
59 218188000 A B Screw,pan hd ,10-32 x 0.625 ,
hinge/mullion,thread forming
67 5303323258 A B Front-meat pan
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
123 215005100 A B Screw-roller/hanger,8-10 x .438
145 218660800 A B Clip,plastic ,temp sensor mtg ,snap-in

# = Fast-moving Parts 7 08/98

* = Non-Illustrated Parts
Publication No. MRT18PNG
5995311148
SYSTEM

08/98 8
 MRT18PNG Publication No.
5995311148
SYSTEM

A = MRT18PNG (MRT18PNGW0)
B = MRT18PNG (MRT18PNGW1)
POS. NO PART NO DESCRIPTION
1 # 218173900 A B Condenser
2 5308000296 A B Bracket,condenser mtg ,(4)
2* 5308009617 A B Washer,ext tooth lock ,#10
4 # 218541000 A B Drier-filter
5 # 3018900 A - Harness-wiring,control/divider
5 # 218878500 - B Harness-wiring,control/divider
6 215257004 A B Harness-wiring,compressor
7 # 5316254901 A B Cord-electric power
7* 218843800 A B Screw,hex wshr hd ,#8 14 x 1/2 ,
svc cord clamp
8 5303001197 A B Cover-wiring
13 # 218429306 A B Heat Exchanger,suction line
14 # 3206453 A B Heater-defrost
15 # 3206452 A B Evaporator
16 5308000110 A B Strap-evap/heater,aluminum
17 5303207493 A B Insulator-evap,plastic
18 5308013648 A B Insulation Block,RH
19 5303007287 A B Insulation Plug,RH
20 5308017227 A B Insulation Block,LH
21 # 5316269001 A B Thermostat-defrost
22 218802500 A B Plate-compr mtg,with rail
22* 3051070 A B Screw,hex washer head ,10-24 x 7/16 ,
special
23 218254500 A B Grommet-compr mtg,(4)
24 5308003633 A B Washer-compr mtg
25 5308003596 A B Clip-compressor mtg
26 215372500 A B Pan-defrost drain
27 5303001348 A B Nut-lock,1/4-20 ,drain pan mtg
28 5303916001 A B Pan Retainer Kit,Service
29 # 218846902 A B Compressor,R134a ,W/O ELECTRICALS
30 # 218721103 A B Starter/Overload Assy
32 218740800 A B Wire-bale
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500 ,
serrated head
43 5303001199 A B Clamp-wiring harness,strain relief ,
galv steel
44 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
45* 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec
45* 5303207328 A B Screw,hex wshr hd ,8-15A x 1
55 # 216236200 A B Capacitor-run

* # 3916557 A B Hot Tube Repair Kit,Service

# = Fast-moving Parts 9 08/98

* = Non-Illustrated Parts
