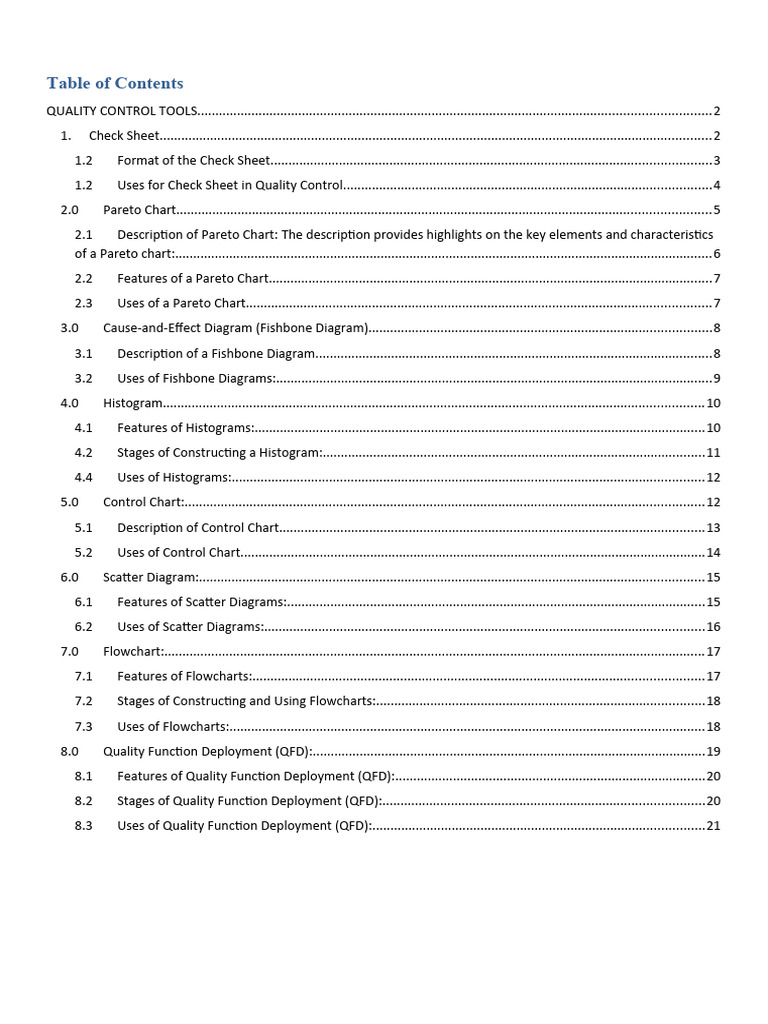

Table of Contents

QUALITY CONTROL TOOLS..............................................................................................................................................2

1. Check Sheet.........................................................................................................................................................2
1.2 Format of the Check Sheet..........................................................................................................................3
1.2 Uses for Check Sheet in Quality Control......................................................................................................4
2.0 Pareto Chart....................................................................................................................................................5
2.1 Description of Pareto Chart: The description provides highlights on the key elements and characteristics
of a Pareto chart:.....................................................................................................................................................6
2.2 Features of a Pareto Chart...........................................................................................................................7
2.3 Uses of a Pareto Chart.................................................................................................................................7
3.0 Cause-and-Effect Diagram (Fishbone Diagram)...............................................................................................8
3.1 Description of a Fishbone Diagram..............................................................................................................8
3.2 Uses of Fishbone Diagrams:.........................................................................................................................9
4.0 Histogram......................................................................................................................................................10
4.1 Features of Histograms:.............................................................................................................................10
4.2 Stages of Constructing a Histogram:..........................................................................................................11
4.4 Uses of Histograms:...................................................................................................................................12
5.0 Control Chart:................................................................................................................................................12
5.1 Description of Control Chart......................................................................................................................13
5.2 Uses of Control Chart.................................................................................................................................14
6.0 Scatter Diagram:............................................................................................................................................15
6.1 Features of Scatter Diagrams:....................................................................................................................15
6.2 Uses of Scatter Diagrams:..........................................................................................................................16
7.0 Flowchart:......................................................................................................................................................17
7.1 Features of Flowcharts:.............................................................................................................................17
7.2 Stages of Constructing and Using Flowcharts:...........................................................................................18
7.3 Uses of Flowcharts:....................................................................................................................................18
8.0 Quality Function Deployment (QFD):.............................................................................................................19
8.1 Features of Quality Function Deployment (QFD):......................................................................................20
8.2 Stages of Quality Function Deployment (QFD):.........................................................................................20
8.3 Uses of Quality Function Deployment (QFD):............................................................................................21
 QUALITY CONTROL TOOLS

1. Check Sheet
The check sheet is a form (document) used to collect data in real time at the location where the data is
generated. The data it captures can be quantitative or qualitative. When the information is quantitative the
check sheet is sometimes called a tally sheet. It serves as a structured form for recording and organizing data
systematically. Check sheets are versatile and can be adapted to various contexts, making them valuable
assets in quality control, process monitoring, and problem-solving activities.

1.2 Format of the Check Sheet

The format of a check sheet is designed to facilitate the systematic collection and interpretation of data by
organizing information into predefined regions. The defining characteristics of a check sheet format include:
1.1.1 Regions: The check sheet is divided into distinct regions, each serving a specific purpose or
representing different aspects of the data being collected. These regions help organize the data and provide
clarity in understanding.

1.1.2 Significance of Marks: Marks made in different regions of the check sheet carry varying
significance or meaning. The type or location of marks indicates specific information about the data
being recorded, allowing for easy interpretation and analysis.
1.1.3 Heading with Five Ws: A typical check sheet includes a heading that addresses the Five Ws - Who,
What, Where, When, and Why:
 Who: Specifies the individual or entity responsible for filling out the check sheet, ensuring
accountability and traceability.
 What: Describes the type of data collected and what each check represents, such as an identifying
batch or lot number, product attribute, or quality characteristic.
 Where: Indicates the location where the data collection took place, such as the facility, room, or
specific apparatus within the facility.
 When: Specifies the timing of the data collection, including the hour, shift, and day of the week,
providing context for understanding temporal variations.
 Why: Clarifies the purpose or rationale behind the data collection, outlining the objectives or
goals driving the data collection efforts.
1.1.4 Data Interpretation: Data collected on the check sheet are interpreted by observing the location and
number of marks made in each region. Patterns, trends, or anomalies in the data can be identified by
analyzing the distribution and frequency of marks across the sheet.

1.2 Uses for Check Sheet in Quality Control

Kaoru Ishikawa, a prominent figure in quality management, identified five key uses for check sheets in
quality control. These functions provide valuable insights into various aspects of a process, enabling
organizations to identify patterns, quantify defects, and track progress effectively. Let's explore each of these
functions in detail:

1.2.1 To Check the Shape of the Probability Distribution of a Process:

 Check sheets are utilized to gather data on process outputs or measurements over time.
 By recording data points on a check sheet and plotting them, organizations can visualize the
distribution of process outcomes.
 This helps in assessing whether the process follows a normal distribution, identifying any deviations
or abnormalities in the process output.
1.2.2 To Quantify Defects by Type:
 Check sheets are employed to document and quantify different types of defects or errors encountered
during a process.
 By categorizing defects based on their types (e.g., dimension-related, surface-related, functional-
related), organizations can understand the nature and frequency of each defect type.
 This allows for targeted corrective actions to address the most prevalent types of defects and improve
overall product or service quality.

1.2.3 To Quantify Defects by Location:

 Check sheets are used to track the occurrence of defects at various locations within a product,
process, or facility.
 By recording the location of defects on the check sheet, organizations can identify hotspots or areas
prone to higher defect rates.
 This facilitates targeted quality improvement efforts, such as process redesign, equipment
maintenance, or workforce training, to address specific areas of concern.

1.2.4 To Quantify Defects by Cause (Machine, Worker):

 Check sheets help in identifying the root causes of defects by documenting the source or origin of
each defect.
 Organizations can categorize defects based on their causes, such as machine-related issues (e.g.,
equipment malfunction, settings error) or worker-related factors (e.g., skill level, training adequacy).
 This enables organizations to implement corrective actions addressing the underlying causes of
defects, whether they stem from machinery, human error, or other factors.

1.2.5 To Keep Track of the Completion of Steps in a Multistep Procedure:

 Check sheets serve as valuable tools for tracking the completion of sequential steps in a multistep
procedure or process.
 Each step is represented on the check sheet, and marks are made to indicate the completion of each
step.
 This ensures that all necessary tasks or activities are completed in the correct order, reducing the risk
of omissions or errors in the process.

2.0 Pareto Chart

Named after the Italian economist Vilfredo Pareto, Pareto charts are graphical representations of data that
help prioritize issues or problems based on their frequency or impact. By displaying data in descending
order of occurrence, Pareto charts highlight the "vital few" factors that contribute most significantly to a
problem, enabling organizations to focus their resources on addressing these critical issues first. This tool is
invaluable in quality improvement initiatives, where limited resources necessitate efficient allocation to
areas with the greatest impact.

2.1 Description of Pareto Chart: The description provides highlights

on the key elements and characteristics of a Pareto chart:

2.1.1 Left Vertical Axis - Frequency of Occurrence:

 The left vertical axis of the Pareto chart represents the frequency of occurrence of different
categories or factors contributing to a problem.
 This axis quantifies the number of occurrences or instances of each category, providing a measure of
their relative importance or impact on the overall outcome.

2.1.2 Right Vertical Axis - Cumulative Percentage:

 The right vertical axis of the Pareto chart represents the cumulative percentage of the total number of
occurrences, total cost, or another important unit of measure.
 This axis displays the cumulative proportion of the total impact accounted for by each category, as
the categories are arranged in decreasing order of frequency or importance.
 The cumulative percentage is calculated by summing up the percentages of occurrences from the
most significant category to the least significant category.
2.1.3 Concave Function:
 The cumulative function plotted on the Pareto chart is a concave function due to the values being in
decreasing order of importance.
 As each category is added to the cumulative total, the rate of increase in cumulative percentage
gradually decreases, resulting in a concave-shaped curve.

2.1.4 Interpretation and Decision Making:

 The Pareto chart allows users to visually identify the most significant categories or factors
contributing to a problem.
 By focusing efforts on addressing the top categories with the highest frequencies, organizations can
achieve significant improvements in the overall outcome.
 In examples, solving the first three issues would lead to a reduction in late arrivals by 78%,
demonstrating the effectiveness of prioritizing efforts based on Pareto analysis.

2.2 Features of a Pareto Chart

 Ranking by Importance: Factors are ranked in descending order of importance, with the most
significant factors appearing first. This prioritization helps focus attention and resources on
addressing the most critical issues first.
 Focus on the "Vital Few": Pareto charts emphasize the Pareto Principle, also known as the 80/20
rule, which suggests that roughly 80% of effects come from 20% of causes. They highlight the "vital
few" factors that contribute most significantly to a problem or outcome.
 Visual Representation: Pareto charts provide a visual representation of data, making it easy to
identify the most critical factors at a glance. The combination of bars and lines helps users quickly
discern patterns, trends, or anomalies in the data.
 Threshold Line: Some Pareto charts include a threshold line to indicate the cumulative percentage at
which significant factors are identified. This threshold helps users determine when to prioritize
action on the most important issues.

2.3 Uses of a Pareto Chart

 Problem Prioritization: Pareto charts are used to prioritize issues or problems based on their
frequency or impact. They help organizations focus resources on addressing the most critical factors
first.
 Root Cause Analysis: Pareto charts aid in root cause analysis by identifying the key factors
contributing to a problem or issue. They help uncover underlying causes and guide decision-making
on corrective actions.
  Process Improvement: In process improvement initiatives, Pareto charts are used to identify
opportunities for optimization and efficiency gains. They help organizations identify bottlenecks,
inefficiencies, or areas for improvement within their processes.
 Quality Control: Pareto charts play a crucial role in quality control processes by monitoring process
variations and detecting deviations from expected norms. They help organizations maintain quality
standards and implement corrective actions when necessary.
 Decision-making: Pareto charts provide a visual summary of data, making them valuable tools for
decision-making. They help stakeholders understand the most significant factors influencing a
problem or outcome and guide decision-making on appropriate courses of action.
 Resource Allocation: Pareto charts assist in resource allocation by identifying where resources
should be allocated to have the greatest impact. They help organizations prioritize investments and
efforts to address the most critical issues effectively.

3.0 Cause-and-Effect Diagram (Fishbone Diagram)

Cause-and-effect diagrams, often referred to as Fishbone diagrams due to their resemblance to a fish
skeleton, are used to identify the root causes of a problem or an effect. By categorizing potential causes into
distinct groups such as people, methods, materials, machines, and environment, this tool helps teams
systematically explore and understand the various factors contributing to a specific issue. Fishbone diagrams
promote cross-functional collaboration and provide a visual representation of cause-and-effect relationships,
aiding in the development of targeted solutions.
3.1 Description of a Fishbone Diagram

3.1.1 Defect or Problem to Be Solved (Fish's Head):

 At the forefront of the fishbone diagram is the main issue or problem that needs to be addressed. This
is depicted as the head of the fish, facing to the right.
 The head of the fish serves as a focal point, highlighting the primary concern or outcome that the
diagram aims to analyze and resolve.

3.1.2 Causes Extending to the Left as Fishbones:

 The causes contributing to the identified problem are represented as fishbones extending from the
fish's head, towards the left side of the diagram.
 Each fishbone corresponds to a category or factor that may influence the occurrence of the problem.
Common categories include the 5Ms (Manpower, Methods, Machines, Materials, Measurement),
6Ms (adding Environment and Management), or other relevant factors.

3.1.3 Ribs Branching Off the Backbone for Major Causes:

 The backbone of the fish serves as the main trunk from which the fishbones (causes) originate. Major
categories of causes branch off directly from the backbone, resembling ribs.
 These major causes represent broad areas or factors that contribute significantly to the problem,
serving as primary branches in the cause-and-effect analysis.

3.1.4 Sub-branches for Root Causes, to as Many Levels as Required:

 Each major cause may further branch off into sub-branches, representing more specific or detailed
factors that contribute to the problem.
 Sub-branches delve deeper into the analysis, identifying root causes or underlying factors that
directly influence the occurrence of the problem.
 The depth of the sub-branches can vary based on the complexity of the problem and the level of
detail required for effective analysis and problem-solving.

3.2 Uses of Fishbone Diagrams:

 Root Cause Analysis: Fishbone diagrams are used to identify and analyze the root causes of
problems or effects. They help uncover underlying issues contributing to the problem and guide
decision-making on corrective actions.
  Problem-solving: Fishbone diagrams provide a structured framework for problem-solving, guiding
teams through a systematic analysis of potential causes and solutions. They facilitate collaborative
problem-solving efforts and ensure that all relevant factors are considered.
 Process Improvement: Fishbone diagrams play a crucial role in process improvement initiatives by
identifying opportunities for optimization and efficiency gains. They help organizations identify
bottlenecks, inefficiencies, or opportunities for improvement within their processes.
 Quality Control: In quality control processes, fishbone diagrams are used to identify potential
sources of variation or defects in production processes. They help organizations monitor process
performance and implement corrective actions to maintain quality standards.
 Risk Management: Fishbone diagrams can be used in risk management processes to identify
potential causes of risks or hazards. They help organizations assess the likelihood and impact of risks
and develop mitigation strategies to minimize their impact.
 Decision-making: Fishbone diagrams provide a visual representation of causal relationships, making
them valuable tools for decision-making. They help stakeholders understand the factors influencing a
problem or effect and guide decision-making on appropriate courses of action.

4.0 Histogram
The term “Histogram” was first introduced by Karl Pearson, a prominent statistician, to describe a visual
tool for representing data distributions. Histograms are graphical representations of the distribution of data,
depicting the frequency or frequency density of data points within specified intervals or bins. They provide
insights into the central tendency, dispersion, and shape of data distributions, helping organizations
understand and analyze data patterns. Histograms are widely used in quality control, process analysis, and
performance monitoring, enabling organizations to identify outliers, assess process capability, and make
data-driven decisions based on empirical evidence.
4.1 Features of Histograms:

 Data Distribution Visualization: Histograms display the distribution of data by depicting the
frequency or occurrence of values within specified intervals or bins. This visual representation helps
users understand the distribution pattern and identify any underlying trends or patterns.
 Bar Graph Format: Histograms consist of a series of adjacent bars, where each bar represents a
specific interval or bin and its height corresponds to the frequency or count of values falling within
that interval.
 Continuous Data Analysis: Histograms are particularly useful for analyzing continuous data, such as
measurements or observations from a continuous scale, as they provide a clear visualization of the
data distribution across a range of values.
 Variable Bin Widths: Histograms allow for variable bin widths, meaning that intervals can be
adjusted to accommodate varying data ranges or to emphasize specific ranges of interest.
 Normalized Frequencies: In some cases, histograms may display normalized frequencies, where the
height of each bar represents the proportion of values falling within the corresponding interval
relative to the total number of observations.

4.2 Stages of Constructing a Histogram:

 Data Collection: The first step in constructing a histogram is to collect the data of interest. This may
involve gathering measurements, observations, or other relevant data points from the target
population or sample.
 Data Preparation: Once the data is collected, it needs to be organized and sorted into appropriate
intervals or bins for histogram construction. This typically involves determining the range of values
and selecting suitable bin widths.
 Interval Determination: The data range is divided into intervals or bins, with each bin representing a
specific range of values. The number of bins and their widths may vary depending on the
characteristics of the data and the desired level of detail in the histogram.
 Frequency Calculation: The frequency or count of values falling within each interval is calculated.
This involves tallying the number of data points that fall within each bin.
 Histogram Construction: Using the calculated frequencies, a histogram is constructed by drawing a
series of adjacent bars, where the height of each bar corresponds to the frequency of values within
the corresponding interval.
  Axis Labeling and Scaling: The horizontal axis of the histogram represents the intervals or bins,
while the vertical axis represents the frequency or count of values. Both axes are labeled accordingly,
and appropriate scaling is applied to ensure clarity and readability.
 Title and Labels: A title is added to the histogram to describe the data being represented. Axis labels
are also included to provide context and clarify the meaning of the data.

4.4 Uses of Histograms:

 Data Distribution Analysis: Histograms are used to analyze the distribution of data, providing
insights into central tendencies (such as mean, median, mode), dispersion (such as variance, standard
deviation), and shape (such as symmetry, skewness) of the dataset.
 Quality Control: In quality control processes, histograms are employed to monitor process variations
and detect deviations from expected norms. They help identify outliers, defects, or anomalies in the
production process.
 Data-driven Decision Making: Histograms facilitate data-driven decision-making by providing a
visual summary of data distributions. They enable stakeholders to identify trends, patterns, or
anomalies in the data and make informed decisions based on empirical evidence.
 Comparison and Benchmarking: Histograms allow for the comparison of different datasets or
populations, enabling researchers to assess similarities, differences, or trends across various groups.
 Forecasting and Predictive Analytics: Histograms are used in forecasting and predictive analytics to
understand the probability distribution of future outcomes based on historical data. They help
quantify uncertainty and assess the likelihood of specific events occurring.
 Process Improvement: Histograms play a crucial role in process improvement initiatives by
providing insights into process performance and identifying areas for optimization. They help
organizations identify bottlenecks, inefficiencies, or opportunities for improvement within their
processes.

5.0 Control Chart:

Control charts, also known as Shewhart charts or process-behavior charts, are used to monitor processes
over time and distinguish between common cause variation (inherent to the process) and special cause
variation (due to external factors or anomalies). By plotting process data on a control chart and applying
statistical control limits, organizations can detect shifts, trends, or unusual patterns in process performance.
Control charts enable proactive intervention when processes deviate from expected norms, helping maintain
consistency and stability in production or service delivery.
5.1 Description of Control Chart

It consists of several key components, each serving a specific purpose in analyzing and interpreting process
data. The components are described:

5.1.1 Points Representing a Statistic:

 The control chart comprises points that represent a statistic, such as the mean, range, or proportion,
calculated from measurements of a quality characteristic in samples taken from the process at
different times.
 These data points are obtained through regular sampling of the process output and are used to track
the behavior of the process over time.

5.1.2 Calculation of Mean or Median:

 The mean or median of the statistic calculated from all the samples is determined. For example, this
could be the mean of the means, mean of the ranges, or mean of the proportions.
 The center line of the control chart is drawn at the value of the calculated mean or median. This
serves as a reference point for assessing the stability and performance of the process.
5.1.3 Calculation of Standard Deviation:
 The standard deviation of the statistic is calculated using all the samples. This provides a measure of
the dispersion or variability of the process output.
 In the case of XmR charts, an approximation of the standard deviation is used, which does not
assume homogeneity of the process over time.

5.1.4 Upper and Lower Control Limits:

 Upper and lower control limits, also known as "natural process limits," are established to indicate the
threshold at which the process output is considered statistically 'unlikely.'
 These control limits are typically set at a distance of 3 standard deviations from the center line,
providing a range within which the process output is expected to fall under normal operating
conditions.
 Any data points falling outside these control limits may indicate special causes of variation in the
process that warrant investigation and corrective action.

5.2 Uses of Control Chart

 Process Monitoring and Control: Control charts are used to monitor and control various processes in
manufacturing, healthcare, service industries, and other sectors. They help ensure that processes
operate within acceptable limits and meet quality standards.
 Quality Improvement: Control charts support quality improvement initiatives by identifying
opportunities to reduce process variability, minimize defects, and improve overall product or service
quality.
 Problem Detection and Diagnosis: Control charts help detect problems or abnormalities in processes
by highlighting deviations from expected performance. They facilitate root cause analysis and
diagnosis of process issues.
 Predictive Maintenance: In maintenance operations, control charts can be used to monitor equipment
performance and detect early signs of deterioration or malfunction. This enables proactive
maintenance activities to prevent unexpected downtime.
 Supplier Monitoring: Control charts are used to monitor the performance of suppliers and
subcontractors by tracking key quality metrics over time. They help ensure consistency and
reliability in the supply chain.
 Regulatory Compliance: Control charts are valuable tools for demonstrating compliance with
regulatory requirements and quality standards. They provide documented evidence of process
stability and performance consistency.
6.0 Scatter Diagram:

A scatter plot is a graphical tool used to visualize the relationship between two continuous variables. It can
be employed in scenarios where one variable is controlled by the experimenter (independent variable) and
the other variable depends on it (dependent variable), or when both variables are independent. The
independent variable is typically plotted along the horizontal axis, while the dependent variable is plotted
along the vertical axis. However, if no dependent variable exists, either variable can be plotted on either
axis, with the scatter plot illustrating only the degree of correlation between the two variables (not
causation).

Scatter plots can suggest various types of correlations between variables, including positive (rising),
negative (falling), or null (uncorrelated). A positive correlation is indicated when the pattern of dots slopes
from the lower left to the upper right, while a negative correlation is indicated by a pattern sloping from the
upper left to the lower right. A line of best fit, also known as a trendline, can be drawn to study the
relationship between the variables. Linear regression is a common method used to determine the equation
for the correlation between the variables, particularly for linear relationships.

Scatter plots are valuable for detecting nonlinear relationships between variables as well. Adding a smooth
line, such as LOESS (locally estimated scatterplot smoothing), can enhance the visualization of these
relationships. Additionally, scatter plots can reveal superimposed patterns when the data are represented by a
mixture model of simple relationships, providing insights into the underlying structure of the data

6.1 Features of Scatter

Diagrams:
  Two-dimensional Representation: Scatter diagrams display data in a two-dimensional space, with
one variable represented on the horizontal axis and the other variable represented on the vertical axis.
This allows for the visualization of the relationship between the two variables.
 Individual Data Points: Each data point is represented as a dot on the graph, with its position
determined by the values of the two variables being compared. The distribution of data points
provides insights into the relationship between the variables.
 Patterns and Trends: Scatter diagrams help identify patterns, trends, or relationships between
variables. Common patterns include linear relationships, nonlinear relationships, clusters, or outliers.
 Correlation Analysis: Scatter diagrams are often used in correlation analysis to determine the
strength and direction of the relationship between variables. The clustering of data points and their
proximity to a trend line indicate the degree of correlation.
 Visual Representation: Scatter diagrams provide a visual representation of data relationships, making
it easy to interpret and communicate findings. They enable stakeholders to quickly grasp the nature
of the relationship between variables.

6.2 Uses of Scatter Diagrams:

 Correlation Analysis: Scatter diagrams are widely used in correlation analysis to assess the
relationship between two variables. They help determine whether changes in one variable are
associated with changes in another variable and quantify the strength and direction of the
relationship.
 Predictive Modeling: Scatter diagrams are used in predictive modeling to explore potential
relationships between predictor variables and the outcome variable. They help identify variables that
may be predictive of the outcome and inform the development of predictive models.
 Quality Control: Scatter diagrams are used in quality control processes to identify correlations
between process parameters and product quality characteristics. They help identify factors that may
influence product quality and guide process improvement efforts.
 Experimental Design: In experimental design, scatter diagrams are used to visualize the relationship
between independent and dependent variables. They help researchers identify variables that may
have a significant impact on the outcome of experiments and inform the design of experimental
studies.
 Business Analysis: Scatter diagrams are used in business analysis to explore relationships between
various business metrics, such as sales revenue and advertising expenditure, customer satisfaction
and product features, or employee performance and training hours.
 Risk Management: Scatter diagrams are used in risk management to assess correlations between
different risk factors. They help identify potential dependencies or interactions between risks and
inform risk mitigation strategies.
7.0 Flowchart:
Flowcharts are visual representations of processes, depicting the sequence of activities, decisions, and flow
of materials or information. Using standardized symbols and notation, flowcharts provide a systematic
overview of process steps, inputs, outputs, and decision points. Quality professionals utilize flowcharts to
document existing processes, identify inefficiencies or bottlenecks, and design improvements for enhanced
productivity and quality. Flowcharts promote clarity, transparency, and consistency in process
documentation and analysis.

7.1 Features of Flowcharts:

 Standard Symbols: Flowcharts use standardized symbols to represent different elements of a process,
such as activities, decisions, start/end points, and connectors. These symbols facilitate understanding
and communication across stakeholders.
 Sequential Flow: Flowcharts depict the sequence of steps or activities in a process, showing the order
in which tasks are performed or decisions are made. Arrows indicate the flow of control from one
step to another.
 Decision Points: Flowcharts include decision points where the process branches into multiple paths
based on certain conditions or criteria. Decision symbols typically contain a question or condition
that guides the flow of the process.
 Connectors and Lines:
Flowcharts use connectors
and lines to link different
symbols and represent the
flow of control between
process steps. Arrows
indicate the direction of
flow, while connectors
allow for non-linear
connections between
elements.
 Terminators and Starters:
Flowcharts begin with a
start symbol, indicating the
 initiation of the process, and end with a terminator symbol, marking the completion or termination of
the process.

7.2 Stages of Constructing and Using Flowcharts:

 Identify the Process: Determine the process or workflow that you want to document or analyze using
a flowchart. Clearly define the scope and objectives of the process to ensure that all relevant steps are
included.
 Gather Information: Collect information about the process by observing, interviewing stakeholders,
reviewing documentation, or analyzing existing workflows. Understand the sequence of activities,
decision points, and dependencies involved.
 Identify Steps and Decisions: Break down the process into individual steps or activities, and identify
decision points where the flow of control may diverge based on specific conditions or criteria.
 Select Flowchart Type: Choose the appropriate type of flowchart to represent the process effectively.
Common types include basic flowcharts, swimlane flowcharts, data flow diagrams, and cross-
functional flowcharts, each suited to different purposes and audiences.
 Draw the Flowchart: Use flowcharting software or drawing tools to create the flowchart, arranging
symbols and connectors to represent the sequence of steps, decisions, and actions in the process.
Follow standard conventions and keep the layout clear and easy to follow.
 Review and Validate: Review the flowchart with stakeholders, subject matter experts, or team
members to ensure accuracy, completeness, and clarity. Validate the flowchart against the actual
process to confirm its alignment with real-world workflows.
 Implement and Iterate: Implement the documented process flowchart within the organization, using
it as a reference tool for training, process improvement, or decision-making. Continuously iterate on
the flowchart as processes evolve or new insights are gained.

7.3 Uses of Flowcharts:

 Process Documentation: Flowcharts are used to document and visualize processes, workflows, and
procedures within organizations. They provide a clear and structured overview of how tasks are
performed and help standardize processes across teams.
 Process Analysis: Flowcharts facilitate process analysis by identifying inefficiencies, bottlenecks, or
areas for improvement in workflows. They enable stakeholders to identify opportunities for
streamlining, automation, or optimization.
  Decision Support: Flowcharts aid decision-making by providing a visual representation of complex
processes and decision points. They help stakeholders understand the consequences of different
choices and evaluate alternative courses of action.
 Training and Onboarding: Flowcharts serve as valuable training tools for on boarding new
employees or educating stakeholders on process workflows. They provide step-by-step guidance and
clarify expectations for performing tasks effectively.
 Quality Management: Flowcharts support quality management initiatives by documenting quality
control processes, identifying points of inspection or verification, and ensuring adherence to quality
standards and regulations.
 Project Management: Flowcharts are used in project management to plan and visualize project
workflows, identify dependencies between tasks, and allocate resources effectively. They help
project teams understand project timelines and milestones.
 Software Development: Flowcharts play a critical role in software development by illustrating
system architecture, data flows, and program logic. They help developers understand requirements,
design software components, and debug code.

8.0 Quality Function Deployment (QFD):

While not traditionally included in the "Seven Basic Tools of Quality," Quality Function Deployment (QFD)
is a valuable tool for translating customer requirements into specific product or service features. QFD
facilitates cross-functional collaboration by aligning customer needs with organizational capabilities and
technical specifications. By systematically capturing customer feedback, prioritizing requirements, and
cascading them into design and development activities, QFD ensures that products or services are designed
with the customer in mind. This proactive approach to quality management enhances customer satisfaction,
fosters innovation, and drives competitive advantage in the marketplace.
8.1 Features of Quality Function Deployment (QFD):

 Customer Focus: QFD places a strong emphasis on understanding and prioritizing customer needs,
preferences, and expectations. It seeks to align product or service characteristics with customer
requirements to enhance satisfaction and value.
 Cross-functional Collaboration: QFD encourages collaboration among multidisciplinary teams,
including representatives from marketing, design, engineering, production, and customer service.
This interdisciplinary approach ensures that diverse perspectives are considered in the design and
development process.
 Structured Methodology: QFD follows a systematic and structured methodology for gathering,
analyzing, and prioritizing customer requirements, as well as translating them into specific design
features or characteristics. It provides a framework for organizing and managing complex
information.
 Visual Tools: QFD utilizes various visual tools and matrices, such as the House of Quality, to
represent and prioritize customer requirements, technical features, and relationships between
different elements. These visual aids facilitate communication and decision-making among team
members.
 Continuous Improvement: QFD promotes a culture of continuous improvement by encouraging
feedback from customers, monitoring performance metrics, and revising product or service designs
based on evolving needs and preferences.

8.2 Stages of Quality Function Deployment (QFD):

 Gather Customer Requirements: Identify and gather customer needs, preferences, and expectations
through market research, surveys, interviews, focus groups, and other methods. Classify and
prioritize customer requirements based on importance and relevance.
 Develop the House of Quality (HOQ): Construct the House of Quality, a matrix that translates
customer requirements into specific engineering characteristics or features. Populate the matrix with
customer requirements, technical requirements, and the relationship between them.
 Analyze Relationships: Analyze the relationships between customer requirements and technical
characteristics to identify areas of alignment, conflict, or opportunity. Use techniques such as
correlation analysis, prioritization matrices, and trade-off analysis.
  Generate Design Solutions: Generate design solutions or concepts that address the identified
customer requirements and technical characteristics. Brainstorm potential design alternatives,
considering factors such as feasibility, cost, and market viability.
 Evaluate Alternatives: Evaluate and compare the design alternatives based on their ability to meet
customer requirements, technical feasibility, and business objectives. Use decision criteria and
scoring systems to assess each alternative objectively.
 Refine and Finalize Designs: Refine and finalize the selected design solution based on feedback from
stakeholders, technical feasibility assessments, and risk analyses. Develop detailed specifications and
plans for implementation.
 Implement and Test: Implement the finalized design solution and conduct prototype testing, pilot
studies, or validation trials to verify its performance, usability, and compliance with customer
requirements. Gather feedback from users and stakeholders.
 Monitor and Improve: Monitor product or service performance, collect customer feedback, and track
key performance indicators (KPIs) to assess satisfaction and identify opportunities for improvement.
Iterate on the design based on lessons learned and changing market conditions.

8.3 Uses of Quality Function Deployment (QFD):

 New Product Development: QFD is commonly used in new product development initiatives to
ensure that products meet customer needs and preferences from the outset. It helps companies
prioritize design features, allocate resources effectively, and minimize development risks.
 Service Design and Improvement: QFD can be applied to service design and improvement efforts to
identify and prioritize service attributes that contribute to customer satisfaction and loyalty. It helps
service providers align service delivery processes with customer expectations.
 Process Improvement: QFD is used in process improvement initiatives to enhance the quality,
efficiency, and effectiveness of organizational processes. By linking process characteristics to
customer requirements, organizations can identify opportunities for optimization and resource
allocation.
 Quality Management Systems: QFD supports the development and implementation of quality
management systems (QMS) by providing a structured approach to understanding and addressing
customer needs. It helps organizations design products and services that consistently meet quality
standards and regulatory requirements.
 Marketing and Branding Strategies: QFD informs marketing and branding strategies by identifying
customer preferences, market trends, and competitive positioning opportunities. It helps companies
differentiate their products or services and create value propositions that resonate with target
customers.
 Supplier and Vendor Management: QFD can be used to assess and prioritize supplier capabilities,
performance, and value-added contributions based on customer requirements. It helps organizations
select and manage suppliers that align with their quality and reliability standards.
