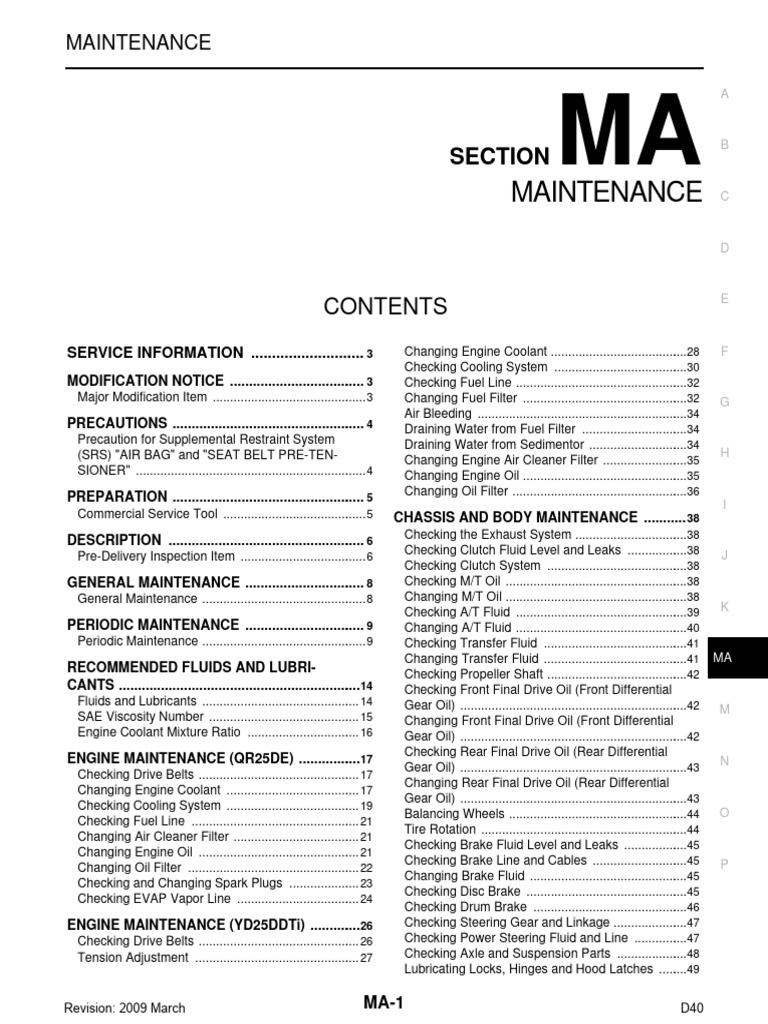

Maintenance: Section

MAINTENANCE
SECTION
MAINTENANCE
MA B
E
CONTENTS
SERVICE INFORMATION ............................ 3 Changing Engine Coolant ........................................28 F
Checking Cooling System .......................................30
MODIFICATION NOTICE .................................... 3 Checking Fuel Line ..................................................32
Major Modification Item ............................................. 3 Changing Fuel Filter ................................................32 G
Air Bleeding .............................................................34
PRECAUTIONS ................................................... 4 Draining Water from Fuel Filter ...............................34
Precaution for Supplemental Restraint System Draining Water from Sedimentor .............................34
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN- H
Changing Engine Air Cleaner Filter .........................35
SIONER" ................................................................... 4 Changing Engine Oil ................................................35
PREPARATION ................................................... 5 Changing Oil Filter ...................................................36
I
Commercial Service Tool .......................................... 5 CHASSIS AND BODY MAINTENANCE ........... 38
DESCRIPTION .................................................... 6 Checking the Exhaust System .................................38
Checking Clutch Fluid Level and Leaks ..................38 J
Pre-Delivery Inspection Item ..................................... 6
Checking Clutch System .........................................38
GENERAL MAINTENANCE ................................ 8 Checking M/T Oil .....................................................38
General Maintenance ................................................ 8 Changing M/T Oil .....................................................38
Checking A/T Fluid ..................................................39 K
PERIODIC MAINTENANCE ................................ 9 Changing A/T Fluid ..................................................40
Periodic Maintenance ................................................ 9 Checking Transfer Fluid ..........................................41
Changing Transfer Fluid ..........................................41 MA
RECOMMENDED FLUIDS AND LUBRI- Checking Propeller Shaft .........................................42
CANTS ................................................................14 Checking Front Final Drive Oil (Front Differential
Fluids and Lubricants .............................................. 14 Gear Oil) ..................................................................42 M
SAE Viscosity Number ............................................ 15 Changing Front Final Drive Oil (Front Differential
Engine Coolant Mixture Ratio ................................. 16 Gear Oil) ..................................................................42
Checking Rear Final Drive Oil (Rear Differential
ENGINE MAINTENANCE (QR25DE) .................17 N
Gear Oil) ..................................................................43
Checking Drive Belts ............................................... 17
Changing Rear Final Drive Oil (Rear Differential
Changing Engine Coolant ....................................... 17
Gear Oil) ..................................................................43
Checking Cooling System ....................................... 19
Balancing Wheels ....................................................44 O
Checking Fuel Line ................................................. 21
Tire Rotation ............................................................44
Changing Air Cleaner Filter ..................................... 21
Checking Brake Fluid Level and Leaks ...................45
Changing Engine Oil ............................................... 21
Checking Brake Line and Cables ............................45 P
Changing Oil Filter .................................................. 22
Changing Brake Fluid ..............................................45
Checking and Changing Spark Plugs ..................... 23
Checking Disc Brake ...............................................45
Checking EVAP Vapor Line .................................... 24
Checking Drum Brake .............................................46
ENGINE MAINTENANCE (YD25DDTi) ..............26 Checking Steering Gear and Linkage ......................47
Checking Drive Belts ............................................... 26 Checking Power Steering Fluid and Line ................47
Tension Adjustment ................................................ 27 Checking Axle and Suspension Parts .....................48
Lubricating Locks, Hinges and Hood Latches .........49
Revision: 2009 March MA-1 D40

Checking Seat Belts, Buckles, Retractors, An- SERVICE DATA AND SPECIFICATIONS
chors and Adjusters ................................................ 49 (SDS) ................................................................. 51
Standard and Limit .................................................. 51

MODIFICATION NOTICE
< SERVICE INFORMATION >
SERVICE INFORMATION A
MODIFICATION NOTICE
Major Modification Item INFOID:0000000003816247
B
• The periodic maintenance schedule has been revised with addition of models for Australia and the Middle
East.
• The specifications of recommended fluids and lubricants have been revised. C
MA

PRECAUTIONS
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000003289233
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SUPPLEMENTAL
RESTRAINT SYSTEM” and “SEAT BELTS” of this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SUPPLEMENTAL RESTRAINT SYSTEM”.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the
ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the
battery, and wait at least 3 minutes before performing any service.

PREPARATION
PREPARATION
A
Commercial Service Tool INFOID:0000000002979237
B
Tool name Description
Fuel filter wrench Removing fuel filter
C
PBIC0519E
Radiator cap tester Checking radiator and reservoir tank cap E
PBIC1982E G
Radiator cap tester adapter Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia. H
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
I
S-NT564
MA

DESCRIPTION
DESCRIPTION
Pre-Delivery Inspection Item INFOID:0000000002979238
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD — engine off

Radiator coolant level and coolant hose connections for leaks
Battery fluid level, specific gravity and conditions of battery terminals
Drive belts tension
Fuel filter for water or dusts (Diesel only), and fuel lines and connections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid lines for leaks
Windshield and rear window washer and headlamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for operation
All moldings, trims and fittings for fit and alignment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and alignment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if applicable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If applicable)
Install deodorizing filter to air conditioner (If applicable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for leaks
Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing and kickdown
Steering control and returnability

DESCRIPTION
Engine performance
A
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle speed B
Automatic transmission/transaxle fluid level
Engine idling and stop knob operation (Diesel only)
FINAL INSPECTION C
Install necessary parts (outside mirror, wheel covers, seat belts, mat, carpet or mud flaps)
Inspect for interior and exterior metal and paint damage
D
Check for spare tire, jack, tools (wheel chock), and literature
Wash, clean interior and exterior
E
: Not applicable to this model
MA

GENERAL MAINTENANCE
GENERAL MAINTENANCE
General Maintenance INFOID:0000000002979239
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or they can have their NISSAN dealers do them for a nominal charge.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
Item Reference page
Tires Check the pressure with a gauge often and always prior to long distance trips.
Adjust the pressure in all tires, including the spare, to the pressure specified. —
Check carefully for damage, cuts or excessive wear.
Windshield wiper
Check for cracks or wear if not functioning correctly. —
blades
Doors and engine Check that all doors and the engine hood operate smoothly as well as the back
hood door, trunk lid and glass hatch. Also make sure that all latches lock securely. Lu-
bricate if necessary. Make sure that the secondary latch keeps the hood from
MA-49, BL-7
opening when the primary latch is released.
When driving in areas using road salt or other corrosive materials, check for lu-
brication frequently.
Tire rotation Tires should be rotated every 10,000 km (6,000 miles) for 2WD models and every
MA-44
5,000 km (3,000 miles) for 4WD models.
INSIDE THE VEHICLE

The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle,
etc.
Item Reference page
Lamps Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and oth-
er lamps are all operating properly and installed securely. Also check headlamp —
aim.
Warning lamps and
Make sure that all warning lamps and chimes are operating properly. —
chimes
Steering wheel Check that it has the specified play.
Check for changes in the steering conditions, such as excessive free play, hard
—
steering or strange noises.
Free play: Less than 35 mm (1.38 in)
Seat belts Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the MA-49
belt webbing for cuts, fraying, wear or damage.
UNDER THE HOOD AND VEHICLE

The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel).
Item Reference page
Windshield washer
Check that there is adequate fluid in the tank. —
fluid
Engine coolant level Check the coolant level when the engine is cold. MA-17, MA-28
Check the level after parking the vehicle (on a level ground) and turning off the
Engine oil level MA-21, MA-35
engine.
Brake and clutch fluid Make sure that the brake and clutch fluid levels are between the “MAX” and “MIN”
MA-45, MA-38
levels lines on the reservoir.
Battery Check the fluid level in each cell. It should be between the “MAX” and “MIN” lines. —

PERIODIC MAINTENANCE
A
Periodic Maintenance INFOID:0000000002979240
The following tables show the normal maintenance schedule. Depending upon weather and atmospheric con- B
ditions, varying road surfaces, individual driving habits and vehicle usage, additional or more frequent mainte-
nance may be required.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
C
ENGINE AND EMISSION CONTROL MAINTENANCE (QR25DE GASOLINE ENGINE)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, E = Check and correct the engine coolant mixture ratio.
D
MAINTENANCE OPERATION MAINTENANCE INTERVAL
km x 1,000 Refer-
10 20 30 40 50 60 70 80 ence
Perform either at number of kilometers (miles) (Miles x E
(6) (12) (18) (24) (30) (36) (42) (48) page
or months, whichever comes first. 1,000)
6 12 18 24 30 36 42 48
Months
Underhood and under vehicle
F
See
Intake & exhaust valve clearance EM-55
NOTE(1)
See
Drive belts I I MA-17 G
NOTE(2)
Engine oil (Use recommended oil.) R R R R R R R R MA-21

Engine oil filter (Use genuine NISSAN engine H
R R R R R R R R MA-22
oil filter or equivalent)
Engine coolant (Use Genuine NISSAN Engine See
E R MA-17
Coolant or equivalent in its quality) NOTE(3) I
Cooling system I I I I MA-19
Fuel lines I I MA-21
J
Clean air cleaner filter every 5,000 km (3,000 miles)
Air cleaner filter (Dry paper type) MA-21
R R
See K
Fuel filter (In-tank type) —
NOTE(4)
Spark plugs (Platinum-tipped type) Replace every 100,000 km (60,000 miles) MA-23
EVAP vapor lines (With carbon canister) I I MA-24 MA
NOTE:
• Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Condi-
tions”. M
• (1) Periodic maintenance is not required. However if valve noise increases, check valve clearance.
• (2) Replace the drive belts if found damaged or if the auto belt tensioner reading reaches the maximum limit.
• (3) Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminum corrosion within N
the engine cooling system caused by the use of non-genuine engine coolant. After first replacement, replace every 40,000
km (24,000 miles) or 24 months.
• (4) Maintenance-free item. For service procedures, refer to FL section. O
ENGINE AND EMISSION CONTROL MAINTENANCE (YD25DDTi DIESEL ENGINE)

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, D = Check filter and drain water, E = Check and correct the
engine coolant mixture ratio.

km x 1,000 10 20 30 40 50 60 70 80 Reference
Perform either at number of kilometers page
(Miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48)
(miles) or months, whichever comes first.
Months 6 12 18 24 30 36 42 48
Engine compartment and under vehicle
Intake & exhaust valve clearance See NOTE(1) EM-161
Drive belts See NOTE(2) I I I I MA-26
Engine oil (Use recommended oil.) See NOTE(3) Replace every 15,000 km (9,000 miles) or 12 months MA-35
Engine oil filter (Use Genuine NISSAN en-
Replace every 15,000 km (9,000 miles) or 12 months MA-36
gine oil filter or equivalent)
Engine coolant (Use Genuine NISSAN En-
See NOTE(4) E R MA-28
gine Coolant or equivalent in its quality)
Cooling system I I I I MA-30
Fuel lines I I MA-32
Air cleaner filter (Dry paper type for Australia Clean air cleaner filter every 5,000 km (3,000 miles)
& Middle East) R R
MA-35
Air cleaner filter (Dry paper type except for
R R
Australia & Middle East)
Fuel filter (Except for Central & South Amer- MA-34,
D D D R D D D R
ica, Egypt) MA-32
Replace every 15,000 km (9,000 miles) MA-34,

Fuel filter (For Central & South America) MA-32
D D D D D D D D
Replace every 10,000 km (6,000 miles) MA-34,
Fuel filter (For Egypt)
D D D D D D D D MA-32
Fuel injector See NOTE(5) EC-274

NOTE:
tions”.
• (1) Periodic maintenance is not required, however if valve noise increases, check valve clearance.
• (2) Replace the drive belts if found damaged.
• (3) Never use API CG-4 grade oil.
• (4) Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminum corrosion within
the engine cooling system caused by the use of non-genuine engine coolant. After first replacement, replace every 40,000
km (24,000 miles) or 24 months.
• (5) If engine power decreases, black exhaust smoke is emitted or engine noise increases, perform this maintenance item.
CHASSIS AND BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate, T = Tighten.

km x 1,000 10 20 30 40 50 60 70 80 Reference
(Miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48)
Months 6 12 18 24 30 36 42 48
Underhood and under vehicle
Brake, clutch & automatic transmission fluid MA-45,

I I I I I I I I MA-38,
(For level & leaks) MA-39
Brake fluid R R MA-45

Reference A
km x 1,000 10 20 30 40 50 60 70 80
(Miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48)
Months 6 12 18 24 30 36 42 48
Brake booster vacuum hoses, connections & B
I I BR-22
check valve
Power steering fluid & lines (For level &
I* I I* I I* I I* I MA-47
leaks) C
MA-45,
Brake, clutch & exhaust system I I I I I I I I MA-38,
MA-38 D
Manual transmission gear oil (For level &
I* I I* I I* I I* I MA-38
leaks)
Transfer fluid (For level & leaks) I I I I I I I I MA-41 E
MA-42,
MA-43,
Differential gear oil (For level & leaks) I I I I I I I I
MA-42,
MA-43
F
Limited-slip differential (LSD) gear oil (For MA-43,
I I I R I I I R
level & leaks or replace) MA-43
G
MA-47,
Steering gear & linkage, axle & suspension MA-48,
I I I I
parts, propeller shaft, & drive shafts MA-42,
MA-48 H
Body mountings See NOTE(1) T T T T BL-74
Outside and inside
FSU-5,
I
Wheel alignment (If necessary, rotate & bal-
I I I I RSU-5,
ance wheels)
MA-44
MA-45, J
Brake pads, rotors & other brake compo-
I I I I I I I I MA-45
nents MA-45,
Brake linings, drums & other brake compo- K
I I I I MA-46
nents&
MA-49,
Locks, hinges & hood latch L* L L* L L* L L* L
BL-7 MA
Seat belts, buckles, retractors, anchors & ad-
I I I I MA-49
justers
BR-5, M
Foot brake, parking brake & clutch (For free
I* I I* I I* I I* I PB-2,
play, stroke & operation)
CL-5
Air conditioner filter R R R R MTC-54 N

NOTE:
tions”. O
• (1) It is applicable, when the vehicle is in commercial use.
*: Models except for Australia.
P
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions

A — Driving in dusty conditions

B — Driving repeatedly short distances
C — Towing a trailer or caravan
D — Extensive idling
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity areas or in mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent driving in water
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Mainte- Refer-
Driving condition Maintenance item nance Maintenance interval ence
operation page
Air cleaner filter (Dry
paper type except for
A . . . . . . . . . Diesel engine Replace More frequently MA-35
Australia & Middle
East)
Engine oil & engine oil filter Every 5,000 km (3,000 miles) or MA-21
A B C D . . . . . . Replace
(Gasoline engine) 3 months MA-22
Engine oil & engine oil filter Every 7,500 km (4,500 miles) or MA-35
A B C D . . . . . . Replace
(Diesel engine) 6 months MA-36
Except for Cen-
Every 20,000 km (12,000 miles)
tral & South
Fuel filter (Diesel en- or 12 months MA-34,
A . . . E . . . . . America Replace
gine only) MA-32
For Central &
South America
. . . . . F . . . . Brake fluid Replace MA-45
or 12 months
. . C . . . . H . . Automatic transmission fluid Replace MA-40
or 24 months
Every 40,000 km (24,000 miles) MA-42,
. . C . . . . H . . Differential gear oil Replace
or 24 months MA-43
MA-47,
Steering gear & linkage, axle & suspen- Every 10,000 km (6,000 miles) MA-48,
. . . . . . G H . . Inspect
sion parts, propeller shaft, & drive shafts or 6 months MA-42,
MA-48
MA-45,
Brake pads, rotors & other brake compo- Every 5,000 km (3,000 miles) or
A . C . . . G H I . Inspect MA-45,
nents 3 months
MA-45
Brake linings, drums & other brake com- Every 10,000 km (6,000 miles)
A . C . . . G H I . Inspect MA-46
ponents or 6 months
Every 5,000 km (3,000 miles) or
3 months except for Australia MA-49,
. . . . . . G . . . Locks, hinges & hood latch Lubricate
Every 10,000 km (6,000 miles) BL-7
or 6 months for Australia
A . . . . . . . . . Air conditioner filter Replace More frequently MTC-54
Maintenance for off-road driving (4X4 only)

Whenever you drive off-road through sand, mud or water, more frequent maintenance may be required of the
following items:
• Brake pads and rotors
• Brake lining and drums
• Brake lines and hoses
• Differential gear oil, transfer fluid and automatic transmission fluid
• Steering linkage
• Propeller shaft and front drive shafts

• Air cleaner filter
• Clutch housing A
MA

RECOMMENDED FLUIDS AND LUBRICANTS
Fluids and Lubricants INFOID:0000000002979241
Capacity (Approxi-
mate) Recommended Fluids/Lubricants
Liter Imp measure
With oil filter QR25DE 4.9 4-1/4 qt • Gasoline engine

change YD25DDTi 6.9 6-1/8 qt Genuine NISSAN engine oil*1
Engine oil
Drain and refill API grade SG, SH, SJ, SL or SM*1
Without oil filter QR25DE 4.6 4 qt
ILSAC grade GF-1, GF-2, GF-3, GF-
change YD25DDTi 6.4 5-5/8 qt 4 or SG+*1
QR25DE 5.0 4-3/8 qt • Diesel engine
Without DPF (Diesel Particulate Fil-
ter):
Genuine NISSAN engine oil*1
API grade CF-4*1, *2
Dry engine (engine overhaul) JASO DH-1*1
YD25DDTi 7.5 6-5/8 qt
ACEA B1, B3, B4 or B5*1
With DPF:
Genuine NISSAN engine oil
ACEA C3 LOW ASH HTHS 3.5,
Viscosity SAE 5W-30
With heater 8.9 7-7/8 qt
QR25DE Without
7.8 6-7/8 qt
heater
RHD Without
8.5 7-1/2 qt
Cooling system heater
(with reservoir) With heater 9.5 8-3/8 qt
4WD A/T Genuine NISSAN Engine Coolant or
YD25DDTi Without
models 8.6 7-5/8 qt equivalent in its quality*3
heater
LHD
Except the
above Without
7.9 7 qt
heater
With heater 1.1 1 qt
Reservoir tank Without
0.8 3/4 qt
heater
FS5R30A YD25DDTi 2WD 2.9 5-1/8 pt
QR25DE 2WD 3.98 7 pt Genuine NISSAN Manual Transmis-
Manual transmission
sion Fluid (MTF) HQ Multi 75W-85 or
gear oil FS6R31A 2WD 3.98 7 pt API GL-4, Viscosity SAE 75W-85
YD25DDTi
4WD 4.18 7-3/8 pt
Genuine NISSAN Matic D ATF or
Transfer fluid TX15B 2.0 1-3/4 qt
equivalent (if available)
Genuine NISSAN Differential Oil Hy-
Front R180A 0.85 1-1/2 pt poid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90
• Standard type gear:
Differential gear oil API GL-5 synthetic gear oil, Viscosity
SAE 75W-140 or equivalent
Rear M226 2.01 3-1/2 pt
• Limited-slip differential (LSD) gear:
Genuine NISSAN Differential Oil Hy-
poid LSD GL-5 80W-90 or equivalent
Automatic transmission fluid 10.3 9-1/8 qt Genuine NISSAN Matic J ATF*4

Capacity (Approxi-
mate) Recommended Fluids/Lubricants A
Liter Imp measure
Power steering fluid — — Genuine NISSAN PSF or equivalent*5
B
Brake and clutch fluid — — DOT 3 (US FMVSS No. 116)
Multi-purpose grease — — NLGI No. 2 (Lithium soap base)
*1: For further details, see “SAE Viscosity Number”. C
*2: Never use API CG-4.
*3: Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine
cooling system caused by the use of non-genuine engine coolant. D
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.
*4: Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and E
automatic transmission durability, and may damage the automatic transmission, which is not covered by the warranty.
*5: DEXRONTM VI type ATF can be used.
SAE Viscosity Number INFOID:0000000002979242 F
GASOLINE ENGINE
• 5W-30 is preferable. G
If 5W-30 is not available, select the viscosity, from the chart, that is
suitable for the outside temperature range.
H
MA
SMA203D
N
DIESEL ENGINE
• 5W-30 is preferable.
O

If 5W-30 is not available, select the viscosity, from the chart, that is
suitable for outside temperature range.
SMA204D
Engine Coolant Mixture Ratio INFOID:0000000002979243
The engine cooling system is filled at the factory with a high-quality,

year-round and extended life engine coolant. The high quality engine
coolant contains the specific solutions effective for the anti-corrosion
and the anti-freeze function. Therefore, additional cooling system
additives are not necessary.
CAUTION:
• When adding or replacing coolant, be sure to use only Genu-
ine NISSAN Engine Coolant or equivalent in its quality with
the proper mixture ratio. See the examples shown right.
The use of other types of engine coolant may damage your
cooling system.
SMA089D
• When checking the engine coolant mixture ratio by the coolant
hydrometer, use the chart below to correct your hydrometer reading (specific gravity) according to coolant
temperature.
Mixed coolant specific gravity
Unit: specific gravity
Engine coolant mixture Coolant temperature °C (°F)

ratio 15 (59) 25 (77) 35 (95) 45 (113)
30% 1.046 - 1.050 1.042 - 1.046 1.038 - 1.042 1.033 - 1.038
50% 1.076 - 1.080 1.070 - 1.076 1.065 - 1.071 1.059 - 1.065
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator. Wait until the engine and radiator cool down.

ENGINE MAINTENANCE (QR25DE)
A
Checking Drive Belts INFOID:0000000003291943
G
JPBIA1583ZZ
1. Water pump 2. Idler pulley 3. Drive belt

4. Power steering oil pump 5. Alternator 6. Crankshaft pulley
H
7. Drive belt auto-tensioner pulley 8. Idler pulley 9. A/C compressor (with A/C models)
Idler pulley (without A/C models)
A. Indicator B. Possible use range C. View C I
WARNING:
Be sure to perform when the engine is stopped.
• Check that the indicator (A) (notch on fixed side) of drive belt auto-tensioner is within the possible use range J
(B).
NOTE:
Check the drive belt auto-tensioner indication when the engine is cold. K
• Visually check entire belt for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of possible use range or belt is damaged, replace the belt.
Changing Engine Coolant INFOID:0000000003816062 MA
WARNING:
• To avoid being scalded, never change engine coolant when engine is hot. M
• Wrap a thick cloth around cap and carefully remove cap. First, turn cap a quarter of a turn to release
built-up pressure. Then turn cap all the way.
• Be careful not to allow engine coolant to contact drive belts.
N
DRAINING ENGINE COOLANT
1. Remove engine undercover.
2. Disconnect radiator hose (lower) (1), and then remove radiator O
cap.
: Vehicle front P
CAUTION:
Be careful not to allow engine coolant to contact drive belts.
MBIB1594E

When drain all of engine coolant in the system, also performing the following steps.
3. Open cylinder block drain plug. Refer to EM-76, "Disassembly and Assembly".
4. Remove reservoir tank, drain engine coolant, then clean reservoir tank.
5. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to "FLUSHING COOLING SYSTEM".
REFILLING ENGINE COOLANT
1. Install reservoir tank, and connect radiator hose (lower).
• If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-76, "Disassem-
bly and Assembly".
2. Check that each hose clamp has been firmly tightened.
3. Remove air relief plug (3) on heater feed tube. (models with
heater)
1 : Air cleaner case

2 : Water hose
: Vehicle front
JPBIA1615ZZ
4. Fill radiator and reservoir tank to the specified level.

• Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.
• Use Genuine NISSAN Engine Coolant or equivalent in its
quality. Refer to MA-14, "Fluids and Lubricants".
Engine coolant capacity

(with reservoir tank at “MAX” level)
Models with heater : Approx. 8.9 (7-7/8 lmp qt)
SMA182B
Models without heater : Approx. 7.8 (6-7/8 lmp qt)
Reservoir tank capacity (at “MAX” level)

Models with heater : 1.1 (1 lmp qt)
Models without heater : 0.8 (3/4 lmp qt)
• When engine coolant overflows air relief hole, install air relief
plug (models with heater) and install the radiator cap.
SMA412B
5. Warm up engine until opening thermostat. Standard for warming-up time is 10 minutes at 3,00 rpm.
• Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch engine coolant temperature gauge so as not to overheat the engine.
6. Stop the engine and cool down to less than approximately 50°C (122°F)
7. Refill reservoir tank and radiator with engine coolant to the specified level.
8. Repeat steps 4 through 7 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leakage with engine running.

10. Perform the following steps for models with heater.
a. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000 A
rpm with heater temperature controller set at several position between COOL and WARM.
• Sound may be noticeable at heater unit.
b. Repeat step “a” three times. B
c. If sound is heard, bleed air from cooling system by repeating step 4 through 7 until engine coolant level no
longer drops.
FLUSHING COOLING SYSTEM C
1. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap and reservoir tank cap.
D
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down. E
5. Drain water from the system. Refer to MA-17, "Changing Engine Coolant".
6. Repeat steps 1 through 5 until clear water begins to drain from radiator.
Checking Cooling System INFOID:0000000003291945
F
WARNING:
Never remove the radiator cap and/or reservoir tank cap when the engine is hot. Serious burns could G
occur from high pressure engine coolant escaping from the radiator and/or reservoir tank.
Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to release built-up pressure. Care-
fully remove radiator cap/reservoir tank cap by turning it all the way. H
CHECKING COOLING SYSTEM HOSES
Check hoses for improper attachment, leaks, cracks, damage, loose connections, chafing and deterioration.
I
CHECKING RADIATOR
Check radiator for mud or clogging. If necessary, clean radiator as follows.
• Be careful not to bend or damage the radiator fins.
• When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radiator shroud J
and horns. Then tape the harness and electrical connectors to prevent water from entering.
1. Apply water by hose to the back side of radiator core vertically downward.
2. Apply water again to all radiator core surfaces once per minute. K
3. Stop washing if any stains no longer flow out from the radiator.
4. Blow air into the back side of radiator core vertically downward.
MA
• Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm2, 71 psi) and keep distance more than 30 cm
(11.8 in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.
M
CHECKING RESERVOIR TANK CAP/RADIATOR CAP
• Inspect valve seat of reservoir tank cap/radiator cap.
- Check if valve seat is swollen to the extent that the edge of the N
plunger cannot be seen when watching it vertically from the top.
- Check if valve seat has no soil and damage.
PBIC2816E

• Pull negative-pressure valve to open it, and check that it is com-
pletely closed when released.
- Check that there is no dirt or damage on the valve seat of reservoir
tank cap/radiator cap negative-pressure valve.
- Check that there are no unusualness in the opening and closing
conditions of negative-pressure valve.
SMA967B
• Check reservoir tank cap/radiator cap relief pressure.
Standard:
98.2 - 117.8 kPa (0.98 - 1.18 bar, 1.0 - 1.2 kg/cm2, 14 - 17
psi)
Limit:
78 kPa (0.78 bar, 0.8 kg/cm2, 11 psi)
- When connecting reservoir tank cap/radiator cap to the radiator
cap tester (commercial service tool) (A) and the radiator cap tester PBIC5122J
adapter (commercial service tool) (B), apply engine coolant to the
cap seal surface.
• Replace reservoir tank cap/radiator cap if there is an unusualness in negative pressure valve, or if the relief
pressure falls below the limit.
CAUTION:
When installing radiator cap and reservoir tank cap, thoroughly wipe out the radiator and reservoir
tank filler neck to remove any waxy residue or foreign material.
CHECKING RADIATOR SYSTEM FOR LEAKS (MODELS WITH HEATER)
• To check for leaks, apply pressure to the cooling system, apply
pressure to the reservoir tank (1) with radiator cap tester (commer-
cial service tool) (A) and radiator cap tester adapter (commercial
service tool) (B).
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm2, 23 psi)
WARNING:
Never remove reservoir tank cap and/or radiator cap when the
engine is hot. Serious burns could occur from high pressure PBIC3501E
engine coolant escaping from reservoir tank cap and/or radia-
tor.
CAUTION:
Higher test pressure than specified may cause radiator damage.
NOTE:
In a case that engine coolant decreases, replenish radiator and reservoir tank with engine coolant.
• If anything is found, repair or replace damaged parts.
CHECKING RADIATOR SYSTEM FOR LEAKS (MODELS WITHOUT HEATER)

• To check for leakage, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) (A) and the radiator A
cap tester adapter (commercial service tool) (B).
Testing pressure: B
157 kPa (1.57 bar, 1.6 kg/cm2, 23 psi)
WARNING:
Never remove radiator cap when engine is hot. Serious burns C
could occur from high-pressure engine coolant escaping from
radiator. PBIC5121J
CAUTION: D
Higher testing pressure than specified may cause cooling system damage.
NOTE:
In a case engine coolant decreases, replenish radiator and reservoir tank with engine coolant.
• If anything is found, repair or replace damaged parts. E
Checking Fuel Line INFOID:0000000003291946
F
Inspect fuel lines, filler cap and tank for improper attachment, leaks,
cracks, damage, loose connections, chafing or deterioration. If nec-
essary, repair or replace faulty parts.
G
I
SMA803A
Changing Air Cleaner Filter INFOID:0000000003291947
J
DRY PAPER TYPE
It is necessary to clean the filter or replace it at the recommended
intervals, more often under dusty driving conditions. Refer to MA-14, K
"Fluids and Lubricants".
MA
SMA384C
N
Changing Engine Oil INFOID:0000000003291948
WARNING:
• Be careful not to burn yourself, as engine oil may be hot. O
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin
contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible. P
1. Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components.
2. Stop engine and wait for 10 minutes.

3. Loosen oil filler cap and then remove drain plug.
PBIC3006E
4. Drain engine oil.

5. Install drain plug with new washer. Refer to EM-23, "Components".
CAUTION:
Be sure to clean drain plug and install with new washer.
Oil pan drain plug:

: 34.3 N·m (3.5 kg-m, 25 ft-lb)
6. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-14, "Fluids and Lubricants".
Engine oil capacity (Approximate):
Unit: (lmp qt)
With oil filter change 4.9 (4-1/4)

Drain and refill
Without oil filter change 4.6 (4)
Dry engine (Overhaul) 5.0 (4-3/8)
CAUTION:
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
• Always use oil level gauge to determine the proper amount of engine oil in the engine.
7. Warm up engine and check area around drain plug and oil filter for engine oil leakage.
9. Check engine oil level.
PBIC2823E
Changing Oil Filter INFOID:0000000003291949
REMOVAL
2. Using oil filter wrench [SST: KV10115821] (A), remove oil filter.

: Engine front A
WARNING:
Be careful not to get burned when engine and engine oil
may be hot. B
CAUTION:
• Oil filter is provided with relief valve. Use genuine NISSAN
engine oil filter or equivalent. C
• When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to engine JPBIA1590ZZ
and vehicle. D
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface. E
2. Apply new engine oil to the oil seal contact surface of new oil fil-
ter.
Use Genuine NISSAN Oil Filter or equivalent.
F
H
SMA010
3. Screw oil filter manually until it touches the installation surface,

I
then tighten it by 2/3 turn. Or tighten to specification.
Oil filter:
J
: 17.6 N·m (1.8 kg-m, 13 ft-lb)
SMA229B
MA
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to MA-21, "Changing Engine Oil".
M
2. Start engine, and check there is no leaks of engine oil.
4. Check the engine oil level and adjust engine oil. Refer to MA-21, "Changing Engine Oil". N
Checking and Changing Spark Plugs INFOID:0000000003291950
REMOVAL O
1. Remove ignition coil. Refer to EM-26, "Components".
P

2. Remove spark plug with spark plug wrench (commercial service
tool).
CAUTION:
Never drop or shock spark plug.
PBIC2996E
INSPECTION AFTER REMOVAL

Use standard type spark plug for normal condition.
Make NGK
Standard type PLZKAR6A-11
Gap (Nominal) : 1.1 mm (0.043 in)

CAUTION:
• Never drop or shock spark plug.
• Never use wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be
used.
Cleaner air pressure:

Less than 588 kPa (5.9 bar, 6 kg/cm2, 85 psi)
Cleaning time:
Less than 20 seconds
SMA773C
• Checking and adjusting plug gap is not required between

change intervals.
SMA806CA
INSTALLATION
Installation is the reverse order of removal.
Spark plug:
: 19.6 N·m (2.0 kg-m, 14 ft-lb)
Checking EVAP Vapor Line INFOID:0000000003291952
1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2. Check EVAP canister as follows:
a. Block port B. Orally blow air through port A. A
Check that air flows freely through port C.
b. Block port A. Orally blow air through port B.
Check that air flows freely through port C. B
PBIB0663E
D
3. Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.
a. Wipe clean valve housing. E
G
SEF989X
b. Check valve opening pressure and vacuum. H
Pressure: 15.3 - 20.0 kPa (0.153 - 0.200 bar,

0.156 - 0.204 kg/cm2, 2.22 - 2.90 psi) I
Vacuum: −6.0 to −3.4 kPa (−0.060 to −0.034 bar,
−0.061 to −0.035 kg/cm2, −0.87 to −0.49 psi)
J
c. If out of specification, replace fuel filler cap as an assembly.
SEF943S K
MA

ENGINE MAINTENANCE (YD25DDTI)
Checking Drive Belts INFOID:0000000002979244
PBIC4038E
1. Idler pulley 2. Power steering oil pump belt 3. Power steering oil pump
A/C compressor (Models with A/C)
4. Crankshaft pulley 5. 6. Alternator
Dummy pulley (Models without A/C)
A/C compressor, alternator and wa-
7. Idler pulley 8. Water pump pulley 9.
ter pump belt
• Before inspecting engine, check engine has cooled down, wait approximately 30 minutes after engine has
been stopped.
• Visually inspect all belts for wear, damage or cracks on contacting surfaces and edge areas.
• Measure deflection at the marked point ( ).
CAUTION:
• When checking belt deflection immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust to the specified value to avoid variation
in deflection between pulleys.
• Tighten idler pulley lock nut by hand and measure deflection without looseness.
Belt Deflection:
Belt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)

Applied belt
New Adjusted Limit for re-adjusting
A/C compressor, alternator and water 2.9 - 3.4 3.9 - 4.4
8.5 (0.335)
pump belt (0.114 - 0.134) (0.154 - 0.173)
4.6 - 5.4 7.1 - 7.7
Power steering oil pump belt 11.3 (0.445)
(0.181 - 0.213) (0.280 - 0.303)
*: When engine is cold.

Tension Adjustment INFOID:0000000002979245
PBIC4039E
G
1. Idler pulley 2. Power steering oil pump belt 3. Power steering oil pump
A/C compressor (Models with A/C)
4. Crankshaft pulley 5. 6. Alternator
Dummy pulley (Models without A/C)
A/C compressor, alternator and wa- H
7. Idler pulley 8. Water pump pulley 9.
ter pump belt
A. Adjusting bolt B. Idler pulley lock nut C. Adjusting nut
D. Idler pulley lock nut I
• Adjust belts with the parts shown below.

J
Applied belt Belt adjustment method
Power steering oil pump belt Adjusting bolt on idler pulley (A)
Alternator and water pump belt or A/C compressor, alternator and K
Adjusting nut on idler pulley (C)
water pump belt
CAUTION:
• When a new belt is installed as a replacement, adjust it to the specified value under “New” value MA
because of insufficient adaptability with pulley grooves.
• If the belt deflection of the current belt is out of the “Limit for re-adjusting”, adjust to the
“Adjusted” value.
M
• When checking belt tension immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust it to the specified value to avoid varia-
tion in deflection between pulleys.
• Check the belts are fully fitted into the pulley grooves during installation. N
• Handle with care to avoid smearing the belts with engine oil or engine coolant.
• Never twist or bend the belts with strong force.
POWER STEERING OIL PUMP BELT O
1. Remove undercover.
2. Loosen idler pulley lock nut (B).
P
3. Turn adjusting bolt (A) to adjust. Refer to MA-26, "Checking Drive Belts".
4. Tighten idler pulley lock nut (B).
Nut B:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
A/C COMPRESSOR, ALTERNATOR AND WATER PUMP BELT

1. Loosen idler pulley lock nut (D).
2. Turn adjusting nut (C) to adjust. Refer to "Tension Adjustment".
3. Tighten lock nut (D).
Nut D:
: 45.0 N·m (4.6 kg-m, 33 ft-lb)
Changing Engine Coolant INFOID:0000000003304366
WARNING:
• To avoid being scalded, never change engine coolant when engine is hot.
• Wrap a thick cloth around cap and carefully remove radiator cap/reservoir tank cap. First, turn radia-
tor cap/reservoir tank cap a quarter of a turn to release built-up pressure. Then turn the cap all the
way.
DRAINING ENGINE COOLANT
2. Disconnect radiator hose (lower) (1), and then remove radiator
cap.
: Vehicle front
CAUTION:
Be careful not to allow engine coolant to contact drive belts.
When draining all engine coolant in the system, also per-
form the following steps.
MBIB1594E
3. Open cylinder block drain plug. Refer to EM-181, "Components".

4. Remove reservoir tank, drain engine coolant, then clean reservoir tank.
5. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to "FLUSHING COOLING SYSTEM".
REFILLING ENGINE COOLANT
1. Install reservoir tank, and connect radiator hose (lower).
• If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-181, "Compo-
nents".
2. Check that each hose clamp has been firmly tightened.
3. Remove air relief plug (1) on heater feed tube. (models with heater)
• LHD models
2 : Water hose (from reservoir tank)

3 : Fuel filter
: Vehicle front
PBIC4874E

• RHD models
A
2 : Water hose (from reservoir tank)
: Vehicle front
B
PBIC3635E
D
4. Fill radiator and reservoir tank to the specified level.
• Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape. E
• Use Genuine NISSAN Engine Coolant or equivalent in its
quality. Refer to MA-14, "Fluids and Lubricants"
F
Engine coolant capacity
(with reservoir tank at “MAX” level)
LHD models G
SMA182B
4WD A/T models
Models with heater : Approximately 9.5 (8-3/8 lmp qt)
H
Models without heater : Approximately 8.6 (7-5/8 lmp qt)
Except the above
Models with heater : Approximately 8.8 (7-3/4 lmp qt) I
Models without heater : Approximately 7.9 (7 lmp qt)
RHD models
J
Models with heater : Approximately 9.8 (8-5/8 lmp qt)
Models without heater : Approximately 8.5 (7-1/2 lmp qt)
K
Reservoir tank capacity (at “MAX” level)

Models with heater : 1.1 (1 lmp qt) MA
Models without heater : 0.8 (3/4 lmp qt)
• When engine coolant overflows air relief hole, install air relief
plug (models with heater) and install the radiator cap and res- M
ervoir tank cap.
N
SMA412B
5. Warm up engine until opening thermostat. Standard for warming-up time is 10 minutes at 3,00 rpm.
• Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water. O
CAUTION:
Watch engine coolant temperature gauge so as not to overheat the engine.
6. Stop the engine and cool down to less than approximately 50°C (122°F) P
7. Refill reservoir tank and radiator with engine coolant to the specified level.
8. Repeat steps 4 through 7 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.
10. Perform the following steps for models with heater.

a. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between COOL and WARM.
• Sound may be noticeable at heater unit.
b. Repeat step “a” three times.
c. If sound is heard, bleed air from cooling system by repeating step 4 through 7 until engine coolant level no
longer drops.
FLUSHING COOLING SYSTEM
1. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap and reservoir tank cap.
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water from the system. Refer to "DRAINING ENGINE COOLANT".
6. Repeat steps 1 through 5 until clear water begins to drain from radiator.
Checking Cooling System INFOID:0000000003304367
WARNING:
Never remove the radiator cap and reservoir tank cap when the engine is hot. Serious burns could
occur from high pressure engine coolant escaping from the radiator and the reservoir tank. Wrap a
thick cloth around the cap. Slowly turn it a quarter turn to allow built-up pressure to escape. Carefully
remove the cap by turning it all the way.
CHECKING COOLING SYSTEM HOSES
Check hoses for improper attachment, leaks, cracks, damage, loose connections, chafing and deterioration.
CHECKING RADIATOR
Check radiator for mud or clogging. If necessary, clean radiator as follows:
• Be careful not to bend or damage the radiator fins.
• When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radiator shroud
and horns. Then tape the harness and connectors to prevent water from entering.
1. Apply water by hose to the back side of the radiator core vertically downwards.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from the radiator.
4. Blow air into the back side of radiator core vertically downwards.
• Use compressed air lower than 490 kpa (4.9 bar, 5 kg/cm2, 71 psi) and keep distance more than 30
cm(11.8 in).
5. Blow air again into all the radiator core surface once per minute until no water sprays out.
CHECKING RESERVOIR TANK CAP/RADIATOR CAP
• Inspect valve seat of reservoir tank cap/radiator cap.
- Check if valve seat is swollen to the extent that the edge of the
plunger cannot be seen when watching it vertically from the top.
- Check if valve seat has no soil and damage.
PBIC2816E

• Pull negative-pressure valve to open it, and check that it is com-
pletely closed when released. A
- Check that there is no dirt or damage on the valve seat of radiator
cap/reservoir tank cap negative-pressure valve.
- Check that there are no unusualness in the opening and closing
B
conditions of negative-pressure valve.
SMA967B
D
• Check reservoir tank cap/radiator cap relief pressure.
Standard : 98.2 - 117.8 kPa (0.98 - 1.18 bar, 1.0 - E

1.2 kg/cm2, 14 - 17 psi)
Limit : 78 kPa (0.78 bar, 0.8 kg/cm2, 11 psi)
F
- When connecting reservoir tank cap/radiator cap to the radiator
cap tester adapter (commercial service tool) (B) and the radiator
cap tester (commercial service tool) (A), apply engine coolant to
G
the cap seal surface.
PBIC5122J
• Replace reservoir tank cap/radiator cap if there is an unusualness in negative pressure value, or if the relief H
pressure falls below the limit.
CAUTION:
When installing a radiator cap and reservoir tank cap, thoroughly wipe out the radiator and reservoir I
tank filler neck to remove any waxy residue or foreign material.
CHECKING RADIATOR SYSTEM FOR LEAKS (MODELS WITH HEATER)
• To check for leaks of cooling system, apply pressure to the reser- J
voir tank (1) with the radiator cap tester (commercial service tool)
(A) and the radiator cap tester adapter (commercial service tool)
(B). K
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm2, 23 psi) MA
WARNING:
Never remove reservoir tank cap and/or radiator cap when
engine is hot. Serious burns could occur from high pressure PBIC3501E
M
engine coolant escaping from reservoir tank and/or radiator.
CAUTION:
Higher test pressure than specified may cause cooling system damage. N
NOTE:
In a case that engine coolant decreases, replenish radiator and reservoir tank with engine coolant.
O
CHECKING RADIATOR SYSTEM FOR LEAKS (MODELS WITHOUT HEATER)

• To check for leakage, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) (A) and the radiator
cap tester adapter (commercial service tool) (B).
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm2, 23 psi)
WARNING:
Never remove radiator cap when engine is hot. Serious burns
could occur from high-pressure engine coolant escaping from
radiator. PBIC5121J
CAUTION:
Higher testing pressure than specified may cause cooling system damage.
NOTE:
In a case engine coolant decreases, replenish radiator and reservoir tank with engine coolant.
Checking Fuel Line INFOID:0000000002979248
Inspect the fuel lines and fuel tank for improper mounting, leaks,
cracks, damage, loose connections, chafing, or deterioration.
As necessary, repair or replace any faulty parts.
SMA803A
Changing Fuel Filter INFOID:0000000002979249
PBIC3369E
1. Fuel filter bracket 2. Fuel filter 3. O–ring

4. Drain plug
A. Refer to text.
• Refer to GI-7, "Component" for symbol marks in the figure.

REMOVAL

1. Disconnect fuel hoses at fuel filter.
A
1 : Fuel filter
2 : Fuel hose (feed)
3 : Fuel hose (return) B
CAUTION:
Plug the pipe to prevent fuel from draining.
C
PBIC3370E
D
2. Loosen mounting nuts (2) and remove fuel filter (1).
: Vehicle front E
CAUTION:
Never splash fuel during removal. If fuel is splashed, imme-
diately wipe it off. F
G
PBIC3337E
3. Using band-type fuel filter wrench (A) (commercial service tool),

H
remove fuel filter (1).
4. Turn fuel filter upside down to drain fuel.
5. Remove drain plug (2) from fuel filter. I
PBIC3371E
K
INSTALLATION
Note the following, and install in the reverse order of removal.
• Replace O-ring on drain plug with new one. MA
• Screw the fuel filter by hand until packing contacts sealing surface of fuel filter bracket. Then tighten it by
turning approximately 2/3 turn.
M
Fuel filter (reference value)
: 13.5 N·m (1.4 kg-m, 10 ft-lb)
• Install fuel filter (1), and tighten mounting nuts (2) to the specified N
torque.
: Vehicle front O
Fuel filter mounting nuts

P
: 13.5 N·m (1.4 kg-m, 10 ft-lb)
PBIC3337E
• After installation, bleed air from fuel line.


Check there is no fuel leakage at connections in the following steps.
• Start the engine and rev it up and check there is no fuel leakage at connections.
Air Bleeding INFOID:0000000003304368
After fuel filter is replaced and after fuel system components are removed/installed, bleed air from fuel line as
follows:
• Move priming pump (1) up and down to bleed air from fuel path.
When air is bled, pumping of priming pump becomes heavy stop
operation at that time.
PBIC3372E
• Crank engine until it starts. Do not crank engine for more than 30 seconds.
• If engine does not start, stop cranking and repeat step 1 above.
• If engine does not operate smoothly after it has started, race it two or three times.
• If air cannot be bled easily (pumping of priming pump does not become heavy), disconnect feed-side of hose
between fuel filter and electronically controlled fuel pump. After that, operate priming pump and confirm that
fuel comes out.
CAUTION:
Prepare a tray to collect fuel. Prevent fuel from adhering to rubber parts, especially the engine
mounting insulator.
Draining Water from Fuel Filter INFOID:0000000002979250
1. Prepare a tray (A) under the drain plug (1).

2. Loosen drain plug, and operate priming pump (2) to drain water
from fuel filter.
CAUTION:
• Water in filter is drained with fuel. Prepare larger capacity
pan than fuel filter volume.
• Drained water is mixed with fuel. Prevent fuel from adher-
ing to rubber parts such as engine mounting insulator.
3. Replace O-ring on drain plug with new one.
4. After draining, close drain plug to specified torque.
PBIC3373E
Drain plug
: 1.3 N·m (0.13 kg-m, 12 in-lb)
CAUTION:
If drain cock is tightened excessively, it may be damaged and fuel will leak.
5. Bleed air in fuel piping. Refer to MA-34, "Air Bleeding"
6. Start engine and check there is no fuel leakage.
Draining Water from Sedimentor INFOID:0000000002979251
CAUTION:

• Drain water from sedimentor when fuel filter warning lamp
turns on as follows: A
PBIC2664E
D
1. Prepare a tray under the drain plug.
2. Loosen air bleeder screw of the sedimentor.
E
3. Loosen drain cock and drain water.
CAUTION:
• Loosening drain cock four to five turns causes water to
start draining. Never remove drain cock by loosening it F
excessively.
• Water in filter is drained with fuel. Prepare larger capacity
pan than fuel filter volume.
G
• Drained water is mixed with fuel. Prevent fuel from adher-
ing to rubber parts such as engine mounting insulator. SMA281C
4. After draining, close drain cock by hand.

CAUTION: H
If drain cock is tightened excessively, it may be damaged and fuel will leak. Never use tools to
tighten drain cock.
5. Bleed air in fuel piping. I
6. Start engine and check there is no fuel leakage.
Changing Engine Air Cleaner Filter INFOID:0000000002979257
J
DRY PAPER TYPE

It is necessary to clean the filter or replace it at the recommended K
intervals, more often under dusty driving conditions.
Refer to MA-9.
MA
SMA384C
N
Changing Engine Oil INFOID:0000000002979258
WARNING: O
• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin
contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as P
soon as possible.
1. Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components.

3. Loosen oil filler cap (1) and then remove drain plug (3).
2 : Oil filter
: Engine front
PBIC3335E
4. Drain engine oil.

5. Install drain plug with new washer. Refer to EM-140, "Component".
CAUTION:
Be sure to clean drain plug and install with new washer.
Oil pan drain plug:

: 34.3 N·m (3.5 kg-m, 25 ft-lb)
6. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-14.
Engine oil capacity (Approximate):
Unit: (lmp qt)

Drain and refill
Without oil filter change 6.4 (5-5/8)
CAUTION:
• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
• Always use the oil level gauge to determine when the proper amount of engine oil is in the
engine.
7. Warm up engine and check area around drain plug and oil filter for oil leakage.
9. Check the engine oil level.
Changing Oil Filter INFOID:0000000002979259
REMOVAL
1. Place a pan to catch the engine oil under the lower part of drain hose outlet before removing oil filter.
2. Using the oil filter wrench, remove oil filter.
CAUTION:
• Be careful not to get burned when engine and engine oil are hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Never allow engine oil to adhere to drive belts.
• Completely wipe off any engine oil that adhere to engine and vehicle.
• Oil filter is provided with a relief valve. Use genuine NISSAN engine oil filter or equivalent.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal circumference of new oil filter.

Use genuine NISSAN engine oil filter or equivalent.
A
SMA010
D
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
E
Oil filter:
: 18.0 N·m (1.8 Kg-m, 13 ft-lb)
F
G
SMA229B

H
1. Check the engine oil level. Refer to LU-15.
2. Start engine, and check there is no leakage of engine oil.
3. Stop engine and wait for 10 minutes. I
4. Check the engine oil level and add engine oil. Refer to LU-15.
MA

Checking the Exhaust System INFOID:0000000002979260
Check exhaust pipes, muffler and mounting for improper attachment,

leaks, cracks, damage, loose connections, chafing or deterioration.
SMA211A
Checking Clutch Fluid Level and Leaks INFOID:0000000002979261
If fluid level is extremely low, check clutch system for leaks.
LFIA0234E
Checking Clutch System INFOID:0000000002979262
Check fluid lines and operating cylinder for improper attachment,

cracks, damage, loose connections, chafing and deterioration.
SMA859
Checking M/T Oil INFOID:0000000002979263
Check for oil leakage.
Changing M/T Oil INFOID:0000000002979264
1. Drain oil from drain plug and refill with new gear oil.

2. Check oil level.
A
Oil grade and Refer to MA-14, "Fluids and Lubri-
viscosity: cants".
Oil capacity: Refer to MA-14, "Fluids and Lubri- B
cants".
Filler plug and drain plug:
C
: 34.5 N-m (3.5 kg·m, 25 ft·lb)
CAUTION: PCIB0268E
Do not reuse gasket. D
Checking A/T Fluid INFOID:0000000002979265
1. Warm up engine. E
2. Check for A/T fluid leakage.
3. Loosen level gauge bolt.
F
4. Before driving, A/T fluid level can be checked at A/T fluid tem-
peratures of 30 to 50°C (86 to 122°F) using “COLD” range on A/
T fluid level gauge as follows.
a. Park vehicle on level surface and set parking brake. G
b. Start engine and move selector lever through each gear posi-
tion. Leave selector lever in “P” position.
H
c. Check A/T fluid level with engine idling.
d. Remove A/T fluid level gauge and wipe clean with lint-free
paper.
CAUTION: I
When wiping away A/T fluid level gauge, always use lint-
free paper, not a cloth one.
e. Reinsert A/T fluid level gauge into A/T fluid charging pipe as far J
as it will go.
CAUTION:
To check A/T fluid level, insert A/T fluid level gauge until the K
cap contacts the end of A/T fluid charging pipe, with A/T
fluid level gauge reversed from the normal attachment con-
ditions.
MA
f. Remove A/T fluid level gauge and note reading. If reading is at
low side of range, add ATF to A/T fluid charging pipe.
CAUTION: JPDIA0587GB
Do not overfill. M
5. Drive vehicle for approximately 5 minutes in urban areas.
6. Make the A/T fluid temperature approximately 65°C (149°F).
NOTE: N

A/T fluid level will be greatly affected by temperature as shown in figure. Therefore, be certain to
perform operation while checking data with CONSULT-III.
SLIA0016E
a. Select in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

b. Read the value of “ATF TEMP 1”.
7. Recheck A/T fluid level at A/T fluid temperatures of approximately 65°C (149°F) using “HOT” range on A/
T fluid level gauge.
CAUTION:
• When wiping away A/T fluid level gauge, always use lint-free paper, not a cloth one.
• To check A/T fluid level, insert A/T fluid level gauge until
the cap contacts the end of A/T fluid charging pipe, with
A/T fluid level gauge reversed from the normal attachment
conditions as shown.
8. Check A/T fluid condition.
• If ATF is very dark or smells burned, check operation of A/T.
Flush cooling system after repair of A/T.
• If A/T fluid contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to CO-35.
SCIA2899E
9. Install the removed A/T fluid level gauge into A/T fluid charging
pipe.
10. Tighten level gauge bolt to the specified torque. Refer to AT-174,
"Removal and Installation".
SCIA4896E
Changing A/T Fluid INFOID:0000000002979266
1. Warm up ATF.
2. Stop engine.

3. Loosen level gauge bolt.
4. Remove A/T fluid level gauge. A
5. Remove drain plug and drain ATF from drain hole.
6. Install drain plug gasket and drain plug to oil pan.
CAUTION: B
Do not reuse drain plug gasket.
7. Tighten drain plug to the specified torque. Refer to AT-160,
"Control Valve with TCM and A/T Fluid Temperature Sensor 2". C
8. Refill with new ATF. Always refill same volume with drained ATF.
• To replace the ATF, pour in new ATF at A/T fluid charging pipe SCIA4896E
with the engine idling and at the same time drain the old ATF D
from A/T fluid cooler hose return side.
• When the color of the ATF coming out is about the same as the color of the new ATF, the replacement is
complete. The amount of new ATF to use should be 30 to 50% increase of the specified amount.
E
ATF: Genuine NISSAN Matic J ATF
Fluid capacity: 10.3 (9-1/8 lmp qt)
F
CAUTION:
• Use only Genuine NISSAN Matic J ATF. Do not mix with other ATF.
• Using ATF other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and A/
G
T durability, and may damage the A/T, which is not covered by the warranty.
• When filling ATF, take care not to spillover heat generating parts such as exhaust.
9. Run engine at idle speed for 5 minutes.
H
10. Check A/T fluid level and condition. Refer to MA-39, "Checking A/T Fluid". If ATF is still dirty, repeat step 2
through 9.
11. Install the removed A/T fluid level gauge into A/T fluid charging pipe.
I
12. Tighten level gauge bolt to the specified torque. Refer to AT-174, "Removal and Installation".
Checking Transfer Fluid INFOID:0000000002979267
J
FLUID LEAKAGE AND FLUID LEVEL
1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown. K
CAUTION:
Do not start engine while checking fluid level.
3. Install the filler plug with a new gasket to the transfer. Tighten to MA
the specified torque. Refer to TF-57, "Disassembly and Assem-
bly".
CAUTION: M
Do not reuse gasket.
N
SDIA3287E
Changing Transfer Fluid INFOID:0000000002979268
O
DRAINING
1. Stop engine.
P

2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to TF-57, "Disassembly and Assem-
bly".
CAUTION:
SDIA3286E
FILLING
1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the
specified limit near the filler plug hole.
Fluid grade: Refer to MA-14, "Fluids and Lubri-

cants".
Fluid capacity: Refer to MA-14, "Fluids and Lubri-
cants".
CAUTION:
Carefully fill fluid. (Fill up for approx. 3 minutes)
3. Leave the vehicle for 3 minutes, and check fluid level again. SDIA3287E
4. Install the filler plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to TF-57, "Disassembly and Assembly".
CAUTION:
Dot not reuse gasket.
Checking Propeller Shaft INFOID:0000000002979269
Check the front and rear propeller shafts for damage, dents, and cracks. Check the joints for looseness and
any damage. Repair or replace as necessary.
Checking Front Final Drive Oil (Front Differential Gear Oil) INFOID:0000000002979270
CAUTION:
If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to MA-9.
OIL LEAKAGE AND OIL LEVEL
• Make sure that oil is not leaking from the final drive assembly or around it.
• Check oil level from the filler plug hole as shown.
CAUTION:
Do not start engine while checking oil level.
• Install the filler plug with a new gasket on it to the final drive
assembly. Tighten to the specified torque. Refer to FFD-17, "Dis-
assembly and Assembly".
CAUTION:
LDIA0176E
Changing Front Final Drive Oil (Front Differential Gear Oil) INFOID:0000000002979271
CAUTION:
DRAINING
1. Stop the engine.

2. Remove the drain plug and gasket. Drain the gear oil.
3. Install the drain plug with a new gasket to the final drive assem- A
bly. Tighten to the specified torque. Refer to FFD-17, "Disas-
sembly and Assembly".
CAUTION: B
LDIA0175E
D
FILLING
1. Remove the filler plug and gasket. Fill with new gear oil until the
oil level reaches the specified level near the filler plug hole.
E
Oil grade and Viscosity:

Refer to MA-14, "Fluids and Lubricants". F
Oil capacity:
Refer to MA-14, "Fluids and Lubricants".
G
2. After refilling oil, check the oil level. Install the filler plug with a
new gasket on it to the final drive assembly. Tighten to the spec-
LDIA0176E
ified torque. Refer to FFD-17, "Disassembly and Assembly".
CAUTION: H
Checking Rear Final Drive Oil (Rear Differential Gear Oil) INFOID:0000000002979272
I
CAUTION:
OIL LEAKAGE AND OIL LEVEL J
• Make sure that oil is not leaking from the final drive assembly or around it.
• Check oil level from the filler plug hole as shown.
CAUTION: K
Do not start engine while checking oil level.
• Apply sealant to filler plug. Install filler plug to final drive assembly
and tighten to the specified torque. Refer to RFD-12, "Disassembly MA
and Assembly" (WITHOUT LIMITED SLIP DIFFERENTIAL) and
RFD-43, "Disassembly and Assembly" (WITH LIMITED SLIP DIF-
FERENTIAL).
M
PDIA1039E
N
Changing Rear Final Drive Oil (Rear Differential Gear Oil) INFOID:0000000002979273
CAUTION:
If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to MA-9. O
DRAINING
1. Stop the engine. P

2. Remove the drain plug and gasket. Drain the gear oil.
3. Apply sealant to drain plug. Install drain plug to final drive
assembly and tighten to the specified torque. Refer to RFD-12,
"Disassembly and Assembly" (WITHOUT LIMITED SLIP DIF-
FERENTIAL) and RFD-43, "Disassembly and Assembly" (WITH
LIMITED SLIP DIFFERENTIAL).
PDIA1038E
FILLING
1. Remove the filler plug. Fill with new gear oil until oil level
reaches the specified limit near filler plug hole.
Oil grade: Refer to MA-14, "Fluids and Lubricants".

Oil capacity: Refer toMA-14, "Fluids and Lubricants".
2. After refilling oil, check oil level. Apply sealant to filler plug.
Install filler plug to final drive assembly and tighten to the speci-
fied torque. Refer to RFD-12, "Disassembly and Assembly"
(WITHOUT LIMITED SLIP DIFFERENTIAL) and RFD-43, "Dis-
assembly and Assembly" (WITH LIMITED SLIP DIFFEREN- PDIA1039E
TIAL).
Balancing Wheels INFOID:0000000002979274
Adjust the wheel balance using the road wheel center. Refer to WT-5, "Road Wheel".
Tire Rotation INFOID:0000000002979275
1. Rotate the tires on each side from front to back as shown, using
power tool.
Wheel nuts : 113 N·m (11.5 kg-m, 83 ft-lb)

• Follow the maintenance schedule for tire rotation service inter-
vals. Refer to MA-8.
• Do not include the spare tire when rotating the tires.
CAUTION:
When installing wheels, tighten them diagonally by divid-
ing the work two to three times in order to prevent the
wheels from developing any distortion. SMA829C
2. Adjust the tire pressure to specification. Refer to WT-5, "Tire".

3. After the tire rotation, retighten the wheel nuts after the vehicle has been driven for 1,000 km (600 miles),
and also after a wheel and tire have been installed such as after repairing a flat tire

Checking Brake Fluid Level and Leaks INFOID:0000000002979276
A
• Check the brake fluid level in the reservoir tank. It should be
between the “MAX” and “MIN” lines on the reservoir tank.
• If the fluid level is extremely low, check the brake system. B
• If the brake warning lamp comes on when the fluid is at the correct
level, check the brake fluid level switch and the parking brake
switch.
C
D
LFIA0234E
Checking Brake Line and Cables INFOID:0000000002979277

E
1. Check the brake lines and hoses for cracks, deterioration, and
other damage. Replace any damaged parts.
CAUTION: F
If brake fluid leaks are visible around the brake line joints,
retighten the joint, or replace damaged parts as necessary.
2. Check for brake fluid leaks by fully depressing brake pedal while G
engine is running.
H
SBR389C
Changing Brake Fluid INFOID:0000000002979278 I
1. Drain brake fluid from each bleed valve.

2. Refill until new brake fluid comes out from each bleed valve. J
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to BR-8.
K
• Refill with recommended DOT 3 (US FMVSS No. 116).
Refer to MA-14.
• Never reuse drained brake fluid.
• Be careful not to splash brake fluid on painted areas. MA
SBR419C
Checking Disc Brake INFOID:0000000002979279

M
ROTOR
Check the condition of the rotor, and for any wear or damage. Repair N
or replace as necessary.
Standard thickness : 28.0 mm (1.102 in) O

Repair limit thickness : 26.0 mm (1.024 in)
SMA260A
CALIPER

Check for any fluid leakage. Repair as necessary.
SMA922A
PAD
Check for any wear or damage. Repair or replace as necessary.
Standard thickness : 11.0 mm (0.433 in)

LMA051
Checking Drum Brake INFOID:0000000002979280
DRUM
Check the condition of the drum, and for any wear or damage.
Repair or replace as necessary.
Standard inner diameter : 295 mm (11.61 in) dia.

Repair limit inner diameter : 296.5 mm (11.67 in) dia.
SBR022A
WHEEL CYLINDER
• Check for leakage.
SFIA0657J
LINING

• Check for lining thickness.
A
Standard thickness : 5.5 mm (0.217 in)
B
SBR021A
D
Checking Steering Gear and Linkage INFOID:0000000002979281
STEERING GEAR E
• Check the steering gear housing for looseness, damage and oil
leakage as shown.
• Check the steering column connections for looseness.
F
H
SGIA0506E
STEERING LINKAGE
• Check the ball joint, dust cover and other component parts for looseness, wear, damage and grease leak- I
age.
Checking Power Steering Fluid and Line INFOID:0000000002979282
J
CHECKING FLUID LEVEL
• Check the power steering fluid level with the engine off.
• Check fluid level on reservoir. Use “HOT” range at fluid tempera- K
tures of 50° to 80°C (122° to 176°F). Use “COLD” range at fluid
temperatures of 0° to 30°C (32° to 86°F).
CAUTION: MA
• Do not overfill.
• Fill with the recommended fluid or equivalent. Refer to MA-14,
"Fluids and Lubricants"
M
LGIA0021E
N
CHECKING LINES
• Check lines for improper attachment, leaks, cracks, damage, loose
connections, chafing and deterioration. O
SGIA0506E

Checking Axle and Suspension Parts INFOID:0000000002979283
FRONT AND REAR AXLE AND SUSPENSION PARTS

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Rotate each wheel to check for abnormal noise.
• Check axle and suspension nuts and bolts for looseness.
SMA525A
• Check the strut and shock absorber for oil leakage or other damage.
• Check suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.
FRONT DRIVE SHAFT
Check the boots and drive shaft for cracks, wear, damage, and
grease leakage.
SFA901

Lubricating Locks, Hinges and Hood Latches INFOID:0000000002979284
MA
N
JMPIA0002GB
Refer to GI-7, "Component" for symbols in the figure.

O
Checking Seat Belts, Buckles, Retractors, Anchors and Adjusters INFOID:0000000002979285
Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as
necessary. Refer to SB-5, "Seat Belt Inspection". P
• Check the seat belt anchors for loose mounting bolts, damage, or excessive wear.
• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.
• Check the retractor for smooth operation.
• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of
the buckle and press the button on the buckle to check for proper release of the seat belt tongue.
CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-
nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-
ing a collision, unless they are not damaged and are inspected to confirm they are operating
properly after a minor collision.
Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-
nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if
the seat belts are not in use during a frontal collision where the driver and passenger air bags have
been deployed.
• If any component of the seat belt assembly is suspected of being damaged or not operating prop-
erly, do not repair the component. Replace the components as an assembly.
• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.
• Never lubricate the seat belt buckle or tongue.
• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.

SERVICE DATA AND SPECIFICATIONS (SDS)
A
Standard and Limit INFOID:0000000003304369
BELT DEFLECTION B
QR25DE
Tensions of drive belts Auto-adjustment by auto-tensioner C
YD25DDTi
D
Belt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)
Applied belt
New Adjusted Limit for re-adjusting
A/C compressor, alternator and water E
2.9 - 3.4 (0.114 - 0.134) 3.9 - 4.4 (0.154 - 0.173) 8.5 (0.335)
pump belt
Power steering oil pump belt 4.6 - 5.4 (0.181 - 0.213) 7.1 - 7.7 (0.280 - 0.303) 11.3 (0.445)
*: When engine is cold.
F
RESERVOIR TANK/RADIATOR
Unit: kPa (bar, kg/cm2, psi) G
Standard 98.2 - 117.8 (0.98 - 1.18, 1.0 - 1.2, 14 - 17)
Cap relief pressure
Limit 78 (0.78, 0.8, 11)
H
Leakage test pressure 157 (1.57, 1.6, 23)
ENGINE COOLANT CAPACITY (APPROXIMATE)

I
QR25DE
Unit: (lmp qt)
Engine coolant capacity (With reservoir tank at With heater 8.9 (7-7/8) J
“MAX” level) Without heater 7.8 (6-7/8)
YD25DDTi
RHD models K
Unit: (lmp qt)
Engine coolant capacity (With reservoir tank at With heater 9.8 (8-5/8)
MA
“MAX” level) Without heater 8.5 (7-1/2)
LHD models
Unit: (lmp qt) M
With heater 9.5 (8-3/8)
4WD A/T models
Engine coolant capacity (With Without heater 8.6 (7-5/8)
N
reservoir tank at “MAX” level) With heater 8.8 (7-3/4)
Except the above
Without heater 7.9 (7)
ENGINE OIL CAPACITY (APPROXIMATE) O
QR25DE
Unit: (lmp qt) P
Drain and refill
Without oil filter change 4.6 (4)
YD25DDTi

Unit: (lmp qt)

Drain and refill
Without oil filter change 6.4 (5-5/8)
SPARK PLUG (QR25DE)
Make NGK
Standard type PLZKAR6A-11

Maintenance: Section

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Maintenance: Section

Uploaded by

Copyright:

Available Formats

MAINTENANCE

Revision: 2009 March MA-1 D40

Revision: 2009 March MA-2 D40

Revision: 2009 March MA-3 D40

Revision: 2009 March MA-4 D40

Radiator cap tester Checking radiator and reservoir tank cap E

Revision: 2009 March MA-5 D40

UNDER HOOD — engine off

Revision: 2009 March MA-6 D40

Revision: 2009 March MA-7 D40

INSIDE THE VEHICLE

UNDER THE HOOD AND VEHICLE

Revision: 2009 March MA-8 D40

Engine oil (Use recommended oil.) R R R R R R R R MA-21

Revision: 2009 March MA-9 D40

MAINTENANCE OPERATION MAINTENANCE INTERVAL

Replace every 15,000 km (9,000 miles) MA-34,

Fuel injector See NOTE(5) EC-274

CHASSIS AND BODY MAINTENANCE

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate, T = Tighten.

MAINTENANCE OPERATION MAINTENANCE INTERVAL

Brake, clutch & automatic transmission fluid MA-45,

Brake fluid R R MA-45

Revision: 2009 March MA-10 D40

Air conditioner filter R R R R MTC-54 N

Severe driving conditions

Revision: 2009 March MA-11 D40

Maintenance for off-road driving (4X4 only)

Revision: 2009 March MA-12 D40

Revision: 2009 March MA-13 D40

With oil filter QR25DE 4.9 4-1/4 qt • Gasoline engine

Revision: 2009 March MA-14 D40

SAE Viscosity Number INFOID:0000000002979242 F

Revision: 2009 March MA-15 D40

Engine Coolant Mixture Ratio INFOID:0000000002979243

The engine cooling system is filled at the factory with a high-quality,

Engine coolant mixture Coolant temperature °C (°F)

Revision: 2009 March MA-16 D40

1. Water pump 2. Idler pulley 3. Drive belt

Revision: 2009 March MA-17 D40

1 : Air cleaner case

4. Fill radiator and reservoir tank to the specified level.

Engine coolant capacity

Reservoir tank capacity (at “MAX” level)

Revision: 2009 March MA-18 D40

Revision: 2009 March MA-19 D40

• Check reservoir tank cap/radiator cap relief pressure.

Revision: 2009 March MA-20 D40

Checking Fuel Line INFOID:0000000003291946

Changing Air Cleaner Filter INFOID:0000000003291947

Revision: 2009 March MA-21 D40

4. Drain engine oil.

Oil pan drain plug:

With oil filter change 4.9 (4-1/4)

Changing Oil Filter INFOID:0000000003291949

Revision: 2009 March MA-22 D40

3. Screw oil filter manually until it touches the installation surface,

Revision: 2009 March MA-23 D40

INSPECTION AFTER REMOVAL

Gap (Nominal) : 1.1 mm (0.043 in)

Cleaner air pressure:

• Checking and adjusting plug gap is not required between

Checking EVAP Vapor Line INFOID:0000000003291952
