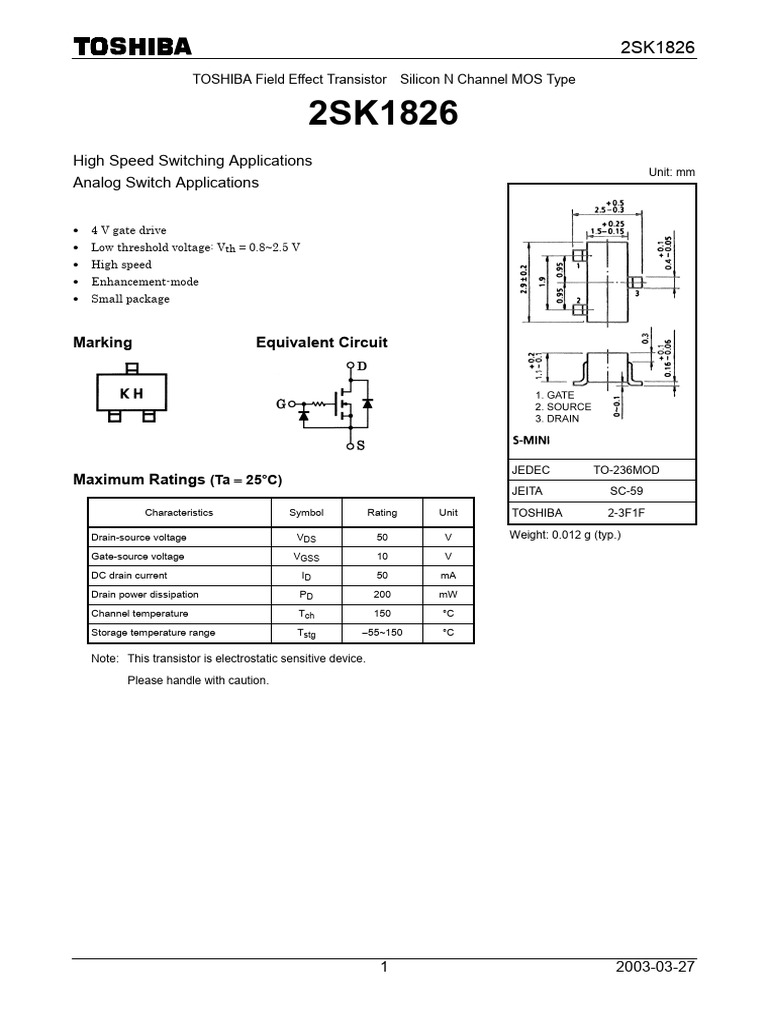

2SK1826
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type
2SK1826
High Speed Switching Applications
Unit: mm
Analog Switch Applications
• 4 V gate drive
• Low threshold voltage: Vth = 0.8~2.5 V
• High speed
• Enhancement-mode
• Small package
Marking Equivalent Circuit
JEDEC TO-236MOD
Maximum Ratings (Ta = 25°C)
JEITA SC-59
Characteristics Symbol Rating Unit TOSHIBA 2-3F1F
Drain-source voltage VDS 50 V Weight: 0.012 g (typ.)
Gate-source voltage VGSS 10 V
DC drain current ID 50 mA
Drain power dissipation PD 200 mW
Channel temperature Tch 150 °C
Storage temperature range Tstg −55~150 °C
Note: This transistor is electrostatic sensitive device.
Please handle with caution.
1 2003-03-27
2SK1826
Electrical Characteristics (Ta = 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Gate leakage current IGSS VGS = 10 V, VDS = 0 1 µA
Drain-source breakdown voltage V (BR) DSS ID = 100 µA, VGS = 0 50 V
Drain cut-off current IDSS VDS = 50 V, VGS = 0 1 µA
Gate threshold voltage Vth VDS = 5 V, ID = 0.1 mA 0.8 2.5 V
Forward transfer admittance Yfs VDS = 5 V, ID = 10 mA 20 mS
Drain-source ON resistance RDS (ON) ID = 10 mA, VGS = 4.0 V 20 50 Ω
Input capacitance Ciss VDS = 5 V, VGS = 0, f = 1 MHz 6.3 pF
Reverse transfer capacitance Crss VDS = 5 V, VGS = 0, f = 1 MHz 1.3 pF
Output capacitance Coss VDS = 5 V, VGS = 0, f = 1 MHz 5.7 pF
Turn-on time ton VDD = 5 V, ID = 10 mA, VGS = 0~4.0 V 0.11
Switching time µs
Turn-off time toff VDD = 5 V, ID = 10 mA, VGS = 0~4.0 V 0.15
Switching Time Test Circuit
2 2003-03-27
2SK1826
3 2003-03-27
2SK1826
4 2003-03-27
