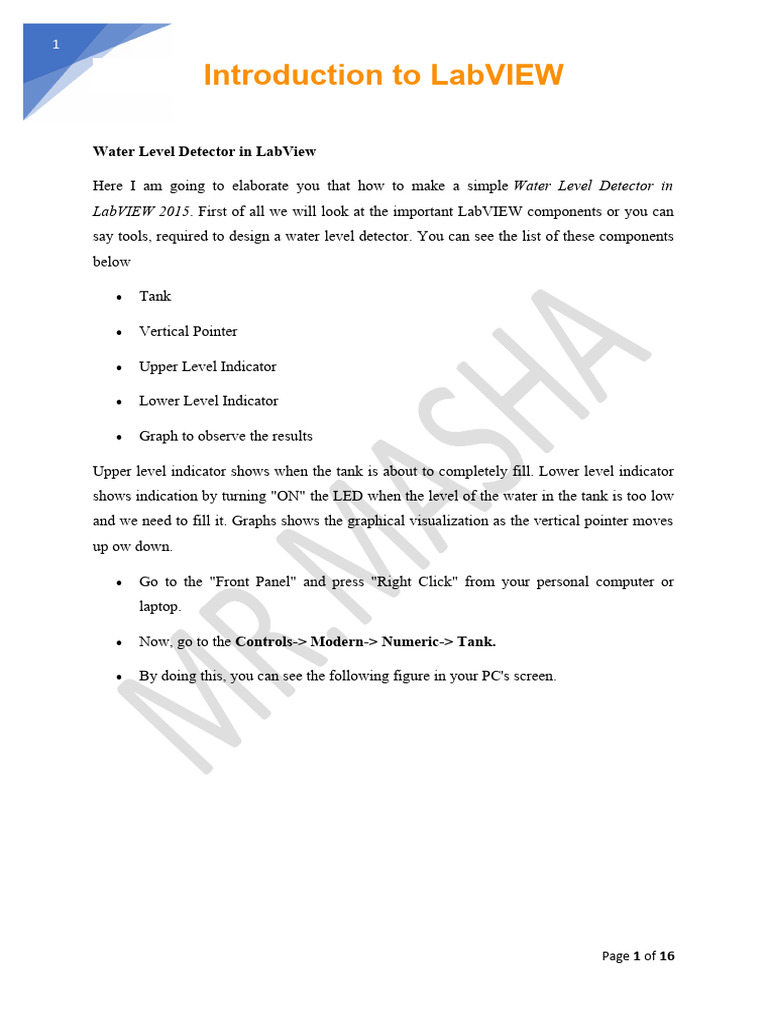

Water Level Detector in LabView

Here I am going to elaborate you that how to make a simple Water Level Detector in
LabVIEW 2015. First of all we will look at the important LabVIEW components or you can
say tools, required to design a water level detector. You can see the list of these components
below

 Tank

 Vertical Pointer

 Upper Level Indicator

 Lower Level Indicator

 Graph to observe the results

Upper level indicator shows when the tank is about to completely fill. Lower level indicator
shows indication by turning "ON" the LED when the level of the water in the tank is too low
and we need to fill it. Graphs shows the graphical visualization as the vertical pointer moves
up ow down.

 Go to the "Front Panel" and press "Right Click" from your personal computer or
laptop.

 Now, go to the Controls-> Modern-> Numeric-> Tank.

 By doing this, you can see the following figure in your PC's screen.

Page 1 of 16
2

Introduction to LabVIEW

 You can see different blocks in the above figure

 Select the encircled "Tank" and place it on the "Front Panel"

 It looks like the below figure

Page 2 of 16
3

Introduction to LabVIEW

 Now, put the "Cursor" on the tank and press "Click" you can see that the water level
changes with each different click on the tank

 You can see the above step in the figure below:

 Blue color show the level of the water in the tank.

 Now go to the "Front Panel" and then go to the Controls-> Modern-> Numeric->
Vertical Pointer.

Page 3 of 16
4

Introduction to LabVIEW
 By doing this, you can see the following figure in your PC's screen:

 You can see different blocks in the above figure.

 Select the encircled block i.e. "Vertical Pointer".

 Place this block on the "Front Panel".

 It is looking like the figure below:

Page 4 of 16
5

Introduction to LabVIEW

 Put the "Cursor" on the "Vertical Pointer", press click and then move up and down.

 It looks like the figure below:

 Blue color indicates the value or rate at which we want to fill the tank

 So now, you have selected both the tank and the vertical pointer and you can see that
it looks like the figure below:

Page 5 of 16
6

Introduction to LabVIEW

 Now press "Ctril+T"

 You can see the "Block Diagram" window is looking like the below figure

 Now, since we want to control the level of the water in the tank with the help of the
vertical pointer by adjusting it at different positions

 So, we have to build a connection between them

Page 6 of 16
7

Introduction to LabVIEW
 Take a wire from the output terminal of the vertical pointer (Slide) and connect it to
the input terminal of the tank

 The figure below exhibits the above steps

 No we have to set the upper and lower level for the less and high amount of water
indication

 We need to put two LED's, one for the upper level ndication and the second for the
lower level indication

Upper Level Indicator

 Press "Click" on the "Block Diagram" window

 Go to the Functions-> Programming-> Comparison-> Greater or Equal?

 Figure displays the above steps

Page 7 of 16
8

Introduction to LabVIEW

 Select and place this block on the "Block Diagram" window

 Connect its first input terminal with the output terminal of the "Vertical Pointer"

 Go to the second input terminal of the "Greater or Equal" press "Right Click"

 Go to the Create->Constant

 The figures below displays the above steps

Page 8 of 16
9

Introduction to LabVIEW

 Set the value of the constant as "9"

 The figure shows the adjusted value of the "Constant"

Page 9 of 16
10

Introduction to LabVIEW
 Now we have to put an LED in the "Front Panel" for the upper level indication

 Press "Right Click" on the "Front Panel"

 Go to the Controls-> Modern-> Boolean-> Square LED

 The figure below shows all of the above steps

 Select the LED and place it onto the "Front Panel" with the top right corner of the
tank

 Figure elaborates a bit more

Page 10 of 16
11

Introduction to LabVIEW

 Now,
Go to the "Block Diagram" window again

 Connect the output terminal of the "Greater or Equal" to the input terminal of the
"LED" as shown below

 Now go back to the "Front Panel"

Page 11 of 16
12

Introduction to LabVIEW
 You can see, as the vertical pointer moves up from the desired upper which is "9" in
this case, limit LED turns on

 Here is the screenshot of the "ON" LED

Lower Level Indicator

 As the upper limit is adjusted above.

 Similarly set the lower limit.

 Go to the "Block Diagram" window and press "Right Click".

 Go to Functions-> Programming-> Comparison-> Less or Equal.

 select this block and connects one of its inputs to the "Vertical Pointer".

 Go to the second input and press "Right Click".

 Go to Create-> Constant.

 Set the constant, in this case I have set it to "2" as shown below:

Page 12 of 16
13

Introduction to LabVIEW

 Place and LED in " Front Panel"

 In "Block Diagram" window connect the LED with the "Less or Equal" block

Page 13 of 16
14

Introduction to LabVIEW
 If you want that your program should no terminate until you did it by your self then
follow the below steps

 Now, Go to the "Front Panel" and press "Right Click"

 Go to Functions-> Programming-> Structures-> While Loop

 Select and place it on the "Block Diagram" window

 Place the whole program inside the "While Loop"

 Now, go to the "Front Panel" and press "Right Click"

 Go to Controls-> Modern-> Boolean-> Stop Button

 Select and place it on the "Front Panel"

 Now, go to the "Block Diagram" window

 Connect this button with the "RED" small circle at the bottom right corner of the
"While Loop" as shown below in the figure

 Complete "Block Diagram" logic of making water level detector is shown below

Page 14 of 16
15

Introduction to LabVIEW

 Complete output of the water level detector is shown below
