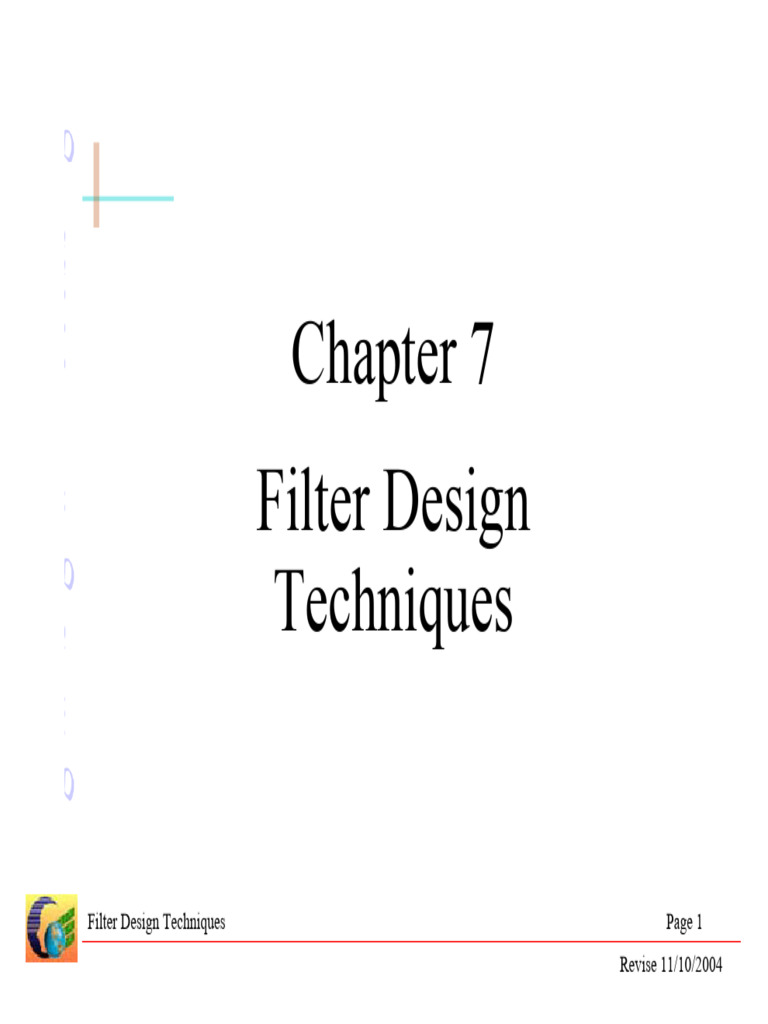

Chapter 7
Filter Design
Techniques
Filter Design Techniques Page 1

Revise 11/10/2004
Outline
Digital Signal Processing
7.0 Introduction
7.1 Design of Discrete Time IIR Filters
7.2 Design of FIR Filters

Revise 11/10/2004
7.0 Introduction
Definition of Filter
Filter is a system that passes certain

frequency components and totally rejects
all others, but in a broader context any
system that modifies certain frequencies
relative to others is called a filter.

Revise 11/10/2004
The Design of Filter
1 The specification of the desired

properties of the system.
2 The approximation of the
specification using a causal
discrete-time system.
3 The realization of the system.
In this chapter, we focus on the

second step.

Revise 11/10/2004
The relationship between specifications
of the discrete-time filter and the
effective continuous-time filter
When a discrete-time filter is to be

used for discrete-time processing of
continuous-time filter and the effective
continuous-time filter are typically given
in the frequency domain.

Revise 11/10/2004
If a effective continuous-time
system has the frequency response.
Basic system for discrete-time filtering of

continuous-time signals.

Revise 11/10/2004
In such cases, it is straightforward to

convert from specifications on the effective
continuous-time filter through the relation
ω = ΩT.That is, H(ejω) is specified over one
period by the equation :

Revise 11/10/2004
Example
Consider a discrete-time filter that is to be

used to lowpass filter a continuous-time
signal using the basic configuration.
Specifically, we want the overall system to
have the following properties when the
sampling rate is 104 samples/s (T=10-4 s) :
(1) The gain |Heff(jΩ)| should be within
∓0.01 (0.086dB) of unity (zero dB) in the
frequency band 0 ≤ Ω ≤ 2π(2000).

Revise 11/10/2004
(2) The gain should be no greater than 0.001

(-60dB) in the frequency band 2π(3000) ≤ Ω
Such a set of lowpasss pecifications on

|Heff(jΩ)| can be depicted where the limits of
tolerable approximation error are indicated
by the shaded horizontal lines.

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004
7.1 Design of Discrete-time IIR Filters
form Continuous-Time Filters
The Transformation of a continuous-time

filter into a discrete-time filter meeting
prescribed specifications. The Reasons for
Using this Method:
- The art of continuous-time IIR filter design
has developed and many results can be used.
- Many continuous-time IIR filter design
methods have relatively simple closed form
design formulas, therefore it is easy to carry
out.

Revise 11/10/2004
- The standard approximation methods for

continuous-time IIR filters can not be
directly used in discrete-time filter design.
3. Processes of design:
- Specifications transformation;
- Continuous-time filter design;
- Mapping continuous-time filter into
discrete-time filter (From s-plane to z-
plane) .

Revise 11/10/2004
7.1.1 Filter Design by Impulse Invariance
If hc(t) is the impulse response of continuous-

time filter, and hc(nTd) is equally spaced samples
of it.
The frequency response :

Revise 11/10/2004
If the continuous-time filter is bandlimited,

so that
then

Revise 11/10/2004

Revise 11/10/2004
Example
Assume that the specifications for the

designed discrete-time filter are shown in
next slide with ,δ1 = 0.10875, δ2= 0.17783,
ωp = 0.2π and ωs = 0.3π. Τhe maximum gain
in stopband is -15dB (20log10 0.17783), The
maximum deviation of 1dB below 0dB gain
in passband (20log10(1) – 20log10(1-0.10875)
=-1 dB). In this case the band pass tolerance
is between 1- δ1 and 1.

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004
The impulse invariance transformation

from CT to DT :

Revise 11/10/2004

Revise 11/10/2004
Example
Consider the design of a lowpass discrete-

time filter by applying impulse invariance to
an appropriate Butterworth continuous-time
filter. The specifications for the discrete-time
filter are :

Revise 11/10/2004
Choose Td =1 so that ω=Ω
Continuous-time Butterworth filter with

magnitude function |Hc(jΩ)|

Revise 11/10/2004
Let Ωp = 0.2π and Ωs = 0.3π
The magnitude squared function of a

Btterworth filter

Revise 11/10/2004
So that the filter design process consists

of determining the parameters N and Ωc to
meet the desired specification.

Revise 11/10/2004
Revise 11/10/2004
Since N must be integer N=6 substuting N=6

in equation slide 26. We have Ωc = 0.7032

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004
Find the poles :

Revise 11/10/2004
Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004
7.1.2 Bilinear Transformation
In order to avoid the aliasing in impulse

invariance, we introduce another method of
transformation bilinear transformation, which
use an algebraic transform between the
variables s and z. This transform is

Revise 11/10/2004
In the transformation, -∞ ≤ Ω ≤ ∞ maps

onto -π ≤ ω ≤ π ,the transformation
between the continuous-time and discrete-
time frequency variables must be
nonlinear. Therefore the use of this
technique is restricted to the situation
where the corresponding warping of the
frequency axis is acceptable.

Revise 11/10/2004
To develop the properties of the algebraic

transformationWe solve for z to obtain :
Substituting s = σ+jΩ, we obtain :

Revise 11/10/2004
If σ<0 then |z|<1 for any value of Ω.

Similarly, If σ>0 then |z|>1for all Ω.That is
if a pole of Hc(s) is in the left−half s-plane,
its image in the z-plane will be inside the
unit circle. Therefore causal stable
continuous-time filters map into causal
stable discrete-time filters.

Revise 11/10/2004
To show that the jΩ-axis of the s-plane

maps onto the unit circle, we substitute
s=jΩ :
It is clear that |z| =1 for all value of s on

the jΩ-axis

Revise 11/10/2004
To derive the relationship between the

variables ω and Ω, we substituting z= ejω.
or

Revise 11/10/2004
Equating real and imaginary parts on

both sides leads to the relations σ=0
or

Revise 11/10/2004

Revise 11/10/2004
The bilinear transformation avoids the

problem of aliasing encountered with the use of
impulse invariance because it maps the entire
imaginary axis of the s-plane onto the unit circle
in the z-plane. The price paid for this, however,
is the nonlinear compression the frequency axis.

Revise 11/10/2004
If we transform a lowpass filter

from continuous-time form into
discrete-time form, the warping of
bilinear transformation can be
demonstrated in next slide.

Revise 11/10/2004
Revise 11/10/2004

Revise 11/10/2004
If the critical frequencies (such as the

passband and stopband edge frequencies)
of continuous-time filter are prewaped
according the equation

Revise 11/10/2004
then when the continuous-time filter is

transformed to the discrete-time filter the
discrete-time filter will meet the desired
specifications.

Revise 11/10/2004
Example
Consider the specification on the discrete-

time filter :
Using the bilinear transformation, the

critical frequencies of the discrete-time filter
must be prewarped to the corresponding
continuous-time frequency

Revise 11/10/2004
For convenience we choose Td=1, since

Butterworth filter has a monotonic magnitude
response, so from above equations we obtain :

Revise 11/10/2004
The form of the magnitude-squared

function for the Butterworth filter is :
Solving for N and Ωc, we obtain :
and

Revise 11/10/2004
log [1/0.17821/1/0.8921]
N=
2 log [ tan 0.15/ tan 0.1]
The result are N = 5.30466, and take N=6,

substituting N = 6 and Ωc = 0. 7662.
For this value of Ωc, the passband

specifications are exceeded and the stopband
specifications are met exactly.

Revise 11/10/2004
In the s-plane, the 12 poles are uniformly

distributed in angle on a circle of radius
0.76622.

Revise 11/10/2004
The system function of the continuous-

time filter by selecting the left-plane poles is

Revise 11/10/2004
The magnitude, log magnitude, and group

delay of the frequency response of the
discrete-time filter are shown in next slides
At ω=0.2π, the log magnitude is -0.56dB,
and at ω=0.3π, log magnitude is exactly -15dB.

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004

Revise 11/10/2004
From above example, we know Nth-order

Butterworth filter has the following form

Revise 11/10/2004
Homework
We wish to design a lowpass digital filter

to meet the specifications :
δ1 = 0.01, δ2 = 0.001, ωp = 0.4π and ωs = 0.6π.

Revise 11/10/2004
1. Butterworth filter design by impulse

invariance.
2. Butterworth filter design by bilinear
transformation
3. Chebyshev filter design by bilinear
transformation

Revise 11/10/2004
