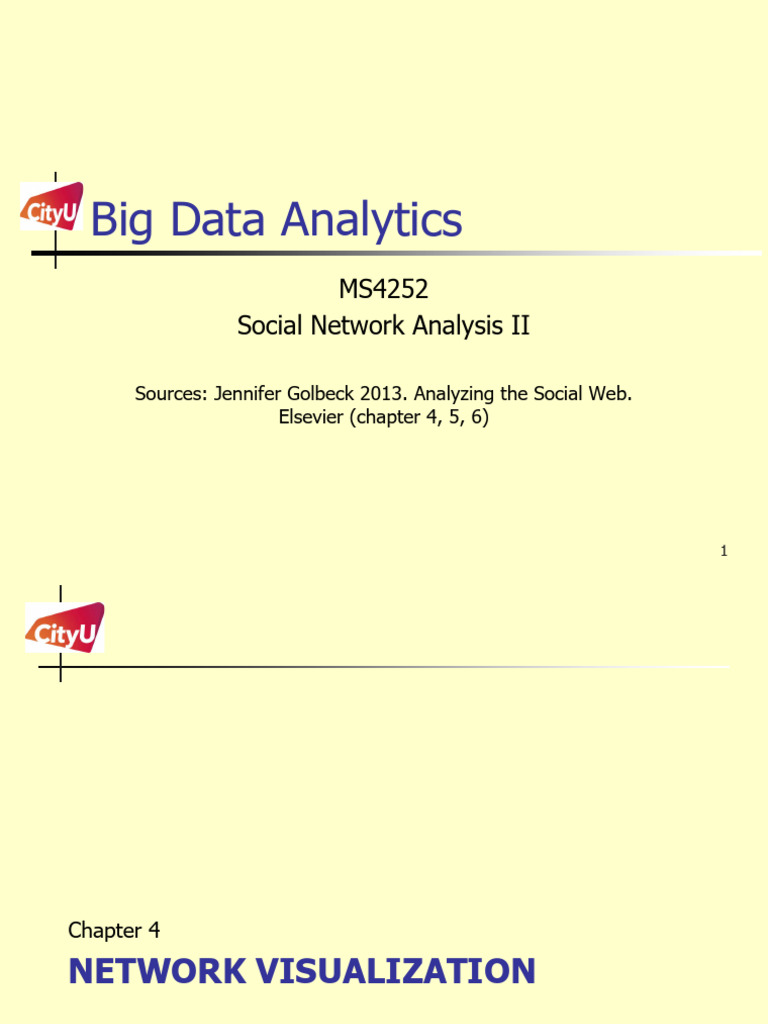

MS4252
Social Network Analysis II
1
Chapter 4
NETWORK VISUALIZATION
2
Information Visualisation
n Humans are wired to find pattern visually.
n Having natural ability to see anomalies, patterns,
clusters, and changes.
n Recognize many of these things without consciously
looking at them.
3
Information Visualisation
n In visual, data patterns can be recognized that may
otherwise be difficult to see in lists of numbers,
adjacency lists, or other textual representations of data.
4
Information Visualization
n Take advantage of humans’ natural abilities to see
Ø Patterns
Ø Anomalies
Ø Relationships
Ø Trend
Ø Clusters
n Overview of the complex data and explore more from
visualization!
n Visualizations are a qualitative way to begin
understanding the data.
Ø From there, quantitative experiments or analysis can follow to
explain any insights
5
Graph Layout
n Network is made up of nodes and edges.
n How to lay-out is critical to what an observer is able to
understand about a network.
6
What makes a good visualization?
Criteria from Dunne and Shneiderman (2009)
7
Random layout
8
Circular layout
9
Grid layout
10
Force directed layout
The layout is dynamic and determined by the connections
between the nodes.
11
Visualizing network features
n Labels (node label and edge label; hard to show all the
labels even for small network)
12
Size, Shape, and color
n Showing other attributes of nodes and edges in graphs
can be easier.
n Categorical or quantitative attributes are
particularly easy to show by adjustments in size,
shape, or colour.
13
Node size and color
n A graph indicating degree with node color and clustering
coefficient with node size
14
Edge weight
n Indicate the strength of a relationship, the
frequency of communication, or other factors.
15
Large graph properties (clusters)
n Example: Youtube videos, where nodes represent videos
and edges connected video that share a common tag!
16
Scale Issues
n Too many nodes (~ 10, 000 or more) or edges are
almost impossible to visualize.
17
Example: Senate Voting Records
n Density can be a problem even the number of nodes is
small.
Ø Shows a network of members of the U.S. Senate.
Ø Senators voted
Ø There are only 100 nodes but over 4,100 edges
Ø Edge indicates the senators have voted the same way in
at least 40% of the time.
18
Filtering for visual patterns
n One way to compensate for this is to filter the
networks when possible.
n Filter out the edges based on the weight
n Based on how many times senators have voted
together (at least two-thirds of the bills)
19
Visualization Tools
n Gephi
n R – we will use R!
n Python
20
Chapter 5
TIE STRENGTH
21
Tie Strength
n Social relationships are complicated.
22
Tie Strength
n Measure of the strength of a relationship
between people (Mark Granovetter, 1973)
23
Tie Strength
n Two main types:
Ø Strong ties are rare, trusted and are usually family
members or very close friends.
u Usually people a person sees frequently, with whom one
shares personal details of one’s life, and for whom the
person will do and expect favours.
Ø Weak ties are much more common and include
acquaintances and more casual friendships.
u Co-workers or people who you know from a class, but you
don’t spend a lot of time with
24
The strength of Weak Tie
n Tie strength is a very important factor to
consider in social network analysis.
n Consider the flow of information through a
network
Ø Weak ties often connect to diverse groups of people
with different perspectives
Ø These ties allow information to move throughout the
network
n E.g. A disease.
Ø Someone is more likely to catch a cold from a weak tie
Ø But because of the high level of close contact, it will
likely spread quickly to one’s strongest connections.
25
The strength of Weak Tie
n NOT to say that tie strength is the only factor
influencing trust, reliability, and closeness in
social networks.
26
Replicating Migram’s `six degrees’
n Send booklets from original participants to a
target, unknown person.
27
The benefit of weak tie
n Connect people to different social circles,
exposing them to more information.
n A person has more weak ties than strong ties.
28
Tie strength and network structure
n To analyse tie strength in social network
analysis, the network must include relationship
information.
29
Network Structure- forbidden triad
n What does that tell us about the relationship with
Bob and Chuck?
Ø Cannot draw any absolute conclusions
Ø Some sort of tie exists between B and C, either strong
or weak.
n Counter-example: A is married to B and having
an affair with C?
30
Network Structure – Bridge
n Many Forbidden triad can be found. i.e. PFO,
PFH, and PFN.
n If there is a weak tie P-O, the edge between P
and F would no longer be a bridge.
n Conclusion: no strong tie is a bridge!!!
31
Tie Strength and Propagation
n Tie strength
Ø Strong tie – more trusted
Ø Weak tie – wider spread
n Network propagation
Ø a phenomenon where things spread through a network
32
Chapter 6
TRUST
33
Definition – trust
n Trust is a relationship with which we are all
familiar, but which we rarely define or describe。
Ø Load money
u We expect the person will pay us back
Ø Ask for a recommendation
u The person's recommendation will match our taste and the
movie or restaurant or hotel will be good
Ø Tell a secret
u The person will keep a secret, not tell others, and not
judge us for it
Ø Ask for a recommendation or reference
u The recommendation will be positive and help us get the
position we are applying to
34
General definition
n Trust is putting oneself in a vulnerable position
based on the belief that another person will act
with our best interest in mind.
35
Development of trust
n Calculation-based trust:
Ø A rational decision about whether to trust someone,
where the costs and benefits of trusting are factored in.
n Personal-based trust:
Ø A person's propensity to trust, developed over the
course of their life.
n Cognition-based trust:
Ø The instant rapport and trust that can develop between
people who share similar backgrounds, beliefs, and
values
n Institution-based trust:
Ø How trust may form in the presence of guarantees and
protections offered by an institution.
36
Asymmetry
n Trust is not necessarily identical in both directions.
37
Context and Time
n Trust will vary among contexts
Ø I may trust Bob to recommend a restaurant, but not to
repair my car.
n Trust can also transfer between contexts
Ø I may build trust in a co-worker that is entirely in work
context, but later trust that person to recommend a
plumber.
38
Measuring trust
n Measuring trust is important but difficult.
39
Trust in social media
n Apply these same estimates to people we know
online.
n Example: eBay
40
Trust inference
n Infer trust between two unknown people using
network structure.
n If A-B have trust, and B-C have trust, how much
should A trust C?
𝑡!# ?
A B C
𝑡!" 𝑡"#
41
Trust inference algorithm
n Network-based Inference
Ø Use network structure to infer trust
Ø Example approach
u Find neighbours who are trusted.
u Ask them how much to trust the stranger.
u Average their responses weighted by how much we trust
each neighbour.
u Neighbours repeat this if they do not know the stranger.
42
Network based inference
n Inferring over many paths?
n Favor highly trusted connections and short paths over
long ones
43
Similarity based trust inference
n Research has shown that people who trust one
another tend to be similar (Ziegler and Golbeck,
2007).
44
Application of Trust
n Once trust is computed, how can we use it?
n Filtering information
Ø e.g. show reviews only from the most trusted people
45
Application of Trust
n Sorting Information
Ø Show Facebook posts from my most trusted friends
first, and least trusted friends last
n Aggregating Information
46
See You!!!
