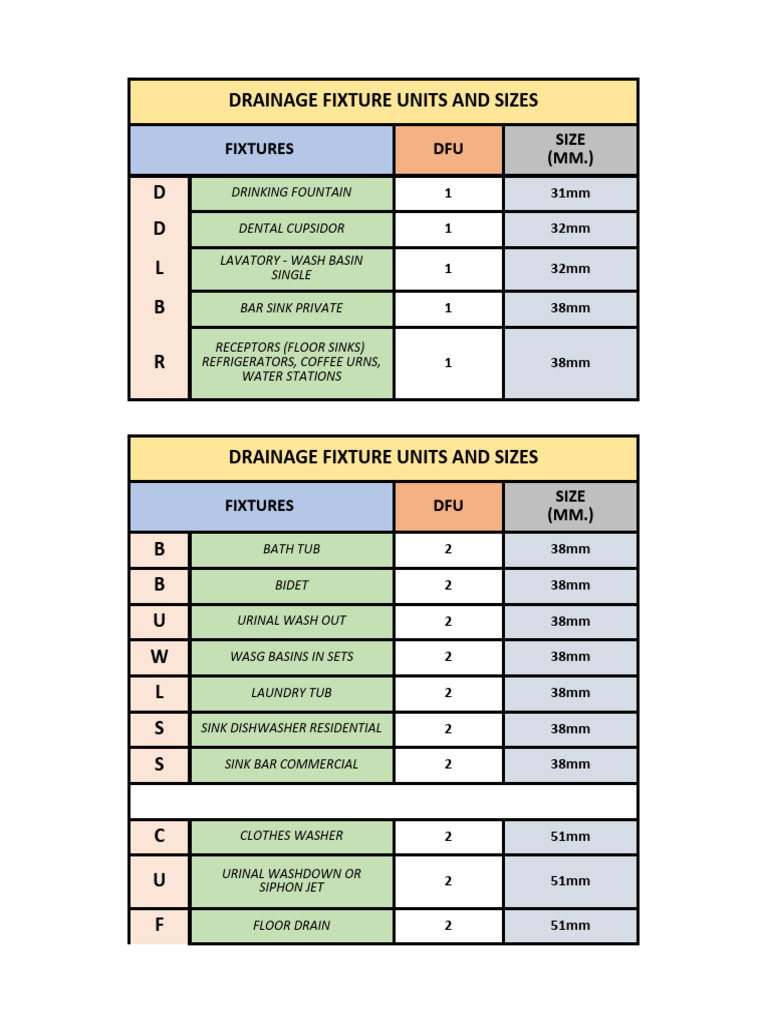

DRAINAGE FIXTURE UNITS AND SIZES

SIZE
FIXTURES DFU (MM.)
D DRINKING FOUNTAIN 1 31mm

D DENTAL CUPSIDOR 1 32mm

LAVATORY - WASH BASIN

L SINGLE 1 32mm

B BAR SINK PRIVATE 1 38mm

RECEPTORS (FLOOR SINKS)

R REFRIGERATORS, COFFEE URNS, 1 38mm
WATER STATIONS

DRAINAGE FIXTURE UNITS AND SIZES

FIXTURES DFU SIZE

(MM.)
B BATH TUB 2 38mm

B BIDET 2 38mm

U URINAL WASH OUT 2 38mm

W WASG BASINS IN SETS 2 38mm

L LAUNDRY TUB 2 38mm

S SINK DISHWASHER RESIDENTIAL 2 38mm

S SINK BAR COMMERCIAL 2 38mm

C CLOTHES WASHER 2 51mm

URINAL WASHDOWN OR
U SIPHON JET 2 51mm

F FLOOR DRAIN 2 51mm

S SHOWER GANG 2 51mm

S SHOWER SINGLE STALL 2 51mm

DRAINAGE FIXTURE UNITS AND SIZES

FIXTURES DFU SIZE

(MM.)
COMMERCIAL OR
C INDUSTRIAL SINKS 3 38mm

INTERCEPTORS FOR
I GREASE, OIL 3 51mm

RECEPTORS FOR COMMERCIAL

R SINKS, DISHWASHERS, AIR 3 51mm
WASHERS

U URINAL WALL MOUNTED ONLY 3 51mm

S SERVICE SINKS 3 51mm

W WATER CLOSET PRIVATE 4 76mm

W WATER CLOSET PUBLIC 6 76mm

INTERCEPTORS FOR SAND,

I AUTOWASH 6 76mm

MOBILE HOME PARK

M TRAPS 6 76mm

F FLUSHING RIM SINK CLINIC 6 76mm

U URINAL PEDESTAL 6 76mm

U URINAL BLOWOUT 6 76mm
