ALUMINUM ELECTROLYTIC CAPACITOR

SURFACE MOUNT TYPE

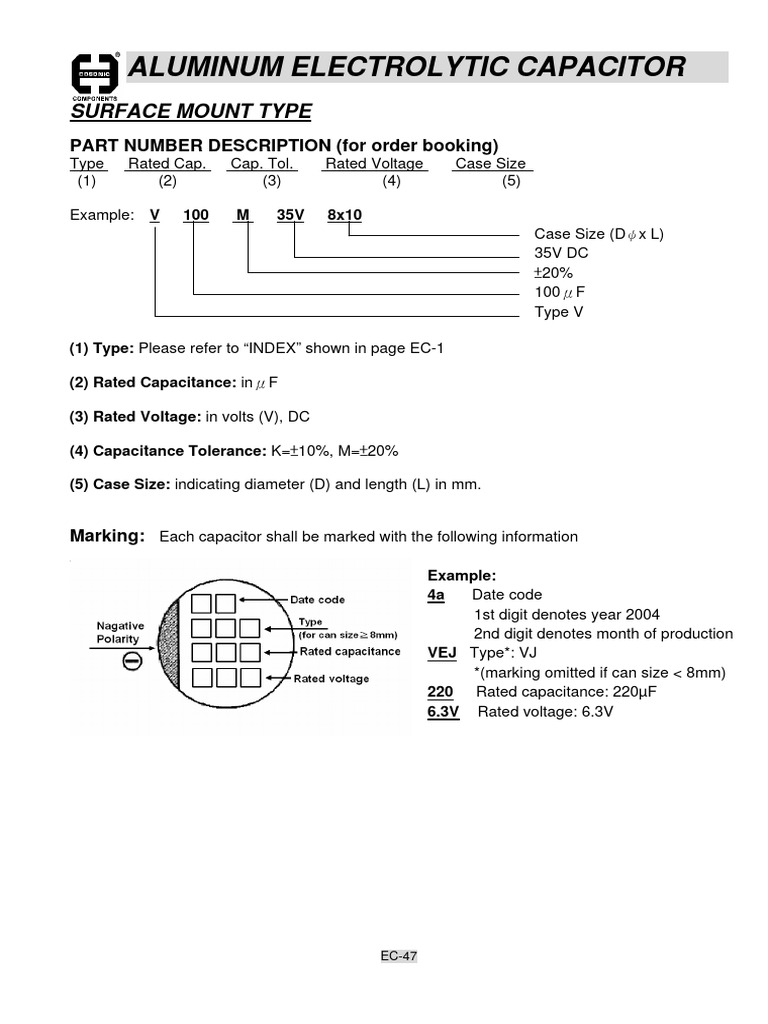

PART NUMBER DESCRIPTION (for order booking)
Type Rated Cap. Cap. Tol. Rated Voltage Case Size
(1) (2) (3) (4) (5)

Example: V 100 M 35V 8x10

Case Size (Dψx L)
35V DC
±20%
100μF
Type V

(1) Type: Please refer to “INDEX” shown in page EC-1

(2) Rated Capacitance: inμF

(3) Rated Voltage: in volts (V), DC

(4) Capacitance Tolerance: K=±10%, M=±20%

(5) Case Size: indicating diameter (D) and length (L) in mm.

Marking: Each capacitor shall be marked with the following information

Example:
4a Date code
1st digit denotes year 2004
2nd digit denotes month of production
VEJ Type*: VJ
*(marking omitted if can size < 8mm)
220 Rated capacitance: 220µF
6.3V Rated voltage: 6.3V

EC-47
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V
SURFACE MOUNT TYPE, 85℃ 2000 HOURS

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-40℃ to +85℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V 63V 100V
max at 120 Hz, 20℃ Tanδ(max) 0.28 0.24 0.20 014 0.12 0.10 0.10 0.10
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V 50V 63V 100V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 4 3 2 2 2 2 2 2
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3 3 3 3
Load Life Test The capacitor shall meet following limits:
(restored to 20℃, after 2000 Capacitance Change ≦±20% of initial value
hours application of the rated Leakage Current ≦ specified maximum value
voltage at 85℃) Dissipation Factor ≦ 200% of specified maximum value
Shelf Life Test
(after 1000 hours exposing
Same test results as of load life test
at 85℃ without voltage
applied)
w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up
Under 16V 0.8 1.0 1.15 1.25
Ripple Current &
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V ~ 63V 0.8 1.0 1.35 1.50
100V 0.7 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-48
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V
SURFACE MOUNT TYPE, 85℃ 2000 HOURS

Unit: mm
ψD L A B C W P±0.2
8 6.5±0.3 8.4 8.4 3.0 0.5 TO 0.8 2.3
8 10±0.5 8.4 8.4 3.0 0.7 TO 1.1 3.1
10 10±0.5 10.4 10.4 3.3 0.7 TO 1.1 4.7

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 85℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V 63V 100V

μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
10 8X6.5 75 8x10 94
22 8x6.5 155 8x10 139 10x10 189
33 8x6.5 155 8x6.5 155 8x10 139 10x10 189
47 8x6.5 155 8x6.5 155 8x10 252 10x10 226
68 10x10 226
100 8x6.5 155 8x6.5 155 8x6.5 155 8x10 252 10x10 458
220 8x6.5 155 8x6.5 155 8x10 252 8x10 252 10x10 458
330 8x6.5 155 8x10 252 8x10 252 10x10 458
470 8x10 252 10x10 458 10x10 458
1000 10x10 458 10X10 458

EC-49
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V2
SURFACE MOUNT TYPE, 85℃ 2000 HOURS
5.5MM HEIGHT

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-40℃ to +85℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 4V 6.3V 10V 16V 25V 35V 50V
max at 120 Hz, 20℃ Tanδ(max) 0.42 0.28 0.24 0.20 0.14 0.12 0.10
Impedance Ratio at W.V. 4V 6.3V 10V 16V 25V 35V 50V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 7 3 3 2 2 2 2
Z@ -40℃ / Z@ +20℃ 15 8 5 4 3 3 3
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 2000 Capacitance Change ≦±20% of initial value (4W.V.: ±30%)
hours application of the rated Dissipation Factor ≦ 200% of specified maximum value (4W.V.: 300%)
voltage at 85℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃
without voltage applied)
w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up
Ripple Current & Under 16V 0.8 1.0 1.15 1.25
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V ~ 63V 0.8 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-50
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V2
SURFACE MOUNT TYPE, 85℃ 2000 HOURS 5.5MM HEIGHT

Unit: mm
Dψ L A B C W P±0.2
4.0 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5.0 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 85℃ 120 Hz):
W.V. 4V 6.3V 10V 16V 25V 35V 50V

μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
0.1 4x5.3 3
0.22 4x5.3 5
0.33 4x5.3 6
0.47 4x5.3 7
1.0 4x5.3 10
2.2 4x5.3 15
3.3 4x5.3 19
4.7 4x5.3 19 4x5.3 20 4x5.3 26
10 4x5.3 23 4x5.3 26 5x5.3 32 5x5.3 34 6.3x5.3 44
22 4x5.3 31 5x5.3 39 5x5.3 44 6.3x5.3 55 6.3x5.3 59
33 4x5.3 31 5x5.3 44 5x5.3 48 6.3x5.3 63 6.3x5.3 67
47 4x5.3 37 5x5.3 52 6.3x5.3 67 6.3x5.3 75
100 5x5.3 63 6.3x5.3 89 6.3x5.3 98 6.3x5.3 103
220 6.3x5.3 110 6.3x5.3 120

EC-51
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V3
SURFACE MOUNT TYPE, 85℃ 2000 HOURS
5.5MM, 8MM HEIGHT

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-40℃ to +85℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V
max at 120 Hz, 20℃ Tanδ(max) 0.42 0.32 0.26 0.18 0.14 0.12
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V 50V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 4 3 2 2 2 2
Z@ -40℃ / Z@ +20℃ 8 8 5 5 4 4
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 2000 Capacitance Change ≦±30% of initial value
hours application of the rated Dissipation Factor ≦ 300% of specified maximum value
voltage, at 85℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃
without voltage applied)
w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up
Ripple Current & Under 16V 0.8 1.0 1.15 1.25
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V ~ 63V 0.8 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-52
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE V3
SURFACE MOUNT TYPE, 85℃ 2000 HOURS; 5.5MM, 8MM HEIGHT

Unit: mm
Dψ L A B C W P±0.2
4.0 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5.0 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0
6.3 7.7±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 85℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V

μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
4.7 4x5.3 20
10 4x5.3 27 5x5.3 34
22 4x5.3 30 6.3x5.3 47 6.3x5.3 59
33 4x5.3 33 5x5.3 54 6.3x5.3 67 6.3x7.7 82
47 4x5.3 34 5x5.3 50 6.3x5.3 75 6.3x7.7 98
68 5x5.3 54 6.3x5.3 90 6.3x7.7 109
100 5x5.3 58 5x5.3 65 6.3x7.7 124
150 6.3x5.3 83 6.3x5.3 109
220 63x7.7 130
330 63x7.7 139

EC-53
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VS
SURFACE MOUNT TYPE, 105℃ 1000 HOURS
5.5MM HEIGHT

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-55℃ to +105℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V
max at 120 Hz, 20℃ Tanδ(max) 0.30 0.26 0.22 0.16 0.13 0.12
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V 50V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 4 3 2 2 2 2
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3 3
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 1000 Capacitance Change ≦±20% of initial value
hours application of the rated Dissipation Factor ≦ 200% of specified maximum value
voltage at 105℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃
without voltage applied)
w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up
Ripple Current & Under 16V 0.8 1.0 1.15 1.25
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V 0.8 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-54
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VS
SURFACE MOUNT TYPE, 105℃ 1000 HOURS 5.5MM HEIGHT

Unit: mm
Dψ L A B C W P±0.2
4.0 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5.0 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V
μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
0.1 4x5.3 2
0.22 4x5.3 3

0.33 4x5.3 4

0.47 4x5.3 5

1 4x5.3 7

2.2 4x5.3 10

3.3 4x5.3 12

4.7 4x5.3 12 4x5.7 14 5x5.3 17

10 4x5.3 15 4x5.3 16 5x5.3 21 5x5.7 23 6.3x5.7 26

22 4x5.3 21 5x5.3 25 5x5.3 28 6.3x5.3 36 6.3x5.7 50 6.3x5.7 51
33 5x5.3 30 6.3x5.3 31 6.3x5.3 40 6.3x5.3 44
47 6.3x5.3 36 6.3x5.3 43 6.3x5.3 47 6.3x5.3 60
100 6.3x5.3 61 6.3x5.3 65 6.3x5.3 70

EC-55
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VL
SURFACE MOUNT TYPE 105℃ 2000 HOURS,
6MM HEIGHT

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-55℃ to +105℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V
max at 120 Hz, 20℃ Tanδ(max) 0.32 0.28 0.24 018 0.15 0.14
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V 50V
Low Temperature at 120 Hz Z@ -25℃/ Z@ +20℃ 4 3 2 2 2 2
Z@ -40℃/ Z@ +20℃ 8 5 4 3 3 3
The capacitor shall meet following limits:
6.3V ≦±30% of initial value
Load Life Test Capacitance Change 10 ~16V ≦±25% of initial value
(restore to 20℃, after 2000 25 ~ 100V ≦±20% of initial value
hours application of the rated 6.3 ~16V ≦±300% of specified value
Dissipation Factor
voltage at 105℃) 25 ~ 100V ≦±200% of specified value
Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, exposing
Same test results as of load life test
1000 hours at 105℃without
voltage applied)
w.v. Freq 50/60 Hz 120 Hz 1KHz 10KHz up
Under 16V 0.8 1.0 1.15 1.25
Ripple Current &
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
0.1~ 0.33μF 0.5 1.0 1.35 1.50
50V
4.7~ 10μF 0.7 1.0 1.35 1.50
Standards Satisfies Characteristic W of JIS C 5101-1, -18

EC-56
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VL
SURFACE MOUNT TYPE, 105℃ 2000 HOURS, 6MM HEIGHT

Unit: mm
Dψ L A B C W P±0.2
4.0 5.7±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5.0 5.7±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.7±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V
μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
0.1 4x5.7 2
0.22 4x5.7 3
0.33 4x5.7 4
0.47 4x5.7 5
1 4x5.7 10
2.2 4x5.7 16
3.3 4x5.7 18
4.7 4x5.7 13 4x5.7 15 5x5.7 22
10 4x5.7 16 5x5.7 23 5x5.7 25 6.3x5.7 30
22 5x5.7 30 6.3x5.7 38 6.3x5.7 50
33 6.3x5.7 40 6.3x5.7 46
47 6.3x5.7 43 6.3x5.7 50 6.3x5.3 56
100 6.3x5.7 61

EC-57
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VB
SURFACE MOUNT TYPE, BI-POLAR

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-40℃ to +85℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V
max at 120 Hz, 20℃ 4φ 0.35 0.30 0.25 0.25 0.25 0.25
Tanδ(max)
5~6.3φ 0.30 0.25 0.20 0.15 0.15 0.15
W.V. 6.3V 10V 16V 25V 35V 50V
Impedance Ratio at
Z@ -25℃ / Z@ +20℃ 3 3 2 2 2 2
Low Temperature at 120 Hz
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3 3
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 2000 Capacitance Change ≦±20% of initial value
hours application of the rated Dissipation Factor ≦ 200% of specified maximum value
voltage, at 85℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃
without voltage applied)
w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up
Ripple Current & Under 16V 0.8 1.0 1.15 1.25
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V 0.8 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-58
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VB
SURFACE MOUNT TYPE, BI-POLAR

Unit: mm
Dψ L A B C W P±0.2
4.0 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5.0 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 85℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V

μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
0.1 4x5.3 2.3
0.22 4x5.3 3.3
0.33 4x5.3 4.1
0.47 4x5.3 4.9
1.0 4x5.3 7.2
2.2 4x5.3 10 5x5.3 14
3.3 4x5.3 13 5x5.3 17 5x5.3 17
4.7 4x5.3 14 5x5.3 20 5x5.3 21 6.3x5.3 24
10 4x5.3 18 5x5.3 26 6.3x5.3 35 6.3x5.3 35
22 5x5.3 27 6.3x5.3 40 6.3x5.3 45
33 6.3x5.3 45 6.3x5.3 50 6.3x5.3 55
47 6.3x5.3 54

EC-59
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VJ
SURFACE MOUNT TYPE, 105℃ 2000 HOURS

SPECIFICATIONS:
Item Characteristic
Operating Temperature
-55℃ to +105℃
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
(I=DC Current in μA max.) rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) W. V. 6.3V 10V 16V 25V 35V 50V 63V 100V
max at 120 Hz, 20℃ Tanδ(max) 0.30 0.26 0.22 016 0.13 0.12 0.11 0.10
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V 50V 63V 100V
Low Temperature at 120 Hz Z@ -25℃/ Z@ +20℃ 4 3 2 2 2 2 2 2
Z@ -40℃/ Z@ +20℃ 8 5 4 3 3 3 3 3
The capacitor shall meet following limits:
6.3V ≦±30% of initial value
Load Life Test Capacitance Change 10 ~16V ≦±25% of initial value
(restore to 20℃, after 2000 25 ~ 100V ≦±20% of initial value
hours application of the rated 6.3 ~16V ≦±300% of specified value
Dissipation Factor
voltage at 105℃) 25 ~ 100V ≦±200% of specified value
Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, exposing
Same test results as of load life test
1000 hours at 105℃without
voltage applied)
w.v. Freq 50/60 Hz 120 Hz 1KHz 10KHz up
Under 16V 0.8 1.0 1.15 1.25
Ripple Current &
Frequency Multipliers 25V~ 35V 0.8 1.0 1.25 1.40
50V ~ 63V 0.8 1.0 1.35 1.50
100V 0.7 1.0 1.35 1.50
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-60
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VJ
SURFACE MOUNT TYPE, 105℃ 2000 HOURS

Unit: mm
Dψ L A B C W P±0.2
8 6.5±0.3 8.4 8.4 3.4 0.5 to 0.8 2.3
8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃ 120 Hz):
W.V. 6.3V 10V 16V 25V 35V 50V 63V 100V
μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.
10 8X10 67
22 8x6.5 110 8X10 99 10X10 133
33 8x6.5 110 8X10 178 10X10 160
47 8X6.5 110 8X10 178 8X10 178 10X10 160
8X6.5 110
100 8X6.5 110 8X10 178 10X10 324 10X10 324
8X10 178
8X10 240
220 8X10 178 8X10 178 10X10 324 10X10 324
10X10 324
330 8X10 178 10X10 324 10X10 324 10X10 324
470 10X10 324 10X10 324 10X10 324

EC-61
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VH
SURFACE MOUNT TYPE, 105℃ 2000 HOURS
LOW IMPEDANCE

SPECIFICATIONS:
Item Characteristic
Operating Temperature Range -55℃ to +105℃
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application
(I=DC Current in μA max.) of rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) max W. V. 6.3V 10V 16V 25V 35V
at 120 Hz, 20℃ Tanδ(max) 0.30 0.26 0.22 016 0.13
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 4 3 2 2 2
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 2000 Capacitance Change ≦±20% of initial value
hours application of the rated Dissipation Factor ≦ 200% of specified maximum value
voltage, at 105℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃ without
voltage applied)
Ripple Current & w.v. Freq 50/60 Hz 120 Hz 1KHz 10KHz up
Frequency Multipliers
6.3V ~ 35V 0.64 0.8 0.93 1.0
Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-62
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VH
SURFACE MOUNT TYPE, 105℃ 1000 HOURS, LOW IMPEDANCE

Unit: mm
Dψ L A B C W P±0.2
8.0 10 ±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1
10 10 ±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

CASE SIZE (DxL mm), PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃100K Hz) AND
IMPEDANCE (Ohm at 100K Hz, 20℃):
W.V. 6.3V 10V 16V 25V 35V
μF DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C.
47 8x10 0.45 369
100 8x10 0.45 369 10x10 0.25 553
150 8x10 0.45 369
8x10 0.45 369
220 8x10 0.45 369 10x10 0.25 553
10x10 0.25 553
8x10 0.45 369
330 8x10 0.45 369 10x10 0.25 553
10x10 0.25 553
8x10 0.45 369
470 8x10 0.45 369 10x10 0.25 553
10x10 0.25 553
820 10x10 0.25 553
1000 10x10 0.25 553

EC-63
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VZ
SURFACE MOUNT TYPE, 105℃ 1000 HOURS
LOW IMPEDANCE

SPECIFICATIONS:
Item Characteristic
Operating Temperature Range -55℃ to +105℃
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application
(I=DC Current in μA max.) of rated working voltage. Where, C =Rated Capacitance (μF)
V =Rated Working Voltage (V DC)
Dissipation Factor ( tanδ) max W. V. 6.3V 10V 16V 25V 35V
at 120 Hz, 20℃ Tanδ(max) 0.28 0.24 0.20 016 0.14
Impedance Ratio at W.V. 6.3V 10V 16V 25V 35V
Low Temperature at 120 Hz Z@ -25℃ / Z@ +20℃ 4 3 2 2 2
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3
Load Life Test The capacitor shall meet following limits:
(restore to 20℃, after 1000 Capacitance Change ≦±25% of initial value
hours application of the rated Dissipation Factor ≦ 200% of specified maximum value
voltage, at 105℃) Leakage Current ≦ specified maximum value
Shelf Life Test
(restore to 20℃, after 1000
Same test results as of load life test
hours exposing at 85℃ without
voltage applied)
Ripple Current & w.v. Freq 50/60 Hz 120 Hz 1KHz 10KHz up
Frequency Multipliers
6.3V ~ 35V 0.64 0.8 0.93 1.0
Standards Satisfies characteristic of JIS C 5101-1, -18

EC-64
 ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VZ
SURFACE MOUNT TYPE, 105℃ 1000 HOURS, LOW IMPEDANCE

Unit: mm
Dψ L A B C W P±0.2
8.0 10 ±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1
10 10 ±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

CASE SIZE (DxL mm), PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃100K Hz) AND
IMPEDANCE (Ohm at 100K Hz, 20℃):
W.V. 6.3V 10V 16V 25V 35V
μF DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C. DxL Imp. R.C.
4.7 4X5.3 3.20 65 4X5.3 3.20 65
10 4X5.3 3.20 65 4X5.3 3.20 65 5x5.3 1.50 110 5X5.3 1.50 110

22 4X5.3 3.20 65 5x5.3 1.50 110 5x5.3 1.50 110 6.3X5.3 0.85 170 6.3X5.3 0.85 170

33 5x5.3 1.50 110 5x5.3 1.50 110 6.3X5.3 0.85 170 6.3X5.3 0.85 170 6.3X5.3 0.85 170

47 5x5.3 1.50 110 6.3X5.3 0.85 170 6.3X5.3 0.85 170 6.3X5.3 0.85 170 6.3X5.3 0.50 255

100 6.3X5.3 0.85 170 6.3X5.3 0.85 170 6.3X5.3 0.85 170 6.3X7.7 0.50 255
150 6.3X7.7 0.50 255
220 6.3X7.7 0.50 255

EC-65
 ALUMINUM ELECTROLYTIC CAPACITOR
Unit: mm
Case Land Size
SURFACE MOUNT TYPE Dφx L
Code X Y W
Recommended pad pattern and size
4x5.3 D55 1.6 2.6 1.0
4x5.7 D60 1.6 2.6 1.0
5x5.3 E55 1.6 3.0 1.4
5x5.7 E60 1.6 3.0 1.4
6.3x5.3 F55 1.6 3.5 1.9
6.3x5.7 F60 1.6 3.5 1.9
6.3x7.7 F80 1.6 3.5 1.9
8x6.5 G68 1.6 4.0 2.1
Recommended soldering methods
8x10 G10 2.5 3.5 3.0
10x10 H10 2.5 4.0 4.0

(1) Reflow soldering condition.

The following temperature profile condition should be
observed for soldering. (For higher temperature,
pleases contact us after measuring the capacitor’s
product temperature profile at your side.)

Product temperature will rise slower as the product

size gets bigger. It is not necessary to adjust the reflow
furnace temperature setting according to the product
size, for example, φ4 andφ10 products can be mixed
on one PCB for reflowing.

(2) Soldering precautions

1. Elements related to the reflow soldering temperature
*Product size: The temperature rises slower as the
size gets bigger.
*Product location: The center part of the PCB tends
to have a lower temperature than the PCB edges.
*PCB size: The PCB temperature rises slower as the
area and / or thickness of the PCB gets greater.

2. Repeated reflowing
*Avoid reflowing twice if possible.
*If repeated reflowing is unavoidable, contact us after
measuring the first and the second reflow profiles
and reflow interval at your side.
*Do not attempt to reflow three times.

3. Soldering with soldering iron

Observe the following conditions.
*The iron tip temperature : 350 ±5°C
*Soldering time: 3 seconds.

EC-67
