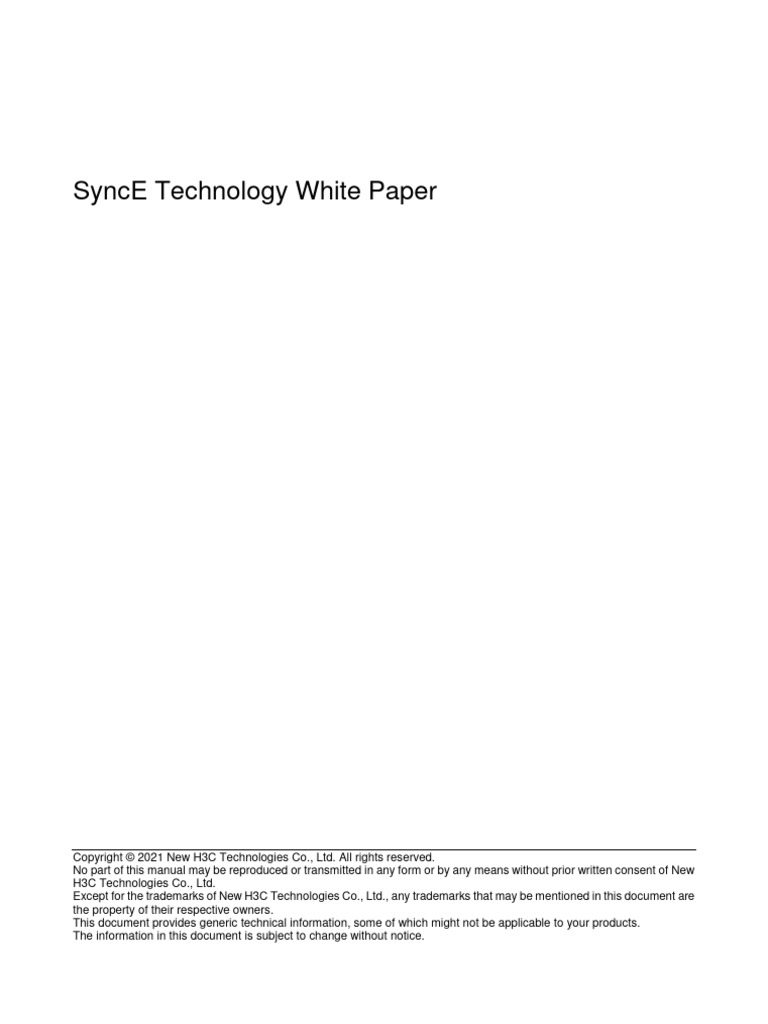

SyncE Technology White Paper

Copyright © 2021 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New
H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are
the property of their respective owners.
This document provides generic technical information, some of which might not be applicable to your products.
The information in this document is subject to change without notice.
Contents
Overview ······································································································· 1
Technical background ········································································································································ 1
Comparison of time synchronization solutions ··································································································· 1
Benefits ······························································································································································ 2
Implementation ······························································································ 2
Time synchronization basics ······························································································································ 2
Frequency synchronization ························································································································ 2
Phase synchronization ······························································································································· 3
Clock sources····················································································································································· 3
Clock reference selection ··································································································································· 3
About automatic clock reference selection································································································· 4
Automatic clock reference selection process ····························································································· 5
Synchronization mechanism ······························································································································ 6
System clock working mode······························································································································· 7
Avoiding timing loops ········································································································································· 7
Avoiding timing loops on a direct link ········································································································· 8
Avoiding timing loops on a ring network····································································································· 8
Application scenarios ····················································································· 9
Network frequency synchronization through SyncE ·························································································· 9
SyncE frequency synchronization + PTP phase synchronization ···································································· 10
References ·································································································· 11

i
Overview
Technical background
The correct operation of many services on the communication network requires network time
synchronization. Time synchronization includes both frequency synchronization and phase
synchronization. The network devices on a network are time synchronized only when their frequency
and phase differences are maintained within a reasonable error range.
Network services have different requirements for time synchronization accuracy. Among them, the
wireless access service has the highest requirements, requiring that the frequencies of wireless
base stations are synchronized within certain accuracy. If the wireless base stations do not reach the
synchronization accuracy, the mobile endpoints go offline easily when moving between base
stations and might fail to connect to the Internet in severe cases. Table 1 describes the requirements
of different wireless technologies for time synchronization accuracy.
Table 1 Requirements of wireless technologies for time synchronization accuracy

Frequency
Wireless technology synchronization Phase synchronization accuracy
accuracy
GSM 0.05 ppm N/A
WCDMA 0.05 ppm N/A
WiMax FDD 0.05 ppm N/A
LTE FDD 0.05 ppm N/A (except for MB-SFN<+/-1us, LBS)
TD-SCDMA 0.05 ppm +/-1.5 us
CDMA2000 0.05 ppm +/-3 us
WiMax TDD 0.05 ppm +/-1.5 us+/-1 us
LTE TDD 0.05 ppm +/-1.5 us

Synchronous Ethernet (SyncE) is a synchronization technology that transfers clock signals over the
physical layer. It provides high-precision frequency synchronization between network devices and
can meet the requirements of wireless access services for frequency synchronization. SyncE and
PTP technologies are typically used together to provide both frequency and phase synchronization
and deliver nanosecond-level synchronization accuracy. For information about PTP technology, see
PTP Technology White Paper.

Comparison of time synchronization solutions

Synchronous Ethernet (SyncE) can enable only frequency synchronization and is typically used
together with PTP. The following table compares SyncE+PTP and other time synchronization
solutions, including Global Positioning System (GPS), Beidou Navigation Satellite System (BDS),
Network Time Protocol (NTP), and PTP.
Table 2 Comparison of time synchronization solutions

Time sync Frequency Phase Sync

Description
solution sync sync accuracy

GPS Supported Supported ns level Uses electromagnetic waves to carry

frequency and phase information and

1
 Time sync Frequency Phase Sync
Description
solution sync sync accuracy
provides time synchronization. In recent
years, the accuracy of GPS has been
continuously improved.
Uses electromagnetic waves to carry
frequency and phase information and
provides time synchronization. The BDS
BDS Supported Supported ns level network is currently under construction and
is expected to provide more ubiquitous,
integrated, and smarter navigation,
positioning, and timing services by 2035.

Uses NTP messages to transmit phase

signals and provides phase synchronization.
Not
NTP Supported ms level It is inadequate for scenarios such as
supported
wireless access networks that require
microsecond-level time synchronization.
Uses PTP messages to transmit frequency
and phase information and combines
hardware-based timestamping to deliver
Sub-µs level to
high-precision time synchronization. With
PTP Supported Supported tens of
the development of software and hardware
nanoseconds
technologies, PTP can bring time
synchronization accuracy to tens of
nanoseconds level or even better.

Uses SyncE for frequency synchronization

and PTP for phase synchronization,
SyncE+PTP Supported Supported ns level
providing faster and more accurate time
synchronization than PTP.

Benefits
Transferring clock signals over the Ethernet physical layer, SyncE is not affected by the upper layer
protocols or network conditions such as congestion, packet loss, and delay.

Implementation
Time synchronization basics
Frequency synchronization
Frequency synchronization is also called clock synchronization. If two signals are the same in
frequency or if they keep a constant phase difference, the two signals are frequency synchronized.
As shown in Figure 1, the two watches have different time, but maintain a constant time difference (6
hours).

2
 Figure 1 Frequency synchronization

Phase synchronization
Phase synchronization is also called time synchronization. If two signals are the same in frequency
and phase (keep phase difference at 0), they are phase synchronized. As shown in Figure 2, the two
watches have the same time at all times. Frequency synchronization is the prerequisite for phase
synchronization.
Figure 2 Phase synchronization

Clock sources
SyncE supports the following clock sources:
• BITS—Building integrated timing supply clock. The device has BITS ports to receive and send
BITS timing signals.
• Line clock—Timing signal extracted from the signal received on a SyncE-enabled port from a
higher-level device. Line timing signal is less precise than BITS timing signal.
• PTP—Timing signal obtained through PTP. PTP timing signal is less precise than BITS timing
signal.
• Local clock source—38.88 MHz timing signal generated by a crystal oscillator on the clock
daughter card. The local clock signal has the lowest precision.

Clock reference selection

When multiple clock sources are available for the device, you can specify a clock reference manually
or configure automatic clock reference selection.
• Manual reference selection—If you specify a clock source as the reference, the device does
not change the clock reference automatically. When the signal of the specified clock reference
is lost, the device continues to distribute a clock signal based on the parameters of the specified
clock reference to the interface cards.

3
 • Automatic reference selection—The system selects the optimal clock automatically as its
clock reference. If the signal of the clock reference is lost, the device selects the next optimal
clock as its reference and keeps time synchronized with the new reference.

About automatic clock reference selection

In an automatic reference selection process, the device uses the synchronization status message
(SSM) quality level and clock source priority to make a selection decision.
SSM quality levels
The SSM, as defined in ITU-T G.781, provides a set of status information to indicate the quality level
of the clock source. SyncE also uses SSM levels to indicate the quality of clock sources and names
SSM level as QL level. In this paper, the clock source quality level is referred to as SSM level.
The following are the SSM levels in descending order of quality:
• PRC—G.811 primary reference clock. The quality level of a BITS clock tracing GPS or BDS is
typically PRC.
• SSU-A—G.812 primary-level SSU. The quality level of a rubidium clock-equipped BITS is
typically SSU-A when it enters holdover or free running mode after losing the signal from a
satellite source such as GPS.
• SSU-B—G.812 second-level SSU. The quality level of a crystal clock-equipped BITS is
typically SSU-B when it enters holdover or free running mode after losing the signal from a
satellite source such as GPS.
• SEC/EEC—G.813 SDH equipment clock (SEC)/Ethernet equipment clock (EEC). The quality
level of an SEC or EEC is typically SEC/EEC when it enters holdover or free running mode after
losing the signal from its clock reference.
• DNU—Do not use for synchronization. The clock sources of this quality level cannot be used as
the clock reference.
• Unknown—Synchronization quality unknown.

IMPORTANT:
You can configure whether to use SSM levels in automatic clock reference selection.
• If the clock sources are unreliable, you can choose to not use SSM levels in automatic reference selection,
or specify SSM levels manually for the clock sources.
• If the clock sources are reliable, use SSM levels in automatic clock reference selection as a best practice.

SSM levels play an important role in automatic selection of an optimal clock and prevention of timing
loops. The devices use Ethernet synchronization messaging channel (ESMC) messages to transmit
the SSM level of their system clocks.
• After SyncE is enabled on an interface, the device sends an ESMC information message once
a second from the interface to inform the neighbor devices of the SSM level of its clock signal.
• When the clock reference selected by the device changes, the device immediately sends an
ESMC event message carrying the SSM level of the new clock reference to notify the
downstream devices of the change in the SSM level. At the same time, it resets the ESMC
information message sending timer, and periodically sends ESMC information messages with
the new SSM level to the neighbor devices.
Clock source priority
You can assign a priority to the BITS, PTP, and line clock sources available for the device. The
priority is valid locally and will not be passed to neighboring devices.
By default, a clock source has a priority value of 255 and does not participate in clock reference
election. For a clock source to participate in clock reference election, assign a priority to it. The

4
 smaller the priority value, the better the clock source. Among the clock sources supported by the
device, the local clock has the lowest priority and you are not allowed to assign a priority to it.

Automatic clock reference selection process

As shown in Figure 3, SyncE uses the following process to select a clock reference:
1. If SSM is enabled for automatic reference selection, the device selects the clock source with the
highest SSM quality level.
2. If SSM is disabled for automatic reference selection, or clock sources have the same SSM
quality level, the device selects the clock source with the lowest priority value. A lower priority
value indicates a better clock source.
3. If the clock sources have the same priority, the device selects the clock source in the sequence
of BITS clock source, line clock source, and PTP clock source.
4. If the clock source type is the same, the device selects the clock source that has the lowest
number.
5. If no BITS clock source, line clock source, or PTP clock source is available, the device uses the
local clock source.
After selecting the clock reference, the device uses ESMC messages to distribute the SSM level of
the reference to the downstream devices, which will further affect clock reference selection of the
downstream devices.
If an interface on a device does not receive an ESMC information message within 5 seconds after
receiving the clock signal from the clock reference, the device determines that the clock reference is
lost or unavailable, and will automatically select the next optimal clock as the reference. When the
signal of the original clock reference can be traced again, the device selects the original reference to
replace the less optimal clock as the reference.

5
 Figure 3 Automatic clock reference selection process
Select a clock
reference

No Has an external
clock source?

Yes

No Use SSM levels in

clock reference selection?

Yes

Higher
Compare SSM levels

Equal
Higher
Compare priorities

Equal

Compare clock types Higher

BITS > line clock > PTP

Equal

Compare input Smaller

port number

Losing the external Equal

Use the local clock signal
Select one randomly
clock

Clock reference
selected

Synchronization mechanism
After selecting the clock reference, the device starts tracing the reference for clock (frequency)
synchronization with it.
The Ethernet physical layer uses FE or GE technology to add an additional bit into every fifth bit
position. As a result, the data stream transmitted over the Ethernet physical layer will not contain
more than four contiguous 1s or 0s and can effectively transmit clock information. With this
information transmission mechanism, SyncE sends high-precision clock information from the
transmitting end, recovers and extracts the clock signals at the receiving end, and uses the clock
information on the receiving end to transmit data streams.
As shown in Figure 4, external clock source 1 is more reliable than external clock source 2 and is
selected as the clock reference. Device A and Device B synchronize to the frequency of external
clock source 1. The synchronization mechanism is as follows:
• On the transmitting end
a. Among the clock sources available for Device A, external clock source 1 has the highest
SSM level. Device A selects external clock source 1 as its clock reference.
b. Device A extracts the clock signal from external clock source 1 and injects the clock signal
into the PHY chip on the Ethernet interface card.

6
 c. The PHY chip adds the high-precision clock information into the serial code stream on the
Ethernet link and sends it to downstream Device B.
• On the receiving end
a. The PHY chip on the Ethernet interface card on Device B extracts the clock information from
the received serial code stream, derives the frequency signal, and then sends it to the clock
daughter card.
b. The clock daughter card performs the following tasks:
i Compares the line clock signal received on the interface, the clock signal input from
external clock source 2, and the clock signal generated by the local crystal oscillator.
ii Selects the line clock signal as the clock reference based on the automatic source
selection algorithm.
iii Sends the clock signal to the PLL.
c. The PLL tracks and synchronizes the system clock with the clock reference. Then it
distributes the system clock signal to the service modules of the device and injects the
system clock signal into the PHY chip on the Ethernet interface card for distribution to
downstream devices.
Figure 4 SyncE clock synchronization mechanism

Device A Device B
Transmit Receive
High- Clock sync
Service
precision PHY PHY
clock modules

Line System
clock clock
Clock
daughter PLL
card
External clock

Ethernet
External clock External clock
source 1 source 2

Device A Device B

System clock working mode

The system clock can operate in the following modes. By viewing the system clock working mode,
you can understand the clock synchronization status of the device.
• Locked mode—The system has selected a clock reference and keeps frequency synchronized
with the reference. In this mode, the clock chip saves data about the clock reference constantly.
• Holdover mode—The system clock has lost the signal from its clock reference and the clock
chip continues to provide a clock signal based on the data it has saved about the clock
reference for a maximum of 24 hours.
• Free running mode—The device uses the clock signal from the internal crystal oscillator.

Avoiding timing loops

When a network device traces and synchronizes with the clock signal output from itself, a timing loop
occurs. A timing loop degrades the clock accuracy and can cause synchronization failure of the

7
 entire network. To prevent timing loops, use SSM levels in clock reference selection and plan a
reasonable clock synchronization path.

Avoiding timing loops on a direct link

As shown in Figure 5, Device A and Device B are connected to each other directly. Device A sends a
clock signal and Device B receives the clock signal. After Device B synchronizes its clock with
Device A, it adds clock information to the data packets it will send. If SSM levels are not used in clock
reference selection, Device A will synchronize its clock with Device B after receiving data packets
from Device B. Then the clock signal will travel along a circular pathway: Device A -> Device B ->
Device A, forming a timing loop.
Figure 5 Timing loop on a direct link
External clock source
Clock signal

IP network

Device A Device B

To avoid timing loops, use SSM levels in clock reference selection and set the SSM level to DNU for
the ESMC messages sent from Device B to Device A.

Avoiding timing loops on a ring network

On a ring network, a timing loop can occur easily if the transmission path of the clock signal is not
carefully planned. To avoid timing loops on a ring network, use SSM levels in clock reference
selection, set the clock priorities manually, and plan a tree or chain transmission path for the clock
signal.
As shown in Figure 6, four physical devices form an RRPP ring network, and Device A connects to
an external clock source. To use the external clock source as the clock reference of the ring network
and Device A instead in case of an external clock source failure, set the clock priorities for the
devices as follows:
• Device A—Set a higher priority for the external clock (Ext) than the local clock (Local).
• Device B, Device C, and Device D—Set priorities for line clock input port 1 (P1), line clock
input port 2 (P2), and the local clock (Local) in a descending order.
The SyncE clock synchronization path is established as follows:
• Device A receives the signal from the external clock and also the clock signal from Device B on
P1. Because the external clock has a higher SSM level than P1, Device A traces and
synchronizes with the external clock.
• Device B receives the clock signal from Device A (the clock signal of which is from the external
clock) on P1, and also the clock signal from Device C on P2. Because P1 has a higher priority
than P2, Device B traces and synchronizes with P1.
• Device C receives the clock signal from Device B on P1, and also the clock signal from Device
C on P2. Because P1 has a higher priority than P2, Device C traces and synchronizes with the
clock signal from Device B.

8
 • Device D receives the clock signal from Device C on P1, and also the clock signal from Device
A on P2. Because P1 has a higher priority than P2, Device D traces and synchronizes with the
clock signal from Device C.
• Because P2 on Device A is not configured with a priority, Device A will not synchronize with P2.
Finally, a counter clockwise clock synchronization path from the external clock source to Device D is
established. All devices track and synchronize with the external clock source and timing loops are
avoided.
Figure 6 Avoiding timing loops on a ring network
External clock source
Clock signal

P2 P1
Device A Device D
(Ext, Local) (P1, P2, Local)
P1 P2

P1 P2
(P1, P2, Local) (P1, P2, Local)
Device B Device C
P2 P1

Application scenarios
Network frequency synchronization through
SyncE
As shown in Figure 7, the wireless base stations use WCDMA technology and access the service
provider's network through IP devices. For wireless clients to move smoothly between base stations,
enable the neighboring base stations to be frequency synchronized with an accuracy of 0.05 ppm.
• To enhance availability and reduce cost, deploy two clock sources in redundancy at the core
layer of the service provider's network.
• Configure SyncE to enable the clock source to synchronize the time of all base stations on the
network. Use the primary clock source as the clock reference. Enable the secondary clock
source to take over the services automatically when the primary clock source fails. SyncE
provides time synchronization among devices with high precision and can meet the
requirement of WCDMA wireless access devices for high synchronization precision.

9
 Figure 7 Network diagram

SyncE primary sync path

Base station 1
Core layer
Primary external
clock source Device A Device B Access layer

Base station 2

Device E

Device F Base station 3

Secondary external Device C Device D Device G

clock source

Base station 4

Base station 5

SyncE frequency synchronization + PTP phase

synchronization
As shown on the 5G access network in Figure 8, the base stations access the service provider's
network through IP devices. For wireless clients to move smoothly between base stations, the
neighboring base stations must be time synchronized with nanosecond accuracy.
You can use the SyncE frequency synchronization + PTP phase synchronization solution for this
scenario. This solution delivers the following advantages:
• Higher accuracy: SyncE can synchronize frequency with nanosecond accuracy, better than
PTP.
• Great availability:
 Both SyncE and PTP can provide frequency synchronization. The device uses SyncE
preferentially for frequency synchronization. If the SyncE clock source fails or the link fails,
resulting in frequency synchronization signal loss, the device will use PTP for frequency
synchronization.
 SyncE and PTP can share clock sources or use independent clock sources. When PTP fails
and PTP time signals are lost, SyncE can continue to maintain frequency synchronization
between the devices and keep the time offset between the devices within an acceptable
range.

10
 Figure 8 Network diagram
Primary external clock source Secondary external clock source PTP primary sync path

SyncE primary sync path

BC1 BC2

BC3 BC4

BC5 BC6

OC1 OC2

References
 IEEE 1588-2008, IEEE Standard for a Precision Clock Synchronization Protocol for Networked
Measurement and Control Systems
 ITU-T G.781, Synchronization layer functions
 ITU-T G.811, Timing Characteristics of Primary Reference Clocks
 ITU-T G.812, Timing requirements of slave clocks suitable for use as node clocks in
synchronization networks
 ITU-T G.813, Timing characteristics of SDH equipment slave clocks (SEC)
 ITU-T G.823, The control of jitter and wander within digital networks which are based on the 2048
kbit/s hierarchy
 ITU-T G.8261, Timing and synchronization aspects in packet networks
 ITU-T G.8262, Timing characteristics of a synchronous Ethernet equipment slave clock (EEC)
 ITU-T G.8264/Y.1364, Distribution of timing information through packet networks

11
