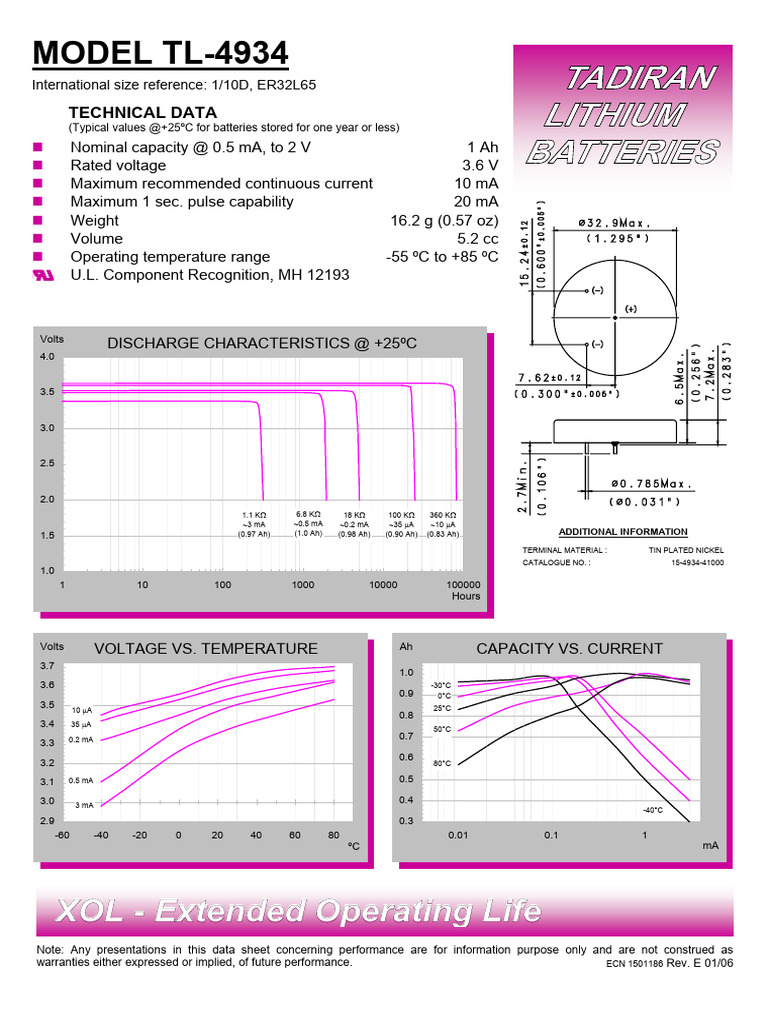

MODEL TL-4934

International size reference: 1/10D, ER32L65

TECHNICAL DATA
(Typical values @+25ºC for batteries stored for one year or less)
Nominal capacity @ 0.5 mA, to 2 V 1 Ah
Rated voltage 3.6 V
Maximum recommended continuous current 10 mA
Maximum 1 sec. pulse capability 20 mA
Weight 16.2 g (0.57 oz)
Volume 5.2 cc
Operating temperature range -55 ºC to +85 ºC
U.L. Component Recognition, MH 12193

Volts
DISCHARGE CHARACTERISTICS @ +25ºC
4.0

3.5

3.0

2.5

2.0
1.1 KΩ 6.8 KΩ 18 KΩ 100 KΩ 360 KΩ
~3 mA ~0.5 mA ~0.2 mA ~35 µA ~10 µA
1.5 (0.97 Ah) (1.0 Ah) (0.98 Ah) (0.90 Ah) (0.83 Ah) ADDITIONAL INFORMATION

TERMINAL MATERIAL : TIN PLATED NICKEL


CATALOGUE NO. : 15-4934-41000
1.0
1 10 100 1000 10000 100000
Hours

Volts VOLTAGE VS. TEMPERATURE Ah CAPACITY VS. CURRENT


3.7
1.0
3.6 -30°C
0.9 0°C
3.5 10 µA 25°C
0.8
3.4 35 µA
50°C
0.2 mA 0.7
3.3
0.6
3.2 80°C

3.1 0.5 mA 0.5

3.0 3 mA
0.4
-40°C
2.9 0.3
-60 -40 -20 0 20 40 60 80 0.01 0.1 1
ºC mA

XOL - Extended Operating Life


Note: Any presentations in this data sheet concerning performance are for information purpose only and are not construed as
warranties either expressed or implied, of future performance. ECN 1501186 Rev. E 01/06
