Seleccion rodamiento rolo

Joaquin motriz
UTN SKF Product select report 1.2-1750
Seleccion de los rodamientos a utilizar en
March 27, 2024 el rolo motriz de la maquina

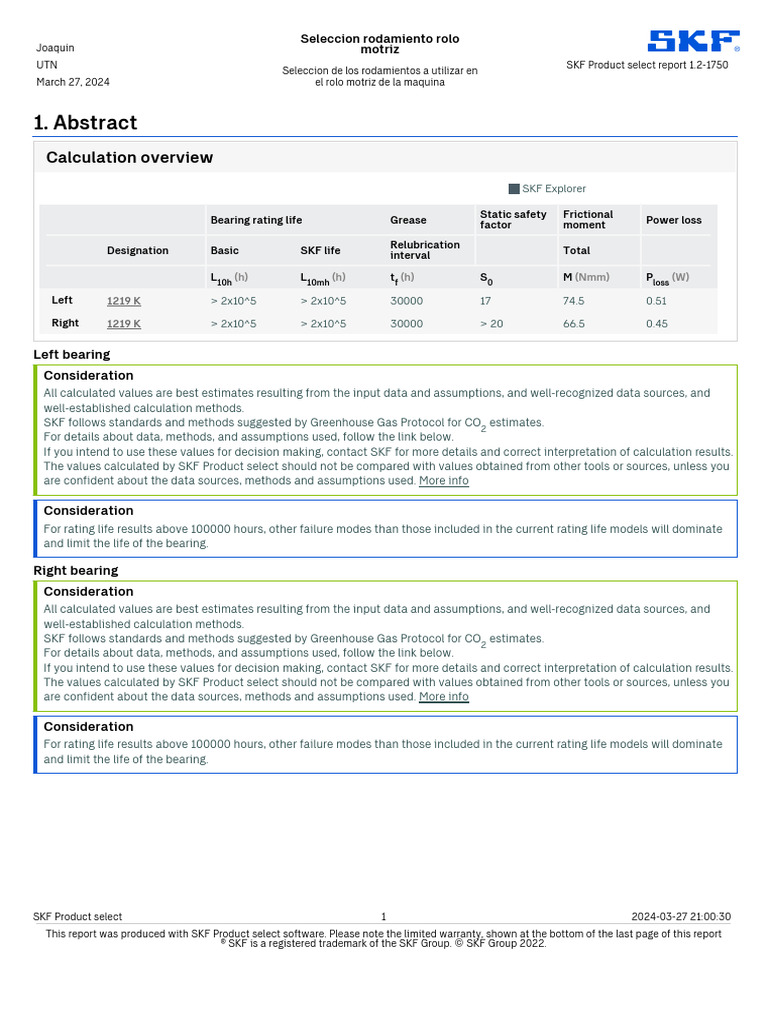

1. Abstract
Calculation overview
SKF Explorer

Static safety Frictional

Bearing rating life Grease Power loss
factor moment
Relubrication
Designation Basic SKF life Total
interval

L10h (h) L10mh (h) tf (h) S0 M (Nmm) Ploss (W)

Left 1219 K > 2x10^5 > 2x10^5 30000 17 74.5 0.51

Right 1219 K > 2x10^5 > 2x10^5 30000 > 20 66.5 0.45

Left bearing
Consideration
All calculated values are best estimates resulting from the input data and assumptions, and well-recognized data sources, and
well-established calculation methods.
SKF follows standards and methods suggested by Greenhouse Gas Protocol for CO2 estimates.
For details about data, methods, and assumptions used, follow the link below.
If you intend to use these values for decision making, contact SKF for more details and correct interpretation of calculation results.
The values calculated by SKF Product select should not be compared with values obtained from other tools or sources, unless you
are confident about the data sources, methods and assumptions used. More info

Consideration
For rating life results above 100000 hours, other failure modes than those included in the current rating life models will dominate
and limit the life of the bearing.

Right bearing
Consideration
All calculated values are best estimates resulting from the input data and assumptions, and well-recognized data sources, and
well-established calculation methods.
SKF follows standards and methods suggested by Greenhouse Gas Protocol for CO2 estimates.
For details about data, methods, and assumptions used, follow the link below.
If you intend to use these values for decision making, contact SKF for more details and correct interpretation of calculation results.
The values calculated by SKF Product select should not be compared with values obtained from other tools or sources, unless you
are confident about the data sources, methods and assumptions used. More info

Consideration
For rating life results above 100000 hours, other failure modes than those included in the current rating life models will dominate
and limit the life of the bearing.

SKF Product select 1 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

2. Input
2.1. Bearing data

Fatigue load
Bearing type Principal dimensions Basic load ratings Speed ratings
limit
Designation Dynamic Static Reference Limiting

d (mm) D (mm) B (mm) C (kN) C0 (kN) Pu (kN) nref (r/min) nlim (r/min)

Left 1219 K Self-aligning 95.0 170.0 32.0 63.7 27.0 1.2 8000.0 5000.0
ball bearing

Right 1219 K Self-aligning 95.0 170.0 32.0 63.7 27.0 1.2 8000.0 5000.0
ball bearing

2.2. Loads & Speed

Locating 0

Bearing distance 1000.0 mm

Shaft orientation Horizontal

Rotating ring Inner ring rotation

Coordinate Case
Coordinates Forces Speed
system weight
x|r Fy|Fθ
Load y|θ (mm|deg) z (mm) Fx|Fr (kN) Fz (kN) (r/min)
(mm) (kN)

LC1 F1 Cartesian 0.0 0.0 150.0 0.0 -1.44 0.0 65.0 1

F2 Cartesian 0.0 0.0 750.0 0.0 -1.44 0.0

SKF Product select 2 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

2.3. Temperature
Left Right

Inner ring Outer ring Inner ring

Load cases Outer ring (°C)
(°C) (°C) (°C)

LC1 40 35 40 35

Maximum temperature is used for calculating the actual viscosity, kappa, aSKF and SKF rating life.

Mean temperature is used for calculating bearing friction and power loss.

2.4. Lubrication
Effective EP
Lubricant Lubricant Lubricant Contamination
additives
Cleanliness /
Designation Type method Name Method
Factor
LGMT 3: all
Left 1219 K Grease SKF grease purpose True Detailed guidelines High
industrial and cleanliness
automotive
LGMT 3: all
Right 1219 K Grease SKF grease purpose True Detailed guidelines High
industrial and cleanliness
automotive

2.5. CO2 emissions settings

Time
Input energy mix Period of interest
Designation Geographical location operational
manually [Years]
[%]

Left 1219 K False European Union 1 100

Right 1219 K False European Union 1 100

2.6. Fits and tolerances

Calculated Include Thermal Shaft
Requirements
interference Smoothing Expansion
Load direction
Designation Guidance
rotating ring
Left 1219 K True constant True True False

Right 1219 K True constant True True False

SKF Product select 3 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

3. Results
3.1. Loads & static safety
Static safety
Load ratio Equivalent dynamic load Equivalent static load
factor

Designation C/P S0 P (kN) P0 (kN)

Left 1219 K 40.21 17 1.58 1.58

Right 1219 K 49.15 > 20 1.3 1.3

3.2. Bearing minimum load

Minimum
Reaction forces
load

Designation Radial Axial Requirements

Fr (kN) Fa (kN) Frm (kN) met?

Left 1219 K 1.58 0 0.288 yes

Right 1219 K 1.3 0 0.288 yes

3.3. Adjusted reference speed

Adjusted reference speed Adjustment factors

Designation For bearing load P For oil viscosity

nar (r/min) fp fv

Left 1219 K 7940 0.99 1.0

Right 1219 K 8000 1.0 1.0

3.4. Lubrication conditions

Viscosity
Operating viscosity
ratio

Designation Actual Rated Rated @ 40 °C

ν (mm^2/s) ν1 (mm^2/s) νref (mm^2/s) κ

Left 1219 K 125 107 107 1.15

Right 1219 K 125 107 107 1.15

SKF Product select 4 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

3.5. Grease life and relubrication interval

Relubrication
Grease quantity Speed factor
interval
Speed x mean
Designation Side
diameter

tf (h) Gp (g) ndm (mm/min)

Left 1219 K 30000 27 8670

Right 1219 K 30000 27 8670

3.6. Bearing rating life

SKF life
Contamination
Bearing rating life modification
factor
factor

Designation Basic SKF

L10h (h) L10mh (h) askf ηc

Left 1219 K > 2x10^5 > 2x10^5 50.0 0.87

Right 1219 K > 2x10^5 > 2x10^5 50.0 0.87

Left bearing
Consideration
For rating life results above 100000 hours, other failure modes than those included in the current rating life models will dominate
and limit the life of the bearing.

Right bearing
Consideration
For rating life results above 100000 hours, other failure modes than those included in the current rating life models will dominate
and limit the life of the bearing.

3.7. Bearing friction & power loss

Power
Frictional moment Friction sources
loss
At start
Designation Total 20-30°C and Rolling Sliding Seals Drag loss
zero speed

M (Nmm) Mstart (Nmm) Mrr (Nmm) Msl (Nmm) Mseal (Nmm) Mdrag (Nmm) Ploss (W)

Left 1219 K 74.5 6.71 71.4 3.13 0 0 0.51

Right 1219 K 66.5 5.14 64.1 2.39 0 0 0.45

SKF Product select 5 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

3.8. Bearing frequencies

Rotational frequencies Frequency of over-rolling

Rolling element Rolling element Point on Point on

Designation Inner ring Outer ring Rolling element
set & cage about its axis inner ring outer ring

fi(Hz) fe(Hz) fc(Hz) fr(Hz) fip (Hz) fep(Hz) frp(Hz)

Left 1219 K 1.083 0.0 0.474 4.272 12.177 9.49 8.543

Right 1219 K 1.083 0.0 0.474 4.272 12.177 9.49 8.543

3.9. Estimation of CO2 emissions over period of interest

CO2 emissions Resources consumed during
CO2 emissions during bearing operation -
caused by bearing bearing operation - over
over period of interest
production period of interest

Sum of
Frictional Grease CO2
Designation Energy Grease
power loss consumption during
operation

kg of CO2 kg of CO2 kg of CO2 kg of CO2 kWh kg

*
Left 1219 K 12.1 (Learn more) 2.0 0.3 2.3 4.44 0.09
*
Right 1219 K 12.1 (Learn more) 1.8 0.3 2.1 3.96 0.09
*
Value is not designation specific, but based on bearing mass

Left bearing
Consideration
All calculated values are best estimates resulting from the input data and assumptions, and well-recognized data sources, and
well-established calculation methods.
SKF follows standards and methods suggested by Greenhouse Gas Protocol for CO2 estimates.
For details about data, methods, and assumptions used, follow the link below.
If you intend to use these values for decision making, contact SKF for more details and correct interpretation of calculation results.
The values calculated by SKF Product select should not be compared with values obtained from other tools or sources, unless you
are confident about the data sources, methods and assumptions used. More info

Right bearing
Consideration
All calculated values are best estimates resulting from the input data and assumptions, and well-recognized data sources, and
well-established calculation methods.
SKF follows standards and methods suggested by Greenhouse Gas Protocol for CO2 estimates.
For details about data, methods, and assumptions used, follow the link below.
If you intend to use these values for decision making, contact SKF for more details and correct interpretation of calculation results.
The values calculated by SKF Product select should not be compared with values obtained from other tools or sources, unless you
are confident about the data sources, methods and assumptions used. More info

SKF Product select 6 2024-03-27 21:00:30

This report was produced with SKF Product select software. Please note the limited warranty, shown at the bottom of the last page of this report
® SKF is a registered trademark of the SKF Group. © SKF Group 2022.
 SKF Product select Report 1.2-1750

3.10. Fits and tolerances

Note
Typically, it is not sufficient to use an interference fit alone to axially locate a bearing ring on a cylindrical seat.

3.10.1. Recommended tolerance class

Tolerance Class

Designation Shaft Housing

Left 1219 K N/A H8

Right 1219 K N/A H8

Consideration
The recommendation for the tolerance classes is based on the load case with the highest equivalent dynamic load.

Consideration
Valid for solid steel shaft and split or non-split cast iron or steel housings.

3.10.2. Tolerances
Shaft outer Bearing outer
Bearing bore Housing bore Smoothing
diameter diameter
Shaft and
Designat Maximu Minimu Maximu Maximu Bearing outer
Minimum Maximum Minimum Minimum bearing
ion m m m m ring and housing
bore

(μm) (μm) (μm) (μm) (μm) (μm) (μm) (μm) (μm) (μm)

Left 1219 K N/A N/A N/A N/A 0 40 0 63 N/A 21

Right 1219 K N/A N/A N/A N/A 0 40 0 63 N/A 21

Consideration
For the tolerances calculation, the normal tolerance for the bearing bore and outer diameter is used.

3.10.3. Fits, Probable Interference (+) / Clearance (-)

Shaft Housing
Probable Probable Probable Probable
Designation Middle Middle
minimum maximum minimum maximum

(μm) (μm) (μm) (μm) (μm) (μm)

Left 1219 K N/A N/A N/A -70 -32 5

Right 1219 K N/A N/A N/A -70 -32 5
