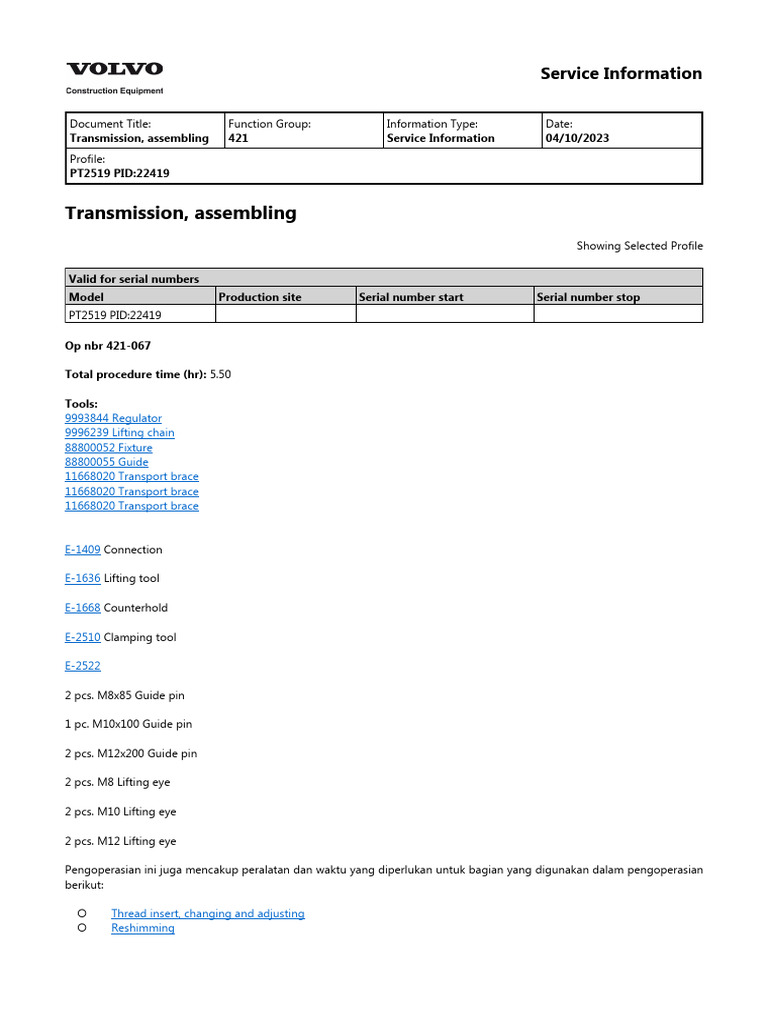

Service Information

Document Title: Function Group: Information Type: Date:

Transmission, assembling 421 Service Information 04/10/2023
Profile:
PT2519 PID:22419

Transmission, assembling
Showing Selected Profile

Valid for serial numbers

Model Production site Serial number start Serial number stop
PT2519 PID:22419

Op nbr 421-067

Total procedure time (hr): 5.50

Tools:
9993844 Regulator
9996239 Lifting chain
88800052 Fixture
88800055 Guide
11668020 Transport brace
11668020 Transport brace
11668020 Transport brace

E-1409 Connection

E-1636 Lifting tool

E-1668 Counterhold

E-2510 Clamping tool

E-2522

2 pcs. M8x85 Guide pin

1 pc. M10x100 Guide pin

2 pcs. M12x200 Guide pin

2 pcs. M8 Lifting eye

2 pcs. M10 Lifting eye

2 pcs. M12 Lifting eye

Pengoperasian ini juga mencakup peralatan dan waktu yang diperlukan untuk bagian yang digunakan dalam pengoperasian
berikut:

 Thread insert, changing and adjusting

 Reshimming
Support, installing

PERINGATAN
Risk of frostbite! Use protective gloves.

1. Cool the support to a temperature not lower than –20 °C (–4 °F).

2. Install the support.

Tap down the support with a mallet until it has solid contact with the shoulder in the transmission housing.
CATATAN!
When the support is installed, make sure that the hole for the lock bolt in the support lines up with the matching
hole in the transmission housing.

Figure 1

1. Support

3. Install the lock bolt for the support without tightening.

Figure 2

1. Lock bolt for support

4. Install the lock ring that holds the support.

CATATAN!
Make sure that the lock ring is pushed well into the groove.
 Figure 3

5. Torque-tighten the lock bolt for the support.

Tightening torque, see: Hydraulic transmission, tightening torque

6. Rotate the transmission 180°.

7. Place the thrust bearing on the support, as shown in figure.

Figure 4

1. Thrust bearing

8. Install 88800052 Fixture that later is to be used for measuring axial clearance between support and rear cover.
CATATAN!
Turn the tool so that the holder for the dial indicator faces out towards the control system. When the dial indicator
is installed, it should be possible to see it through the holes on the underside of the transmission housing.
 Figure 5

1. 88800052 Fixture
2. E-1668 Counterhold
3. Holder for dial indicator
4. Inspection hole for dial indicator

9. Install E-tool E–1668 Counterhold. Tighten the tensioning bolt by hand.

CATATAN!
Place the counterhold so that it is not in the way when the dial indicator is to be installed in the fixture's holder.

10. Rotate the transmission housing 180°.

11. Place the thrust bearing on the support, as shown in figure.

Figure 6

1. Thrust bearing

Sun gear for planet stage 1, installing

12. Fit the sun gear for planet stage 1.

 Figure 7

1. Sun gear for planetary stage 1

2. Needle bearing

13. Lube the needle bearing with vaseline.

Figure 8

14. Place the needle bearing on the sun gear, as shown in the figure above.

Brake discs for brake B2, installing

15. Install the brake discs for brake B2. The steel discs' tooth gap shall line up directly opposite the oil channel in the
transmission housing.
Start with a steel disc, then alternate between friction discs and steel discs. Finish with two steel discs.
CATATAN!
When reinstalling existing discs, install these in the same order as they were installed before.
 Figure 9

1. Brake discs for brake B2

2. Oil channel

Brake piston for brake B2 and B3, installing

16. Install the brake piston for brake B2 and B3.

CATATAN!
Turn the cylinder with the big outside diameter facing up, at the same time as the holes in the cylinder line up
directly opposite the matching oil channels in the transmission housing.

Figure 10

1. Brake piston for brake B2 and B3

17. Change O-rings on the two short oil pipes.

Lubricate the O-rings with vaseline.
 Figure 11

1. O–ring

18. Install both oil pipes, though the transmission housing and in to the brake piston.

Figure 12

1. Oil pipes

19. Install the lock ring that holds the brake piston.
CATATAN!
The holes in the lock ring are tapered. To get a good grip with the pliers, the holes' small diameter should be
turned to face up.

CATATAN!
Make sure that the lock ring is pushed well into the groove.
 Figure 13

20. Check that the oil pipes are installed correctly by blowing compressed air in them. The brake piston should push
out.

 Left oil pipe — upper piston

 Right oil pipe — lower piston.

Use a plastic plug with holes as seal.

Figure 14

Disc clearance brake B2, checking

21. Check disc clearance for brake B2 with a feeler gauge. Measure between the two upper steel discs for brake B2.
For correct clearance, see Transmisi hidraulik, spesifikasi
CATATAN!
If the clearance is not within specifications, adjust it with steel discs. For thickness of steel discs, see the Parts
Catalog.

When adjusting disc clearance, the thickest steel disc shall be placed between both friction discs closest to the
brake piston.
 Figure 15

Planet stage 1 and sun gear for planet stage 2, installing

22. Install planet stage 1 and the sun gear for planet stage 2.

Figure 16

1. Planet stage 1
2. Sun gear

23. Lubricate the needle bearing and thrust washer with vaseline.
 Figure 17

24. Place the needle bearing and thrust washer on the sun gear for planet stage 2, as shown in figure.

Figure 18

1. Needle bearing with thrust washer

Planet stage 2 and ring gear for planet stage 2, installing

25. Fit planet stage 2.

Weight: approx.10 kg (22 lbs)

Figure 19

1. Planetary stage 2
2. Thrust washer

26. Lubricate the thrust washer with vaseline.

 Figure 20

27. Place the thrust washer on the planet stage.

28. Install the ring gear for planet stage 2.

CATATAN!
Turn the ring gear's big outside diameter facing down.

Figure 21

1. Ring gear for planet stage 2

2. Planetary stage 2

Ring gear for planet stage 3, installing

29. Install the ring gear for planet stage 3.

Weight: approx.10 kg (22 lbs)
 Figure 22

1. Ring gear for planet stage 3

Brake discs for brake B3, installing

30. Install the lock pin for the thrust plate in the transmission housing, as shown in figure.

Figure 23

1. Lock pin
2. Brake discs

31. Install the brake discs for brake B3.

CATATAN!
Always begin with the thickest steel disc, then alternate between friction discs and steel discs.

CATATAN!
When reinstalling existing discs, install these in the same order as they were installed before.

Disc clearance brake B3, checking

32. Remove the lock pin.

33. Lay the thrust plate on the discs without pushing it into the groove. Turn the side with the smaller inner diameter
so that it faces down.

Figure 24

1. Thrust plate

34. Check the disc clearance for brake B3 with a feeler gauge. Measure between the thrust plate and the top edge of
the groove in which the thrust plate is to be installed.
Disc clearance, see Transmisi hidraulik, spesifikasi
CATATAN!
If the disc clearance is not within specifications, adjust with steel discs. For thickness of steel discs, see the Parts
Catalog.

35. Lift up the thrust plate and turn it in to the groove.

Turn the thrust plate so that the lock pin can be installed.
Install the lock pin.
CATATAN!
Make sure that the lock pin bottoms out in the groove.

Figure 25

1. Thrust plate
2. Lock pin
Planet stage 3 and ring gear for planet stage 4, installing

36. Install planet stage 3, use two C-clamps, sling, and an overhead crane for lifting.
Weight: approx. 15 kg (33 lb)

Figure 26

37. Check that the planet stage is in place by measuring the distance between the top of the gear teeth on the ring
gear for planet stage 4 and the thrust plate.
Distance: approx. 44 mm (1.732 in)
Check to find the cause if the measurement differs by more than one to two millimetres (0.039 – 0.079 in).

Figure 27

1. Top of the gear teeth on ring gear for planet stage 4

2. Thrust plate

Brake discs brake B4, installing

38. Install the brake discs for B4. Begin with a friction disc, and then alternate between steel discs and friction discs.
 Figure 28

1. Brake discs for B4

Main shaft, installing

39. Lube the bearing in the main shaft with vaseline.

Figure 29

40. Fit the main shaft.

 Figure 30

1. Main shaft
2. Needle bearing
3. Thrust washer

41. Lube the needle bearing with vaseline.

42. Place the needle bearing on the main shaft.

43. Lube the thrust washer with vaseline and place it on planet stage 3.
If the old thrust washer is undamaged it can be used again. If it is worn, choose a new washer of the next thicker
size.
The thickness of the thrust washer between planet stage 3 and 4 may vary between individual transmissions of the
same type, since adjustment of axial clearance in the transmission is done by choosing a thicker or thinner thrust
washer. For thickness of available thrust washers, see the Parts Catalog.

44. Install two guide pins M12x200 in the transmission housing.

Figure 31
 1. Guide pin, M12×200
2. Gasket

45. Fit a new gasket for the piston housing.

Planet stage 4, installing

46. Install planet stage 4. Use 2 pcs. lifting eyes M8, lifting sling, and overhead crane.
Weight: approx. 20 kg (44 lbs)

Figure 32

Disc clearance brake B4, checking

47. Measure the distance between the piston housing's gasket and the brake discs (h1).
Note the measurement (h1).

Figure 33

1. Gasket, piston housing

2. Brake discs

48. Place the piston housing on a table with the piston facing up.
Measure the distance between the piston and the housing's contact face (h2).
Note the measurement (h2).
 Figure 34

49. The disc clearance is equal to the difference between the measurements, that is:
Disc clearance brake B4 = h1 – h2
Permitted disc clearance, see Transmisi hidraulik, spesifikasi
CATATAN!
If the clearance is not within specifications, adjust it with thinner or thicker steel discs. For thickness of steel discs,
see the Parts Catalog.

Piston housing, installing

50. Install the piston housing so that the oil channels in the piston housing and transmission housing line up directly
opposite each other. Use E-2510 Clamping tool and 9996239 Lifting chain for lifting.

Figure 35
 1. E-2510 Clamping tool
2. Gasket

51. Install the gasket on the piston housing.

Planet stage 5, clutch K3, and output shaft, installing

52. Lubricate the thrust washer with vaseline and fasten on the underside of planet stage 5.

Figure 36

53. Clamp down a lifting sling between the washer that locks the drive flange and the output shaft, and install the
assembled shaft, clutch, and planet stage in the transmission.

Figure 37

1. Thrust washer's position on planet stage 5

2. Lift sling
3. Washer for drive flange

54. Lube the piston rings on the output shaft with vaseline and centre them around the shaft to avoid damaging them
when the rear cover is installed.
 Figure 38

1. Ring
2. Piston rings

Ring, installing

55. Install the ring so that the oil channels in the ring and piston housing line up directly opposite each other.

56. Install a new gasket between the ring and the cover.
CATATAN!
Make sure that the holes for the oil channels are not blocked by the gasket.

Brake discs brake B5, installing

57. Install the discs for B5 with the steel discs' gear tooth gap down towards the sump, as shown in the figure. Begin
with a steel disc, then alternate between friction discs and steel discs.

Figure 39

1. Gasket
2. Tooth gap

Disc clearance brake B5, checking

58. Fasten a steel ruler on top of the ring using two long bolts from the rear cover.
Measure the distance (h1) from the ruler's top edge to the brake disc.
Note the measurement (h1).

Figure 40

59. Measure the distance (h2) from the ruler's top edge to the gasket.
Note the measurement (h2).
Subtract the measurement (h2) from the measurement (h1), that is, (h1) – (h2) = (h3)
Add the fixed value 5 mm (0.197 in) to the measurement (h3). The fixed value represents the rear cover's clearance.
Disc clearance, brake B5 = (h3) + 5 mm (0.197 in)
Disc clearance B5, see Transmisi hidraulik, spesifikasi
CATATAN!
If the clearance is not within specifications, adjust it with thinner or thicker steel discs. For thickness of steel discs,
see the Parts Catalog.
 Figure 41

Rear cover, installing

60. Lube with plenty of vaseline on the bevelled edge on the rear cover's inside to protect the piston rings on the
output shaft when installing.

Figure 42

1. Lube with plenty of vaseline on the bevelled edge on the rear cover's inside

61. Install E–2522 Press tool on the rear cover. Install lifting eyes M10 in the E-tool's nuts, then connect lifting sling and
lifting device.
62. Install the cover over the output shaft.
Weight: approx. 30 kg (66 lbs)

Figure 43

1. E-2522 Press tool

63. Place the drive flange and washer on the output shaft and drive them down so far that the washer's bolts enter the
threads in the output shaft.
CATATAN!
Make sure that the gasket's inner radius between the ring and cover is not damaged by the cover's flange.

Figure 44

64. Torque-tighten the washer. Use two bolts and a pry bar as counterhold when tightening.
Tightening torque, se: Hydraulic transmission, tightening torque
 Figure 45

65. Install the bolts for the rear cover. Tighten the bolts crosswise in two sequences.
CATATAN!
Do not forget to install and angle the plate for the cable harness, as shown in the figure.

Tightening torque, see: Hydraulic transmission, tightening torque

Figure 46

1. Plate

Axial clearance between support and rear cover, checking

66. Rotate the transmission half a turn.

67. Tap on the drive flange to lay the planet stages in place.
 Figure 47

68. Fasten a dial indicator in the holder on 88800052 Fixture.

CATATAN!
Turn the dial indicator so that it can be seen through the holes in the seat for the control system on the
transmission.

Reset the dial gauge.

Figure 48

1. Dial indicator

69. Rotate the transmission half a turn. Push, pull, and turn the drive flange to lay the planet stages in place.

70. Read off the axial clearance on the dial indicator.

 Figure 49

1. Dial indicator

71. Rotate the transmission back and forth a few times and repeat measuring of the axial clearance.
Compare the highest measured axial clearance with specifications.
Axial clearance: see Transmisi hidraulik, spesifikasi
If the axial clearance is within permitted limits, assembly continues after the section Axial clearance between support
and rear cover in transmission, adjusting.

If the axial clearance is not within specifications, the transmission is to be reshimmed. This is done by changing the thrust
washer between planet stage 3 and 4 to a thinner or thicker washer, see Reshimming.

Axial clearance between support and rear cover in transmission, adjusting

Brake discs and brake piston for brake B1, installing

72. Remove E-tool E-1668 Counterhold and the dial indicator.

Figure 50

1. E-tool E-1668 Counterhold

2. Dial indicator

73. Install brake discs for brake B1 in the transmission housing. Begin with a steel disc. Then alternate between friction
discs and steel discs.
 Figure 51

1. Brake discs for brake B1

74. Install the brake piston for brake B1 in the transmission housing.
CATATAN!
Make sure that the hole in the brake piston for the oil pipe lines up with the matching hole in the transmission
housing.

Figure 52

1. Brake piston for brake B1

75. Change the O-ring on the oil pipe.

 Figure 53

1. O–ring

76. Install the oil pipe through the transmission housing in the brake piston. Use a bolt M12.

Figure 54

1. Oil pipe for brake B1

77. Install the lock ring for the brake piston. Turn the lock ring's opening so that it faces the bracket for the turbine rpm
sensor, SE4213.
CATATAN!
Make sure that the lock ring enters well into the groove.
 Figure 55

1. Lock ring's opening

Disc clearance brake B1, checking

78. Check the disc clearance for brake B1 with a feeler gauge. Measure between the top brake disc and the brake
piston.
Permitted disc clearance, see Transmisi hidraulik, spesifikasi
CATATAN!
If the disc clearance is not within specifications, adjust the clearance by changing one or several steel discs to a
thicker or thinner disc. For disc thickness, see the Parts Catalog.

Figure 56

Clutch K2, installing

79. Connect E-tool E-1409 Connection to the oil channel for brake B1.
 Figure 57
E-1409 Connection

80. Pressurize brake B1 with a pressure of approx. 0.2 MPa (2 bar) (29 psi). Use 9993844 Regulator to control the air
pressure.

Figure 58

1. E-1409 Connection, connected to oil channel for brake B1

2. 9993844 Regulator

81. Carefully remove 88800052 Fixture.

CATATAN!
The brake discs may not be moved out of their position.
 Figure 59

1. 88800052 Fixture

82. Install clutch K2. Use E-1636 Lifting tool for lifting. Secure the lifting tool with a tensioning strap or similar.
Weight, clutch K2: approx. 14 kg (31 lbs)

Figure 60

1. E-1636 Lifting tool

2. 88800055 Guide

83. Remove E-1636 Lifting tool and the tensioning strap from the clutch.

84. Align the clutch discs with tool 88800055 Guide in clutch K2, if this is not already done.

85. Release the air pressure.

Clutch K1, installing

86. Move E-1409 Connection, so that it covers the oil channel for clutch K2.
CATATAN!
Also make sure that the hole beside is covered as well, so that air cannot leak out that way.
 Figure 61

1. Oil channel for clutch K2

2. Hole for fastening bolt that holds E-1409

87. Pressurize clutch K2, by connecting compressed air to E-1409 Connection, and then applying a pressure of approx.
0.2 MPa (2 bar) (29 psi). Use 9993844 Regulator to control the air pressure.
CATATAN!
Counterhold the tool with one hand when the clutch is pressurized to prevent the tool from moving out of position.
Should this happen, the tool has to be removed to check that the piston rings on the support are centred and
undamaged.

Figure 62

1. E-1409 Connection, connected to oil channel for brake B1

2. 9993844 Regulator
 Figure 63

1. 88800055 Guide

88. Remove 88800055 Guide from clutch K2.

89. Place the thrust washers and needle bearing on clutch 2 as shown in figure. Lube these with vaseline before they
are installed.

Figure 64

90. Fasten a lifting sling around the turbine shaft on clutch K1.
 Figure 65

91. Lift clutch K1 and lower it carefully so that the discs in clutch K2 are not moved out of position.
Weight, clutch K1: approx. 21 kg (46 lbs)

92. Measure the distance between brake piston B1 and the top side of clutch K2 to make sure that the clutch is in
correct position. The distance between B1 and K2 should be approx. 61 mm (2.402 in).

Figure 66

93. Release the air pressure and remove E-1409 Connection.

 Figure 67

94. Place the thrust bearing on clutch K1, as shown in figure.

Cable harness for control system, installing

95. Insert the cable harness for the control system through the hole where connector (EH) is to be installed.

Figure 68

96. Insert the cables for the control system's PWM-valves through the hole to the control system.
 Figure 69

1. Cable harness for control system, SE4212 and SE4213, entry point
2. Cable harness for control system, exit point
3. Cable harness for SE4212, exit point
4. Cable harness for SE4212, entry point
5. Turbine speed sensor, SE4213

97. Insert the cable for sensor SE4212 through the hole beside and up through the hole in the flange on the
transmission housing. The lock ring for B1 may have to be moved aside to enable the connector to pass through
the hole in the housing.

98. Press down the cable harness in the groove in the transmission housing.

99. Install the turbine speed senor, SE4213, in the bracket on the brake piston. Tighten the sensor.
Tightening torque, see: Hydraulic transmission, tightening torque

100. Plug in the connector (EH) on the transmission housing.

Tightening torque: Hydraulic transmission, tightening torque
CATATAN!
After test-running the transmission, check-tighten the bolts.

Figure 70

1. Connector (EH)

101. Install the cable harness for SE4212 input speed (rpm) in the transmission housing with a clamp.
 Figure 71

1. Position of clamp for cable harness for SE4212 input speed (rpm)

Stator shaft, installing

102. Fit the stator shaft.

Figure 72

1. Stator shaft
2. Guide pins, M12x200
3. Gasket

Torque converter housing, installing

103. Install two guide pins M12x200 in the transmission housing.

104. Fit a new gasket.

105. Using the guide pins, install the torque converter housing on the transmission housing. At the same time, insert the
 cable for the input speed sensor SE4212 through the hole in the torque converter housing.
Weight, torque converter housing: approx. 31 kg (68 lbs)

Figure 73

1. Torque converter housing

Oil pump, mounting

106. Install a guide pin M10x100 in the torque converter housing and fit it into the stator shaft on the torque converter
housing's underside.

Figure 74

1. Guide pins, M12x200

2. Guide pin, M10x100

107. Install the oil pump using the guide pin.

 Figure 75

1. Oil pump
2. Guide pin

108. Install new bolts and washers for the torque converter housing, the oil pump, and retarder.

Figure 76

M10x80

M12x80
1 Sensor for input speed SE4212.
2 Clamp

109. Tighten all bolts crosswise, from the inside and out.
Tightening torque, see: Hydraulic transmission, tightening torque

110. Install the sensor for input speed SE4212.

111. Lube the O–ring bevel in the torque converter housing with vaseline.
 Figure 77

Seal shield, installing

112. Place the seal shield loosely in the torque converter housing, install the bolts with new seals.

Figure 78

113. In stages, tighten down the seal shield in the torque converter housing with the bolts.
Tightening torque: Hydraulic transmission, tightening torque

Weight, torque converter: approx. 92 kg (203 lbs)

Torque converter, installation

114. Lubricate the piston ring in the end of the turbine shaft with vaseline.
 Figure 79

115. Install two lifting eyes (M12) on the torque converter. Use the eyes, shackle, lifting sling, and overhead crane to lift
down the torque converter in the housing.

Figure 80

1. Lifting eyes, M12

2. Piston ring on torque converter's bushing
3. Piston ring on turbine shaft

116. Make sure that the piston ring located on the outside of the torque converter's drive sleeve is lubed with vaseline.

117. Check that the torque converter is in correct position by using 11668020 Transport brace as reference. The distance
between the top of the torque converter and the retainer plate's underside should be approx. 5 mm (0.2 in)
 Figure 81

1. Bolts between retainer plates and torque converter housing

2. Bolts between torque converter and retainer plates
3. 11668020 Transport brace

118. Remove the lifting equipment.

119. Install three 11668020 Transport brace between the torque converter and torque converter housing:

1. Begin by installing and tightening the bolts that hold the retainer plates to the torque converter housing.
2. Then install and tighten the bolts that hold the torque converter to the retainer plates.

Protective cover, installing

120. Turn the transmission as shown in figure.

Figure 82

1. Cover

121. Install the cover together with a new gasket. Torque-tighten the bolts crosswise, from the middle of the cover and
outward.
Tightening torque, see: Hydraulic transmission, tightening torque
Main pressure filter, installing

122. Install the filter holder for the main pressure filter in a vice and remove the plug for the relief valve (overflow valve).
CATATAN!
There are two pretensioned springs behind the plug.

Figure 83

1. Plug for relief valve

123. Check the springs and the peg. Replace damaged parts.

Figure 84

124. Install the peg and the springs in the main pressure valve. Change O–ring on the plug and install it.
Tightening torque: Hydraulic transmission, tightening torque.

125. Install the filter holder for the main pressure filter with a new gasket on the transmission housing.
CATATAN!
After test-running the transmission, check-tighten the bolts.
 Figure 85

1. Main pressure filter

Control system, installing

126. Press down the cable harness in the moulded groove in the transmission housing.

Figure 86

1. Plate

127. Install the plate over the cable harness.

128. Install all bolts for the control system together with the temperature and level sensor, SE4202/SE4203, suction
strainer, clamps, and PWM-valves, see figure below.
CATATAN!
Check which bolts should be installed together with a clamp.

CATATAN!
Check the marking on the PWM-valves on the control system and the marking on the connectors on the cable
harness, so that the correct connector is plugged into the correct PWM-valve.

CATATAN!
Last, install the suction strainer.

Tightening torque, see: Hydraulic transmission, tightening torque

 Figure 87

M8x40 mm (1.57 in)

M8x60 mm (2.36 in)

M8x80 mm (3.15 in)

1 Clamp
2 This bolt also has the bracket for the connector for SE4202/SE4203
3 Bolts holding the suction strainer

129. Check-measure the PWM-valves in the transmission, see PWM4205-PWM4212, description and measuring. Plug in
the measuring equipment to connector EH (Canon connector).

130. Install two guide pins, M8x85 mm, on the transmission housing where the oil sump is to be installed.
 Figure 88

1. Guide pins
2. Gasket

Oil sump, installing

131. Fit a new gasket.

132. Clean the magnetic plates in the oil sump.

Figure 89

133. Install the oil sump.

 Figure 90

134. Install the bolts that hold the oil sump. Replace the guide pins with bolts.

135. Tighten the bolts crosswise.

Tightening torque, see: Hydraulic transmission, tightening torque

136. Fit the oil plug in the oil sump.

External sensors, plugs, and pressure check connections, installing

137. Change O-rings on all sensors, plugs, and pressure check connections. Install the sensors, plugs, and pressure check
connections.
For positions and tightening torques, see Transmisi, lokasi komponen and Hydraulic transmission, tightening
torque

Weight, transmission: approx. 475 kg (1,047 lbs)

Removing transmission from workstand

138. Secure the transmission by attaching an overhead crane in the eye on 9998169 Fixture.

Figure 91

1. Overhead crane
2. 9998169 Fixture

139. Loosen 9998169 Fixture from the workstand.

 Lift down the transmission and place it on a pallet, or similar. For example, place wooden blocks at suitable points
so that it cannot fall over.

140. Remove the 9998169 Fixture from the transmission.

Oil tubes, installing

141. Change O-rings on the oil pipes and lube them with vaseline.

Figure 92

1. Oil pipe for filling oil

2. Connector for differential pressure sensor for oil filter, SE4218
3. Tube for oil dipstick

142. Install the oil pipe for filling oil in the transmission housing.
CATATAN!
Do not tighten the bolt for the connector's bracket, leave the bracket loose. This is for easier installation of the
transmission in the machine.

Tightening torque, see: Hydraulic transmission, tightening torque

143. Install the pipe for the dipstick.

Tightening torque, see: Hydraulic transmission, tightening torque

144. Place plastic bags around the filter holders and fasten them with cable ties.
Figure 93
