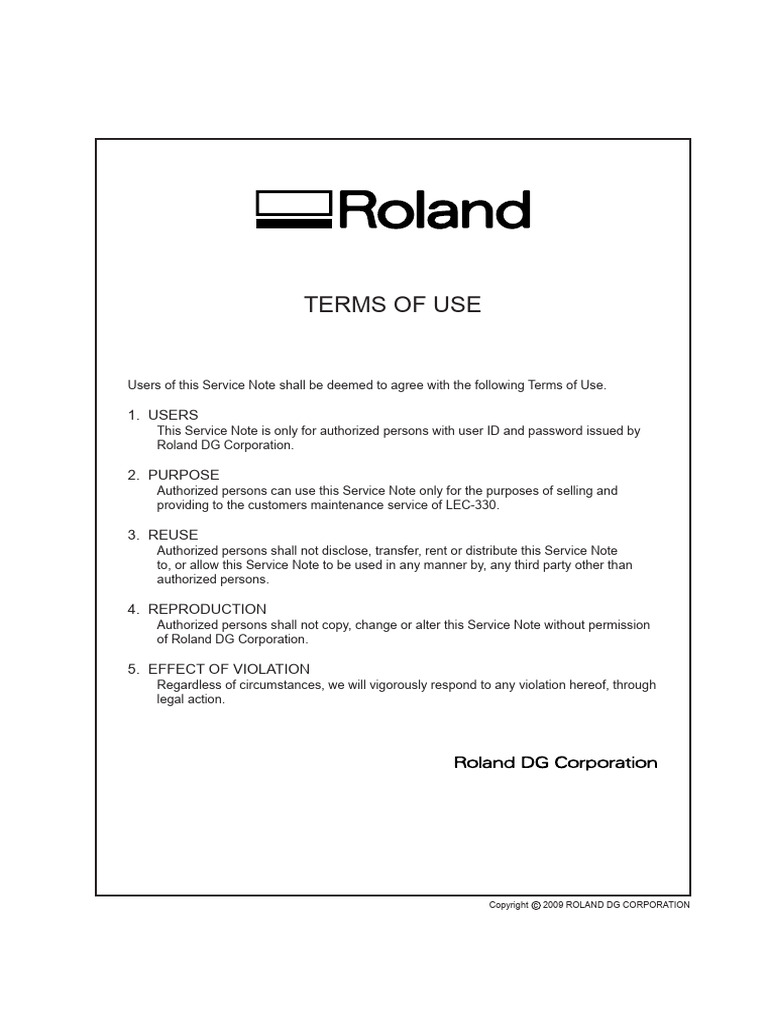

TERMS OF USE
Users of this Service Note shall be deemed to agree with the following Terms of Use.
1. USERS
This Service Note is only for authorized persons with user ID and password issued by
Roland DG Corporation.
2. PURPOSE
Authorized persons can use this Service Note only for the purposes of selling and
providing to the customers maintenance service of LEC-330.
3. REUSE
Authorized persons shall not disclose, transfer, rent or distribute this Service Note
to, or allow this Service Note to be used in any manner by, any third party other than
authorized persons.
4. REPRODUCTION
Authorized persons shall not copy, change or alter this Service Note without permission
of Roland DG Corporation.
5. EFFECT OF VIOLATION
Regardless of circumstances, we will vigorously respond to any violation hereof, through
legal action.
Copyright c 2009 ROLAND DG CORPORATION
5 Supplemental Information
5-1 SPECIAL TOOLS
Table shows a list of special tools recommended by Roland DG Corp.
Parts No. ST-056
Parts Name TORQUE DRIVER NS
Purpose HEAD ALIGNMENT
Parts No. 1000005463
Parts Name TOOL,BIT PHILLIPS NO.1 L150MM ST-107
Purpose HEAD ALIGNMENT
Parts No. ST-002
Parts Name TENSION GAUGE 300g(3N)
Purpose TOOL PRESSURE ADJUSTMENT
Parts No. ST-006
Parts Name WHITE DUMMY PEN
TOOL HEIGHT ADJUSTMENT
Purpose
TOOL PRESSURE ADJUSTMENT
Parts No. ST-013
Parts Name DIAL TENSION METER DT-100(100G/1N)
Purpose TOOL PRESSURE ADJUSTMENT
Parts No. ST-001
Parts Name TENSION GAUGE 2000GF/2000CN
Purpose BELT TENSION ADJUSTMENT
Parts No. ST-037
Parts Name CLEANING STICK TX712A
Purpose HEAD CLEANING
Parts No. 21755107
Parts Name CLEANING LIQUID(SL) 500ML
Purpose HEAD CLEANING (SOL)
5-1
Parts No. 22085118
Parts Name KIT, CLEANING(SL)
HEAD CLEANING (SOL)
Purpose
*Cleaning Liquid + Cleaning Sticks 10 pcs.
Parts No. 1000005467
Parts Name TOOL,GLASSES UV COATING ST-111
Purpose PROTECTIVE GOGGLES
Parts No. 1000005571
Parts Name TOOL,DEODORANT MASK AC-P ST-112
Purpose ACTIVATED CARBON MASK
Parts No. 1000005829
Parts Name TOOL,VINYL YE UV RESISTANT ST-113
REPLACEMENT WHEN THE INK LINE IS EXPOSED
Purpose
TO THE OUTSIDE LIGHT
5-2
5-2 SENSOR MAP
REAR PAPER SENSOR
It detects the rear edge of the media and also SHEET LOAD SENSOR
whether the media is loaded or not. It detects whether the Sheet Loading Lever is
UP or DOWN.
HEAD LOCK SENSOR
It detects wheter the HEAD
CARRIAGE is at locking position
or not.
IS COVER SENSOR
It detects whether the IS Cover is
opened or closed.
(Right side of the machine)
FRONT PAPER SENSOR
It detects the front edge of the media.
(Front side of the machine)
AMBIENCE THERMISTOR
It measures the temperature of the
ambiente air.
FRONT SENSOR
It detects whether the Front Cover
is opened or closed.
MAINTENANCE COVER SENSOR
It detects whether the Maintenance Cover
is set or not.
FEED ENCODER MODULE
It detects the rotation position of the
(Left side of the machine) Grit Roller.
5-3
WIPER SENSOR
It detects the limit position of the Wiper
movement.
ENCODER MODULE
It detects the coordinates in the carriage moving
direction, and also generates the print signal.
HEAD UP/DOWN SENSOR
It detects the position of the Head
Height Lever.
THERMISTOR
It takes the temperature around
the Head. The leftmost head is
used for the measurement.
CAPPING SENSOR
It detects the limit position of
the Capping Unit.
5-4
PINCH ROLLER SENSOR
CROP MARK SENSOR It detects the positions of Pinch Roller.
It detects the Crop Mark. It detects whether the Media Clamp is set or not.
INK CARTRIDGE IC SENSOR
It communicates with the IC chip of the InkCartridge.
INK EMPTY SENSOR INK CARTRIDGE SENSOR
It detects whether the Ink Cartridge is empty or not. It detects whether the Ink Cartridge is installed
or not.
DANCER ROLLER SENSOR
It measure the Dancer angle, carries out the weight
control, and then adjusts media tension.
5-5
