status Week 9 : Assignment 9
Assignment not submitted Due date: 2024-03-27, 23:59 IST.
For all circuits, do not consider channel length modulation for calculating bias points. Unless otherwise specified, channel length modulation
effect needs to be considered for small-signal analysis. All answers should be given to the second decimal place.
Course outline
General hints: small-signal output resistance of a MOSFET rDS = 1/(λ·I D ); For determining output resistance of longer-than-minimum-length
About NPTEL () devices, use the relation λ·L = constant; Remember that overdrive or saturation voltage VOV = VDS,sat = VGS - VT . To calculate noise with reactive
components, use the magnitude of complex impedances (or its square) to determine the noise voltage/current densities (or its square).
How does an NPTEL
online course work? () Circuit and device parameters are:
Vdd = 5V; VTn = VTp = 1V; μn Cox = 50μA/V2 ; μp Cox = 25μA/V2 ; λn = λp = 0.01 V -1 for Lmin = 1 μm
Week 1 () Temperature = 300K; Boltzmann constant = 1.38 X 10-23 m2 kg s-2 K-1
Vdd
Week 2 ()
Week 3 ()
Vdd
Week 4 ()
Week 5 ()
Week 6 ()
oVo
ut oVout
Week 7 ()
Week 8 ()
Week 9 ()
Basic amplifier stages-
Vin My Ma
Common drain; Frequency
response of amplifiers
(unit?unit=66&lesson=67)
Common source amplifier
Rs Cs Vino My
frequency response;
Differential amplifier (unit?
unit=66&lesson=68)
Differential and common
mode half circuits;
Differential pair with active
load (unit?
unit=66&lesson=69)
Quiz: Week 9 :
Assignment 9

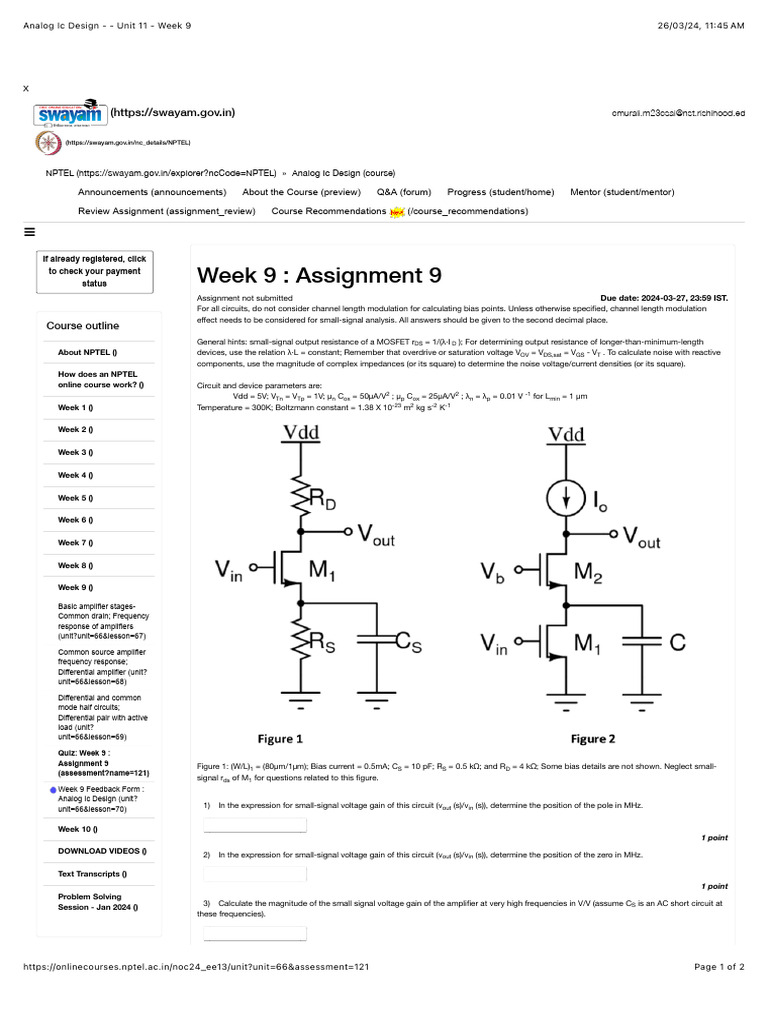

Figure 1: (W/L)1 = (80μm/1μm); Bias current = 0.5mA; CS = 10 pF; RS = 0.5 kΩ; and RD = 4 kΩ; Some bias details are not shown. Neglect small-
(assessment?name=121)
Figure1
signal rds of M1 for questions related to this figure. Figure2
Week 9 Feedback Form :
Analog Ic Design (unit?
unit=66&lesson=70) 1) In the expression for small-signal voltage gain of this circuit (vout (s)/vin (s)), determine the position of the pole in MHz.
Week 10 ()
1 point
DOWNLOAD VIDEOS () 2) In the expression for small-signal voltage gain of this circuit (vout (s)/vin (s)), determine the position of the zero in MHz.
Text Transcripts ()
1 point
Problem Solving
Session - Jan 2024 () 3) Calculate the magnitude of the small signal voltage gain of the amplifier at very high frequencies in V/V (assume CS is an AC short circuit at
these frequencies).
https://onlinecourses.nptel.ac.in/noc24_ee13/unit?unit=66&assessment=121 Page 1 of 2
Analog Ic Design - - Unit 11 - Week 9 26/03/24, 11:45 AM
1 point
4) Calculate the input-referred thermal noise voltage density of the amplifier in V/sqrt(Hz)at very high frequencies (again, assume CS is an AC
short circuit at these frequencies).
1 point
5) Assume that the current in transistor M1 is now increased to 2mA to try to increase the gain. Determine the new position of the pole in MHz,
in the expression for voltage gain.
1 point
6) With current in transistor M1 of 2mA, determine the new position of the zero in MHz, in the expression for voltage gain.
1 point
Figure 2: (W/L)1 = (W/L)2 = (80μm/1μm); Io = 0.5mA; C = 10 pF; Current source is ideal and noiseless; Some bias details are not shown. You
should consider small-signal rds of both transistors for questions related to this figure.
7) Calculate the small-signal output resistance of the amplifier (in Mega-ohms) at very low frequencies (assume that impedance of capacitor C
is very large compared to rds and 1/gm of both transistors)
1 point
8) Calculate the small-signal gain of the amplifier in V/V at very low frequencies (assume that impedance of capacitor C is very large compared
to rds and 1/gm of both transistors)
1 point
9) Calculate the small-signal output resistance of the amplifier (in Mega-ohms) at very high frequencies (assume that capacitor C is an AC
short circuit at these frequencies)
1 point
10) Calculate the small-signal gain of the amplifier in V/V at very high frequencies (assume that capacitor C is an AC short circuit at these
frequencies)
1 point
