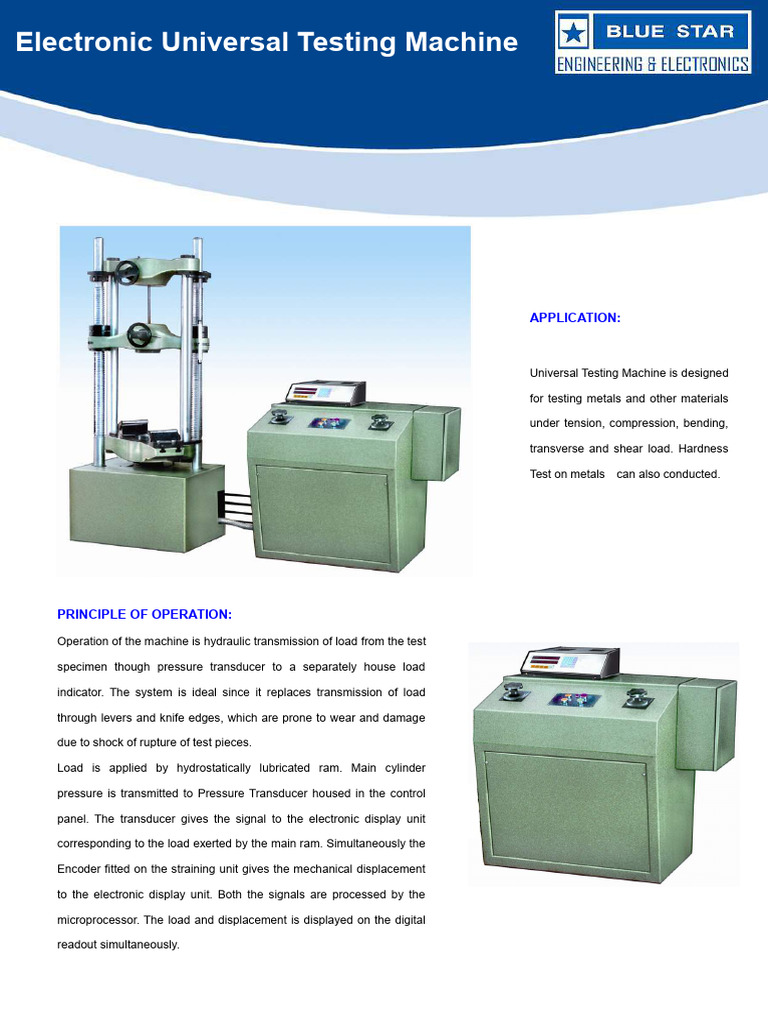

Electronic Universal Testing Machine

APPLICATION:

Universal Testing Machine is designed

for testing metals and other materials

under tension, compression, bending,

transverse and shear load. Hardness

Test on metals can also conducted.

PRINCIPLE OF OPERATION:

Operation of the machine is hydraulic transmission of load from the test

specimen though pressure transducer to a separately house load

indicator. The system is ideal since it replaces transmission of load

through levers and knife edges, which are prone to wear and damage

due to shock of rupture of test pieces.

Load is applied by hydrostatically lubricated ram. Main cylinder

pressure is transmitted to Pressure Transducer housed in the control

panel. The transducer gives the signal to the electronic display unit

corresponding to the load exerted by the main ram. Simultaneously the

Encoder fitted on the straining unit gives the mechanical displacement

to the electronic display unit. Both the signals are processed by the

microprocessor. The load and displacement is displayed on the digital

readout simultaneously.
 Electronic Universal Testing Machine
STRAINING UNIT:
This consist of a cylinder, motor with chain & sprocket drive and a table coupled with
the ram of the hydraulic cylinder mounted on to a robust base. The cylinder and ram
are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the
table by two strengthened columns.
The Lower cross-head is connected to two columns which are driven by hydraulic
piston. Axial loading of the ram is ensured by relieving the cylinder and ram of any
possible side loading by the provision of ball seating.
A displacement measuring encoder with a resolution of 0.1mm measures the
deformation of the specimen in electronic unit and 1mm in analogue unit through
recorder.
While the Tension test is conducted by gripping the test specimen between the upper
and middle cross-head, Compression, transverse, bending, shear & hardness tests
are conducted between the middle cross-head and lower table.
The middle-cross fitted on two screw column which is movable up and down using
gear motor for ease of fixing of the test specimen.

HYDRAULIC SYSTEM:
The hydraulic circuit consist of hydraulic power pack having a directly driven radial plunder pump, which gives a
continuous non pulsating flow of oil pressure up to 200kgf/cm2. Oil filter, oil level indicator, drain plug provided on the
power pack. A pressure compensated needle type flow control valve is provided to control the oil flow to cylinder there by
achieving desired piston speed. The variable speed can be obtained with the help of vales.

ELECTRICAL SYSTEM:
A separate switch box and electrical panel is provided on hydraulic panel. The hydraulic pump motor and gear motor has
electrically interlocked. The wiring of limit switches is done in such a way so as to stop the hydraulic pump motor if the
load increases beyond the machine capacity or if the piston stroke exceeds limit.

Tension Test through holding the specimen in jaws, threaded shoulder attachment & wire rope attachment
 Electronic Universal Testing Machine
FEATURES: ELECTRONIC CONTROL PANEL:
 Incorporates design features to enable high The Microprocessor based panel incorporating state of art
accuracy testing with economy, speed and
versatility. technology with following features ,
 Loading accuracy as high ± 1%  Front panel membrane type key board for machine
 Straining at variable speed to suit a wide range of
materials. operation with numeric keys for data entry
 Graphs for display on PC/print to enable study the  7 segment display
behavior of the material
 Motor driven threaded columns for quick  Data entry with numeric key board of test parameters of
adjustment of middle crosshead to facilitate rapid specimen
fixing of test specimens.
 Digital readout for easy understanding.  Display of results such as breaking load, % elongation
 Wide range of standard and special accessories, etc.
including load stabilizer.
 Easy change from plain to threaded and screwed  Data storage of up to 20 different specimens and results
specimens. storage of 50 different sets.
 Large effective clearance between columns enable
testing of standard specimens as well as  RS232 serial interface for PC connection ( Windows
structures. based software for data logging & analysis available on
 Simple controls for ease of operation.
 Robust straining frame of extremely rigid request)
construction.  Printer port (dot matrix) available for printing test results
 Safe operation ensured by means of safety
devices. and graph.
 Fully enclosed and protected pressure transducer
 RS 232 serial port to transfer data to computer for
analysis/storage evaluation etc.
 Manual control & release value operation
SOFTWARE:
The electronic panel can be be connected to any PC using RS-232 communication port to utilise various Windows-based
software to,
 View real-time graph of test
 Extensive graphics on screen for curve plotting, magnification & zooming
 Graph comparison, point tracing, different unit selection for load & displacement
 Statistical evaluation with water fall dig., mean deviation, frequency distribution, skew dig., histogram.
 Calculate max. value, min. value, mean value, variance, standard deviation, statistical results of batch or different file
 Evaluation of wide range of user selectable parameter such as % Elongation, % Reduction in area, Young’s modulus,
Yield stress, Proof Stress etc.
 Software packages for Shear Test, Bend Test, Torsion Test, Tubber Test, Textile Test etc.
 Custom-built application software to suit customer requirements.

Compression Test Shear Test Transverse Test

Specifications MODEL UNITS UTE-10 UTE-20 UTE-40 UTE-60 UTE-100 UTE-200

Maximum Capacity KN 100 200 400 600 1000 2000

Measuring Range KN 0-100 0-2000 0-400 0-600 0-1000 0-2000
Load Resolution
N 5 10 20 30 50 100
(20,000 counts full scale)
Load Range with Accuracy of
KN 2 to 1000 4 to 200 8 to 400 12 to 600 20 to 1000 40 to 2000
measurement ± 1.0%
Resolution of piston movement
mm 0.1 0.1 0.1 0.1 0.1 0.1
(Displacement)
Clearance for tensile at fully
mm 50-700 50-700 50-700 50-800 50-80f0 50-900
descended working piston
Clearance for compression test at
mm 0-700 0-700 0-700 0-800 0-850 0-900
fully descended working piston
Clearance between columns mm 500 500 500 600 750 850
Ram Stroke mm 150 200 200 250 250 300
Straining/piston speed ( at no load) Mm/min 0-300 0-150 0-150 0-100 0-80 0-45
CONNECTED LOAD
Power kW 1.0 1.0 1.7 1.9 2.6 4.9
V 400-440 400-440 400-440 400-440 400-440 400-440
Ø 3 3 3 3 3 3
DIMENSIONS
2032x 2032x 2060x 2265x 2415x 3000x
LxWxH (approx.) mm 750x 750x 750x 750x 815x 1200x
1960 1960 2180 2534 2900 3600
STANDARD ACCESSORIES kg 1500 1500 2500 3500 5500 9500
FOR TENSION TEST
10-20 10-20 10-25 10-25 10-25 20-40
Clamping jaws for round specimens
mm 25-40 25-45 40-60
of Diameters.
20-30 20-30 25-40 40-55 45-70 60-80
0-10 0-10 0-15 0-15 0-22 0-20
Clamping jaws for flat specimens of
mm 20-45
thickness
10-20 10-20 15-30 15-30 22-44 45-70
Width mm 50 50 65 70 70 90
FOR COMPRESSION TEST
Pair of compression plates of dia. mm 120 120 120 120 160 220
FOR TRANSVERSE TEST
Table with adjustable rollers width
mm 160 160 160 160 160 160
of rollers
Diameter of Rollers mm 30 30 30 30 30 30
Maximum clearance between
mm 500 500 500 600 800 900
supports
Radius of punch tops mm 6,12 6,12 12,16 16,22 16,22 30,40

SPECIAL ACCESSORIES & OPTIONS

 Load Stabilizer  Electronic Extensometer  Shear test attachment

 Printer  Piston movement resolution of 0.01mm  Software packages
 Computer  180º bend test attachment  Mechanical Extensometer
 Brinell Test Attachment
