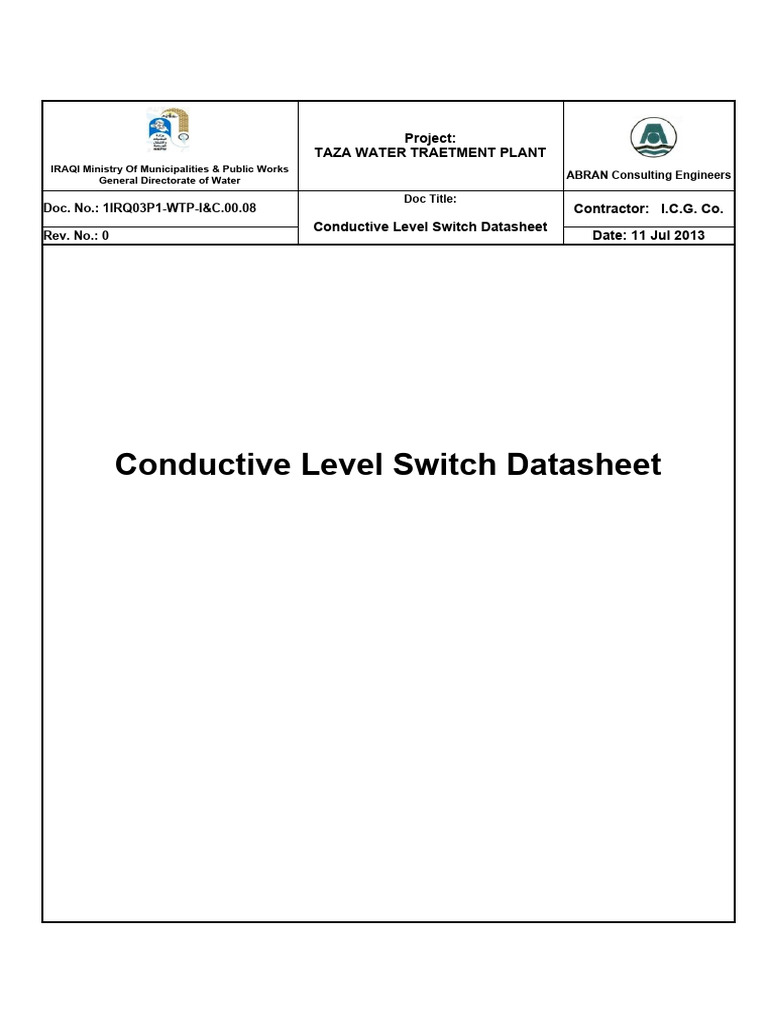

Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

Conductive Level Switch Datasheet

Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public
Works General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

TABULATION OF REVISED PAGES

SHEET REVISION SHEET REVISION

NO 0 1 2 3 4 5 NO 0 1 2 3 4 5
1 X 41
2 X 42
3 X 43
4 X 44
5 X 45
6 X 46
7 X 47
8 X 48
9 X 49
10 X 50
11 X 51
12 X 52
13 53
14 54
15 55
16 56
17 57
18 58
19 59
20 60
21 61
22 62
23 63
24 64
25 65
26 66
27 67
28 68
29 69
30 70
31 71
32 72
33 73
34 74
35 75
36 76
37 77
38 78
39 79
40 80
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0301

2 Service Fliter 1

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0302

2 Service Fliter 2

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0303

2 Service Fliter 3

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0304

2 Service Fliter 4

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0305

2 Service Fliter 5

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0306

2 Service Fliter 6

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0307

2 Service Fliter 7

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0308

2 Service Fliter 8

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0309

2 Service Fliter 9

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
Client Designer

Project:
TAZA WATER TRAETMENT PLANT
IRAQI Ministry Of Municipalities & Public Works
General Directorate of Water
ABRAN Consulting Engineers

Doc Title:
Doc. No.: 1IRQ03P1-WTP-I&C.00.08 Contractor: I.C.G. Co.
Conductive Level Switch Datasheet
Rev. No.: 0 Date: 11 Jul 2013

1 Tag Number LSH-0310

2 Service Fliter 10

3 Application High Alarm

GENERAL
4 Type Liquid conductive level switch

5 Area Classification Safe Area, Non Hazardous

6 Power Supply 24 V DC

7 Upper Fluid Clarified Water

8 Lower Fluid Clarified Water

9 Upper / Lower Fluid sp.gr 1

PROCESS CONDITION
10 Max.Pressure Oper. Pressure (barg) 1 Bar Atmospheric

11 Max.Temperature Oper. Temperature (°C) Max.: 55 Min: 10 0

C

12

13 Body Material VTA

14 Switch Set Point Site Run

BODY
15 Connection NPT 1 1/2

16

17 Electrode material 316L

Electrode 18 Electrode Length 1 meter

19 Number of Electrodes 2

20 Type Snap-Action

21 Quantity Form 2 Change Over

22 Rating AC: max. 250 V; DC: max. 150 V

SWITCH 23 Load Type Inductive

24 Switch Housing IP-66

25 Hysteresis Yes

26

27 Manufacturer E+H

PURCHASE 28 Model FTW31

29

Notes:
