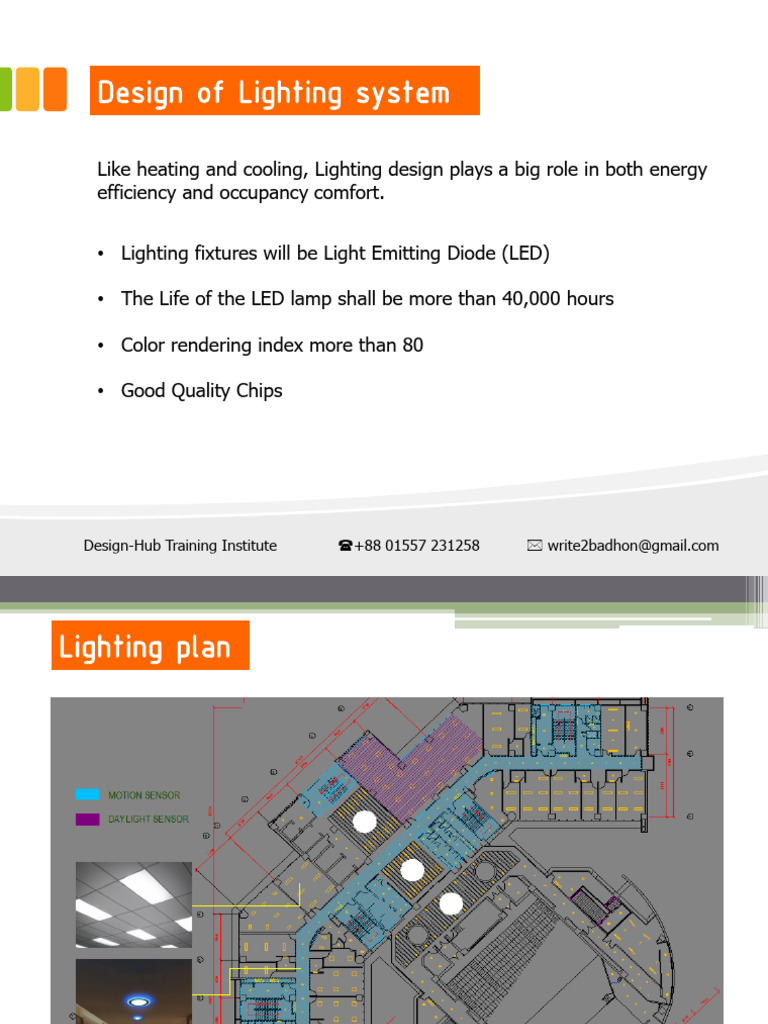

Design of Lighting system
Like heating and cooling, Lighting design plays a big role in both energy
efficiency and occupancy comfort.
• Lighting fixtures will be Light Emitting Diode (LED)
• The Life of the LED lamp shall be more than 40,000 hours
• Color rendering index more than 80
• Good Quality Chips
Design-Hub Training Institute +88 01557 231258 write2badhon@gmail.com
Lighting plan
By Lumen Method
Applicable to design of a uniform (general) lighting in square or rectangular rooms
where a high proportion of light on the working plane is reflected
Complete Determine Number of Fixtures
N = Number of Light required.
E = Required Lux Level
A = Room area (Length x Width; Meter)
F = Lumen output of Each Light
UF = Utilization factor (Clean room-0.7)
MF = Maintenance factor (Clean room-0.7)
A room has length 6m, width 4m and height 3m. 300 Lux is Required.
Find number of light required ?
Design-Hub Training Institute +88 01557 231258 write2badhon@gmail.com
More than 80; Minimum 70
Its value should be in between 0.7 and 0.9
Design-Hub Training Institute +88 01557 231258 write2badhon@gmail.com
Residential below 4000K,
Office in between 4000-6000K
Design-Hub Training Institute +88 01557 231258 write2badhon@gmail.com
Design-Hub Training Institute +88 01557 231258 write2badhon@gmail.com
By Lumen Method
Utilization Factor: Lumens received on the working plane/Lumens
emitted by the lamp
Effecting Factor:
• Type of light
• light fitting
• Surface Color
• Mounting height of lamps
• Area to be illuminated
Its value lies between 0.4 and 0.6 for direct fittings it varies from 0.1 to 0.35
for indirect fitting
