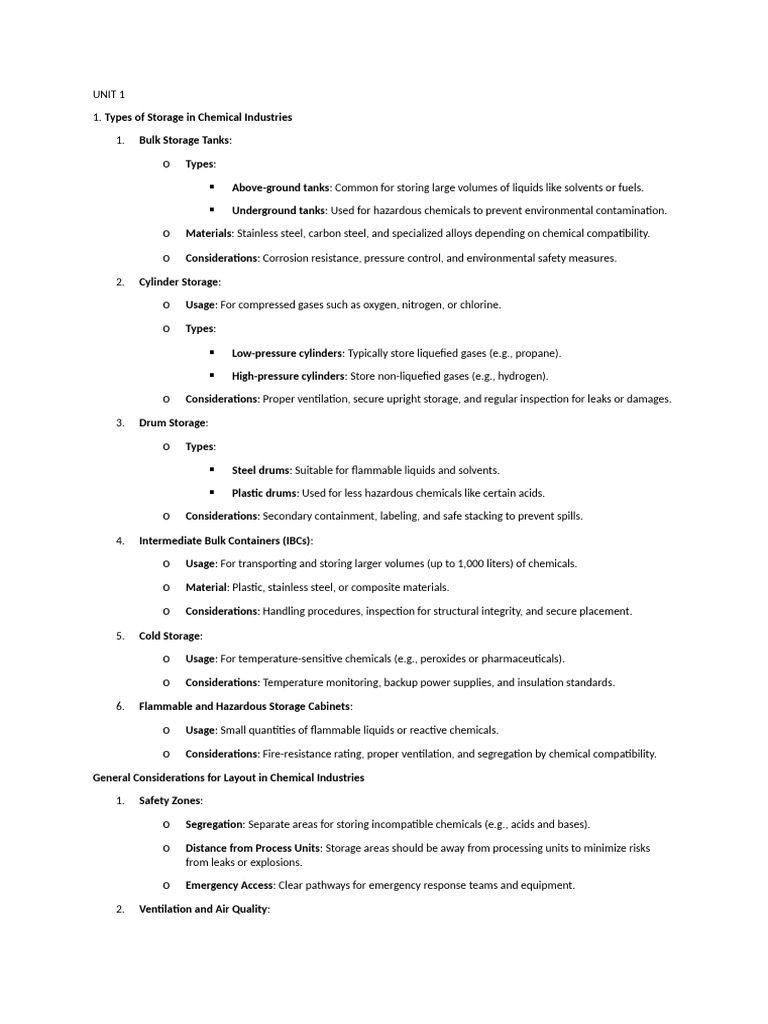

UNIT 1

1. Types of Storage in Chemical Industries

1. Bulk Storage Tanks:

o Types:

 Above-ground tanks: Common for storing large volumes of liquids like solvents or fuels.

 Underground tanks: Used for hazardous chemicals to prevent environmental contamination.

o Materials: Stainless steel, carbon steel, and specialized alloys depending on chemical compatibility.

o Considerations: Corrosion resistance, pressure control, and environmental safety measures.

2. Cylinder Storage:

o Usage: For compressed gases such as oxygen, nitrogen, or chlorine.

o Types:

 Low-pressure cylinders: Typically store liquefied gases (e.g., propane).

 High-pressure cylinders: Store non-liquefied gases (e.g., hydrogen).

o Considerations: Proper ventilation, secure upright storage, and regular inspection for leaks or damages.

3. Drum Storage:

o Types:

 Steel drums: Suitable for flammable liquids and solvents.

 Plastic drums: Used for less hazardous chemicals like certain acids.

o Considerations: Secondary containment, labeling, and safe stacking to prevent spills.

4. Intermediate Bulk Containers (IBCs):

o Usage: For transporting and storing larger volumes (up to 1,000 liters) of chemicals.

o Material: Plastic, stainless steel, or composite materials.

o Considerations: Handling procedures, inspection for structural integrity, and secure placement.

5. Cold Storage:

o Usage: For temperature-sensitive chemicals (e.g., peroxides or pharmaceuticals).

o Considerations: Temperature monitoring, backup power supplies, and insulation standards.

6. Flammable and Hazardous Storage Cabinets:

o Usage: Small quantities of flammable liquids or reactive chemicals.

o Considerations: Fire-resistance rating, proper ventilation, and segregation by chemical compatibility.

General Considerations for Layout in Chemical Industries

1. Safety Zones:

o Segregation: Separate areas for storing incompatible chemicals (e.g., acids and bases).

o Distance from Process Units: Storage areas should be away from processing units to minimize risks
from leaks or explosions.

o Emergency Access: Clear pathways for emergency response teams and equipment.

2. Ventilation and Air Quality:

 o Ensure proper ventilation, especially for flammable or toxic chemicals.

o Install exhaust systems for confined storage areas to prevent fume accumulation.

3. Fire Protection:

o Sprinkler Systems: Install fire suppression systems tailored to the stored chemicals.

o Fire Extinguishers: Place appropriate types of extinguishers (e.g., foam for flammable liquids).

o Explosion-Proof Equipment: Use spark-resistant materials and lighting fixtures.

4. Containment Measures:

o Secondary Containment: Use bund walls or spill pallets to contain leaks.

o Drainage Systems: Design slopes to direct spills away from critical areas.

5. Access and Handling:

o Pathways: Maintain clear aisles for equipment and personnel movement.

o Loading/Unloading Zones: Design dedicated areas with spill containment and ventilation.

6. Labeling and Documentation:

o Clearly label all storage units with chemical names, hazards, and handling instructions.

o Maintain up-to-date Material Safety Data Sheets (MSDS) accessible to all workers.

7. Temperature and Pressure Controls:

o Install sensors to monitor storage conditions.

o Ensure pressure relief mechanisms are in place for volatile or reactive chemicals.

8. Regulatory Compliance:

o Follow national and international standards (e.g., OSHA, NFPA, ISO).

o Conduct regular audits and risk assessments.

9. Environmental Considerations:

o Implement waste management plans.

o Design systems to prevent contamination of soil and water sources.

By adhering to these types and layout considerations, chemical industries can ensure safe, efficient, and compliant storage
practices.

2. Storage and Handling of Hazardous Chemicals in Chemical Industries and Process Plants

Proper storage and handling of hazardous chemicals are critical for ensuring workplace safety, environmental protection,
and operational efficiency. Hazardous chemicals can be flammable, toxic, corrosive, reactive, or explosive, so specialized
protocols must be followed.

1. Storage Methods for Hazardous Chemicals

a. Bulk Storage Tanks

 Example: Hydrochloric acid (HCl) and sulfuric acid (H₂SO₄).

 Materials: Tanks are often made from stainless steel, fiberglass-reinforced plastic (FRP), or lined carbon steel to
resist corrosion.

 Safety Features:
 o Bund Walls: Contain leaks and spills.

o Level Sensors: Prevent overfilling.

o Vent Systems: Mitigate pressure buildup and release harmful gases safely.

b. Cylinder Storage for Compressed Gases

 Example: Chlorine (Cl₂) and ammonia (NH₃).

 Storage Protocols:

o Store cylinders upright and secure them to prevent falling.

o Separate flammable gases (e.g., propane) from oxidizers (e.g., oxygen).

o Ensure proper ventilation to prevent gas buildup.

c. Drum Storage

 Example: Solvents like acetone or ethanol.

 Considerations:

o Store in well-ventilated, cool areas away from direct sunlight or heat sources.

o Use secondary containment (spill pallets) to catch leaks.

o Regular inspection for corrosion or damage.

d. Cold Storage for Temperature-Sensitive Chemicals

 Example: Organic peroxides and certain pharmaceuticals.

 Requirements:

o Maintain specific temperature ranges to prevent decomposition or explosion.

o Backup power supply to ensure continuous refrigeration.

e. Flammable Liquid Storage Cabinets

 Example: Gasoline, methanol.

 Safety Measures:

o Cabinets must be fire-rated (typically 30-90 minutes).

o Limit storage quantities per regulatory guidelines.

o Use spark-proof grounding to prevent ignition.

2. Handling Methods for Hazardous Chemicals

a. Manual Handling

 Precautions:

o Use personal protective equipment (PPE) such as gloves, goggles, and respirators.

o Follow proper lifting techniques to avoid spills or exposure.

 Example: Decanting smaller quantities of concentrated acids using hand pumps.

b. Automated Handling Systems

 Applications: Transfer of bulk chemicals like benzene or toluene.

 Equipment: Pumps, conveyors, and automated valves.

  Advantages: Reduces human exposure and improves accuracy in transfer operations.

c. Handling Compressed Gases

 Protocols:

o Use pressure regulators and flow meters.

o Avoid dropping or striking cylinders.

 Example: In a chlorination process, chlorine gas is handled via automated feed systems.

d. Handling Reactive Chemicals

 Precautions:

o Use inert gases (like nitrogen) for blanketing reactive chemicals to prevent reactions with air or
moisture.

 Example: Handling sodium metal, which reacts violently with water, in an oil bath or under inert gas.

3. Specific Methods and Safety Practices

a. Segregation of Incompatible Chemicals

 Example: Acids and bases must be stored separately to avoid dangerous reactions.

 Method: Dedicated storage cabinets or different zones within a facility.

b. Ventilation and Fume Extraction

 Example: Handling volatile solvents like acetone or benzene.

 Method: Install local exhaust ventilation (LEV) systems to capture and remove fumes.

c. Spill Control and Emergency Response

 Example: Spill of sulfuric acid.

o Method: Use neutralizing agents (e.g., sodium bicarbonate for acids) and spill kits.

o Training: Staff must be trained in emergency response procedures.

d. Grounding and Bonding

 Example: Transferring flammable liquids like ethanol.

o Method: Use conductive hoses and ensure all equipment is grounded to prevent static electricity
buildup.

e. Temperature and Pressure Monitoring

 Example: Storage of liquid ammonia under pressure.

o Method: Install pressure relief valves and temperature sensors with alarms.

4. Regulatory Compliance and Documentation

 Standards: Adhere to guidelines such as OSHA, NFPA, and EPA regulations.

 Documentation: Maintain up-to-date Safety Data Sheets (SDS) and proper labeling for all hazardous chemicals.

5. Case Study Example: Handling Chlorine Gas in a Process Plant

1. Storage: Cylinders or bulk tanks with proper ventilation and leak detection systems.
 2. Transfer: Use automated pipelines with pressure control and continuous monitoring.

3. Emergency Preparedness: Equip areas with chlorine gas detectors and emergency scrubbers to neutralize leaks.

By following these methods and examples, chemical industries can minimize risks associated with storing and handling
hazardous chemicals, ensuring both safety and operational efficiency.

3. Relief valves are critical safety devices used in chemical storage tanks to prevent overpressure or vacuum conditions that
could lead to equipment failure or hazardous situations. Here are the main types of relief valves commonly used:

1. Pressure Relief Valves (PRVs)

 Function: Release excess pressure when it exceeds a preset limit.

 Common Use: Prevent overpressure in tanks storing volatile liquids or gases.

 Example: A PRV on a propane storage tank.

 Types:

o Spring-Loaded PRVs: Most common, uses a spring to control the opening pressure.

o Pilot-Operated PRVs: Use a pilot valve to control the main valve, providing more precise pressure
control.

2. Vacuum Relief Valves

 Function: Allow air or inert gas to enter the tank when internal pressure drops below atmospheric pressure.

 Common Use: Prevents tank collapse during emptying or cooling.

 Example: Installed on tanks storing volatile chemicals like solvents.

 Designs:

o Spring-Loaded Vacuum Valves: Opens when a preset vacuum level is reached.

o Weight-Loaded Vacuum Valves: Uses a weighted disc to maintain the seal until the vacuum threshold is
exceeded.

3. Combination Pressure-Vacuum Relief Valves (PVRVs)

 Function: Provides both pressure and vacuum relief in a single unit.

 Common Use: Fixed-roof tanks for flammable liquids like gasoline.

 Example: Prevents excessive pressure build-up during filling and avoids vacuum during emptying.

4. Rupture Discs (Bursting Discs)

 Function: Bursts at a predetermined pressure to relieve excess pressure rapidly.

 Common Use: Situations where immediate, full-bore relief is necessary.

 Example: Backup safety devices in high-pressure chemical reactors.

 Advantages:

o No moving parts, hence reliable.

o Often used in combination with PRVs for redundancy.

5. Pilot-Operated Relief Valves

 Function: Controlled by a pilot mechanism to open at precise pressure settings.

 Common Use: Large storage tanks or systems with fluctuating pressures.

 Example: Ammonia storage systems.

 Benefits: More accurate and stable operation compared to spring-loaded valves.

6. Thermal Relief Valves

 Function: Relieves pressure caused by thermal expansion of liquid in a closed system.

 Common Use: Pipelines and tanks exposed to temperature changes.

 Example: Relief for liquid propane pipelines during temperature rise.

 Design: Small capacity, designed for localized pressure relief.

7. Balanced Bellows Relief Valves

 Function: Compensates for backpressure, ensuring consistent set pressure.

 Common Use: Systems with variable backpressure (e.g., multi-phase processes).

 Example: Chemical reactors with fluctuating discharge pressures.

 Benefit: Minimizes the effect of backpressure on valve operation.

8. Pilot-Operated Vacuum Relief Valves

 Function: Precisely control vacuum conditions, especially in low-pressure tanks.

 Common Use: Vacuum-sensitive products like food-grade chemicals.

 Example: High-purity chemical storage under controlled atmospheres.

9. Emergency Pressure Relief Valves

 Function: Designed for extreme overpressure situations (e.g., fire exposure).

 Common Use: Protects against catastrophic failure in large storage tanks.

 Example: API 2000 compliant devices on fuel storage tanks.

 Features: Often larger, designed to open rapidly.

Selection Considerations:

 Chemical Compatibility: Ensure materials (e.g., stainless steel, PTFE) resist the stored chemical.

 Pressure Range: Set according to tank design pressure limits.

 Flow Capacity: Must handle maximum pressure relief requirements.

 Environmental Factors: Corrosive or hazardous environments may need special coatings.

By using appropriate relief valves, chemical industries can prevent tank overpressure or collapse, ensuring safe operations
and compliance with safety standards.

4. Safe disposal of hazardous chemicals is critical to protecting human health, the environment, and ensuring regulatory
compliance. Chemical industries follow strict protocols for hazardous waste management. Here’s an overview of the main
methods:

1. Incineration (Thermal Destruction)

 Description: High-temperature combustion to convert hazardous chemicals into non-toxic gases and ash.

 Example: Disposal of organic solvents like benzene or toluene.

 Advantages:

o Destroys toxic substances effectively.

o Reduces volume of waste.

 Considerations: Requires scrubbers or filters to control air emissions (e.g., dioxins).

2. Neutralization

 Description: Chemical treatment to convert hazardous substances into harmless or less hazardous ones.

 Example: Neutralizing sulfuric acid (H₂SO₄) with sodium hydroxide (NaOH) to form water and salt.

 Process:

o Acid Neutralization: Neutralize with bases.

o Alkaline Neutralization: Neutralize with acids.

 Considerations: Reaction must be controlled to avoid heat or gas buildup.

3. Chemical Stabilization and Solidification

 Description: Transform hazardous chemicals into stable, solid forms for safer disposal in landfills.

 Example: Encapsulation of heavy metals like lead (Pb) or arsenic (As) in concrete.

 Advantages:

o Prevents leaching into the environment.

o Makes handling easier and safer.

4. Landfill Disposal (Hazardous Waste Landfills)

 Description: Disposal in specially designed, lined landfills for hazardous waste.

 Example: Solidified heavy metal sludge from electroplating industries.

 Requirements:

o Must be treated and solidified to prevent leaching.

o Continuous groundwater monitoring.

 Considerations: Only permitted after chemical stabilization.

5. Recycling and Reclamation

 Description: Recover useful components from hazardous waste for reuse.

 Example: Distillation of spent solvents like acetone or ethanol for reuse in cleaning processes.

 Benefits:

o Reduces raw material consumption.

o Minimizes disposal costs.

 Regulation: Must comply with recycling standards to prevent environmental risks.

6. Bioremediation

 Description: Use of microorganisms to break down hazardous chemicals into non-toxic forms.

 Example: Treatment of oil spills using bacteria that degrade hydrocarbons.

 Types:

o In-Situ Bioremediation: Treatment occurs at the contamination site.

o Ex-Situ Bioremediation: Contaminated material is removed and treated elsewhere.

 Considerations: Limited to biodegradable substances.

7. Deep-Well Injection

 Description: Injection of liquid hazardous waste deep underground into stable geological formations.

 Example: Disposal of industrial waste acids.

 Safety Measures:

o Requires monitoring for leaks and seismic stability.

 Limitations: Suitable only for certain liquid wastes.

8. Evaporation and Crystallization

 Description: Concentrates hazardous solutions by evaporating water, leaving solid residues for disposal.

 Example: Treating wastewater from electroplating processes to recover heavy metals.

 Considerations: Emissions control to prevent release of toxic vapors.

9. Chemical Oxidation/Reduction

 Description: Converts hazardous chemicals into less toxic forms through oxidation or reduction reactions.

 Example: Oxidizing cyanide (CN⁻) in wastewater using chlorine.

 Benefits: Effective for certain toxic organic compounds.

10. Plasma Arc Technology

 Description: High-energy plasma is used to decompose hazardous chemicals at extremely high temperatures.

 Example: Disposal of PCBs (polychlorinated biphenyls).

  Advantages: Breaks down even the most stable compounds.

 Drawbacks: High energy cost.

11. Photocatalytic Degradation

 Description: Uses light-activated catalysts to break down hazardous chemicals.

 Example: Treatment of chlorinated organic pollutants.

 Applications: Often used for laboratory-scale or small-volume waste.

Regulatory Compliance

 Key Regulations: Follow standards from OSHA, EPA, and international bodies (e.g., Basel Convention).

 Documentation: Maintain detailed records of waste generation, treatment, and disposal.

By selecting appropriate disposal methods based on chemical characteristics and environmental impact, chemical industries
ensure safe and responsible management of hazardous waste.

5. Storage and Handling of Reactive Chemicals in Industries

Reactive chemicals can undergo hazardous reactions with other substances, leading to fire, explosion, or toxic gas release.
Proper storage and handling protocols are essential to minimize these risks. Here’s an in-depth look at key considerations:

1. Identify Incompatible Chemicals

 Chemical Incompatibility: Some chemicals can react violently when mixed, producing heat, gas, or toxic by-
products.

 Example Pairs:

o Acids and Bases: Mixing hydrochloric acid (HCl) with sodium hydroxide (NaOH) releases heat.

o Oxidizers and Flammables: Chlorine (Cl₂) with hydrocarbons can cause fires.

o Water-Reactive Chemicals: Sodium (Na) or calcium carbide (CaC₂) with water produce flammable gases
(hydrogen or acetylene).

2. Segregation of Chemicals

 Physical Separation: Store incompatible chemicals in separate storage areas or cabinets.

 Example:

o Acids (e.g., sulfuric acid) should be stored separately from organic solvents (e.g., ethanol).

 Color-Coding: Use distinct labels or colors for different chemical classes.

3. Storage Considerations

 Temperature Control:

o Keep reactive chemicals in temperature-controlled environments to prevent decomposition.

o Example: Peroxides should be stored in cold storage to avoid spontaneous decomposition.

 Ventilation:
 o Ensure proper ventilation to disperse any fumes or gases.

o Example: Ammonia storage areas require exhaust systems to remove vapors.

 Containment:

o Use secondary containment to capture leaks or spills.

o Example: Acid storage cabinets with spill trays.

4. Handling Procedures

 Personal Protective Equipment (PPE):

o Gloves, goggles, and face shields when handling reactive chemicals.

 Controlled Transfer:

o Use closed systems or dedicated pipelines to prevent spills.

o Example: Transfer chlorine gas using automated systems to avoid exposure.

5. Emergency Preparedness

 Spill Response:

o Neutralizing agents should be readily available (e.g., sodium bicarbonate for acid spills).

 Fire Protection:

o Install fire suppression systems appropriate for the chemicals stored.

o Example: Use foam systems for flammable solvents, but avoid water on water-reactive chemicals.

 Ventilation and Detection Systems:

o Gas detectors for toxic or flammable vapors.

o Example: Hydrogen sulfide (H₂S) detectors in sulfur-handling areas.

6. Compatibility Charts and Tools

 Chemical Compatibility Chart: Helps identify incompatible chemicals.

o Example: The NFPA (National Fire Protection Association) provides standardized charts.

 Safety Data Sheets (SDS):

o Include compatibility information and recommended handling practices.

7. Examples of Specific Chemical Handling

 Acids and Reactive Metals:

o Risk: Hydrogen gas release can cause explosions.

o Precaution: Store metals like aluminum away from acids.

 Oxidizing Agents (e.g., Perchlorates):

o Risk: Reacts violently with organics or reducing agents.

 o Precaution: Store in non-combustible cabinets away from fuels.

 Chlorine and Ammonia:

o Risk: Form toxic chloramine vapors when mixed.

o Precaution: Use separate handling systems with proper ventilation.

8. Special Storage Requirements:

 Inert Gas Blanketing:

o For reactive chemicals sensitive to oxygen or moisture.

o Example: Storing sodium metal under oil or inert gases like argon.

 Explosion-Proof Storage:

o Required for highly reactive or explosive materials.

o Example: Storing peroxide-based explosives in explosion-proof cabinets.

Conclusion

Proper storage and handling of reactive chemicals rely on thorough knowledge of their properties and incompatibilities.
Implementing segregation, using specialized storage systems, and ensuring personnel are trained in safe handling practices
minimizes risks and ensures compliance with safety regulations.

6. Transportation of Hazardous Chemicals and Chemical Safety

Transporting hazardous chemicals involves significant risks, including spills, leaks, or accidents that can harm people,
property, and the environment. Proper methods and safety protocols ensure safe transit. Here’s an overview of the key
considerations and methods:

1. Types of Transportation Modes

a. Road Transport

 Common Vehicles: Tanker trucks, specially designed chemical transport trucks.

 Examples: Transporting flammable liquids like gasoline or corrosive chemicals like sulfuric acid.

 Safety Features:

o Double-walled tanks to prevent leaks.

o Spill containment systems.

o Emergency shut-off valves.

b. Rail Transport

 Usage: Bulk transport of large quantities over long distances.

 Example: Transporting liquefied chlorine gas.

 Advantages: Reduced risk of accidents compared to road transport; cost-effective for heavy loads.

 Safety Measures: Dedicated tank cars with pressure and temperature controls.

c. Maritime Transport

 Usage: International and long-distance bulk transport.

 Example: Transporting crude oil or liquefied natural gas (LNG).

 Safety Features:
 o Double hulls in tankers to prevent spills.

o Specialized containment and ballast systems.

d. Air Transport

 Usage: Transport of small quantities of high-value or time-sensitive hazardous chemicals.

 Example: Transporting pharmaceutical chemicals.

 Limitations: Strict regulations due to safety concerns (e.g., no highly flammable chemicals).

e. Pipeline Transport

 Usage: Continuous transport of gases or liquids.

 Example: Transporting natural gas or ammonia.

 Safety Measures:

o Leak detection systems.

o Automatic shut-off valves and pressure monitoring.

2. Safety Considerations in Transportation

a. Proper Labeling and Documentation

 Labeling: Ensure all containers are clearly labeled according to international standards (e.g., GHS or DOT labels).

 Documentation: Include Safety Data Sheets (SDS) and transport manifests to provide essential chemical
information during transit.

 Example: Labels indicating flammable (Class 3) or corrosive (Class 8) substances.

b. Packaging Standards

 UN-Certified Packaging: Designed to withstand transportation stresses.

 Types:

o Drums: Metal or plastic drums for liquids.

o IBC Containers: Intermediate bulk containers for large quantities.

o Cylinders: For compressed gases.

 Example: Using poly-lined steel drums for transporting corrosive acids.

c. Vehicle Safety Requirements

 Inspections: Regular vehicle and container inspections to ensure integrity.

 Driver Training: Drivers must be trained and certified in handling hazardous materials.

 Emergency Equipment: Fire extinguishers, spill kits, and personal protective equipment (PPE) must be available
on vehicles.

3. Regulations and Compliance

 International Standards:

o ADR (European Agreement Concerning the International Carriage of Dangerous Goods by Road).

o IMDG Code (International Maritime Dangerous Goods Code).

o ICAO (International Civil Aviation Organization) regulations for air transport.

  Local Regulations: Each country has specific laws governing the transport of hazardous chemicals (e.g., DOT
regulations in the U.S.).

4. Risk Mitigation Strategies

 Route Planning: Avoid densely populated areas and ecologically sensitive zones.

 Weather Considerations: Plan for adverse weather that could increase transportation risks.

 Emergency Response Plans: Establish clear response protocols for accidents or spills.

5. Example Scenario: Transporting Chlorine Gas

 Mode: Rail transport in pressurized tank cars.

 Safety Measures:

o Use of emergency shut-off valves.

o Continuous monitoring of pressure and temperature.

o Emergency response drills in case of a leak.

 Labeling: Display "Toxic Gas" placards and emergency contact information.

Conclusion

Safe transportation of hazardous chemicals requires strict adherence to safety protocols, regulatory compliance, and
continuous risk assessment. Each mode of transport has unique challenges, but proper packaging, labeling, and emergency
preparedness ensure the safety of both people and the environment.

7. Types of Hazardous Chemical Transporting Methods in Industries

Transporting hazardous chemicals requires careful consideration of the chemical’s nature, risks, and regulations. Various
methods ensure safe and efficient transportation within industrial facilities or between locations. Here’s a detailed
breakdown:

**1. Road Transport

 Description: Transporting chemicals using tanker trucks or specialized vehicles on highways.

 Common Chemicals: Flammable liquids (gasoline, ethanol), corrosives (sulfuric acid), gases (propane).

 Types of Vehicles:

o Tank Trucks: For bulk liquid or gas transport.

o Container Trucks: Carry drums or intermediate bulk containers (IBCs).

 Safety Features:

o Double-walled tanks.

o Pressure relief systems.

o Emergency shut-off valves.

**2. Rail Transport

 Description: Transporting hazardous chemicals using dedicated railcars over long distances.
  Common Chemicals: Anhydrous ammonia, chlorine, crude oil.

 Types of Railcars:

o Tank Cars: For liquids and gases.

o Hopper Cars: For bulk solid chemicals (e.g., sulfur).

 Safety Measures:

o Pressure and temperature monitoring.

o Dedicated routes for hazardous materials.

o Spill containment plans.

**3. Maritime Transport (Shipping)

 Description: Transporting chemicals via cargo ships, often over international waters.

 Common Chemicals: Petroleum products, liquefied natural gas (LNG), bulk acids.

 Types of Ships:

o Chemical Tankers: Carry liquid chemicals.

o Container Ships: Transport packaged hazardous materials.

 Safety Features:

o Double-hulled tanks.

o Specialized containment systems.

o Ventilation and inert gas systems.

 Regulations: Governed by the International Maritime Dangerous Goods (IMDG) Code.

**4. Air Transport

 Description: Transporting small quantities of hazardous chemicals via cargo aircraft.

 Common Chemicals: Pharmaceuticals, laboratory reagents, high-value chemicals.

 Limitations:

o Prohibited for highly flammable or reactive substances.

o Strict weight and quantity limits.

 Packaging: Must meet International Civil Aviation Organization (ICAO) and International Air Transport Association
(IATA) standards.

**5. Pipeline Transport

 Description: Continuous transport of hazardous liquids and gases through pipelines.

 Common Chemicals: Natural gas, petroleum, ammonia.

 Types:

o Liquid Pipelines: Transport oil, chemical solutions.

o Gas Pipelines: Transport compressed natural gas (CNG), hydrogen.

  Safety Features:

o Leak detection systems.

o Automatic shut-off valves.

o Regular inspection and maintenance.

**6. In-Plant Transport (Internal)

 Description: Moving chemicals within an industrial site.

 Methods:

o Pipelines and Hoses: For liquid or gas transfer between process units.

o Forklifts and Drum Carts: Transporting containers or drums.

o Automated Guided Vehicles (AGVs): Move hazardous materials with precision in large facilities.

 Safety Considerations:

o Proper labeling and segregation.

o Spill containment procedures.

**7. Conveyor Systems

 Description: Transporting solid chemicals (powders or granules) within facilities.

 Common Use: Movement of bulk chemicals like sulfur or fertilizers.

 Types:

o Belt conveyors.

o Pneumatic conveyors.

 Precautions: Dust suppression, explosion-proof systems for combustible materials.

**8. Intermodal Transport

 Description: Using multiple transportation modes (road, rail, sea) for a single shipment.

 Example: Shipping chemicals in ISO tanks that transfer seamlessly from trucks to ships.

 Benefits:

o Reduces handling risks.

o Increases transport efficiency and flexibility.

**9. Manual Transport (Limited)

 Description: Small-scale transport using handcarts or dollies.

 Use: Moving small containers in laboratories or chemical warehouses.

 Precautions:

o Proper PPE (gloves, goggles).

o Avoid rough handling to prevent spills or reactions.

Safety Measures Across All Methods:

 Labeling and Documentation: Ensure compliance with hazard classification systems like GHS.

 Training: Personnel must be trained in chemical handling and emergency response.

 Emergency Equipment: Spill kits, fire extinguishers, and first aid should be readily available.

By selecting the appropriate transport method based on the chemical's properties, industries ensure both safety and
regulatory compliance, protecting people and the environment.

UNIT 2

1. Hazards in Organic and Inorganic Chemical Reactions and Processes

Chemical processes, whether organic or inorganic, carry various hazards due to the nature of reactants, products, and
intermediates. Understanding these hazards is crucial for ensuring safety in chemical industries. Let's explore these hazards
and their types in detail:

1. Common Types of Hazards

a. Thermal Hazards

 Description: Involve heat release or absorption that can lead to runaway reactions, fires, or explosions.

 Examples:

o Exothermic Reactions: Combustion of hydrocarbons (organic).

o Decomposition Reactions: Decomposition of hydrogen peroxide (inorganic) releasing oxygen and heat.

 Risks:

o Overheating can cause pressure buildup.

o Uncontrolled heat release can ignite flammable materials.

b. Chemical Reactivity Hazards

 Description: Violent reactions when incompatible chemicals mix.

 Examples:

o Organic: Reaction of sodium metal with ethanol.

o Inorganic: Mixing chlorine (Cl₂) with ammonia (NH₃) forms explosive chloramines.

 Risks: Release of toxic gases, explosions, or violent exothermic reactions.

c. Pressure Hazards

 Description: Result from gas evolution or thermal expansion.

 Examples:

o Organic: Decomposition of azides, which rapidly release nitrogen gas.

o Inorganic: Rapid boiling of liquid ammonia under heat.

 Risks: Over-pressurization can lead to container rupture or explosion.

2. Hazards Specific to Organic Reactions

a. Flammability and Explosiveness

 Description: Many organic chemicals are flammable or explosive.

 Examples:

o Solvents: Acetone, ethanol, and benzene are highly flammable.

o Dust Explosions: Organic dusts like sugar or flour.

 Risks: Combustion leading to fires or explosions if vapor/air mixtures ignite.

b. Toxicity of Products and Intermediates

 Description: Some organic compounds or their intermediates are toxic or carcinogenic.

 Examples:

o Benzene: Carcinogenic, causes bone marrow suppression.

o Formaldehyde: Respiratory and skin irritant.

 Risks: Inhalation, ingestion, or skin contact can cause severe health effects.

c. Polymerization Hazards

 Description: Uncontrolled polymerization can release heat and pressure.

 Example: Vinyl chloride polymerization can be highly exothermic.

 Risks: Runaway reactions if inhibitors are not present or removed.

3. Hazards Specific to Inorganic Reactions

a. Corrosiveness

 Description: Many inorganic chemicals (acids, bases) are highly corrosive.

 Examples:

o Sulfuric Acid (H₂SO₄): Causes severe burns and material damage.

o Sodium Hydroxide (NaOH): Strong base that corrodes skin and metals.

 Risks: Contact can cause burns, eye damage, or respiratory issues.

b. Oxidation and Reduction Hazards

 Description: Oxidizing agents can cause combustion or explosions when mixed with flammables.

 Examples:

o Potassium Permanganate (KMnO₄): Strong oxidizer.

o Reducing Agents: Hydrogen gas in presence of oxygen.

 Risks: Fire or explosion if not properly controlled.

c. Toxic Gas Release

 Description: Inorganic reactions often release toxic gases.

 Examples:

o Ammonia (NH₃): Released from ammonium salts with strong bases.

o Chlorine Gas: Produced from reactions involving hydrochloric acid and oxidizers.

 Risks: Inhalation can cause respiratory damage or poisoning.

4. Physical Hazards in Processes

a. Mechanical Hazards

 Description: Involve equipment failures or leaks under high pressure.

 Examples: Pipe bursts or pump failures in high-pressure systems.

 Risks: Explosions, chemical spills, or injury from flying debris.

b. Electrical Hazards

 Description: Electrical sparks can ignite flammable chemicals.

 Example: Static electricity in solvent-handling areas.

 Risks: Fires or explosions in volatile organic vapor zones.

5. Control Measures

 Proper Storage: Segregate incompatible chemicals.

 Process Controls: Use temperature and pressure monitoring systems.

 Ventilation: Ensure adequate ventilation to disperse toxic or flammable vapors.

 Training: Train workers in handling hazardous materials and emergency response.

 PPE: Personal protective equipment for handling corrosive or toxic substances.

Conclusion

Understanding the specific hazards associated with organic and inorganic chemical reactions is crucial for maintaining safety
in industrial processes. Implementing appropriate control measures, safety protocols, and training minimizes risks and
ensures compliance with safety regulations.

2. Reaction Hazards in Chemical Process Safety

Chemical processes often involve reactions that can present significant hazards if not properly controlled. Understanding
these hazards is essential to prevent accidents such as fires, explosions, and toxic releases. Below is a detailed overview of
reaction hazards, types, causes, and mitigation strategies:

1. What Are Reaction Hazards?

Reaction hazards refer to the risks associated with chemical reactions that may lead to dangerous outcomes due to
uncontrolled conditions. These hazards can arise from factors such as exothermic reactions, pressure buildup, or the
formation of unstable intermediates.

2. Types of Reaction Hazards

a. Thermal Hazards

 Description: Occur when a reaction releases more heat than the system can dissipate, leading to temperature rise
(runaway reaction).

 Examples:

o Exothermic Reactions: Nitration of toluene or oxidation of hydrocarbons.

o Decomposition: Organic peroxides decomposing uncontrollably.

  Risks:

o Overheating can cause pressure buildup.

o Potential for thermal runaway leading to fires or explosions.

b. Pressure Hazards

 Description: Occur when gases are produced or expand, increasing system pressure beyond safe limits.

 Examples:

o Decomposition of hydrogen peroxide releasing oxygen gas.

o Thermal expansion of liquids or gases within closed vessels.

 Risks: Vessel rupture, explosion, or release of toxic gases.

c. Chemical Reactivity Hazards

 Description: Arise from violent or uncontrolled reactions between incompatible chemicals.

 Examples:

o Mixing acids with bases releases heat and gas.

o Sodium reacting violently with water.

 Risks: Explosion, toxic gas formation, or violent exothermic reactions.

d. Polymerization Hazards

 Description: Uncontrolled polymerization can release heat and increase pressure.

 Examples:

o Polymerization of vinyl chloride or styrene.

 Risks: Runaway polymerization can rupture vessels or cause fires.

e. Toxicity Hazards

 Description: Result from the release of toxic intermediates or by-products.

 Examples:

o Phosgene formation in chlorinated hydrocarbon reactions.

o Ammonia released from ammonium compounds.

 Risks: Inhalation or exposure to toxic substances causing health issues.

3. Causes of Reaction Hazards

 Inadequate Mixing: Poor mixing can lead to localized hot spots or incomplete reactions.

 Impurities: Presence of contaminants can trigger unexpected reactions.

 Incorrect Temperature Control: Failure of cooling systems can lead to overheating.

 Insufficient Venting: Closed systems without proper venting can experience pressure buildup.

 Human Error: Misfeeding chemicals or incorrect process conditions.

4. Detection and Assessment of Reaction Hazards

a. Hazard Analysis Techniques

  Process Hazard Analysis (PHA): Systematic evaluation of potential hazards.

 HAZOP (Hazard and Operability Study): Identifies deviations from normal operating conditions.

 Risk Assessment Matrices: Evaluate likelihood and severity of hazards.

b. Laboratory Testing and Simulations

 Differential Scanning Calorimetry (DSC): Measures heat flow to detect exothermic or endothermic reactions.

 Reaction Calorimetry: Monitors heat released during a reaction.

 Vent Sizing Testing (e.g., Adiabatic Calorimetry): Assesses pressure buildup in a system.

5. Mitigation Strategies

a. Process Control Systems

 Temperature Control: Use cooling systems and automated temperature monitoring.

 Pressure Relief Systems: Install relief valves or rupture discs to prevent overpressure.

 Inerting: Introduce inert gases (e.g., nitrogen) to prevent flammable mixtures.

b. Safe Design and Engineering Controls

 Segregation of Incompatible Chemicals: Store reactive substances separately.

 Containment Systems: Use double-walled reactors and spill containment.

 Explosion-Proof Equipment: Install intrinsically safe electrical systems in hazardous areas.

c. Operational Controls

 Standard Operating Procedures (SOPs): Detailed instructions for handling and processing.

 Training and Awareness: Ensure workers are trained in chemical handling and emergency procedures.

 Emergency Response Planning: Prepare for potential incidents with drills and proper equipment.

6. Case Example: Runaway Reaction in Chemical Plant

 Scenario: An exothermic reaction involving methyl ethyl ketone (MEK) in a batch reactor.

 Hazard: Cooling system failure led to rapid temperature rise.

 Outcome: Reactor vessel ruptured, causing a fire.

 Lessons Learned:

o Importance of redundant cooling systems.

o Need for real-time temperature and pressure monitoring.

Conclusion

Understanding reaction hazards in chemical processes is crucial for ensuring safety. By identifying the types of hazards,
their causes, and implementing robust mitigation strategies, industries can prevent accidents and maintain safe operations.
Regular risk assessments, proper training, and advanced monitoring systems are key to managing these hazards effectively.

3. Detonations, Deflagrations, and Runaway Assessment & Testing Strategies in Chemical Process Safety

Understanding explosive reactions and assessing runaway scenarios are essential for safe chemical processing. This
overview delves into detonations, deflagrations, and testing methodologies to manage these hazards effectively.
1. Detonations vs. Deflagrations

Both detonations and deflagrations involve the rapid release of energy from a chemical reaction, but they differ significantly
in terms of reaction speed, pressure, and destructive potential.

Detonations

 Definition: A detonation is a supersonic explosion where the reaction front moves through the material at a
speed faster than the speed of sound in that medium.

 Characteristics:

o Shockwave: A strong shockwave precedes the reaction front, compressing and heating the material,
initiating the reaction.

o Speed: Typically exceeds 1,500 m/s.

o Pressure: Produces extremely high pressures, causing destructive effects.

 Examples:

o Explosives like TNT or nitroglycerin.

o Gas-phase detonations in fuel-air mixtures (e.g., hydrogen-air detonation).

Deflagrations

 Definition: A deflagration is a subsonic combustion process where the reaction front moves at a speed slower
than the speed of sound.

 Characteristics:

o Flame Front: Propagates through thermal conduction and convection.

o Speed: Generally below 100 m/s.

o Pressure: Generates lower pressures compared to detonations but can still cause damage in confined
spaces.

 Examples:

o Combustion of natural gas in open air.

o Dust explosions in silos (e.g., flour or sugar dust).

2. Differences Between Detonation and Deflagration

Parameter Detonation Deflagration

Propagation Speed Supersonic (above sound speed) Subsonic (below sound speed)

Pressure Impact Extremely high; causes shockwaves Lower; builds gradually

Mechanism Shockwave compresses material Thermal conduction and diffusion

Damage Potential Very destructive, causes explosions Less destructive, can still cause fires or minor explosions

Typical Materials High explosives, gas-air mixtures Flammable gases, dust, vapors

3. Runaway Reactions: Assessment and Testing Strategies

A runaway reaction occurs when the rate of heat generation exceeds the rate of heat removal, causing a rapid and
uncontrolled increase in temperature and pressure.
Causes of Runaway Reactions:

 Exothermic Reactions: Poor heat control in highly exothermic processes.

 Accumulation of Reactants: Slow addition or incomplete mixing.

 Catalyst Mismanagement: Over-catalysis or unintended activation.

 Impurities or Contamination: Trigger unexpected side reactions.

4. Testing Strategies for Runaway Reactions

a. Differential Scanning Calorimetry (DSC)

 Purpose: Measures heat flow associated with phase transitions and reactions.

 Method:

o Small sample heated at a controlled rate.

o Detects exothermic/endothermic events.

 Use: Identify onset temperatures for thermal decomposition or runaway initiation.

b. Adiabatic Calorimetry (e.g., ARC)

 Purpose: Evaluates thermal behavior under adiabatic conditions (no heat loss).

 Method:

o Sample placed in a sealed vessel, temperature ramped until reaction starts.

o Measures temperature and pressure changes.

 Use: Simulates worst-case scenarios to predict maximum temperature and pressure rise.

c. Reaction Calorimetry

 Purpose: Measures heat released during a chemical reaction in real-time.

 Method:

o Reaction carried out in an instrumented reactor.

o Heat flux measured continuously.

 Use: Determine reaction kinetics, heat generation rate, and safe process conditions.

d. Vent Sizing Package (VSP) Testing

 Purpose: Determines appropriate vent sizing for pressure relief.

 Method:

o Measures pressure and temperature rise during a runaway scenario.

o Simulates vented reactions to assess pressure relief system adequacy.

 Use: Design emergency venting systems for reactors.

e. Accelerating Rate Calorimetry (ARC)

 Purpose: Identify thermal stability and potential runaway conditions.

 Method:

o Conducts tests under adiabatic conditions with high sensitivity.

 Use: Detects self-accelerating decomposition temperatures.

f. Thermal Screening Unit (TSU)

 Purpose: Quick assessment of thermal hazards.

 Method: Heats small samples to determine exothermic onset.

 Use: Preliminary screening of reactive substances.

5. Mitigation and Safety Strategies

 Process Control:

o Cooling Systems: Ensure adequate cooling capacity with redundancy.

o Monitoring: Real-time temperature and pressure sensors.

 Containment:

o Pressure Relief Valves (PRVs): Prevent overpressure in reactors.

o Bursting Discs: Rapid pressure release in emergency situations.

 Inerting: Use inert gases (e.g., nitrogen) to prevent flammable mixtures.

 Safe Scaling-Up: Laboratory assessments before scaling to industrial levels.

 Training and SOPs: Ensure operators understand process hazards and emergency response protocols.

Conclusion

Understanding detonations, deflagrations, and runaway reactions is crucial for maintaining safety in chemical processes.
Comprehensive testing and assessment strategies, such as calorimetry and thermal analysis, help identify potential hazards
early, allowing industries to implement effective controls and prevent catastrophic events. Proper engineering, process
monitoring, and personnel training are key components of a safe chemical processing environment.

4. Self-Heating Hazards of Solids and Explosive Potential of Chemicals

Self-heating hazards and explosive potential are critical aspects of chemical process safety. These phenomena can lead to
dangerous accidents, including fires, explosions, and toxic releases. Understanding the mechanisms behind these hazards
and how to mitigate them is essential for safe handling and processing of chemicals.

1. Self-Heating Hazards of Solids

Self-heating occurs when a solid material generates heat from internal chemical reactions or physical processes, without an
external heat source. This can lead to spontaneous combustion if the temperature rises high enough.

Mechanisms of Self-Heating:

 Oxidation Reactions: Many solids, especially organic materials, undergo slow oxidation in the presence of air.
These reactions generate heat over time.

o Example: Iron sulfide (FeS) can self-heat through slow oxidation.

 Microbial Activity: Biological degradation of materials like organic waste can produce heat as a by-product.

o Example: Compost piles may self-heat due to microbial fermentation.

 Thermal Decomposition: Certain materials may break down thermally under specific conditions, generating heat.

o Example: The decomposition of certain organic compounds like peroxides.

Factors Affecting Self-Heating:

 Particle Size: Smaller particles have a larger surface area, increasing the rate of oxidation or decomposition.
  Moisture Content: High moisture content can act as a heat sink, delaying self-heating. However, when moisture
evaporates, the risk increases.

 Air Circulation: Poor ventilation can lead to heat accumulation, increasing the risk of spontaneous combustion.

 Material Properties: Some materials are more prone to self-heating, such as those containing flammable
hydrocarbons or metals like aluminum powder.

Examples of Self-Heating Materials:

 Coal and Charcoal: Prone to self-heating in stockpiles due to slow oxidation.

 Waste Organic Matter: Shredded paper, agricultural waste, or wood chips can heat up due to microbial
decomposition.

 Chemical Compounds: Peroxides, sulfoxides, and certain organic solvents (e.g., linseed oil) can self-heat under
certain conditions.

Risks of Self-Heating:

 Fire: When the temperature exceeds the ignition point of the material or surrounding substances, it may result in
fire.

 Explosion: In confined spaces, the accumulation of gases or heat can create an explosive atmosphere, leading to
an explosion.

Prevention and Control Measures:

 Proper Storage: Store materials in cool, well-ventilated areas. Avoid large stockpiles.

 Regular Monitoring: Use temperature sensors to detect hot spots in stored materials.

 Inerting: Use inert gases (e.g., nitrogen) to prevent oxidation and heat generation.

 Moisture Control: Maintain optimal moisture content to reduce the risk of self-heating.

2. Explosive Potential of Chemicals

Explosions can occur when chemicals undergo rapid and violent reactions, producing large amounts of heat, gas, and
pressure. The explosive potential of chemicals depends on various factors, including their chemical properties,
environmental conditions, and containment.

Key Factors Contributing to Explosive Potential:

 Chemical Composition: Certain chemicals are inherently unstable or reactive, leading to explosions under specific
conditions.

o Example: Nitroglycerin, TNT (trinitrotoluene), and ammonium nitrate are classic examples of high
explosives.

 Reaction Rate: Chemicals that react extremely quickly (either exothermically or by releasing gases) can generate
enough pressure to cause an explosion.

o Example: The reaction between sodium and water produces hydrogen gas and heat, which can lead to
an explosion if confined.

 Energy Release: A chemical reaction’s explosive potential increases when a large amount of energy is released in
a short time.

o Example: Hydrogen gas and oxygen can form an explosive mixture when ignited.

Types of Explosive Chemicals:

1. Primary Explosives:

o Characteristics: Highly sensitive to shock, friction, or heat, and are used to initiate the detonation of
secondary explosives.
 o Examples: Lead azide, mercury fulminate.

o Risks: Sensitive, can detonate with minimal external energy.

2. Secondary Explosives:

o Characteristics: Less sensitive to external stimuli and require a primary explosive to detonate them.
They are more commonly used in large-scale explosives.

o Examples: TNT, dynamite, ammonium nitrate (ANFO).

o Risks: Stable until initiated by primary explosives.

3. Blasting Agents:

o Characteristics: Low sensitivity explosives, usually mixtures that include ammonium nitrate.

o Examples: Ammonium nitrate-fuel oil (ANFO).

o Risks: Require strong initiators (e.g., detonators) to detonate.

4. Gas Explosions:

o Characteristics: Combustion of gases in the presence of air (oxygen).

o Examples: Methane, hydrogen, propane.

o Risks: Can form explosive mixtures with air, especially in confined spaces.

5. Dust Explosions:

o Characteristics: Fine particulate solids suspended in air can combust violently when ignited.

o Examples: Coal dust, flour dust, aluminum dust.

o Risks: Can cause severe damage, especially in poorly ventilated environments.

Explosive Potential of Chemical Reactions:

 Detonation vs. Deflagration:

o Detonation: A supersonic shockwave that leads to an extremely rapid release of energy.

o Deflagration: A slower, subsonic reaction, but still capable of causing significant damage, especially in
confined spaces.

o Example: A confined natural gas leak can lead to deflagration, whereas a confined mixture of oxygen
and acetylene can lead to detonation.

 Thermal Runaway Reactions: If heat generation from a chemical reaction exceeds the system's heat dissipation
capacity, the temperature rises uncontrollably, which can lead to explosions.

o Example: The polymerization of styrene or the decomposition of hydrogen peroxide can lead to thermal
runaway and explosive conditions.

Explosive Hazards in Chemical Plants:

 Flammable Liquids: Vapors from solvents or other flammable liquids can form explosive mixtures in air.

 Pressure Hazards: Gas or vapor release under high pressure can lead to explosive ruptures of equipment.

 Confined Spaces: Explosions in confined spaces are more hazardous due to the buildup of pressure and potential
for detonation.

3. Prevention and Control of Explosive Hazards

 Proper Storage and Handling:

 o Use appropriate containers and labeling for hazardous chemicals.

o Store chemicals in cool, dry, and well-ventilated areas.

 Inerting and Venting:

o Introduce inert gases (e.g., nitrogen) into storage areas to prevent the formation of explosive mixtures.

o Implement proper venting to prevent the buildup of pressure.

 Temperature Control:

o Control reaction temperatures and use cooling systems to prevent thermal runaway reactions.

o Use thermal sensors to monitor temperatures in reactors.

 Explosion-Proof Equipment:

o Use explosion-proof electrical systems, spark arrestors, and pressure relief valves to reduce the risk of
ignition.

 Dust Control:

o Implement dust collection systems and ensure adequate ventilation to avoid dust explosions.

o Regular cleaning of dust-prone areas.

 Hazardous Materials Handling Procedures:

o Develop and enforce safety procedures for the safe handling, transport, and disposal of explosive
chemicals.

Conclusion

Both self-heating hazards of solids and explosive potential of chemicals are significant risks in chemical processing. Self-
heating can lead to spontaneous combustion, while explosive potential can result in violent reactions with disastrous
consequences. By understanding the mechanisms behind these hazards and implementing proper control measures—such
as monitoring, inerting, temperature regulation, and safe storage—industries can mitigate risks and maintain safety in
operations.

5. Structural Groups and Instability of Chemicals in Chemical Safety

Chemical stability is a crucial factor in determining the potential hazards associated with chemical reactions. Certain
structural groups within chemical molecules can make them more prone to instability, leading to hazardous behaviors like
decomposition, reactivity, and even explosions. Understanding these structural groups and their associated instabilities is
key to managing chemical safety in industrial and laboratory settings.

1. Structural Groups and Instability of Chemicals

Chemical instability refers to a substance's tendency to undergo undesirable chemical reactions, which can lead to
dangerous events such as explosions, fires, or the release of toxic products. The instability is often influenced by the
functional groups present in the molecule. Certain structural features make chemicals more reactive or prone to
decomposition.

a. Types of Structural Groups that Contribute to Chemical Instability

 Peroxides:

o Group Characteristics: Organic or inorganic compounds containing a peroxide group (-O-O-).

o Instability: Peroxides are highly reactive due to the weak O-O bond, which can easily decompose,
releasing oxygen and causing violent explosions.

o Example: Di-tert-butyl peroxide, hydrogen peroxide.

 o Risk: They are sensitive to heat, shock, or friction, and they can initiate reactions or cause violent
explosions.

 Azo Compounds:

o Group Characteristics: Compounds containing a nitrogen-nitrogen double bond (N=N).

o Instability: Azo compounds can decompose explosively, particularly under heat or shock.

o Example: Azo dyes or organic azo compounds.

o Risk: Azo groups can decompose at elevated temperatures, resulting in the formation of reactive
radicals.

 Nitrate Esters:

o Group Characteristics: Organic nitrates contain a nitrogen atom bonded to an oxygen atom and another
oxygen (–NO2 group).

o Instability: Nitroglycerin and other nitrate esters are highly unstable, sensitive to shock and friction, and
can decompose explosively.

o Example: Nitroglycerin, ethyl nitrate.

o Risk: Nitrate esters are often used in explosives and can detonate under certain conditions.

 Halogenated Compounds:

o Group Characteristics: Organic compounds containing halogens (fluorine, chlorine, bromine, iodine).

o Instability: Halogenated compounds like chlorates or chlorinated hydrocarbons can be reactive under
certain conditions, leading to violent reactions with water or other reactive substances.

o Example: Chlorine trifluoride (ClF3), methyl chloride.

o Risk: Can undergo vigorous exothermic reactions, especially with organic material or when exposed to
heat.

 Azides:

o Group Characteristics: Organic compounds containing the azide group (-N3).

o Instability: Azides are often shock-sensitive and can decompose violently when subjected to mechanical
impact or heat.

o Example: Sodium azide, lead azide.

o Risk: Azides are explosive when heated or when subjected to pressure.

 Acid Chlorides and Acid Anhydrides:

o Group Characteristics: Organic compounds containing a chloride or anhydride group.

o Instability: These compounds are highly reactive with water, often releasing heat, and forming toxic
products like hydrochloric acid or other corrosive compounds.

o Example: Acetyl chloride, phosgene.

o Risk: Can cause corrosive reactions and release toxic gases.

b. Chemical Decomposition and Instability

 Thermal Decomposition: Certain chemicals can undergo decomposition at elevated temperatures, leading to the
release of gas, heat, and sometimes dangerous products.

o Example: The decomposition of ammonium perchlorate, which is used in rocket propellants, can lead to
a violent explosion.
  Hydrolysis: Some chemicals can undergo hydrolysis (reaction with water) leading to the formation of toxic
products or unstable intermediates.

o Example: Organophosphates used in pesticides can degrade in the presence of water to form toxic
products.

2. Thermochemical Screening for Chemical Safety

Thermochemical screening involves evaluating the thermal stability and reactivity of chemicals, typically before they are
scaled up for industrial processes or used in manufacturing. This is an essential part of chemical safety, as it helps identify
chemicals that may pose thermal hazards, such as explosive reactions, fire, or runaway reactions.

a. Purpose of Thermochemical Screening:

 Predict Hazardous Conditions: Identifies chemicals that could undergo thermal runaway, violent decomposition,
or excessive heat generation under typical process conditions.

 Safety Evaluation: Helps to understand how chemicals react under stress, such as changes in temperature,
pressure, or physical confinement.

 Process Design: Assists in designing safe reaction conditions, selecting appropriate equipment, and defining safe
operational limits.

b. Key Techniques in Thermochemical Screening:

1. Differential Scanning Calorimetry (DSC):

o Principle: Measures the heat flow into or out of a sample as it is heated or cooled at a controlled rate.
The technique identifies exothermic or endothermic reactions, such as those that occur during
decomposition or polymerization.

o Application: Used to determine the thermal stability of a chemical and to assess whether it could lead
to runaway reactions.

o Example: Used to study the decomposition temperature of reactive chemicals like peroxides.

2. Accelerating Rate Calorimetry (ARC):

o Principle: Measures the temperature and pressure changes that occur when a chemical reaction is
accelerated due to heat input. ARC tests simulate adiabatic conditions to evaluate how quickly a
reaction progresses as temperature increases.

o Application: Used to simulate real-world conditions to identify runaway reaction scenarios, especially
for exothermic reactions.

o Example: Identifying the potential for thermal runaway in reactions involving organometallic
compounds.

3. Adiabatic Calorimetry:

o Principle: Assesses the thermal behavior of chemicals under adiabatic (no heat exchange) conditions,
simulating worst-case scenarios.

o Application: Useful for estimating maximum temperature and pressure rise in the event of an
uncontrolled reaction.

o Example: Used to evaluate the potential risks of chemical reactors in industrial processes.

4. Thermogravimetric Analysis (TGA):

o Principle: Measures the weight change of a substance as it is heated, which can indicate thermal
decomposition or phase transitions.

o Application: TGA helps determine decomposition temperatures and the composition of chemical
substances under thermal stress.

o Example: Used to monitor the loss of volatile components during the heating of chemicals.
 5. Flash Point and Auto-Ignition Testing:

o Principle: Determines the temperature at which a liquid or vapor will ignite if exposed to a flame (flash
point) or will spontaneously ignite without an external ignition source (auto-ignition temperature).

o Application: Essential for assessing flammability hazards, particularly in handling and storage of volatile
chemicals.

o Example: The flash point of solvents like ethanol is tested to ensure they are handled safely.

c. Risk Assessment and Chemical Safety

 Reaction Kinetics: Understanding how the reaction rate changes with temperature can help predict runaway
reactions and thermal hazards.

 Pressure Relief Design: Based on thermochemical screening data, systems can be designed with appropriate
pressure relief valves, emergency vents, and containment systems to manage runaway reactions.

 Material Compatibility: Ensures that chemicals with the potential for hazardous reactions, such as exothermic
reactions or decomposition, are stored and handled in suitable materials (e.g., corrosion-resistant containers).

3. Conclusion

Understanding the structural groups and instability of chemicals is essential for identifying potential hazards in chemical
processes. Certain functional groups, like peroxides, nitrates, and azides, increase the reactivity and explosive potential of
chemicals. Thermochemical screening techniques, such as DSC, ARC, and adiabatic calorimetry, are key tools used to assess
thermal stability and reactivity, helping to mitigate risks of runaway reactions, explosions, and fires. By employing these
methods, industries can ensure safe handling, storage, and processing of chemicals, reducing the likelihood of hazardous
incidents.

UNIT 3

1. Design Principles for Chemical Process Plants Related to Chemical Safety

Designing a chemical process plant with safety in mind is essential to minimize risks such as fires, explosions, toxic releases,
and environmental contamination. The integration of safety into the design process not only protects personnel but also
ensures regulatory compliance and reduces the potential for costly accidents. Safety should be a primary consideration
from the conceptual design stage through to the operation of the plant.

1. Hazard Identification and Risk Assessment

Before designing a chemical process plant, it is critical to conduct comprehensive hazard identification and risk
assessments. This process helps to identify potential safety issues early and design appropriate safeguards.

 Hazard Identification: Involves determining all possible hazards, including chemical reactions, physical hazards
(e.g., fire, explosion), equipment failures, and human errors.

 Risk Assessment: Quantifying the risk associated with each identified hazard by considering the likelihood of
occurrence and potential consequences. This helps prioritize the safety features in the design.

Methods for Hazard Identification and Risk Assessment:

 HAZOP (Hazard and Operability Study): A structured and systematic method to identify potential hazards and
operability issues in chemical processes.

 FMEA (Failure Mode and Effect Analysis): A method used to evaluate the possible failure modes of equipment or
processes and their impact on safety.

 What-If Analysis: A brainstorming approach to consider potential hazards and accident scenarios based on "What
if" questions.

 Layer of Protection Analysis (LOPA): A semi-quantitative risk assessment tool that evaluates the adequacy of
existing safeguards and identifies additional safety layers if necessary.
2. Safe Design Practices and Principles

Several design principles must be followed to ensure chemical safety throughout the plant. These principles help minimize
the risks associated with process equipment, chemicals, and operational conditions.

a. Inherently Safer Design (ISD)

Inherently safer design aims to eliminate or reduce hazards from the very beginning of the design process by choosing safer
alternatives and minimizing the use of hazardous materials. This approach is more effective than relying solely on safety
systems to control risks once they arise.

Key Inherently Safer Design Strategies:

 Minimize Hazardous Materials: Use less hazardous chemicals or processes that require fewer dangerous
reagents.

o Example: Substituting a toxic solvent with a less hazardous one.

 Reduce Process Intensities: Lower temperatures, pressures, and concentrations where possible to reduce the
energy released during an accident.

o Example: Operating at lower pressures to prevent catastrophic failures.

 Simplify Processes: Remove unnecessary process steps or use simple systems that are less prone to failure.

o Example: Using batch processes instead of continuous ones where batch operations may have fewer
hazards.

 Use of Non-volatile Substances: Where possible, use chemicals that are less volatile or that do not readily form
explosive mixtures with air.

o Example: Replacing volatile solvents with solids or less volatile liquids.

b. Process Segregation

Process segregation involves designing plants in such a way that hazardous materials are isolated, preventing accidental
reactions and contamination with incompatible substances. This can be achieved by:

 Physical Barriers: Using walls or partitions to isolate hazardous areas from safe zones or adjacent processes.

 Safety Zones: Establishing "hot" (high-risk) and "cold" (low-risk) zones within the plant to keep dangerous
reactions separated from non-hazardous processes.

 Containment Systems: Using double-walled tanks, pressure vessels, or dikes to prevent the release of hazardous
chemicals into the environment in the event of a leak or rupture.

c. Pressure and Temperature Control

Maintaining control over the operating conditions of temperature and pressure is critical to preventing hazardous situations
such as thermal runaway reactions or the over-pressurization of vessels. This includes:

 Vessel and Equipment Sizing: Properly sizing pressure vessels and pipes to ensure they can handle maximum
expected pressures and temperatures.

 Pressure Relief Systems: Installing pressure relief valves (PRVs), rupture disks, or venting systems to safely release
excess pressure during abnormal conditions.

 Temperature Control: Using heat exchangers, cooling systems, or temperature regulators to keep reactions within
safe operating limits and prevent overheating.

 Example: Using a cooling jacket or heat exchanger in a reactor to prevent it from exceeding its design
temperature.

3. Safety Instrumented Systems (SIS) and Control Systems

Safety Instrumented Systems (SIS) are designed to detect hazardous situations and bring the process to a safe state when
necessary. These systems are critical in protecting people, the environment, and equipment.
a. SIS Design Principles:

 Redundancy: Using redundant instruments and systems to ensure reliable performance. For example, using
multiple sensors or backup control systems to ensure the system can detect faults even if one sensor fails.

 Fail-Safe Design: Safety systems should be designed to default to a safe state in the event of a failure.

 Real-time Monitoring: Continuous monitoring of key parameters such as pressure, temperature, and chemical
concentrations to detect deviations from normal operating conditions.

 Emergency Shutdown Systems (ESD): These are automated systems designed to shut down parts of the plant in
case of an emergency, stopping hazardous reactions or isolating dangerous areas.

b. Control Systems Integration:

 Distributed Control Systems (DCS): A DCS integrates the plant’s instrumentation and controls into a single
system, enabling real-time monitoring and control of the process.

 Process Control Systems: These systems monitor and control temperature, pressure, flow, and other process
parameters, ensuring that operations remain within safe limits.

4. Ventilation and Containment Systems

Proper ventilation and containment systems are essential for controlling toxic, flammable, or explosive chemicals in the
plant.

 Local Exhaust Ventilation: Fume hoods, ducting, and ventilation systems designed to capture hazardous vapors or
gases at their source and prevent them from dispersing into the work environment.

 General Ventilation: Ensuring proper airflow throughout the plant to dilute any hazardous gases or fumes that
might escape into the environment.

 Explosion-Proof Design: Vent systems and equipment should be designed to prevent or mitigate the effects of
explosions, such as using explosion vents or explosion suppression systems.

 Containment Dikes: For liquid chemicals, containment dikes or bunded areas can be used to prevent the spread
of chemicals in the event of a spill.

5. Material Selection and Corrosion Control

Choosing the right materials for construction is essential for ensuring the long-term safety and integrity of the plant.

 Corrosion-Resistant Materials: Use corrosion-resistant materials for piping, tanks, and reactors, especially when
dealing with highly corrosive chemicals (e.g., acids, chlorides).

 Coatings and Linings: Protective coatings can be applied to equipment to reduce corrosion and wear.

 Material Compatibility: Ensure that materials used in the construction of the plant are compatible with the
chemicals being processed to avoid reactions that can lead to accidents.

6. Safety Features and Emergency Response Planning

A chemical process plant should incorporate several safety features to mitigate the impact of an accident or failure and
facilitate emergency response.

a. Fire Prevention and Protection:

 Fire Suppression Systems: Automatic sprinkler systems, foam-based suppression systems, or dry chemical
systems should be installed to control fires in critical areas.

 Fire Detection Systems: Heat or smoke detectors can trigger alarms and activate fire suppression systems when
necessary.

b. Emergency Relief Systems:

  Pressure Relief Valves (PRVs): PRVs are installed to prevent pressure from exceeding safe limits in reactors,
vessels, or pipelines.

 Blowout Panels or Rupture Discs: These devices provide a safe exit path for excess pressure, preventing the
catastrophic rupture of equipment.

 Emergency Shut-off Valves (ESVs): These valves automatically close to isolate the process or specific sections in
an emergency.

c. Evacuation and Safety Plans:

 Emergency Evacuation Routes: Clear and well-marked evacuation routes and exits should be designed to allow
personnel to exit the facility in the event of an emergency.

 Emergency Drills: Regular emergency drills should be conducted to ensure personnel know how to respond to
hazardous events like fires, explosions, or toxic releases.

7. Continuous Improvement and Safety Audits

 Regular Safety Audits: Safety audits and reviews should be conducted regularly to identify and correct potential
safety gaps in the design and operation of the plant.

 Process Safety Management (PSM): A systematic approach to managing the safety of chemical processes, which
includes risk assessments, safety training, and the use of incident investigation tools.

 Lessons Learned: Incorporating feedback from past incidents or near misses to improve future designs and
operational practices.

Conclusion

Designing a chemical process plant with safety in mind requires a comprehensive approach that incorporates hazard
identification, inherently safer design principles, appropriate control systems, material selection, and robust emergency
response capabilities. By considering these principles throughout the design and operation phases, companies can
significantly reduce the risk of accidents, ensure regulatory compliance, and protect personnel, the environment, and the
plant itself from catastrophic incidents.

2. Process Design Development in Chemical Engineering

Process design development is a comprehensive and systematic process in chemical engineering that transforms a
conceptual idea into a detailed plan for the construction of a chemical process plant. It involves multiple stages, including
feasibility studies, flow diagrams, equipment design, and detailed layouts, to ensure that the process operates safely,
efficiently, and cost-effectively. The process design is a combination of scientific principles, engineering expertise, and
practical considerations.

1. Process Design Development Phases

a. Conceptual Design

 Objective: The conceptual design phase involves identifying the process flow, equipment, and utilities required to
meet the desired production targets and product specifications.

 Activities:

o Defining the process, raw materials, energy requirements, and desired outputs.

o Identifying potential hazards and evaluating the feasibility of the proposed design.

o Estimating costs, including capital and operational expenses.

o Preliminary process flow diagrams (PFD) and process descriptions are developed.

o Establishing initial design parameters such as temperature, pressure, and flow rates.

b. Feasibility Study
  Objective: The feasibility study (FS) is conducted to assess the economic, technical, environmental, and
operational viability of the project.

 Activities:

o Evaluating the technical feasibility of the process: Does the technology exist to achieve the desired
reaction and separation?

o Economic assessment: Is the project financially viable? A cost-benefit analysis is performed to

determine profitability.

o Environmental considerations: Assessing the impact of the process on the environment, including waste
generation, emissions, and resource consumption.

o Regulatory compliance: Ensuring the design adheres to local, national, and international safety and
environmental standards.

Deliverables:

 Process flowsheet.

 Equipment list.

 Preliminary economic analysis.

 Regulatory compliance check.

2. Types of Process Designs

There are several types of process designs in chemical engineering, depending on the nature of the project and its specific
requirements.

a. Batch Process Design

 Characteristics: In a batch process, the raw materials are processed in discrete batches rather than continuously.

 Common in: Specialty chemicals, pharmaceuticals, and food industries.

 Design Considerations: Flexibility in operation, handling varying production rates, and ensuring safety for each
batch. Equipment is typically smaller and can be operated independently.

b. Continuous Process Design

 Characteristics: In a continuous process, raw materials are fed continuously into the process and the products are
continuously withdrawn.

 Common in: Petrochemical plants, refineries, and large-scale production facilities.

 Design Considerations: Requires efficient control systems, large-scale equipment, and a stable supply of raw
materials. Focuses on maximizing throughput and minimizing downtime.

c. Semi-batch Process Design

 Characteristics: Semi-batch processes involve a combination of batch and continuous operations. Part of the
process is done in batches, while other parts may be continuous.

 Common in: Fine chemicals, some food processing, and polymers.

 Design Considerations: Flexibility to switch between batch and continuous modes, depending on the
requirements of the process.

d. Modular Process Design

 Characteristics: Modular design involves breaking down the process into smaller, self-contained units or modules
that can be independently constructed and later integrated into a larger plant.

 Common in: Offshore oil platforms, portable chemical plants, or smaller-scale production.
  Design Considerations: Flexibility, ease of transportation, and construction.

3. Feasibility Survey (Feasibility Study)

A feasibility study is a critical phase in the early stages of the process design that determines the technical and economic
viability of the proposed chemical process.

a. Technical Feasibility

 Objective: To ensure that the required technology and equipment are available to achieve the desired chemical
reaction and separation.

 Key Aspects:

o Evaluation of the process chemistry and technology (e.g., reaction kinetics, separations).

o Availability of raw materials.

o Technology selection (e.g., reactors, distillation columns).

b. Economic Feasibility

 Objective: To assess the financial viability of the project and determine whether the expected revenue will justify
the costs of construction and operation.

 Key Aspects:

o Capital expenditure (CapEx) estimates (e.g., cost of equipment, installation).

o Operating costs (OpEx) such as labor, raw materials, utilities, and maintenance.

o Expected return on investment (ROI) and payback period.

c. Environmental Feasibility

 Objective: To assess the environmental impact of the process, including waste generation, emissions, and
resource consumption.

 Key Aspects:

o Waste disposal methods and treatment.

o Compliance with environmental regulations (air, water, soil).

o Sustainability considerations, including energy use and carbon footprint.

d. Safety Feasibility

 Objective: To evaluate the safety of the chemical process and minimize risks to personnel, the environment, and
equipment.

 Key Aspects:

o Identification of potential hazards (e.g., flammable materials, high pressures).

o Design for safety, including equipment like pressure relief systems, emergency shutdown systems (ESD),
and fire suppression.

o Compliance with safety standards and regulations.

4. Process Flow Diagram (PFD)

A Process Flow Diagram (PFD) is a visual representation of the chemical process, outlining the major steps, equipment, and
interconnections. It is one of the most important tools used in process design to communicate how materials and energy
flow through the system.
Key Features of a PFD:

 Major Equipment: Symbols for key equipment such as reactors, heat exchangers, pumps, and distillation
columns.

 Material Flow: Arrows indicating the flow of raw materials, intermediate products, and final products.

 Energy Flow: Heat and energy input/output for each unit operation.

 Utilities: Indicating connections to utilities such as steam, electricity, and cooling water.

 Control Loops: Basic indication of process control and monitoring systems.

 Safety Systems: Basic symbols for safety equipment such as relief valves, pressure sensors, and emergency
shutdown systems.

Types of PFDs:

 Basic PFD: A simple diagram showing major process equipment and the flow of materials.

 Detailed PFD: Includes more details, such as specific equipment and operating conditions (temperature,
pressure).

 Simulated PFD: Generated using process simulation software to simulate and analyze the behavior of the process.

5. Piping and Instrumentation Diagram (P&ID)

A Piping and Instrumentation Diagram (P&ID) is a more detailed diagram compared to the PFD. It provides a comprehensive
view of the process design, with detailed information about piping, instrumentation, and control systems.

Key Features of P&ID:

 Piping Layout: Detailed representations of the piping network, showing the size, material, and flow direction of
pipes.

 Instruments and Controls: Symbols for instruments like temperature sensors, pressure transmitters, flow meters,
and control valves.

 Control Systems: Detailed information about control loops, including feedback systems and automated control
systems.

 Safety Devices: Relief valves, rupture disks, and other safety instruments.

 Equipment Details: Specific equipment with operational parameters, including pumps, reactors, separators, and
heat exchangers.

 Interlocks and Alarms: Depictions of interlocks, alarm systems, and emergency shutdown protocols.

Importance of P&ID:

 Safety: P&IDs are essential for ensuring that safety systems are correctly integrated into the plant design.

 Construction: Provides construction engineers and workers with the specific details needed to build and install
the plant.

 Operation and Maintenance: Operators use P&IDs to understand the plant’s layout and troubleshoot problems
during operation.

6. Conclusion

Designing a chemical process plant requires an integrated approach involving multiple phases of design and analysis,
starting from the feasibility study through to the detailed design of the process and supporting systems. The key stages
include:

 Conceptual Design: Identifying the basic process and equipment required.

  Feasibility Study: Evaluating the technical, economic, and environmental feasibility.

 Process Flow Diagram (PFD): Visualizing the overall process and material flows.

 Piping and Instrumentation Diagram (P&ID): Detailing the piping, instrumentation, and safety systems to ensure
safe, reliable operation.

By following these design principles and using the appropriate tools and methodologies, chemical engineers can develop
safe, efficient, and cost-effective chemical process plants that meet both operational and safety requirements.

3. Design of Chemical Plants: Batch vs. Continuous Processes

In chemical engineering, the design of a plant largely depends on whether the process is batch or continuous. Both types of
processes have distinct characteristics, advantages, and challenges, and the choice between batch and continuous design
influences the scale-up, equipment selection, and operational strategies of the plant.

1. Batch Process Design

A batch process is characterized by the production of chemicals in discrete quantities or batches. In this process, raw
materials are loaded into the reactor or equipment, processed for a set period, and then unloaded to prepare for the next
batch.

Characteristics of Batch Process:

 Discrete Operation: The process operates in cycles or batches, where raw materials are processed in a defined
amount and then removed before the next batch begins.

 Flexibility: Batch processes are flexible and suitable for producing small quantities of chemicals, especially when
there is variation in the product type or when frequent product changes are required.

 Time-Dependent: The process runs for a fixed time period before the product is removed, requiring careful
monitoring and control.

Advantages of Batch Process:

 Flexibility in Product Variety: Ideal for producing a wide variety of products in small quantities (e.g.,
pharmaceuticals, specialty chemicals).

 Lower Capital Investment: Equipment can be smaller and less expensive compared to large continuous systems.

 Easier to Modify: Suitable for research and development, as adjustments to process conditions or product
specifications can be made quickly.

Challenges of Batch Process:

 Higher Operating Costs: Due to downtime between batches for cleaning, setup, and changeovers, operating costs
can be high.

 Lower Throughput: Production rates are often lower, making it less efficient for large-scale, continuous
production.

 Process Inconsistencies: Each batch may exhibit slight variations in quality, requiring strict process control to
ensure consistency.

Example:

 Pharmaceuticals: Where small quantities of high-value products are produced, and the formulation may need to
be adjusted frequently.

2. Continuous Process Design

In a continuous process, raw materials are fed into the process continuously, and products are withdrawn in a continuous
stream without interruption. The process operates continuously over long periods, often with little or no downtime.

Characteristics of Continuous Process:

  Steady-State Operation: The process runs continuously, with raw materials constantly entering the system and
products continuously leaving.

 Higher Throughput: Continuous processes are designed for large-scale production and can run for extended
periods with minimal intervention.

 Efficient Energy Use: Because the process is always operating, energy consumption can be optimized, and
economies of scale can be achieved.

Advantages of Continuous Process:

 High Throughput: Continuous processes can achieve much higher production rates compared to batch processes.

 Lower Operating Costs: The lack of downtime between batches reduces labor and maintenance costs, making the
operation more cost-efficient.

 Consistency and Uniformity: Continuous processes produce a more consistent product quality over time because
the process conditions are stable.

Challenges of Continuous Process:

 Limited Flexibility: Continuous processes are less flexible and are more suitable for producing a single product or
a narrow range of products.

 Higher Capital Investment: Equipment costs can be higher because continuous processes often require larger
reactors, separators, and other systems.

 Difficult to Modify: Once a continuous process is set up, it can be challenging to change the process or the
product type.

Example:

 Petrochemical Industry: Large-scale production of chemicals like ethylene, where a constant, uninterrupted flow
of raw materials and products is essential.

3. Factors in Equipment Scale-up and Design

Whether designing a batch or continuous process, scale-up is a critical aspect of chemical process design. Scaling up
involves translating a successful lab-scale or pilot-scale process to commercial production levels, while considering factors
such as heat transfer, mass transfer, and mixing. Here are some key factors to consider:

a. Heat Transfer and Temperature Control

 Batch: In batch processes, heat transfer must be carefully managed because the reaction time and temperature
control are essential to maintain the desired reaction rate and product yield. Typically, reactors are jacketed or
equipped with internal coils for heating or cooling.

 Continuous: Continuous processes require continuous heat exchange systems, such as heat exchangers, to
manage temperature fluctuations and ensure the process runs at an optimal temperature for the entire
operation.

Scale-up Consideration:

 As you scale up from the laboratory to industrial scale, the ability to maintain consistent heat transfer becomes
more difficult. Larger reactors tend to have lower heat transfer efficiency due to increased surface area and
scaling effects.

b. Mixing and Flow Dynamics

 Batch: Mixing in batch reactors is a critical consideration, as homogeneity of the product depends on the effective
mixing of reactants. The scale-up of mixing systems must account for changes in viscosity, power requirements,
and reactor geometry.

 Continuous: In continuous systems, flow dynamics play a more important role. The flow must be designed to
ensure uniform mixing, and turbulent flow may be required to maximize mass transfer rates.

Scale-up Consideration:
  When scaling up, the type of flow (laminar vs. turbulent) and the residence time distribution (RTD) become more
challenging to control, and differences in flow patterns must be taken into account for large-scale reactors.

c. Mass Transfer and Reaction Kinetics

 Batch: In batch processes, the mass transfer is more dependent on the mixing efficiency and the duration of the
reaction. Scale-up requires considering the effects of mass transfer limitations and adjusting the reactor volume
accordingly.

 Continuous: Continuous processes are typically more efficient at mass transfer, as they operate under steady-
state conditions. The design must account for the continuous feed and removal of reactants and products to
prevent issues like concentration gradients.

Scale-up Consideration:

 In scaling up, the reaction rate and mass transfer rate must be maintained across different reactor sizes, taking
into account the residence time, pressure, and temperature differences at larger scales.

d. Equipment Design and Materials of Construction

 Batch: For batch reactors, the design must ensure that the vessel can handle varying amounts of feedstock,
product removal, and cleaning between batches. The material selection must account for corrosion, temperature,
and pressure conditions specific to each batch cycle.

 Continuous: Continuous equipment must be able to handle the steady inflow and outflow of chemicals while
maintaining consistent process conditions. Larger-scale reactors and separators often require more complex
internal configurations for efficiency.

Scale-up Consideration:

 The mechanical design (e.g., size, pressure rating, corrosion resistance) of equipment must be upgraded for larger
capacities. The materials used must withstand increased pressures, temperatures, and flow rates without
degradation over time.

e. Control Systems and Automation

 Batch: Batch processes often rely on manual or semi-automated controls, as each batch may require specific
adjustments. The scale-up often involves implementing more sophisticated automation and control systems to
maintain consistency across multiple batches.

 Continuous: Continuous processes require highly automated control systems to manage the continuous flow of
materials and products. These systems must be capable of adjusting parameters like flow rate, temperature, and
pressure in real-time to ensure consistent production.

Scale-up Consideration:

 The complexity of control systems increases with scale-up, as large-scale continuous operations require more
sensors, feedback loops, and automation to ensure stable operation.

4. Conclusion

The design of a chemical plant, whether for a batch or continuous process, involves considering various factors including
heat transfer, mixing, mass transfer, equipment design, and control systems. The scale-up process introduces challenges
that must be addressed through proper design adjustments, material selection, and process control to ensure that the plant
operates efficiently at larger scales.

 Batch processes offer flexibility and are well-suited for producing diverse products in small quantities but suffer
from higher operating costs and lower throughput.

 Continuous processes are highly efficient for large-scale production, offering lower operating costs and consistent
product quality but lack the flexibility that batch processes provide.

When scaling up, considerations like heat transfer, mixing, mass transfer, and control systems become critical to maintaining
the desired performance at larger scales. Proper design, feasibility studies, and pilot plant testing are essential to ensure a
smooth transition from small-scale to industrial-scale operations in both batch and continuous chemical plants.

4. Selection of Safety Equipment and Devices in Chemical Industries

The selection of safety equipment and devices is crucial in ensuring the safety of personnel, equipment, and the
environment in chemical industries. These devices are designed to mitigate or prevent hazards associated with chemical
processes, materials, and operations. They play a pivotal role in protecting workers from exposure to harmful chemicals,
preventing accidents, and maintaining safe working conditions.

1. Types of Safety Equipment and Devices in Chemical Industries

There are several categories of safety equipment commonly used in chemical industries:

a. Personal Protective Equipment (PPE)

PPE protects workers from exposure to hazardous chemicals, physical injury, or environmental risks. The types of PPE used
in chemical industries include:

 Respirators and Gas Masks: Protect workers from inhaling toxic or hazardous gases and vapors.

 Protective Clothing: Includes chemical-resistant suits, gloves, aprons, and boots designed to prevent direct
contact with hazardous materials.

 Eye Protection: Safety goggles or face shields to protect eyes from splashes, fumes, and flying debris.

 Hearing Protection: Earplugs or earmuffs to protect workers from high noise levels.

 Head Protection: Hard hats or helmets to protect against falling objects and overhead hazards.

b. Fire Safety Equipment

 Fire Extinguishers: Used to put out small fires. Different types are selected depending on the fire class (Class A, B,
C, D, or K).

 Fire Suppression Systems: Automatic systems such as sprinkler systems, foam, and gas-based systems for
controlling fires.

 Fire Blankets: Used to smother small fires or wrap around a person in case of fire.

 Fire Hose Reels and Hydrants: Provide a controlled supply of water for firefighting.

c. Safety Signage and Warning Systems

 Warning Signs: Used to alert workers of potential hazards, such as "Flammable," "Toxic," or "Corrosive."

 Emergency Exits and Evacuation Routes: Clearly marked to guide workers to safety during emergencies.

 Alarms and Notification Systems: Emergency alarms, sirens, and visual signals to alert personnel of fire, gas leaks,
or other hazards.

d. Process Safety Equipment

 Pressure Relief Valves (PRVs): Prevent over-pressurization of equipment or pipes, protecting from potential
explosions or mechanical failures.

 Flame Arresters: Devices used to stop the propagation of flames in vents, pipes, or other open systems.

 Explosion Vents or Rupture Discs: Provide a controlled release of pressure in case of a deflagration or detonation.

 Gas Detectors: Monitor air quality for hazardous gases and vapors (e.g., hydrogen sulfide, carbon monoxide, etc.).

 Containment Systems: Such as secondary containment tanks, bund walls, or berms to contain hazardous material
spills or leaks.

e. Emergency Response Equipment

 Eyewash Stations: For decontaminating eyes in case of chemical splashes.

 Safety Showers: For decontaminating the body in case of chemical exposure.

 First Aid Kits: Basic medical supplies for treating injuries or chemical exposures before professional help arrives.

2. Properties and Qualities of Safety Equipment and Devices

When selecting safety equipment and devices for chemical industries, the following properties and qualities must be
carefully considered to ensure effective protection:

a. Suitability to the Hazard

 Chemical Compatibility: PPE, such as gloves, protective clothing, and respirators, must be resistant to the
chemicals present in the workplace. For example, certain types of gloves are resistant to acids, while others are
better suited for organic solvents or oils.

 Flammability Resistance: Fire safety equipment, such as fire blankets, extinguishers, and fire suits, must be rated
for the types of fires that could occur (Class A, B, C, D, or K).

 Pressure and Temperature Resistance: Process safety equipment such as pressure relief valves must be designed
to withstand the expected operating pressures and temperatures of the equipment in which they are installed.

b. Durability and Reliability

 Long Service Life: Safety devices must be durable and designed to last in harsh industrial environments. This
includes resistance to wear, tear, and corrosion.

 Reliability: Safety equipment, such as fire suppression systems, gas detectors, and emergency alarms, must be
tested and proven to work when needed, even under extreme conditions. Devices should be regularly maintained
and serviced to ensure reliability.

c. Ease of Use and Accessibility

 Ease of Operation: Safety devices should be simple to operate during an emergency. For example, fire
extinguishers should be easy to handle, and emergency shutoff valves should be easily accessible to operators in
case of system failure.

 Quick Accessibility: Safety equipment such as first aid kits, eyewash stations, and fire exits should be easily
accessible in case of emergencies. They should be located in areas where they can be quickly reached by all
personnel.

d. Compliance with Standards and Regulations

 Regulatory Compliance: Safety equipment must comply with industry standards and regulations, such as those
set by the Occupational Safety and Health Administration (OSHA), National Fire Protection Association (NFPA),
American National Standards Institute (ANSI), and European Union regulations. This ensures that the
equipment meets the required safety and performance standards.

 Certification: Equipment should be certified by recognized safety bodies (e.g., UL, CE) to confirm its reliability and
performance in emergency conditions.

e. Preventive Maintenance and Testing

 Regular Testing: Many safety devices, especially fire suppression systems, pressure relief valves, and gas
detectors, need to be periodically tested to ensure they function correctly. A maintenance schedule must be
implemented for regular testing and recalibration.

 Maintenance Simplicity: The design of safety equipment should allow for easy inspection, servicing, and
maintenance. Components that require frequent checks, such as filters in gas detectors or pressure relief valves,
should be easy to replace or clean.

f. Cost-Effectiveness

 Initial Cost vs. Operational Cost: When selecting safety devices, the initial cost should be balanced with
operational and maintenance costs. While some safety equipment may have a higher upfront cost, their
reliability, ease of maintenance, and efficiency in mitigating risks can justify the investment in the long term.

 Lifetime Cost: This includes not just the purchase cost, but also maintenance, testing, and replacement costs over
the equipment’s life cycle.

3. Selection Process for Safety Equipment

The process for selecting safety equipment in chemical industries involves the following steps:
a. Hazard Identification and Risk Assessment

 Perform a thorough hazard analysis and risk assessment of the chemical processes and materials involved.
Identify potential hazards such as fire, explosion, toxic releases, and chemical spills, and determine the likelihood
and severity of each hazard.

 This helps in determining which types of safety equipment are necessary, such as fire extinguishers, gas detectors,
or pressure relief devices.

b. Consider the Specific Needs of the Facility

 The nature of the chemical process, the volume of chemicals handled, and the scale of operations must be
considered in selecting safety equipment. For example, large-scale petrochemical plants may require advanced
fire suppression systems, while laboratories may need more portable fire extinguishers and gas detectors.

c. Consult Industry Guidelines and Standards

 Refer to relevant standards and guidelines for chemical safety, including OSHA standards, NFPA codes (e.g., NFPA
704 for fire safety), and ANSI standards, to ensure compliance and best practices.

d. Select Based on Performance and Features

 Evaluate the performance specifications, such as fire rating for extinguishers, chemical resistance for PPE, and
alarm sensitivity for gas detectors. Ensure the equipment can perform in the conditions expected in the
workplace, including exposure to extreme temperatures, humidity, or pressure.

e. Train Employees on Use and Maintenance

 Provide proper training for employees on how to use safety devices correctly, as well as maintenance procedures.
Ensure that they are familiar with the locations of emergency equipment and know how to respond effectively in
case of an emergency.

4. Conclusion

The selection of safety equipment in chemical industries is critical for protecting workers, minimizing environmental impact,
and ensuring the safety of operations. Safety devices and equipment must be carefully chosen based on the nature of the
hazards, durability, regulatory compliance, ease of use, and cost-effectiveness. Proper hazard assessment, adherence to
industry standards, and regular maintenance are key to ensuring that safety equipment performs effectively and protects
against the risks inherent in chemical processes.

5. Types of Non-Destructive Testing (NDT) in Chemical Plants

Non-Destructive Testing (NDT) refers to a variety of methods used to examine the integrity, structure, and properties of
materials and components in chemical plants without causing damage or altering their function. NDT is essential in
ensuring the reliability and safety of equipment and infrastructure in chemical plants, where the risk of failure can lead to
significant hazards, including leaks, explosions, or contamination.

Here are the main types of non-destructive tests conducted in chemical plants, along with their methods and examples:

1. Visual Inspection (VT)

Method:

 Visual inspection (VT) is the simplest and most common NDT technique. It involves examining the surface of
materials and structures with the naked eye or using tools like magnifying glasses, borescopes, or cameras.

 It is often the first step in any NDT process, and it may involve checking for cracks, corrosion, wear, deformation,
or surface defects.

Example:

 Inspecting the surface of a pressure vessel to check for signs of corrosion or cracks.

 Checking for signs of wear or fatigue on pipeline joints or fittings.

Advantages:

 Quick and easy to perform.

 Low cost and requires minimal equipment.

 Can be used to detect visible defects like cracks, rust, and leaks.

Limitations:

 Limited to surface inspection and can't detect subsurface issues.

 Dependent on the inspector's experience and observation skills.

2. Ultrasonic Testing (UT)

Method:

 Ultrasonic Testing (UT) uses high-frequency sound waves to detect internal flaws, measure material thickness,
and assess weld integrity.

 A transducer sends ultrasonic pulses into the material. If the pulses encounter a flaw, part of the energy is
reflected back to the transducer, providing a measurement of the flaw's size and location.

Example:

 Measuring the wall thickness of a pressure vessel or pipeline to detect corrosion or erosion.

 Checking welds on reactors and pipes for defects like porosity or cracks.

Advantages:

 Can detect internal and surface defects.

 Provides precise measurements, such as thickness or the size of a defect.

 Can be used for a variety of materials, including metals, plastics, and composites.

Limitations:

 Requires skilled operators to interpret the results accurately.

 Difficult to apply on rough or highly curved surfaces.

3. Radiographic Testing (RT)

Method:

 Radiographic Testing (RT) uses X-rays or gamma rays to penetrate materials and produce an image of the internal
structure. The material absorbs the radiation, and the difference in absorption creates a radiographic image that
reveals internal flaws, such as cracks, voids, or weld defects.

 RT can be performed using film or digital detectors, and the resulting images can be analyzed by trained
personnel.

Example:

 Inspecting welds on pressure vessels, pipelines, or tanks for internal defects.

 Checking for cracks in thick-walled components such as reactor vessels or large heat exchangers.

Advantages:

 Provides a permanent record of the inspection.

 Can detect both surface and internal defects.

 Suitable for large or complex structures.

Limitations:

 Requires careful handling of radiation, which can be hazardous.

 Needs a controlled environment for the inspection.

 Interpretation of results can be complex and requires trained personnel.

4. Magnetic Particle Testing (MT)

Method:

 Magnetic Particle Testing (MT) involves magnetizing a ferromagnetic material (e.g., steel or iron) and applying
magnetic particles (either dry or suspended in liquid) to the surface.

 When a surface or near-surface crack is present, the magnetic field will be disrupted, and the particles will gather
at the crack, making it visible.

Example:

 Inspecting welds on steel pipes, vessels, or structural supports for surface cracks or flaws.

 Checking for stress cracks in equipment like pressure vessels or heat exchangers.

Advantages:

 Very effective for detecting surface and near-surface flaws in ferromagnetic materials.

 Can be used to inspect complex geometries.

 Relatively simple and fast process.

Limitations:

 Limited to ferromagnetic materials (steel, iron, etc.).

 Can't detect internal defects or those deeper than the surface.

5. Liquid Penetrant Testing (PT)

Method:

 Liquid Penetrant Testing (PT) involves applying a liquid penetrant to the surface of the material. The penetrant
enters any surface cracks or voids. After a dwell time, excess penetrant is removed, and a developer is applied to
draw the penetrant from the cracks, making them visible under UV or visible light.

 PT is useful for detecting cracks, leaks, or porosity on non-porous materials.

Example:

 Inspecting chemical storage tanks or pipes for surface cracks or leaks.

 Checking equipment like valves or pumps for surface defects that may lead to leakage.

Advantages:

 Can detect very small surface defects.

 Quick and easy to perform.

 Suitable for all non-porous materials, including metals, plastics, and ceramics.

Limitations:

 Limited to surface defects and can't detect subsurface flaws.

 Only effective on materials that are smooth and non-porous.

6. Acoustic Emission Testing (AET)

Method:

 Acoustic Emission Testing (AET) involves listening to high-frequency stress waves generated by the rapid release
of energy from cracks, corrosion, or other defects in materials.

 Sensors are placed on the surface of a material or structure to detect the stress waves, and the signals are
analyzed to pinpoint the source and severity of the defect.

Example:

 Monitoring pressure vessels, pipelines, or tanks for signs of internal damage or failure.

 Detecting cracks in reactors or distillation columns under operational pressure.

Advantages:

 Can detect active cracks or leaks while equipment is in operation.

 Effective for monitoring the integrity of structures over time.

 Provides real-time monitoring and early warning of failure.

Limitations:

 Requires a stable environment for accurate results.

 Can be challenging to interpret the data and requires skilled operators.

7. Thermography (Infrared Thermography)

Method:

 Thermography uses infrared cameras to detect temperature variations on the surface of materials. This can reveal
heat patterns caused by electrical malfunctions, fluid flow issues, friction, or structural changes.

 Areas with excessive heat or cold spots can indicate problems such as leaks, blockages, or electrical faults.

Example:

 Inspecting electrical panels and motors for overheating or hot spots that could indicate electrical faults.

 Identifying heat losses or insulation failures in piping or reactors.

Advantages:

 Non-contact, real-time inspection method.

 Can quickly identify areas of concern over large areas.

 Effective for monitoring equipment in operation.

Limitations:

 Only effective for detecting temperature-related problems.

 Requires the right environmental conditions and calibration for accurate results.

8. Eddy Current Testing (ECT)

Method:

 Eddy Current Testing (ECT) uses electromagnetic induction to detect surface and near-surface defects in
conductive materials. An alternating current is passed through a coil, creating an eddy current in the material.
 Any changes in the material's conductivity (such as cracks or corrosion) will cause variations in the eddy current,
which can be detected and analyzed.

Example:

 Detecting corrosion or cracks in heat exchangers or turbine blades made of aluminum or copper alloys.

 Checking for surface defects in pipes or other components in the chemical plant.

Advantages:

 Can detect surface and near-surface defects.

 Suitable for inspecting thin-walled components or tubes.

 No need for direct contact with the material.

Limitations:

 Limited to conductive materials like metals.

 Requires calibration and skilled interpretation of results.

Conclusion

Non-destructive testing (NDT) is a critical aspect of maintaining the safety, integrity, and efficiency of chemical plants. Each
NDT method serves a unique purpose and has specific advantages and limitations, depending on the materials and
equipment being inspected. The choice of NDT method depends on factors like the type of material, the nature of the
defect, the operational conditions, and the specific objectives of the inspection.

By employing these various NDT techniques, chemical plants can detect potential issues early, reduce downtime, ensure
regulatory compliance, and prevent accidents, ultimately contributing to safer and more efficient operations.

5. Engineering Safety in Chemical Industries

Engineering safety in chemical industries refers to the practices, processes, and design principles that aim to minimize the
risks associated with chemical processes, protecting workers, the environment, and equipment. It involves creating systems
and infrastructures that prevent accidents, reduce the severity of hazards when they occur, and ensure continuous
monitoring and maintenance of safety standards.

Key Principles of Engineering Safety in Chemical Industries:

1. Risk Assessment and Hazard Analysis:

o Hazard Identification (HAZID): Identifying potential hazards related to chemicals, equipment, or

processes.

o Process Hazard Analysis (PHA): Analyzing the process for potential risks, such as leaks, fires, explosions,
or toxic exposures.

o Fault Tree Analysis (FTA) and Failure Modes and Effects Analysis (FMEA): Used to systematically
identify potential failures in systems and their consequences.

2. Process Safety Management (PSM):

o The PSM approach ensures that chemical processes are designed, operated, and maintained with a
focus on safety. This includes equipment maintenance, process monitoring, safety audits, and training
to ensure safety procedures are followed.

o Safety Instrumented Systems (SIS) are critical for the safe operation of high-risk processes. These
include safety alarms, pressure relief systems, and automated shutoff systems.

3. Safety by Design (SbD):

o The principle of designing chemical plants, equipment, and systems with safety as a top priority. This
involves:
  Inherently safer design: Choosing processes, materials, and equipment that minimize the
potential for accidents.

 Minimizing chemical inventory: Reducing the quantity of hazardous chemicals involved in a

process.

 Automating hazardous processes: Using automated controls to reduce human error.

4. Safety Equipment and Systems:

o Safety Relief Valves: Protect against overpressure situations in reactors and storage tanks.

o Explosion Protection Systems: Including flame arresters, explosion vents, and suppression systems to
mitigate the effects of detonations or deflagrations.

o Fire and Gas Detection Systems: Installed to continuously monitor the chemical plant for the presence
of hazardous gases or the risk of fire.

o Personal Protective Equipment (PPE): Protective clothing, respirators, gloves, and eyewear to safeguard
workers from exposure to hazardous materials.

5. Safety Standards and Regulations:

o Compliance with national and international standards, such as OSHA (Occupational Safety and Health
Administration), NFPA (National Fire Protection Association), and ANSI (American National Standards
Institute), is vital to maintaining engineering safety.

o International standards like ISO 45001 for occupational health and safety management systems are
also critical in establishing robust safety protocols.

Safety During Startup and Shutdown in Chemical Industries

Startup and shutdown phases in chemical plants are high-risk periods that require special attention to safety. These phases
involve the process of bringing the plant or equipment into operation or shutting it down, both of which can expose
workers and equipment to significant hazards. Proper planning, training, and equipment are essential to managing risks
during these periods.

1. Startup Safety

During startup, several activities occur that can introduce potential hazards, including pressure build-up, leaks, equipment
malfunction, or unsafe chemical reactions.

Key Safety Measures during Startup:

 Pre-Startup Safety Reviews (PSSR):

o A detailed review before the startup of any process or equipment ensures that all safety procedures are
in place. This includes checking equipment for readiness, ensuring safety systems (e.g., alarms, relief
valves) are functional, and verifying proper calibration of safety instruments.

o PSSR also ensures that operators are aware of safety protocols, hazards, and emergency procedures
specific to the startup phase.

 Operator Training and Procedures:

o Operators must be trained on the safe startup procedures for each specific piece of equipment and
process. This includes understanding the flow of materials, safe operating limits, and emergency
shutdown procedures.

o Clear, step-by-step instructions should be provided for operators, with a focus on gradual startup to
allow systems to stabilize and prevent unsafe conditions.

 Monitoring and Control:

o Continuous monitoring of key parameters (temperature, pressure, flow rates, and chemical
concentrations) is critical to ensure the process is starting up within safe operating limits. Automated
control systems should be used to manage the startup process.
 o If any unsafe conditions are detected, operators should have the capability to immediately stop the
startup sequence and initiate an emergency shutdown if needed.

 Testing of Safety Systems:

o Before startup, all safety systems, such as fire suppression systems, pressure relief valves, and
emergency shutdown systems, should be tested to ensure they function correctly. Any failures should
be addressed immediately.

 Incremental Process Steps:

o A slow and controlled ramp-up of processes ensures that potential risks, such as chemical reactions or
pressure buildups, are managed effectively. This includes gradual heating or cooling of reactors, starting
pumps sequentially, and carefully introducing chemicals into the system.

2. Shutdown Safety

Shutdowns can also present numerous risks, including overpressure, hazardous chemical releases, or accidental reactions if
not done carefully. The risks can be even greater during an unplanned or emergency shutdown.

Key Safety Measures during Shutdown:

 Emergency Shutdown Procedures:

o Chemical plants should have clear and well-documented emergency shutdown procedures. These
procedures include step-by-step instructions for safely isolating equipment, depressurizing systems, and
shutting down hazardous processes.

o Automated shutdown systems should be in place to ensure that in the event of a failure, systems shut
down safely and immediately, minimizing risks to personnel and equipment.

 Depressurization and Venting:

o One of the first steps in a shutdown process is safely venting and depressurizing reactors and pipelines
to prevent the build-up of hazardous pressures or temperatures. This must be done in a controlled
manner to avoid ruptures or uncontrolled chemical reactions.

o If hazardous chemicals are present, proper venting and containment systems should be in place to
manage any potential releases.

 Flushing and Purging:

o In some cases, especially with reactive or toxic chemicals, systems may need to be flushed or purged
with inert gases (such as nitrogen) to remove hazardous materials before a full shutdown. This helps
prevent chemical reactions or exposure to toxic substances during shutdown.

o For example, in a distillation column, purging the column with inert gas prevents the formation of
dangerous compounds due to heat and chemical reactions during shutdown.

 System Isolation:

o All process lines should be isolated to ensure that chemicals are no longer flowing through them during
shutdown. This is essential for preventing spills or leaks.

o Manual or automatic isolation valves, blowdown systems, and bypass lines should be in place to
manage the shutdown safely.

 Post-Shutdown Inspections:

o After a system is shut down, inspections should be conducted to ensure that no leaks, equipment
malfunctions, or unsafe conditions are present.

o Equipment like pressure relief valves, emergency shutoff systems, and fire protection systems should be
tested and reset to ensure they are operational for future use.
General Safety Considerations for Startup and Shutdown:

1. Communication:

o Effective communication among plant personnel is vital during startup and shutdown. Operators,
engineers, and safety personnel must maintain constant communication to respond quickly to any
problems.

o A clear chain of command and well-documented procedures ensure that everyone understands their
roles in managing safety.

2. Safety Audits and Inspections:

o Prior to startup, safety audits and thorough inspections of all equipment and systems should be carried
out to confirm that the plant is ready for operation.

o Similarly, a post-shutdown inspection and audit ensure that systems are secure before the plant is
brought back online.

3. Emergency Response and Evacuation Plans:

o Emergency response procedures must be in place in case of accidents or emergencies during startup or
shutdown. This includes evacuation plans, fire and chemical spill response, and first aid procedures.

o Safety drills should be conducted regularly to ensure that all employees are familiar with emergency
protocols.

4. Documentation:

o All startup and shutdown procedures, safety checks, and corrective actions should be thoroughly
documented. This ensures a clear record of the steps taken, which is valuable for future reference,
inspections, or audits.

Conclusion:

Safety during startup and shutdown is crucial in chemical industries due to the potential hazards involved in bringing
chemical processes online or taking them offline. By implementing well-designed safety systems, following strict
procedures, providing operator training, and continuously monitoring process conditions, chemical plants can mitigate risks
during these critical phases. Proper planning and communication, along with the right safety equipment and systems, are
key to ensuring that startup and shutdown operations are carried out safely and effectively.

6. Pressure Vessel Testing Standards in Chemical Industries

Pressure vessels are critical components in chemical industries, used to store gases and liquids under pressure, such as
reactors, distillation columns, and storage tanks. To ensure safety and reliability, pressure vessels must undergo thorough
testing to detect potential weaknesses, defects, or leaks. These tests help prevent catastrophic failures, such as explosions
or leaks, which could lead to safety hazards, environmental damage, and operational downtime.

Various standards and codes are followed in the design, fabrication, inspection, and testing of pressure vessels. These
standards ensure that the pressure vessels meet safety requirements and function effectively under their intended
operating conditions.

Key Standards for Pressure Vessel Testing:

1. ASME Boiler and Pressure Vessel Code (BPVC) – Section VIII:

o The ASME BPVC is one of the most widely adopted standards for the design, fabrication, and testing of
pressure vessels. It sets forth rules for pressure vessel construction, including safety considerations for
various materials and design conditions.

o Section VIII of the code specifically addresses pressure vessels, including their inspection, testing, and
maintenance.

2. API 650:
 o This standard is issued by the American Petroleum Institute and is widely used for the design and
construction of above-ground storage tanks (often used in the chemical and petroleum industries).

o It includes guidelines for pressure testing, including guidelines for materials, welding, and leak
detection.

3. ISO 9001:

o The ISO 9001 standard provides quality management principles for the manufacturing and testing of
pressure vessels. While it’s not specific to pressure vessels, it helps ensure that testing processes are
well-documented and standardized.

4. EN 13445:

o This European standard focuses on the design, materials, and testing of unfired pressure vessels. It
covers testing requirements for both the construction phase and the in-service phase.

5. ASME Section IX – Welding and Brazing Qualifications:

o ASME Section IX outlines the requirements for welding procedures and the qualification of welders,
which is essential for the structural integrity of pressure vessels.

6. API 510:

o API 510 specifies the requirements for the in-service inspection, repair, and alteration of pressure
vessels, ensuring that vessels maintain their integrity during their operational life.

Types of Pressure and Leak Tests Conducted on Pressure Vessels in Chemical Industries

Pressure vessels in chemical plants undergo a variety of tests to ensure their strength, safety, and leak-proof integrity. These
tests fall under two main categories: hydrostatic tests and pneumatic tests. Leak tests are often conducted as part of the
inspection process.

1. Hydrostatic Pressure Test

Purpose:

 The hydrostatic test is the most common and reliable test used to assess the structural integrity of pressure
vessels. It checks the vessel’s ability to withstand pressure under normal operating conditions.

Method:

 The pressure vessel is filled with water or another liquid (often water with added dye to improve leak visibility) up
to its rated pressure.

 The vessel is then pressurized to a level higher than its maximum allowable working pressure (MAWP) (typically
1.3 to 1.5 times the operating pressure).

 The vessel is observed for leaks, deformation, or other signs of failure. It’s important that no air is in the system,
as it can cause dangerous results.

Advantages:

 Water is incompressible, meaning any leaks will be easily detected.

 It is a safe and cost-effective method.

 Provides a clear indication of the vessel’s ability to handle internal pressure.

Limitations:

 Requires dewatering after the test, especially for vessels that will be in service with chemicals that can be reactive
with water.

 Involves high volumes of water, which may require special drainage and containment systems.

Example:
  Testing a reactor vessel in a chemical plant to ensure it can safely handle the pressure created during a reaction.

2. Pneumatic Pressure Test

Purpose:

 Pneumatic testing uses compressed air or inert gas (such as nitrogen) instead of water to test the vessel’s
integrity.

Method:

 The pressure vessel is filled with compressed air or inert gas to a pressure slightly higher than its MAWP (typically
1.1 times the operating pressure).

 The vessel is monitored for any leaks, and the pressure is maintained to check for stability.

 Pneumatic tests are usually done in a controlled environment to minimize risks since compressed gases are more
dangerous than liquids.

Advantages:

 Pneumatic testing is used when water cannot be used due to contamination concerns or the potential for water
to react with the contents of the pressure vessel.

 Requires less cleanup and dewatering.

Limitations:

 Pneumatic tests are more hazardous than hydrostatic tests because of the compressibility of gases, which can
lead to explosive failures in case of a rupture.

 The test requires careful monitoring, and personnel must be trained in safety protocols to avoid accidents.

Example:

 Testing a gas storage vessel or a pipeline transporting hazardous gases in a chemical plant.

3. Leak Testing (Leak Test)

Purpose:

 Leak testing is conducted to detect any tiny leaks in the pressure vessel after it has been subjected to pressure.
This test is crucial to ensure that hazardous materials do not escape during normal operation.

Types of Leak Tests:

 Vacuum Box Test:

o A vacuum box test involves applying a vacuum on a vessel surface to identify any leaks in welds or
joints. The box is placed over the area of interest, and if there is a leak, air will be sucked into the box,
causing bubbles to form in soapy water applied to the surface.

 Bubble Test:

o A common test where the surface of the pressure vessel is wetted with a soapy solution, and the vessel
is pressurized. Bubbles will form at any point where a leak is present.

 Helium Leak Test:

o This test uses helium as a tracer gas. Helium is injected into the vessel, and any leaks will allow helium
to escape. A mass spectrometer or helium detector is then used to detect the presence of helium
outside the vessel, indicating the location of a leak.

 Pressure Decay Test:

 o The pressure inside the vessel is raised to a certain level, and then it is isolated. If the pressure drops
over time, this indicates the presence of a leak. This is one of the most common leak testing methods.

Advantages:

 Detects even very small leaks that could pose significant risks.

 Provides valuable information on the vessel’s condition and helps pinpoint weak points in the structure or welds.

Limitations:

 Requires careful monitoring and can be time-consuming, especially for large vessels or complex systems.

 Some leak detection methods may only be effective for specific types of materials or pressures.

Example:

 Using the pressure decay method to check for small leaks in a chemical reactor or storage tank.

4. Acoustic Emission Testing

Purpose:

 Acoustic emission (AE) testing is a non-destructive method used to monitor high-frequency sound waves
generated by the rapid release of energy from cracks, leaks, or other structural failures.

Method:

 Sensors are placed on the pressure vessel to detect the sound waves generated by leaks or cracks in the material.
This method is effective in detecting leaks in real-time during pressure testing.

Advantages:

 Provides continuous monitoring during the pressure testing process.

 Can detect active leaks or failures that are otherwise difficult to locate.

Limitations:

 Requires specialized equipment and analysis to interpret the signals.

 Not suitable for detecting all types of defects or leaks, especially those occurring under low-pressure conditions.

Conclusion

Pressure vessel testing in chemical industries is essential for ensuring the safety and integrity of equipment under operating
conditions. By following established standards like ASME BPVC, API 510, and others, chemical plants can design, test, and
maintain pressure vessels that withstand high pressures and harsh environments. Testing methods such as hydrostatic
tests, pneumatic tests, leak tests, and acoustic emission testing help ensure that pressure vessels are leak-proof,
structurally sound, and safe to operate. These testing procedures are integral to preventing accidents, ensuring regulatory
compliance, and maintaining continuous and efficient operations in chemical plants.

7. Inspection Techniques for Boilers and Reaction Vessels

Inspection of boilers and reaction vessels is essential to ensure their safe operation, longevity, and compliance with industry
standards. Both types of equipment operate under high pressure and temperature conditions, and any failure could lead to
catastrophic consequences. As a result, regular inspection, maintenance, and testing are vital to identify potential
weaknesses or damage before they escalate into serious issues.

Below are the common inspection techniques used for boilers and reaction vessels in chemical industries:

1. Visual Inspection

Purpose:
  Visual inspection is the first and most straightforward technique used to identify any obvious signs of damage,
corrosion, leaks, or structural issues in boilers and reaction vessels.

Method:

 Inspectors visually examine external and internal surfaces of the equipment, including weld joints, flanges, seals,
and pressure relief valves, for signs of corrosion, cracks, leaks, or excessive wear.

 For reaction vessels, the interior is often inspected for signs of chemical reaction damage or build-up of residues,
scaling, or erosion.

Advantages:

 Quick and cost-effective.

 Useful for detecting surface-level defects like cracks, corrosion, or deformation.

Limitations:

 May not detect subsurface or hidden defects.

 Requires thorough access, especially for reaction vessels or internal boiler components.

Example:

 A visual check of a boiler’s outer surface to spot any visible signs of corrosion or water leaks around pipes and
valves.

2. Ultrasonic Testing (UT)

Purpose:

 Ultrasonic testing is used to assess the thickness of materials and detect internal flaws such as corrosion, pitting,
or cracks that may not be visible during a visual inspection.

Method:

 High-frequency sound waves are transmitted into the material being inspected. The sound waves are reflected
back by internal defects or the material's surface, and the time it takes for the sound to return is measured to
calculate thickness and identify irregularities.

 It is particularly useful for detecting corrosion under insulation, which may be invisible during a visual inspection.

Advantages:

 Can detect both surface and subsurface defects.

 Provides accurate thickness measurements and detects internal flaws such as cracks or voids.

Limitations:

 Requires skilled technicians to interpret the results.

 May be difficult to use in complex geometries or curved surfaces.

Example:

 Ultrasonic testing is used to check the thickness of the boiler’s pressure vessel wall to ensure it has not been
weakened by corrosion or erosion over time.

3. Radiographic Testing (RT)

Purpose:

 Radiographic testing uses X-rays or gamma rays to inspect the internal structure of the material and detect hidden
flaws, cracks, voids, or weld defects.
Method:

 Radiographs (X-rays or gamma rays) are passed through the material, and the resulting image or film is analyzed.
Dense areas, such as welds or flaws, will absorb more radiation, creating a contrast that can be detected on the
radiograph.

 This method is particularly useful for detecting internal weld defects or flaws in both boilers and reaction vessels.

Advantages:

 Can reveal hidden internal defects, especially in welds and structural components.

 Non-destructive and provides clear, detailed images of internal structures.

Limitations:

 Requires specialized equipment and expertise to interpret the radiographs.

 Involves safety precautions due to the use of ionizing radiation.

 Can be time-consuming and may require access to both sides of the vessel.

Example:

 Radiographic inspection of a boiler’s weld joints to detect any internal cracks or voids that might weaken the
structure.

4. Magnetic Particle Inspection (MPI)

Purpose:

 Magnetic particle inspection is used to detect surface and near-surface cracks in ferromagnetic materials such as
steel or iron used in boilers and reaction vessels.

Method:

 A magnetic field is applied to the material, and ferrous particles are applied to the surface. If there are any
surface or near-surface defects, the magnetic field will cause the particles to accumulate at the defect site,
making the crack visible.

 It is particularly effective for detecting cracks in areas under high stress, such as weld joints or high-stress points
on reaction vessels.

Advantages:

 Very sensitive to small surface cracks and discontinuities.

 Simple, quick, and cost-effective.

Limitations:

 Only applicable to ferromagnetic materials.

 Cannot detect deep internal flaws.

Example:

 Magnetic particle testing is used to identify surface cracks in the reaction vessel’s welded joints, which could
potentially lead to leakage or rupture.

5. Dye Penetrant Testing (DPT)

Purpose:

 Dye penetrant testing is used to detect surface cracks or defects in non-porous materials, including metals,
ceramics, and plastics.
Method:

 A liquid dye penetrant is applied to the surface of the material, and after a certain time, excess dye is removed. A
developer is then applied, which draws out any remaining dye in cracks, making them visible under UV or white
light.

 This technique is useful for detecting cracks, pits, or voids that are open to the surface.

Advantages:

 Simple and inexpensive method.

 Effective for detecting small surface cracks or imperfections.

Limitations:

 Can only detect surface defects, not subsurface flaws.

 Requires cleaning of the material before and after testing to avoid contamination of the test area.

Example:

 Dye penetrant testing is used to inspect the surface of a boiler’s pressure vessel for hairline cracks or weld
defects.

6. Acoustic Emission Testing (AE)

Purpose:

 Acoustic emission testing is used to monitor the integrity of a pressure vessel or boiler by listening for high-
frequency sound waves generated by internal cracks or flaws as the material deforms.

Method:

 Sensors are attached to the pressure vessel or boiler, and they listen for the sound waves (emissions) produced by
crack formation or growth under pressure. The emissions are analyzed to determine the location, size, and
severity of the defect.

Advantages:

 Can monitor the equipment in real-time during operation.

 Effective for detecting active cracks or leaks.

Limitations:

 Requires continuous monitoring.

 Only effective in detecting certain types of defects (e.g., crack propagation).

Example:

 Using acoustic emission testing to monitor a reaction vessel during pressure buildup, identifying any abnormal
sounds indicating a crack or structural weakness.

7. Hydrostatic Testing

Purpose:

 Hydrostatic testing is used to check the structural integrity and leak resistance of a pressure vessel or boiler under
pressure.

Method:

 The vessel is filled with water (or another non-reactive liquid), and the internal pressure is increased to the
desired test pressure, often higher than the normal operating pressure. The vessel is then observed for any leaks
or deformation.
  This test ensures that the vessel can withstand the pressures it will face in service without failure.

Advantages:

 Effective for detecting leaks and weaknesses in the vessel.

 Provides a safe testing environment (water is incompressible and less dangerous than gas).

Limitations:

 Requires large quantities of water and proper disposal.

 Can be challenging to drain and dry the vessel afterward, especially for sensitive equipment.

Example:

 A boiler undergoes a hydrostatic test to check for leaks in the pressure shell and weld joints before being put into
service.

8. Thermography (Infrared Inspection)

Purpose:

 Thermography uses infrared cameras to detect temperature variations on the surface of a boiler or reaction
vessel, which may indicate problems such as hot spots, uneven heating, or leaks.

Method:

 Infrared cameras capture thermal images of the vessel during operation, allowing inspectors to detect
temperature anomalies that may signal problems like poor insulation, corrosion, or equipment failure.

Advantages:

 Non-contact method.

 Provides real-time results and can inspect large areas quickly.

Limitations:

 Can only detect issues related to temperature variations, not structural defects.

 Requires proper calibration and experience to interpret thermal images correctly.

Example:

 Infrared thermography is used to inspect the external surfaces of a boiler to detect areas of overheating, which
could indicate blockages, scaling, or malfunctioning components.

Conclusion

The inspection of boilers and reaction vessels is a crucial part of maintaining safety, reliability, and efficiency in chemical
industries. Various techniques, including visual inspection, ultrasonic testing, radiographic testing, magnetic particle
inspection, and more, provide valuable information about the condition of these pressure vessels. By regularly using these
inspection methods, chemical plants can prevent accidents, improve operational efficiency, and extend the lifespan of
critical equipment. Each method has its strengths and limitations, so a combination of techniques is often used to ensure a
comprehensive inspection.

UNIT 4

1. Safety in the Operation of Chemical Process Plants

Safety in the operation of chemical process plants is critical to ensure the protection of workers, the environment, and the
community. The inherent risks involved in handling hazardous chemicals, high temperatures, high pressures, and potentially
explosive reactions demand a comprehensive and structured approach to safety. This includes a combination of safety
management systems, risk assessments, operational procedures, and emergency response strategies.
The following steps outline a comprehensive approach to safety in the operation of a chemical process plant:

1. Safety Culture and Leadership

Purpose:

 A strong safety culture begins with leadership commitment and is essential for embedding safety practices
throughout the organization.

Steps:

 Management Commitment: Senior leadership must be committed to safety by allocating sufficient resources for
safety programs, creating safety policies, and leading by example.

 Employee Involvement: Engage workers at all levels in safety efforts by encouraging them to participate in safety
committees, hazard identification, and risk assessments.

 Training and Awareness: Regular safety training should be provided to all employees, emphasizing safety
protocols, emergency response plans, and proper operational procedures.

 Safety Communication: Establish clear channels for communicating safety policies, changes in procedures, and
incident reports to all employees.

Example:

 A chemical plant implements a safety leadership program where managers participate in regular safety meetings
with employees to discuss concerns and solutions, fostering a proactive safety culture.

2. Risk Assessment and Hazard Analysis

Purpose:

 Identify potential hazards and assess the risks associated with operations to take preventive measures.

Steps:

 Hazard Identification: Identify all potential hazards in the plant, including chemical, physical, environmental, and
operational risks. This could include flammable gases, toxic chemicals, equipment malfunctions, or operator
errors.

 Risk Analysis: Use methods such as HAZOP (Hazard and Operability Study), FMEA (Failure Modes and Effects
Analysis), or Bowtie Analysis to evaluate the likelihood and potential consequences of these hazards.

 Risk Prioritization: Based on the analysis, prioritize risks according to their potential severity, likelihood of
occurrence, and impact on safety, health, and the environment.

 Control Measures: Implement engineering controls (e.g., pressure relief valves, explosion-proof equipment),
administrative controls (e.g., work procedures), and personal protective equipment (PPE) to mitigate risks.

Example:

 A plant conducts a HAZOP study for a distillation unit to identify risks related to temperature control failure,
overpressure, or hazardous chemical leaks, and develops mitigation strategies like pressure sensors, automatic
shutdown systems, and emergency ventilation.

3. Process Design and Engineering Controls

Purpose:

 The design phase is crucial for eliminating or minimizing risks before they arise during operation. Engineering
controls are put in place to protect operators and prevent accidents.

Steps:
  Design Safety Features: Integrate safety features into the design of equipment and processes, such as pressure
relief valves, explosion suppression systems, and containment vessels.

 Material Selection: Choose materials that can withstand the chemicals and conditions involved in the process.
Consider corrosion resistance, mechanical strength, and compatibility with the process chemicals.

 Control Systems: Implement process control systems such as Distributed Control Systems (DCS) or
Programmable Logic Controllers (PLC) to monitor and control critical parameters like temperature, pressure, and
flow rates.

 Redundancy: Incorporate redundancy in critical systems (e.g., backup power supply, duplicate sensors) to prevent
failures that could compromise safety.

 Safety Instrumented Systems (SIS): Design and implement automated safety systems that can detect unsafe
conditions and automatically take corrective actions, such as shutting down equipment or initiating cooling
systems.

Example:

 A reaction vessel is equipped with redundant pressure relief systems, automatic temperature control, and a safety
instrumented system that triggers a shutdown if certain hazardous conditions are detected.

4. Standard Operating Procedures (SOPs)

Purpose:

 Establish clear, standardized procedures for all operations to ensure consistent and safe performance.

Steps:

 Develop SOPs: For every task, from routine operations to emergency response, detailed Standard Operating
Procedures should be developed, covering start-up, operation, and shut-down processes.

 Clear Instructions: SOPs should include clear instructions for operating equipment safely, handling hazardous
materials, and addressing potential hazards.

 Regular Reviews: Review and update SOPs regularly to incorporate new safety information, equipment upgrades,
or process changes.

 Operator Training: Ensure operators are trained and fully understand the SOPs and the potential consequences of
deviating from them.

Example:

 SOPs for a chemical reactor include procedures for handling raw materials, maintaining temperature and pressure
within safe limits, and steps to take if an overpressure event occurs.

5. Safety Equipment and Personal Protective Equipment (PPE)

Purpose:

 Ensure that adequate safety equipment is available and that workers use appropriate PPE to protect themselves
from hazards.

Steps:

 Safety Equipment: Install and maintain essential safety equipment, such as fire extinguishers, emergency
eyewash stations, safety showers, gas detectors, and fire alarms.

 PPE: Provide workers with PPE such as gloves, safety glasses, face shields, fire-resistant clothing, respirators, and
hearing protection as required for specific tasks.

 Maintenance and Inspection: Regularly inspect and maintain safety equipment to ensure it’s in good working
condition.

Example:
  In a chemical plant, workers handling toxic chemicals are provided with full-body protective suits, gloves, and
respirators. Emergency eyewash stations and safety showers are strategically located in case of chemical
exposure.

6. Emergency Preparedness and Response Plans

Purpose:

 Ensure that the plant is prepared to respond to emergencies, such as fires, chemical spills, equipment failures, or
natural disasters.

Steps:

 Emergency Response Plan: Develop a comprehensive emergency response plan that outlines actions to take in
the event of a fire, chemical release, explosion, or power failure. This plan should include evacuation routes,
communication procedures, and specific roles and responsibilities.

 Training and Drills: Conduct regular emergency response drills and training to ensure all personnel are familiar
with emergency procedures and can act quickly and effectively.

 Coordination with Local Authorities: Coordinate with local emergency services (fire, medical, environmental) to
ensure a prompt and coordinated response to major incidents.

Example:

 A chemical plant conducts annual emergency drills, simulating a chemical spill followed by a fire, with teams
practicing evacuation, containment, and firefighting operations.

7. Maintenance and Inspection Programs

Purpose:

 Regular maintenance and inspections are necessary to ensure that all equipment functions properly and does not
pose a safety hazard.

Steps:

 Routine Inspections: Conduct periodic inspections of critical equipment such as pressure vessels, pumps, valves,
and safety devices to identify signs of wear, corrosion, or damage.

 Preventive Maintenance: Implement a preventive maintenance program to replace worn-out or damaged parts
before they fail.

 Calibration of Instruments: Ensure that all instrumentation and control systems are properly calibrated to ensure
safe and accurate operation.

Example:

 A boiler in a chemical plant undergoes regular inspections to check for corrosion or scale buildup in the heat
exchangers, and preventive maintenance is performed to ensure optimal operation.

8. Process Safety Management (PSM)

Purpose:

 A structured approach to managing risks associated with hazardous chemicals and processes to prevent accidents
and ensure safe operations.

Steps:

 Hazardous Materials Identification: Identify and classify hazardous chemicals used in the plant and assess their
risks (e.g., flammability, toxicity, reactivity).
  Risk Management: Implement measures to control risks through process safety studies, such as HAZOP (Hazard
and Operability Studies) or PHA (Process Hazard Analysis).

 Incident Investigation: Investigate all safety incidents, even near-misses, to identify root causes and take
corrective actions to prevent recurrence.

 Continuous Improvement: Regularly review and update safety practices, incorporating lessons learned from past
incidents, technological advancements, and regulatory changes.

Example:

 A chemical plant adopts PSM principles to manage its hazardous chemicals. They conduct regular HAZOP studies
and investigate any near-misses to ensure continuous safety improvements.

9. Regulatory Compliance and Audits

Purpose:

 Ensure the plant complies with local, national, and international safety regulations and standards.

Steps:

 Regulatory Compliance: Stay up-to-date with relevant safety regulations, including OSHA (Occupational Safety
and Health Administration) standards, EPA (Environmental Protection Agency) guidelines, and local fire safety
codes.

 Regular Audits: Conduct regular safety audits and internal inspections to ensure compliance with safety
regulations and identify any areas for improvement.

 Documentation: Maintain detailed records of safety procedures, inspections, audits, and corrective actions for
regulatory compliance and transparency.

Example:

 The plant undergoes a third-party safety audit every year to ensure compliance with local environmental and
safety regulations, particularly regarding hazardous waste disposal and worker safety.

Conclusion

Safety in the operation of a chemical process plant requires a comprehensive, multi-step approach that encompasses
everything from fostering a safety culture and risk analysis to ensuring proper equipment maintenance and emergency
preparedness. By following these safety steps, chemical plants can mitigate risks, protect workers and the environment, and
ensure efficient and compliant operation. Effective implementation of these steps requires collaboration among
management, safety personnel, operators, and local authorities to create a safe and sustainable working environment.

2. Properties of Chemicals and Storage Areas, and Types of Handling Methods in Chemical Plants

In chemical plants, the handling, storage, and transportation of chemicals require a thorough understanding of the
properties of the chemicals and the specific characteristics of the storage areas. These factors play a critical role in ensuring
safety, efficiency, and compliance with regulations. The properties of chemicals can vary widely, depending on their
chemical structure, physical state, and reactivity. Similarly, the design and conditions of storage areas are tailored to
accommodate these properties to minimize hazards and prevent accidents.

Properties of Chemicals in Chemical Plants

The properties of chemicals are fundamental in determining how they should be handled, stored, and processed. Some of
the key properties include:

1. Physical State

 Solid: Chemicals in solid form (e.g., powders, granules) require specialized handling and storage to prevent
spillage, contamination, or the formation of dust clouds that may pose a health or explosion hazard.
  Liquid: Liquid chemicals often require storage in tanks, barrels, or drums and may need to be maintained at
specific temperatures or pressures to remain stable.

 Gas: Gaseous chemicals, such as oxygen, hydrogen, and compressed gases, require storage in high-pressure
cylinders or tanks and are often highly flammable or reactive.

2. Flammability and Combustibility

 Flammable: Chemicals that easily ignite and burn in the presence of heat, spark, or flame. Examples include
hydrocarbons, solvents, and many organic chemicals.

 Non-flammable: Chemicals that do not easily catch fire, but may still present risks when exposed to extreme heat
or flames.

 Combustible: Chemicals that are not flammable at normal temperatures but can burn under certain conditions,
such as higher temperatures.

3. Toxicity and Hazardous Materials

 Toxic: Chemicals that can cause harm to living organisms through inhalation, ingestion, or skin contact. These
chemicals often require special handling, storage, and transport to prevent exposure.

 Corrosive: Chemicals that can cause damage to living tissue, metals, or equipment. Common examples include
acids and bases.

 Reactive: Chemicals that may undergo dangerous reactions when exposed to heat, pressure, other chemicals, or
even air or water. Examples include peroxides and certain metal hydrides.

 Carcinogenic/Mutagenic: Chemicals that are known to cause cancer or genetic mutations. These materials
require stringent safety measures to avoid exposure.

4. Volatility

 Volatile: Chemicals that easily evaporate at room temperature, producing vapors that can be hazardous when
inhaled or when they form flammable mixtures with air. These chemicals often need to be stored in well-
ventilated or closed systems to control vapor release.

 Non-volatile: Chemicals that have a low tendency to vaporize and are less prone to forming hazardous vapor
clouds.

5. Reactivity and Stability

 Stable: Chemicals that remain chemically unchanged under normal conditions of temperature, pressure, and
humidity.

 Unstable: Chemicals that may decompose, react violently, or degrade over time or under specific conditions,
requiring special storage conditions such as refrigeration, low temperatures, or inert atmospheres.

Storage Areas in Chemical Plants

The design and conditions of storage areas are crucial for preventing accidents and ensuring the safe storage of chemicals.
The following are key aspects of chemical storage areas:

1. Storage Environment

 Temperature-Controlled Storage: Some chemicals, such as perishable substances or those prone to

decomposition, may need to be stored at specific temperatures. This requires refrigerated or temperature-
controlled rooms or tanks.

 Ventilated Storage Areas: Chemicals that emit gases, vapors, or fumes require well-ventilated areas to prevent
dangerous concentrations of airborne chemicals, which could lead to health hazards or fire.

 Explosion-Proof Areas: For chemicals that are highly flammable or reactive (such as solvents or gases), storage
areas must be designed with explosion-proof walls, doors, and ventilation systems.

 Humidity-Controlled Storage: Chemicals that are hygroscopic (absorb moisture from the air) require humidity-
controlled environments to prevent degradation or reaction with water.
2. Types of Storage Containers

 Tanks: Large containers for storing liquid chemicals. They can be above ground, underground, or in bunded areas
(for spill containment). Tanks must be made of materials resistant to corrosion, and some require heating or
cooling jackets.

 Drums and Barrels: Used for smaller quantities of liquid or solid chemicals. They are typically made from steel or
plastic and are sealed to prevent contamination.

 Cylinders: Often used for storing gases under pressure, such as oxygen, nitrogen, or propane. Cylinders are
typically stored upright and secured to prevent tipping or falling.

 Bulk Storage: For large quantities of solid or liquid chemicals, bulk storage areas are designed to accommodate
significant volumes. These storage areas can include silos for powders or large tanks for liquids.

3. Fire Prevention and Containment

 Fire-Proof Storage: Chemicals that are flammable or reactive require fireproof storage areas. Fireproof walls,
explosion vents, and sprinkler systems are often used to contain and prevent fires.

 Spill Containment: Storage areas should be equipped with containment systems, such as secondary containment
barriers or bunds, to prevent spills from contaminating the environment. These systems help to contain leaks or
spills until they can be cleaned up.

4. Segregation of Chemicals

 Chemical Compatibility: Chemicals should be stored according to their compatibility to prevent dangerous
reactions. For example, acids and bases should be kept separate, as should flammable and oxidizing substances.

 Labeling and Signage: Clear labeling of chemicals with their hazards (flammable, corrosive, toxic) and proper
signage are essential for safe handling and emergency identification.

Types of Handling Methods in Chemical Plants

Handling chemicals safely involves a range of practices and methods tailored to the specific properties of the chemicals
being used. These methods are designed to minimize exposure, prevent spills, and maintain process control. Here are the
main types of chemical handling methods:

1. Manual Handling

 Description: Involves the physical movement of chemicals using manual labor, such as lifting containers or
pouring chemicals from one vessel to another.

 Precautions:

o Use appropriate personal protective equipment (PPE), such as gloves, goggles, and face shields.

o Limit manual handling to non-hazardous chemicals or when no safer alternative is available.

o Use mechanical aids such as trolleys, hoists, or forklifts for larger or heavier containers.

Example: Moving small containers of chemicals from storage to processing areas using mechanical lifting equipment.

2. Mechanical Handling

 Description: Involves using mechanical devices such as conveyors, forklifts, cranes, and pumps to move chemicals
within a plant.

 Precautions:

o Ensure that equipment is properly maintained and inspected.

o Use equipment suited to the type of chemical being handled (e.g., explosion-proof pumps for
flammable liquids).

o Install barriers or shields to protect workers from hazardous chemicals during handling.
Example: A chemical plant uses an automated conveyor belt to move bulk solids (like powders or pellets) from the
warehouse to the processing unit.

3. Pneumatic Handling

 Description: Uses compressed air or gas to move powders, granules, or other light materials through pipelines or
tubes.

 Precautions:

o Ensure the pipeline is sealed to prevent leaks of fine powders or hazardous chemicals.

o Use explosion-proof or spark-free equipment when handling flammable materials.

Example: Pneumatic systems are used to transfer powdered chemicals from storage silos to mixers or reactors.

4. Pump and Pipe Handling

 Description: Involves using pumps to move liquids or slurry through pipelines to different areas of the plant. This
is especially important for handling corrosive, toxic, or hazardous liquids.

 Precautions:

o Ensure pumps are compatible with the chemical properties (e.g., corrosion-resistant pumps for acids).

o Use appropriate seals to prevent leaks.

o Include safety valves to manage pressure and avoid accidents.

Example: A chemical plant uses a diaphragm pump to transfer hazardous chemicals such as acids or solvents to reaction
vessels.

5. Forklift and Crane Handling

 Description: Used for moving large, heavy containers, drums, or tanks in warehouses or storage areas. Forklifts
and cranes are typically used for bulk chemicals.

 Precautions:

o Ensure proper securing of containers to prevent spills or accidents.

o Operators must be trained in safe handling procedures and aware of the chemical hazards.

Example: Forklifts are used to move large barrels of flammable liquids to designated storage areas.

Conclusion

In chemical plants, the proper handling and storage of chemicals are crucial to ensuring safety, preventing accidents, and
maintaining regulatory compliance. Understanding the properties of chemicals, the specific design of storage areas, and the
appropriate handling methods is essential for managing the risks associated with hazardous materials. This involves using a
combination of appropriate storage techniques, handling equipment, and safety measures to protect workers, the
environment, and the facility. By adhering to these practices, chemical plants can operate safely and efficiently while
minimizing the likelihood of incidents and ensuring the protection of human health and the environment.

3. Material Safety Data Sheet (MSDS) and Its Contents

A Material Safety Data Sheet (MSDS), now more commonly referred to as a Safety Data Sheet (SDS) under global
standards like the OSHA Hazard Communication Standard (HCS) in the United States and the Globally Harmonized System
(GHS) of Classification and Labeling of Chemicals, is a detailed document that provides information about a chemical
substance or mixture. The primary purpose of an MSDS/SDS is to ensure that workers and emergency responders have
comprehensive information on the properties, handling, storage, hazards, and safety precautions related to chemicals in
the workplace.

An SDS is required by law in many countries for hazardous chemicals and must be made available to anyone handling the
chemical. The sheet helps mitigate risks, ensures safe handling, and informs workers about potential hazards during usage,
storage, and disposal.
Contents of a Material Safety Data Sheet (MSDS)

The SDS is typically divided into 16 standardized sections, each addressing a specific aspect of the chemical’s properties and
safety. Here’s a detailed breakdown of each section:

1. Identification

 Product Identifier: Name, type, and grade of the chemical.

 Manufacturer/Supplier Information: Name, address, and phone number of the manufacturer, supplier, or
distributor.

 Recommended Use and Restrictions: Description of the intended use (e.g., industrial, laboratory), and any known
restrictions.

 Emergency Contact Information: Contact details for emergencies, including toxicological and spill response
teams.

2. Hazard(s) Identification

 Classification of the Substance or Mixture: This section includes hazard classification as per the GHS system,
which defines the chemical's risks (flammability, toxicity, etc.).

 Label Elements: Key safety warnings, including:

o Pictograms (e.g., flame for flammables, skull and crossbones for toxic substances)

o Signal Words (e.g., Danger, Warning)

o Hazard Statements (e.g., May cause cancer, Causes severe skin burns)

o Precautionary Statements (e.g., Wear protective gloves, Do not breathe dust)

 Other Hazards: Any other hazards not included in the classification (e.g., potential environmental impact, special
handling considerations).

3. Composition/Information on Ingredients

 Chemical Identity: Names and concentrations of ingredients that make up the chemical, including any impurities
that could contribute to the hazard.

 CAS Number: The Chemical Abstracts Service number, which uniquely identifies each substance.

4. First-Aid Measures

 Symptoms/Effects of Exposure: Symptoms of acute or chronic exposure (e.g., skin irritation, respiratory
problems).

 Necessary First-Aid Actions: Instructions for treating exposure, such as:

o Inhalation: Move the person to fresh air and seek medical attention.

o Skin Contact: Wash with soap and water and remove contaminated clothing.

o Eye Contact: Rinse with water for 15-20 minutes and seek medical help.

o Ingestion: Seek immediate medical attention and do not induce vomiting unless instructed.
5. Fire-Fighting Measures

 Suitable Extinguishing Media: The types of fire extinguishers that should be used (e.g., water spray, dry
chemical).

 Specific Hazards Arising from the Chemical: Information on the hazards associated with combustion (e.g., toxic
fumes, explosion risk).

 Protective Equipment for Firefighters: Recommendations for firemen, such as self-contained breathing apparatus
(SCBA) and other PPE.

 Additional Information: Special procedures in case of large chemical fires, including cooling tanks and
maintaining ventilation.

6. Accidental Release Measures

 Personal Precautions: Actions to take for safety, such as wearing appropriate PPE, avoiding ignition sources, or
evacuating non-essential personnel.

 Environmental Precautions: Measures to prevent the chemical from contaminating the environment (e.g.,
preventing runoff into sewers).

 Containment and Cleanup: Instructions on containing and cleaning up spills or leaks, such as using absorbent
materials or neutralizing agents.

7. Handling and Storage

 Precautions for Safe Handling: Safe handling procedures to avoid exposure or accidents, such as using proper
ventilation, avoiding contact with skin, and using explosion-proof equipment where necessary.

 Conditions for Safe Storage: Information on ideal storage conditions (e.g., temperature, humidity, light) and
requirements for compatibility with other materials.

 Incompatible Materials: A list of substances that should not be stored with the chemical due to risks of
dangerous reactions (e.g., acids with bases, oxidizers with flammables).

8. Exposure Controls/Personal Protection

 Control Parameters: Occupational exposure limits (OEL), threshold limit values (TLV), and other regulatory limits
for the chemical.

 Engineering Controls: Recommendations for controlling exposure, such as using fume hoods, local exhaust
ventilation, or closed systems.

 Personal Protective Equipment (PPE): Guidelines on the necessary PPE, such as gloves, goggles, face shields,
respiratory protection, and protective clothing.

9. Physical and Chemical Properties

 Appearance: Description of the physical state (e.g., liquid, solid, gas), color, and odor.

 Boiling/Freezing Point, Melting Point: Key temperatures related to the substance's phase changes.

 Flash Point: The temperature at which the chemical can form ignitable mixtures with air.

 Solubility: How well the chemical dissolves in water or other solvents.

 Vapor Pressure/Density: The rate at which the substance vaporizes and its density compared to air or water.
10. Stability and Reactivity

 Reactivity: Information on how the substance reacts with other chemicals, such as acids, bases, or metals.

 Chemical Stability: Whether the substance is stable or reactive under normal conditions.

 Conditions to Avoid: Environmental factors or conditions (e.g., high temperature, humidity) that could lead to
instability.

 Incompatible Materials: Substances that should not be mixed or stored with the chemical.

 Hazardous Decomposition Products: Potential toxic products formed when the substance decomposes.

11. Toxicological Information

 Routes of Exposure: How the chemical can enter the body (e.g., inhalation, skin contact, ingestion).

 Health Effects: Information on short-term and long-term health effects, such as irritation, carcinogenicity, or
reproductive toxicity.

 Toxicity Data: LD50 (lethal dose for 50% of subjects) and other animal studies on the substance's toxicity.

12. Ecological Information

 Environmental Impact: The effects of the chemical on the environment, such as toxicity to aquatic life or
persistence in soil.

 Bioaccumulation: Whether the chemical can accumulate in the bodies of living organisms over time.

 Mobility in Soil: How easily the chemical can move through the soil and potentially contaminate water sources.

13. Disposal Considerations

 Disposal Methods: How to safely dispose of the chemical and any contaminated materials, including any
applicable disposal regulations.

 Waste Codes: Relevant waste classification codes (e.g., hazardous waste codes) for regulatory compliance.

 Precautions: Safety precautions to take during disposal, including PPE and spill containment.

14. Transport Information

 UN Number: The unique identification number for the substance used in transport regulations.

 Transport Hazard Class: The classification of the chemical under transportation safety standards (e.g., flammable,
toxic).

 Packing Group: The level of danger associated with the chemical (e.g., I for high danger, II for moderate danger).

 Environmental Hazards: Whether the chemical poses environmental risks during transportation.

15. Regulatory Information

 Applicable Regulations: Information on national and international safety regulations, standards, and chemical
classification requirements.

 Inventory Status: Whether the substance is included in various national or international chemical inventories
(e.g., TSCA, REACH).
16. Other Information

 Other Relevant Information: Any additional safety or regulatory information not included in the previous
sections.

 Revision History: A record of updates and changes to the SDS, including the date of the most recent revision.

Conclusion

The Material Safety Data Sheet (MSDS), or Safety Data Sheet (SDS), is an essential tool in chemical safety management. It
provides vital information about the physical, chemical, and toxicological properties of chemicals, along with guidance on
safe handling, storage, and disposal. By understanding the contents of an SDS, workers, safety personnel, and emergency
responders can take the necessary precautions to minimize risk and prevent accidents.

4. Properties of Chemicals and Methods Available for Property Determination

In chemical industries, the properties of chemicals play a critical role in ensuring safe handling, storage, transportation, and
processing. Understanding these properties is essential for effective chemical safety, process design, and hazard
management. To determine the properties of chemicals, various methods and formats are employed depending on the
type of property being assessed.

Key Properties of Chemicals

Chemical properties can be broadly categorized into physical properties, chemical properties, and safety-related
properties. Below is a list of common properties, with an explanation of each:

1. Physical Properties

 Appearance: Describes the visual characteristics, such as color, state (solid, liquid, gas), and form (e.g., powder,
crystal).

 Boiling Point: The temperature at which a liquid turns to vapor under normal atmospheric pressure.

 Melting Point: The temperature at which a solid turns into a liquid.

 Density: The mass per unit volume of a substance, typically expressed in g/cm³ or kg/m³.

 Viscosity: A measure of a liquid’s resistance to flow, often determined using a viscometer.

 Refractive Index: The degree to which light is bent as it passes through a substance. It’s commonly used in
identifying substances.

 Flash Point: The lowest temperature at which the substance can form an ignitable mixture with air.

 Vapor Pressure: The pressure exerted by a vapor in equilibrium with its liquid or solid form. It’s critical for
assessing volatility.

 Solubility: Describes how well a substance dissolves in a solvent, typically measured in terms of grams per liter.

2. Chemical Properties

 pH: Indicates the acidity or basicity of a substance, typically measured using pH meters or indicator paper.

 Reactivity: The tendency of a chemical to undergo chemical reactions, such as combustion or corrosion, when
exposed to heat, light, moisture, or other chemicals.

 Oxidizing/Reducing Nature: A measure of how a substance reacts with oxidizing or reducing agents, which is
crucial for preventing hazardous reactions.

 Corrosivity: The ability of a chemical to damage or destroy materials, such as metals, or biological tissue, through
chemical reactions.
  Toxicity: The degree to which a chemical can harm humans, animals, or the environment. It includes acute
toxicity (immediate effects) and chronic toxicity (long-term effects).

3. Safety-Related Properties

 Flammability: The ease with which a substance can ignite and burn in air.

 Explosiveness: Whether a chemical can undergo a violent reaction, typically requiring high energy or specific
conditions, such as shock or heat.

 Volatility: The tendency of a substance to vaporize at a given temperature and pressure, influencing how
hazardous a chemical might be.

 Autoignition Temperature: The lowest temperature at which a substance will spontaneously ignite in the absence
of a spark or flame.

 Toxicity (LD50, LC50): The lethal dose (LD50) or lethal concentration (LC50) required to kill 50% of a test
population, often used in hazard classification.

Methods for Determining Chemical Properties

Various experimental methods and analytical techniques are used to determine the properties of chemicals, depending on
the type of property being assessed. Below are the common methods used for property determination:

1. Physical Property Determination Methods

 Boiling and Melting Point Determination:

o Method: The temperature at which a substance boils or melts is measured using a melting point
apparatus or boiling point apparatus.

o Instruments: Capillary tubes, Thermocouples, and Thermometers.

 Density Measurement:

o Method: Density can be determined using a hydrometer or pycnometer (for liquids) or a displacement
method (for solids).

o Instrument: Digital density meter, water displacement technique for solids.

 Viscosity Measurement:

o Method: The viscosity of liquids is determined using a viscometer (e.g., capillary, rotational, or falling
ball viscometers).

o Instruments: Rotational viscometer, U-tube viscometer.

 Solubility Determination:

o Method: Solubility is assessed by adding a known quantity of the solute to a solvent and observing how
much dissolves at a particular temperature, usually through a solubility test.

o Instruments: Stirring apparatus, balance (to weigh the solute).

 Vapor Pressure Measurement:

o Method: Vapor pressure is measured using a manometer in an enclosed system at different

temperatures (e.g., using a Reid vapor pressure tester).

o Instruments: Vapor pressure tester, manometer.

2. Chemical Property Determination Methods

 pH Measurement:

o Method: pH can be determined using a pH meter, which measures the hydrogen ion concentration in a
solution.

o Instruments: pH electrode, pH paper.

 Toxicity Testing (LC50, LD50):

o Method: Acute toxicity is typically determined through bioassays where the test chemical is
administered to animals (or microorganisms), and lethal doses or concentrations are measured.

o Instruments: Laboratory animals, bioassay equipment, spectrophotometer for quantifying effects.

 Reactivity Tests:

o Method: Reactivity is assessed by subjecting chemicals to specific conditions (e.g., heat, mixing with
water) and observing whether a violent reaction occurs.

o Instruments: Test tubes, calorimeters for heat release.

 Corrosivity Testing:

o Method: Corrosivity is determined by observing the damage a substance causes to materials (e.g.,
metals) or living tissues (e.g., skin) over time.

o Instruments: Salt spray tests, metal coupons, skin irritation tests.

3. Safety-Related Property Determination Methods

 Flash Point Determination:

o Method: The flash point is determined using methods like the closed cup (e.g., Pensky-Martens) or
open cup (e.g., Cleveland) tests, where the substance is heated, and its ignition temperature is
determined by the appearance of a flame.

o Instruments: Pensky-Martens flash point tester, Cleveland open cup tester.

 Explosive Limits (LEL/UEL):

o Method: The lower explosive limit (LEL) and upper explosive limit (UEL) are determined by mixing the
chemical with air and measuring the concentration at which ignition occurs.

o Instruments: Bomb calorimeter, gas analyzers.

 Autoignition Temperature:

o Method: The autoignition temperature is determined by heating the substance in a controlled

environment and observing the temperature at which spontaneous combustion occurs.

o Instruments: Oxygen bomb, furnace.

Formats for Reporting Chemical Properties

Chemical properties are often reported in standardized formats to ensure clear communication, accuracy, and regulatory
compliance. Common formats include:

1. Material Safety Data Sheets (MSDS/SDS):

o Chemical properties, hazard classifications, and safety information are compiled in standardized formats
(as discussed earlier).

2. Technical Data Sheets (TDS):

 o These provide detailed physical and chemical property data of a substance for use in manufacturing and
product specifications.

3. Product Labels and Certificates:

o These often include summarized property information required for transport or regulatory purposes
(e.g., flashpoint, boiling point, flammability).

4. Test Reports:

o These are detailed documents issued after lab testing that outline the methods used and the results for
properties like toxicity, corrosivity, and reactivity.

Conclusion

Understanding and determining the physical, chemical, and safety-related properties of chemicals is crucial for ensuring
their safe and effective use in industrial processes. Various methods and tools, from simple instruments like thermometers
and pH meters to complex tests like toxicity bioassays and reactivity assessments, are employed to measure these
properties. Properly reporting these properties in standardized formats such as MSDS or technical data sheets ensures that
all stakeholders, including operators, safety personnel, and emergency responders, are informed of the hazards and
necessary precautions.

5. Operational Activities and Hazards in Chemical Plants

Operational activities in a chemical plant involve a wide range of processes, from the production of chemicals to the
handling of raw materials and finished products. These operations are typically complex and can pose numerous hazards to
workers, the surrounding environment, and plant equipment. A comprehensive understanding of the activities involved, the
potential hazards, and the necessary control measures is essential for ensuring safety and efficiency in chemical plants.

1. Key Operational Activities in Chemical Plants

1. Raw Material Handling and Storage:

o Activity: Receiving, storing, and preparing raw materials for processing. This includes moving chemicals
into storage tanks, silos, or warehouses.

o Associated Hazards:

 Spills or leaks during transportation or storage.

 Hazardous reactions between incompatible materials.

 Exposure to harmful gases or vapors (e.g., ammonia, chlorine).

 Risk of fire or explosion due to flammable substances.

2. Chemical Reaction Processes:

o Activity: Mixing or reacting chemicals in reactors or other process equipment to produce desired
products. This includes controlling temperature, pressure, and mixing conditions.

o Associated Hazards:

 Thermal runaway reactions, where exothermic reactions accelerate uncontrollably.

 Pressure buildup leading to vessel rupture or explosion.

 Toxic or hazardous by-products (e.g., gases, liquids).

 Exposure to extreme conditions (e.g., high temperatures, corrosive chemicals).

3. Separation and Purification:

o Activity: Using methods like distillation, filtration, and chromatography to separate or purify chemicals.

o Associated Hazards:
  Leaks of hazardous chemicals.

 High-pressure equipment failure.

 Accidental release of toxic or flammable substances.

 Mechanical failure of filtration or distillation equipment.

4. Packaging and Dispatch:

o Activity: Filling, packaging, and preparing chemicals for shipment to customers or other facilities.

o Associated Hazards:

 Chemical spills during handling or packaging.

 Improper packaging of hazardous chemicals, leading to leaks or contamination.

 Exposure to hazardous chemicals during loading or unloading.

5. Waste Management:

o Activity: Managing and disposing of chemical waste, such as by-products, contaminated equipment, or
expired chemicals.

o Associated Hazards:

 Exposure to hazardous waste during handling.

 Contamination of water or soil with hazardous chemicals.

 Risk of fire or explosion in waste storage or disposal areas.

6. Maintenance and Equipment Inspection:

o Activity: Regular maintenance and inspection of machinery, piping, reactors, and safety systems.

o Associated Hazards:

 Exposure to hazardous chemicals during maintenance.

 Failure of pressure relief systems or other safety devices.

 Inadequate lockout/tagout procedures leading to accidental chemical exposure.

2. Common Hazards in Chemical Plants

The hazards in chemical plants can be classified into several categories:

1. Chemical Hazards:

o Toxicity: Inhalation, ingestion, or skin exposure to toxic chemicals can result in acute or chronic health
effects.

o Corrosiveness: Chemicals that can destroy or damage living tissue or materials (e.g., acids, alkalis).

o Flammability/Explosiveness: Chemicals that can catch fire easily or explode under certain conditions
(e.g., solvents, gases).

o Reactivity: Certain chemicals may react violently with other substances, causing fires, explosions, or the
release of toxic by-products.

2. Physical Hazards:

o Heat and Cold Stress: Extreme temperatures can cause burns, heatstroke, or frostbite.

o Pressure Hazards: High-pressure systems can rupture or leak, posing risks of explosions or chemical
release.
 o Mechanical Hazards: Moving parts, rotating equipment, and pinch points in machinery can cause
physical injuries.

3. Ergonomic Hazards:

o Repetitive Strain: Long hours of manual labor or operating equipment can lead to musculoskeletal
injuries.

o Heavy Lifting: Handling heavy materials or containers can cause back or limb injuries.

4. Environmental Hazards:

o Air Quality Issues: Release of hazardous gases (e.g., chlorine, hydrogen sulfide) or particulate matter
into the air.

o Water Contamination: Chemical runoff can pollute water sources and affect nearby communities.

o Waste Disposal: Improper disposal of hazardous waste can lead to environmental contamination.

3. Standards Operating Procedure (SOP) in Chemical Plants

Standard Operating Procedures (SOPs) are written guidelines that define the standardized process for performing a specific
task in a chemical plant. SOPs are developed to ensure consistency, quality, and safety in operations. They are essential for
maintaining plant safety, regulatory compliance, and operational efficiency.

Key Elements of an SOP:

1. Title and Purpose:

o A clear and concise title that describes the task, followed by the purpose of the procedure (e.g.,
"Procedure for Handling Hazardous Chemicals" or "Safety Procedure for Reactor Startup").

2. Scope:

o Defines the boundaries of the SOP, indicating which activities are covered and who is responsible for
performing them.

3. Responsibilities:

o Details the roles and responsibilities of personnel involved in the operation, including operators,
supervisors, maintenance workers, and safety officers.

4. Procedure:

o Step-by-step instructions on how to safely complete the task. This includes the methods, tools, and
equipment to be used.

o Example: For handling a hazardous chemical, the procedure may include steps such as wearing PPE,
checking for leaks, ensuring proper ventilation, and verifying the condition of storage containers.

5. Safety Precautions:

o A section outlining the safety measures that must be followed, such as PPE requirements, handling
instructions, emergency procedures, and hazard warnings.

o Example: "Always use gloves, goggles, and a respirator when handling acetic acid to prevent skin
contact and inhalation of vapors."

6. Equipment and Materials:

o A list of the tools, equipment, and materials required for the operation (e.g., pumps, valves, measuring
instruments, PPE, or emergency response kits).

7. Operational Conditions:

o Specifies the required operating conditions (e.g., temperature, pressure) and checks to be made during
the operation.
 8. Emergency Procedures:

o Describes the steps to take in the event of an emergency, such as chemical spills, fires, or gas leaks.

o Example: "In case of a chemical spill, immediately contain the spill using absorbent material, and notify
the emergency response team."

9. Record-Keeping:

o Specifies the need for recording relevant operational data, maintenance logs, inspection reports, and
incident documentation.

o Example: "Record the date and time of the inspection of safety equipment and ensure that
maintenance logs are up-to-date."

10. Training and Competence:

 Ensures that personnel are trained in the SOP and understand the procedures they need to follow.

 Example: "Operators must complete a safety training course and demonstrate competence in handling hazardous
chemicals before starting work."

4. Importance of SOPs in Ensuring Safety

 Consistency: SOPs ensure that every task is performed in the same way, reducing variability and errors.

 Safety: By outlining safe work practices, SOPs help prevent accidents, chemical spills, and exposure to hazardous
chemicals.

 Regulatory Compliance: SOPs ensure that operations comply with industry regulations and standards (e.g., OSHA,
EPA), reducing the risk of legal issues.

 Training Tool: SOPs serve as training resources for new employees and a reference for experienced workers to
refresh their knowledge.

5. Examples of SOPs in Chemical Plants

1. Startup and Shutdown Procedures for Reactors:

o Startup: Step-by-step instructions for safely starting up a reactor, including checks for pressure,
temperature, and flow rates, as well as safety systems like relief valves.

o Shutdown: Guidelines for safely shutting down the reactor, including cooling procedures, purging
hazardous gases, and isolating hazardous materials.

2. Chemical Spill Response SOP:

o Procedures for responding to spills, including containment, cleanup, PPE requirements, and notification
of emergency response teams.

3. Safe Handling of Flammable Chemicals SOP:

o Guidelines for safely storing and handling chemicals that are prone to ignition, including measures to
avoid static electricity, open flames, and proper ventilation.

4. Routine Equipment Inspection and Maintenance SOP:

o A preventive maintenance procedure that details regular inspections and checks for equipment like
pumps, pressure vessels, and valves to ensure they operate safely and efficiently.

Conclusion
Operational activities in chemical plants involve numerous processes that must be conducted safely to protect workers, the
environment, and equipment. Standard Operating Procedures (SOPs) are essential in ensuring that tasks are performed
consistently, efficiently, and safely. By identifying hazards, outlining control measures, and providing clear instructions for
safe operations, SOPs help mitigate risks associated with chemical plant operations. Ensuring proper SOP implementation
and adherence is crucial for minimizing accidents and ensuring compliance with safety and environmental standards.

6. Safe Operation of Pumps, Compressors, Heaters, Columns, Reactors, and Pressure Vessels in Chemical Industries

In chemical industries and process plants, equipment such as pumps, compressors, heaters, columns, reactors, and
pressure vessels are essential to the production process. Proper operation and safety measures for these types of
equipment are critical to ensure both operational efficiency and the safety of personnel, the environment, and the plant
infrastructure.

Below is a detailed explanation of the safe operation of these types of equipment, focusing on operational considerations,
common hazards, and safety measures.

1. Pumps

Pumps are used to move liquids, gases, or slurries from one location to another within the process. They can be centrifugal,
positive displacement, diaphragm, or screw pumps.

Types of Pumps Used in Chemical Plants:

 Centrifugal Pumps: Commonly used for pumping liquids and gases. They rely on centrifugal force to move the
fluid.

 Positive Displacement Pumps: Used for precise flow control and when handling viscous liquids or slurries (e.g.,
gear pumps, diaphragm pumps, piston pumps).

 Diaphragm Pumps: Used for transferring liquids with varying viscosities, especially in hazardous environments.

 Screw Pumps: Ideal for handling viscous liquids in a smooth and continuous manner.

Safe Operation:

 Flow and Pressure Monitoring: Ensure that the pump operates within its design parameters. Excessive flow or
pressure can damage the pump or the piping.

 Overheating Prevention: Ensure that the pump is properly lubricated and cooled. Operating at too high a
temperature can cause premature failure or leakage.

 Avoiding Cavitation: Cavitation occurs when vapor bubbles form in the pump due to low pressure. This can lead
to damage of the pump impellers.

o Safety Measure: Keep the inlet pressure within the manufacturer's specified range and monitor for
signs of cavitation.

 Sealing Systems: Regularly check seals and gaskets to prevent leakage of hazardous chemicals.

o Safety Measure: Use double mechanical seals or containment chambers for hazardous chemicals.

Common Hazards:

 Leaks and spills of hazardous chemicals.

 Pump failure due to overpressure, cavitation, or inadequate maintenance.

 Exposure to toxic or flammable substances.

2. Compressors

Compressors are used to increase the pressure of gases by reducing their volume. They are essential in operations like
refrigeration, gas transport, and chemical reactions.

Types of Compressors Used in Chemical Plants:

  Reciprocating Compressors: Common in chemical plants for high-pressure applications. They use pistons to
compress gases.

 Rotary Screw Compressors: Used for continuous, high-volume compression of gases.

 Centrifugal Compressors: Used for large-scale applications involving gases that need to be compressed at higher
speeds.

Safe Operation:

 Pressure and Temperature Control: Compressors often operate under high-pressure conditions. Ensure that the
discharge pressure does not exceed the design specifications.

o Safety Measure: Regularly inspect pressure relief valves and set them to open at the correct pressure.

 Vibration Monitoring: Excessive vibration can indicate mechanical issues and may cause compressor damage or
failure.

o Safety Measure: Install vibration sensors and routinely check alignment.

 Lubrication: Compressors require proper lubrication to prevent wear and tear of moving parts.

o Safety Measure: Use the recommended lubricants and check lubrication levels regularly.

 Overheating Prevention: Compressors can overheat due to high operational temperatures, leading to equipment
failure.

o Safety Measure: Use temperature sensors and cooling systems to maintain safe operating
temperatures.

Common Hazards:

 Gas leaks, particularly if the compressor handles hazardous or flammable gases.

 High-pressure failures leading to equipment damage or explosions.

 Mechanical failures leading to system downtime and maintenance costs.

3. Heaters

Heaters are used in chemical processes to raise the temperature of liquids, gases, or solids to facilitate reactions,
distillation, or other processes.

Types of Heaters Used in Chemical Plants:

 Fired Heaters (Furnaces): Use combustion to heat materials. Common in refineries and large chemical plants.

 Electric Heaters: Use electrical resistance to generate heat. Typically used in smaller systems or where a precise
temperature control is required.

 Heat Exchangers: Transfer heat from one medium to another without direct contact.

Safe Operation:

 Temperature Control: Ensure that the heater does not exceed the maximum allowable temperature, which could
damage equipment or cause unsafe reactions.

o Safety Measure: Install temperature sensors and control systems to monitor and maintain set points.

 Flame Monitoring (for Fired Heaters): Monitor the combustion process to ensure that it is stable and that there is
no risk of backfire or incomplete combustion.

o Safety Measure: Use flame arrestors, flame scanners, and burner management systems.

 Pressure Relief Systems: Many heaters, especially fired heaters, operate at high pressures. Ensure that pressure
relief valves are installed to prevent over-pressurization.
  Ventilation: Proper ventilation is required to prevent the accumulation of combustible gases or vapors around the
heater.

o Safety Measure: Use gas detectors and ventilation systems to reduce the risk of fires or explosions.

Common Hazards:

 Overheating, causing equipment failure or fire.

 Explosion risks due to flammable gas or vapor accumulation.

 Burns or exposure to high temperatures by workers.

4. Columns (Distillation, Absorption, and Stripping Columns)

Columns are widely used for separation processes in chemical plants, such as distillation (to separate liquids based on
boiling points), absorption (to capture gases), or stripping (to remove components from liquids).

Types of Columns:

 Distillation Columns: Used for separating liquid mixtures into individual components.

 Absorption Columns: Used to separate gases from a mixture by absorbing them into a liquid.

 Stripping Columns: Used to remove volatile components from a liquid by passing gas through it.

Safe Operation:

 Pressure and Temperature Control: Columns operate under specific pressure and temperature conditions.
Maintain these conditions to prevent overpressurization or temperature excursions that could lead to leaks or
dangerous reactions.

o Safety Measure: Install pressure and temperature sensors, and ensure that the control systems are
functioning correctly.

 Monitor Liquid and Gas Flow Rates: Maintaining proper flow rates of liquid and gas through the column is crucial
for efficient separation.

o Safety Measure: Use flow meters and control valves to maintain consistent flow rates.

 Overfilling Prevention: Columns can overflow or experience liquid carryover if the liquid level is too high.

o Safety Measure: Use level sensors and alarms to ensure proper liquid levels.

 Reflux Control (in distillation columns): Proper reflux is required to maintain the column's separation efficiency.

o Safety Measure: Ensure reflux rates are within design specifications.

Common Hazards:

 Pressure buildup leading to equipment rupture.

 Leaks of toxic, flammable, or corrosive substances.

 Overfilling or flooding of the column.

5. Reactors

Reactors are vessels where chemical reactions take place, such as polymerization, fermentation, or catalytic reactions.
Reactors may be batch, continuous, or semi-continuous.

Types of Reactors:

 Batch Reactors: Used for processes where chemicals are reacted in a specific sequence and for a set time before
being removed.

 Continuous Reactors: Materials are continuously fed into the reactor, and products are continuously removed.
  Semi-Continuous Reactors: A combination of batch and continuous operations.

Safe Operation:

 Temperature and Pressure Control: Reactions can be highly exothermic or endothermic, and controlling
temperature and pressure is vital to prevent thermal runaway or pressure buildup.

o Safety Measure: Install temperature sensors, pressure relief valves, and automatic shutdown systems.

 Reaction Monitoring: Continuously monitor for signs of reaction runaway, especially for highly reactive chemicals.

o Safety Measure: Use automated reaction control systems to adjust flow rates or cooling/heating
systems as needed.

 Ventilation: Ensure proper venting of gases generated during reactions, particularly for hazardous or toxic
chemicals.

o Safety Measure: Use scrubbers, venting systems, and gas detectors.

Common Hazards:

 Thermal runaway reactions.

 Pressure buildup leading to reactor failure.

 Exposure to toxic or hazardous chemicals during reaction or venting.

6. Pressure Vessels

Pressure vessels are used to store liquids or gases under pressure. These vessels must be designed to withstand the
mechanical stresses generated by high-pressure materials.

Types of Pressure Vessels:

 Storage Vessels: For storing chemicals at high pressure, such as liquefied gases (e.g., propane, ammonia).

 Reaction Vessels: For conducting chemical reactions under high pressure.

 Heat Exchange Vessels: Used for thermal processes under pressure.

Safe Operation:

 Pressure Control: Pressure vessels must be kept within safe operating limits to prevent rupture or leaks.

o Safety Measure: Install pressure relief valves, rupture discs, and pressure monitoring systems.

 Inspection and Maintenance: Regular inspections for corrosion, cracks, or fatigue that can weaken the vessel.

o Safety Measure: Conduct regular non-destructive testing (NDT) and visual inspections.

 Temperature Control: Many pressure vessels also operate at elevated temperatures, which can increase the
pressure and affect material strength.

o Safety Measure: Use temperature sensors and control systems to ensure temperatures stay within
design limits.

Common Hazards:

 Overpressure leading to rupture or explosion.

 Chemical leakage from seals or cracks.

 Corrosion and

material failure.

Conclusion
The safe operation of pumps, compressors, heaters, columns, reactors, and pressure vessels is essential to maintain safe
and efficient chemical processes. Each piece of equipment comes with its own set of operational challenges and hazards,
but with proper monitoring, maintenance, and safety systems, these risks can be effectively managed. Regular training,
adherence to safety standards, and continuous safety assessments are key to preventing accidents and ensuring the long-
term safety of the plant and its personnel.

7. The operation of chemical processes in industries is heavily influenced by parameters such as pressure, temperature,
flow rate, and humidity. These factors can significantly affect the efficiency, safety, and quality of the chemical processes.
Here's an in-depth explanation of how each of these factors impacts chemical operations:

1. Pressure

Pressure plays a critical role in many chemical processes, especially in reactors, distillation columns, and other vessels. The
impact of pressure on chemical processes depends on the type of operation (e.g., batch or continuous), the nature of the
reaction (e.g., exothermic or endothermic), and the physical properties of the substances involved.

Effects of Pressure on Chemical Processes:

 Reaction Rates: In many chemical reactions, increasing pressure can accelerate the rate of reaction, particularly
for reactions involving gases. This is because the concentration of reactant molecules increases as the pressure
increases, which can lead to more frequent collisions and faster reaction rates.

o Example: In the Haber process for ammonia synthesis, increasing pressure favors the formation of
ammonia from nitrogen and hydrogen gases.

 Equilibrium Shift (Le Chatelier’s Principle): For reactions involving gases, the equilibrium can shift with pressure.
In some reactions, increasing pressure favors the formation of products, while in others, it may shift the
equilibrium toward the reactants.

o Example: In the reaction of nitrogen and hydrogen to form ammonia, high pressure increases the
ammonia yield by shifting the equilibrium to the right.

 Gas Solubility: Increasing pressure generally increases the solubility of gases in liquids. This is important in
processes like carbonation of drinks or gas absorption in liquid solvents.

 Pumping and Fluid Flow: Higher pressures may be required to pump liquids or gases through pipelines,
particularly for viscous or dense fluids. Pressure drop across valves, pipes, and other components must be
managed to ensure efficient flow.

 Safety Considerations: Higher pressures can increase the risk of equipment failure, leaks, or ruptures if the
vessels or pipes are not properly designed or maintained.

2. Temperature

Temperature is a crucial parameter for most chemical reactions, as it directly influences the reaction rates, equilibrium
positions, and product yield.

Effects of Temperature on Chemical Processes:

 Reaction Rate: Generally, increasing temperature increases the reaction rate. This is due to the higher kinetic
energy of molecules, leading to more frequent and energetic collisions.

o Example: In exothermic reactions, raising the temperature may speed up the reaction, but it could also
result in dangerous runaway reactions if not properly controlled.

 Equilibrium Shifts: For reversible reactions, temperature changes can shift the equilibrium point. An increase in
temperature may favor the reverse reaction in exothermic reactions (heat-releasing reactions) and favor the
forward reaction in endothermic reactions (heat-absorbing reactions).

o Example: In the synthesis of ammonia, raising the temperature typically shifts the equilibrium to
produce less ammonia, though the reaction rate increases.

 Viscosity and Fluidity: In liquid systems, an increase in temperature often reduces viscosity, allowing liquids to
flow more easily. This can improve the efficiency of pumps and heat exchangers.
 o Example: In distillation, heating the liquid mixture can reduce the boiling point of the components,
aiding in separation.

 Thermal Decomposition: High temperatures can lead to the thermal decomposition of chemicals, which might
result in hazardous by-products or a decrease in product yield.

o Example: Some organic compounds, such as polymers, may degrade if exposed to high temperatures
for too long.

 Safety Considerations: Elevated temperatures increase the risk of fire, explosion, or thermal runaway reactions,
especially in reactors and pipelines.

3. Flow Rate

Flow rate refers to the volume of fluid passing a given point per unit of time and is a key parameter in maintaining the
desired operation of many processes in chemical industries, such as in pumps, reactors, and separation columns.

Effects of Flow Rate on Chemical Processes:

 Reaction Time: In batch processes, a higher flow rate can reduce the residence time of reactants in the reactor,
potentially reducing the reaction yield. In continuous processes, if the flow rate is too high or too low, it may
affect the completion of the reaction or the quality of the product.

o Example: In a continuous reactor, high flow rates can result in insufficient reaction time, leading to
incomplete conversion of reactants.

 Heat and Mass Transfer: Flow rate impacts heat and mass transfer efficiency. For example, in heat exchangers or
distillation columns, flow rates need to be optimized to ensure efficient heat transfer between fluids.

o Example: In a distillation column, a high flow rate may reduce the time available for separation,
resulting in poor product purity.

 Pressure Drop: A higher flow rate through pipelines or equipment can lead to higher pressure drops, which can
strain pumps and increase energy consumption.

 Dilution and Concentration: In some processes, varying the flow rate can influence the concentration of
substances. A higher flow rate can dilute reactants, while a lower flow rate may concentrate reactants.

o Example: In a water treatment plant, varying the flow rate of wastewater affects the efficiency of
chemical dosing for treatment.

 Safety Considerations: Incorrect flow rates can cause equipment damage, unsafe operating conditions, or
inefficient process performance. For example, a sudden increase in flow rate could lead to flooding or surging in
the system.

4. Humidity

Humidity refers to the amount of water vapor present in the air or within a process. While humidity is typically not a direct
operational parameter, it can influence certain processes, particularly those involving sensitive chemicals, drying
operations, or reactions that are sensitive to moisture.

Effects of Humidity on Chemical Processes:

 Reactivity: Certain chemical reactions are highly sensitive to moisture. Humid conditions can either enhance or
inhibit reactions, depending on the chemical. For instance, moisture can cause hydrolysis in organic chemicals,
leading to degradation or unwanted side reactions.

o Example: In the production of pharmaceuticals, excess humidity can cause hygroscopic chemicals to
absorb moisture, leading to clumping or decomposition.

 Drying Processes: In processes where drying is required (e.g., drying of solvents, powders, or crystals), high
humidity can slow down the drying rate as the air cannot absorb much more moisture.
 o Example: In a spray dryer, high humidity levels in the air will reduce the efficiency of moisture removal
from the product.

 Corrosion: High humidity levels can accelerate corrosion in metallic equipment, such as piping, reactors, and
pressure vessels. This is especially significant in aggressive chemical environments where moisture may react with
metals to form corrosive compounds.

o Example: Corrosion of storage tanks or pipelines can lead to leaks or failure, releasing hazardous
chemicals.

 Formation of Condensation: In areas where temperature differences exist (e.g., on pipelines, heat exchangers),
high humidity can lead to the condensation of water. This can cause unwanted reactions, corrosion, or damage to
sensitive equipment.

o Example: In a distillation column, moisture condensation can affect the separation efficiency and purity
of the products.

 Safety Considerations: High humidity, especially in flammable environments, can increase the risk of
condensation and promote the formation of explosive mixtures if the humidity interacts with flammable vapors.

Conclusion

The operation of chemical process industries relies on the careful control of pressure, temperature, flow rate, and humidity.
Each of these factors has significant effects on the reaction rates, product yield, energy consumption, and overall efficiency
of the process. Improper management of these parameters can lead to reduced product quality, equipment damage, safety
risks, and environmental hazards.

Effective control systems, real-time monitoring, and routine maintenance are essential to managing these parameters,
ensuring both safe and efficient operation of the chemical process plant.

8. Types of Safety Valves Used in Chemical Industries

Safety valves are crucial safety devices in chemical industries designed to protect equipment and personnel from the
dangers of overpressure by relieving excess pressure within a system. These valves are typically used in pressure vessels,
reactors, pipelines, boilers, and other pressurized systems to prevent catastrophic failure.

Here’s an overview of the types of safety valves, their working principles, construction, properties, and applications in
chemical industries:

1. Spring-Loaded Safety Valve

Working:

 A spring-loaded safety valve is a common type of safety valve in chemical industries. It works by using a spring to
hold the valve closed against the system pressure. When the pressure exceeds the preset limit, the force exerted
by the pressure on the valve exceeds the spring force, causing the valve to open and release the excess pressure.

 Once the pressure decreases and returns to a safe level, the spring force closes the valve.

Construction:

 Valve Body: Usually made from corrosion-resistant materials such as stainless steel or alloys, depending on the
chemicals involved.

 Spring: The spring is a critical component that determines the pressure at which the valve opens. It is usually
made of high-tensile steel or alloy materials.

 Poppet/Seat Mechanism: The poppet (a movable disc or plunger) seals against a seat when the valve is closed.
When the pressure rises beyond the preset level, the poppet lifts off the seat to release the pressure.

 Adjustment Mechanism: A screw or other adjustable components to set the opening pressure of the valve.

Properties:

 Adjustable Pressure Settings: The opening pressure can be adjusted by changing the spring tension.
  Simple Design: Relatively simple construction and operation.

 Fast Response: The valve opens quickly once the pressure threshold is surpassed.

 Low Cost: Compared to other safety valve types, spring-loaded valves are generally more affordable.

Applications:

 Common in boilers, pressure vessels, piping systems, and storage tanks where the need to protect equipment
from overpressure is critical.

2. Pilot-Operated Safety Valve

Working:

 A pilot-operated safety valve works by using a pilot valve to control the opening of the main valve. The pilot valve
senses the pressure and opens when the system pressure exceeds the set point. The pilot valve controls a larger
valve (main valve), which opens to release the pressure.

 The main valve is generally held closed by system pressure until the pilot valve activates it. After pressure relief,
the valve closes when the system pressure drops.

Construction:

 Pilot Valve: A small valve that operates based on system pressure. It is responsible for controlling the opening of
the main valve.

 Main Valve: A larger valve that is held closed by system pressure until the pilot valve activates it.

 Actuator Mechanism: The actuator is responsible for opening and closing the main valve. It is often a diaphragm
or piston connected to the pilot valve.

 Seat and Disc Mechanism: The main valve features a seat and disc mechanism similar to other types of safety
valves that seal under normal pressure.

Properties:

 Precision Control: Offers more precise control of overpressure protection than spring-loaded valves.

 Large Flow Capacity: Can handle higher flow rates due to its larger valve size.

 Energy-Efficient: The pilot valve consumes less energy than a spring-loaded valve, making it more suitable for
larger, high-pressure systems.

 Delayed Response: It may take slightly longer to respond than a spring-loaded valve due to the complexity of the
pilot valve mechanism.

Applications:

 Used in high-flow, high-pressure systems like compressors, heat exchangers, and large pressure vessels where
large capacity is needed for pressure relief.

3. Dead Weight Safety Valve

Working:

 A dead weight safety valve operates by using a dead weight mechanism that is balanced on top of the valve seat.
When system pressure increases, it lifts the dead weight and opens the valve. The valve closes when the system
pressure drops below the preset value.

 This type of valve operates without a spring, relying purely on the weight to control the opening pressure.

Construction:

 Dead Weight: A heavy weight placed directly on the valve seat that determines the pressure at which the valve
opens.
  Valve Seat and Disc: Similar to other safety valves, the valve seat and disc form the sealing mechanism.

 Operating Stem: The stem connects the weight to the valve mechanism and helps lift the valve when pressure
exceeds the set point.

Properties:

 Simple Construction: No springs or complex mechanical parts; it relies on gravity and the weight of the dead
weight.

 Accurate Set Pressure: The weight determines the set pressure precisely.

 Low Maintenance: As there are fewer moving parts, these valves are easier to maintain.

 Slower Response: Due to the weight mechanism, it can be slower to respond compared to other types.

Applications:

 Primarily used in low- to medium-pressure systems where simplicity and accuracy are desired.

4. Bellows Safety Valve

Working:

 A bellows safety valve uses a flexible bellows (a type of expandable and contractible metal component) to control
the valve opening. The bellows are compressed or expanded based on the system pressure, with pressure relief
occurring when the bellows expand, allowing the valve to open.

Construction:

 Bellows Assembly: The key component that responds to pressure changes by expanding or contracting. It
typically consists of a flexible metal, often stainless steel, that can handle both high and low pressures.

 Valve Seat and Disc: Similar to other types of safety valves, with a disc that seals against the valve seat under
normal operating conditions.

 Actuating Mechanism: The bellows control the actuation mechanism, allowing the valve to open and close.

Properties:

 Sealing Integrity: The bellows provide an excellent seal that is less prone to leakage, making it ideal for highly
toxic or hazardous chemicals.

 Low Friction: The bellows allow for smooth movement of the valve without much friction, reducing wear and
tear.

 Corrosion-Resistant: Bellows are made from highly corrosion-resistant materials, allowing use in aggressive
environments.

Applications:

 Used in highly corrosive environments or hazardous chemical processing, where a tight seal and safe operation
are essential.

5. Balanced Safety Valve

Working:

 The balanced safety valve is designed to be less sensitive to backpressure (the pressure in the discharge system).
It uses a mechanism to balance the force exerted by the process pressure and the force exerted by the
backpressure, allowing the valve to function effectively under varying conditions.

Construction:

 Balance Chamber: The main feature of this valve is the balance chamber, which uses pressure from both sides of
the valve to counteract the effect of backpressure.
  Poppet/Seat Mechanism: Similar to other safety valves, a poppet mechanism is used to seal and unseal the valve
seat under different pressure conditions.

 Actuating Spring: A spring mechanism that helps to balance the pressure forces and assists in opening the valve.

Properties:

 Backpressure Tolerance: It is designed to handle backpressure without compromising performance.

 High Flow Capacity: These valves are typically larger and can handle high volumes of gas or liquid.

 Improved Performance: Balanced valves perform well even when the discharge pressure is high.

Applications:

 Ideal for gas systems or piping systems where backpressure could be an issue, such as natural gas processing,
refineries, and pressure relief systems.

Conclusion

Safety valves are essential for the safe operation of chemical plants and industries where overpressure can lead to
catastrophic damage. The choice of safety valve depends on various factors such as the type of chemicals, system pressure,
flow rates, and application requirements. Proper selection, installation, and maintenance of these valves are vital for
ensuring both personnel and equipment safety in hazardous environments.
