1.

Operation

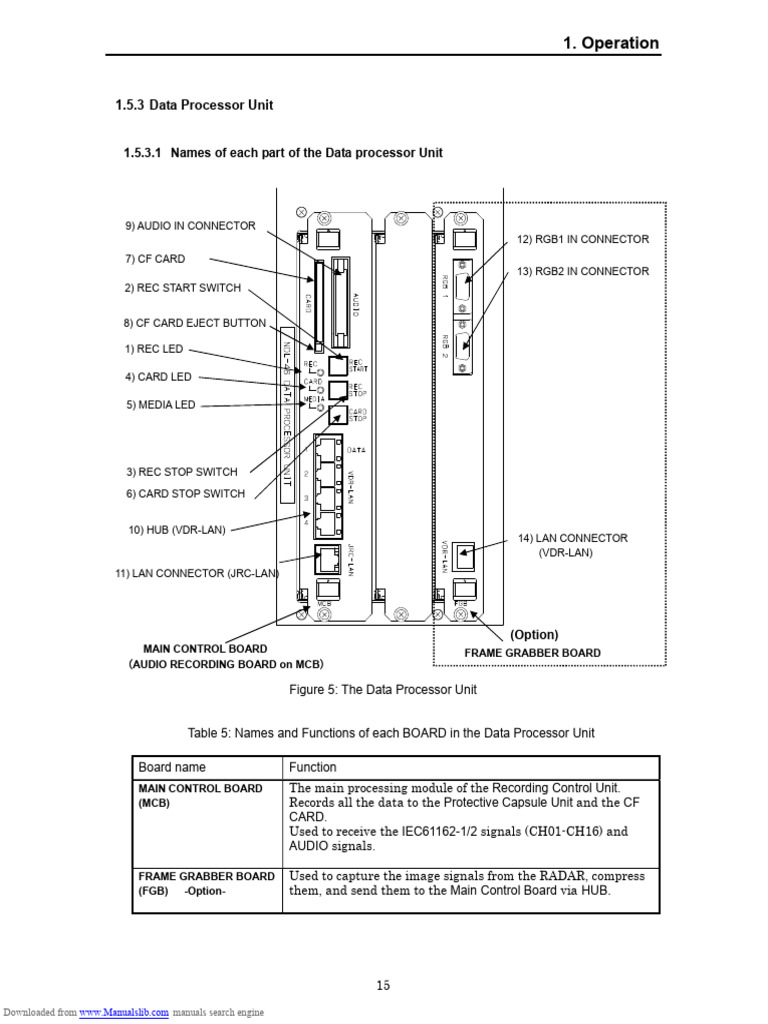

1.5.3 Data Processor Unit

1.5.3.1 Names of each part of the Data processor Unit

9) AUDIO IN CONNECTOR
12) RGB1 IN CONNECTOR
7) CF CARD
13) RGB2 IN CONNECTOR
2) REC START SWITCH

8) CF CARD EJECT BUTTON

1) REC LED

4) CARD LED

5) MEDIA LED

3) REC STOP SWITCH


6) CARD STOP SWITCH

10) HUB (VDR-LAN)


14) LAN CONNECTOR
(VDR-LAN)
11) LAN CONNECTOR (JRC-LAN)

(Option)
MAIN CONTROL BOARD FRAME GRABBER BOARD
AUDIO RECORDING BOARD on MCB

Figure 5: The Data Processor Unit

Table 5: Names and Functions of each BOARD in the Data Processor Unit

Board name Function


MAIN CONTROL BOARD The main processing module of the Recording Control Unit.
(MCB) Records all the data to the Protective Capsule Unit and the CF
CARD.
Used to receive the IEC61162-1/2 signals (CH01-CH16) and
AUDIO signals.

FRAME GRABBER BOARD Used to capture the image signals from the RADAR, compress
(FGB) -Option- them, and send them to the Main Control Board via HUB.

15
