A research was done to design and build a position control Robotic Arm with an FPGA. Integrated remote vision at the Robotic Arm was implemented using IMAQ toolkit in LabVIEW. Communication between the Robotic Arm to the computer was made possible by using WiFi router connected to the cRIO.
A research was done to design and build a position control Robotic Arm with an FPGA. Integrated remote vision at the Robotic Arm was implemented using IMAQ toolkit in LabVIEW. Communication between the Robotic Arm to the computer was made possible by using WiFi router connected to the cRIO.
A research was done to design and build a position control Robotic Arm with an FPGA. Integrated remote vision at the Robotic Arm was implemented using IMAQ toolkit in LabVIEW. Communication between the Robotic Arm to the computer was made possible by using WiFi router connected to the cRIO.

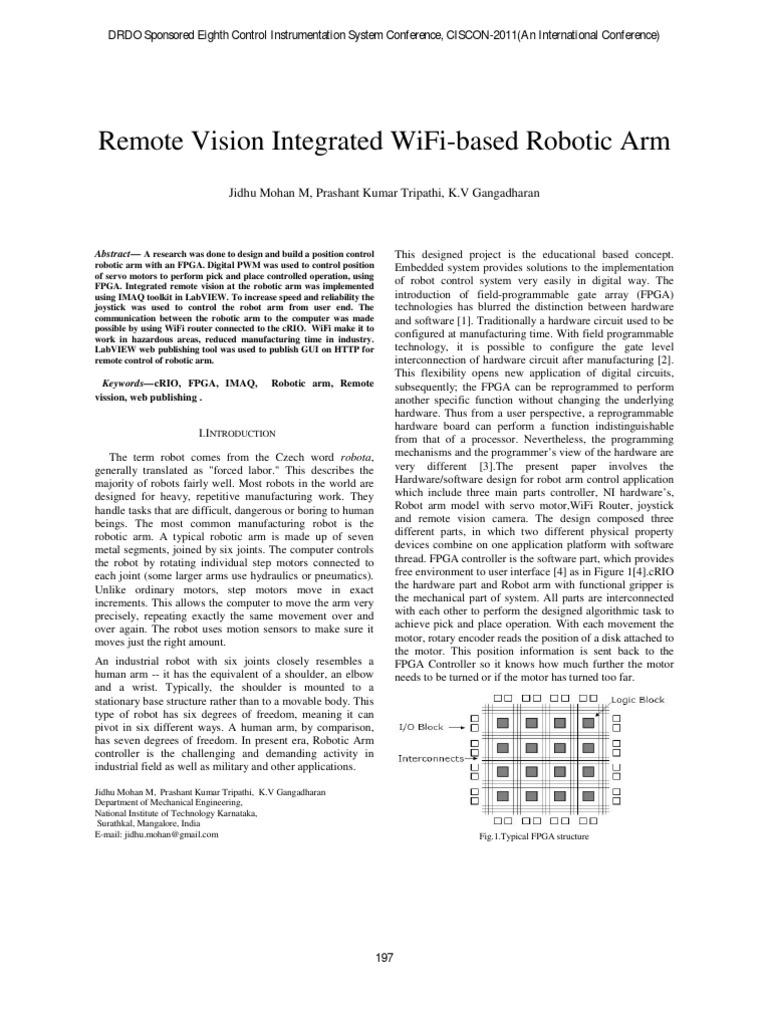

Abstract~ A research was done to design and build a position control
robotic arm with an FPGA. Digital PWM was used to control position of servo motors to perform pick and place controlled operation, using FPGA. Integrated remote vision at the robotic arm was implemented using IMAQ toolkit in LabVIEW. To increase speed and reliability the joystick was used to control the robot arm from user end. The communication between the robotic arm to the computer was made possible by using WiFi router connected to the cRIO. WiFi make it to work in hazardous areas, reduced manufacturing time in industry. LabVIEW web publishing tool was used to publish GUI on HTTP for remote control of robotic arm. Keywards~cRIO, FPGA, IMAQ, Robotic arm, Remote vission, web publishing .
I.INTRODUCTION The term robot comes from the Czech word , generally translated as "forced labor." This describes the majority of robots fairly well. Most robots in the world are designed for heavy, repetitive manufacturing work. They handle tasks that are difficult, dangerous or boring to human beings. The most common manufacturing robot is the robotic arm. A typical robotic arm is made up of seven metal segments, joined by six joints. The computer controls the robot by rotating individual step motors connected to each joint (some larger arms use hydraulics or pneumatics). Unlike ordinary motors, step motors move in exact increments. This allows the computer to move the arm very precisely, repeating exactly the same movement over and over again. The robot uses motion sensors to make sure it moves just the right amount. An industrial robot with six joints closely resembles a human arm -- it has the equivalent of a shoulder, an elbow and a wrist. Typically, the shoulder is mounted to a stationary base structure rather than to a movable body. This type of robot has six degrees of freedom, meaning it can pivot in six different ways. A human arm, by comparison, has seven degrees of freedom. In present era, Robotic Arm controller is the challenging and demanding activity in industrial field as well as military and other applications.
Jidhu Mohan M, Prashant Kumar Tripathi, K.V Gangadharan Department of Mechanical Engineering, National Institute of Technology Karnataka, Surathkal, Mangalore, India E-mail: jidhu.mohangmail.com This designed project is the educational based concept. Embedded system provides solutions to the implementation of robot control system very easily in digital way. The introduction of field-programmable gate array (FPGA) technologies has blurred the distinction between hardware and software [1]. Traditionally a hardware circuit used to be configured at manufacturing time. With field programmable technology, it is possible to configure the gate level interconnection of hardware circuit after manufacturing [2]. This flexibility opens new application of digital circuits, subsequently; the FPGA can be reprogrammed to perform another specific function without changing the underlying hardware. Thus from a user perspective, a reprogrammable hardware board can perform a function indistinguishable from that of a processor. Nevertheless, the programming mechanisms and the programmer`s view of the hardware are very different [3].The present paper involves the Hardware/software design for robot arm control application which include three main parts controller, NI hardware`s, Robot arm model with servo motor,WiFi Router, joystick and remote vision camera. The design composed three different parts, in which two different physical property devices combine on one application platform with software thread. FPGA controller is the software part, which provides free environment to user interface [4] as in Figure 1[4].cRIO the hardware part and Robot arm with functional gripper is the mechanical part of system. All parts are interconnected with each other to perform the designed algorithmic task to achieve pick and place operation With each movement the motor, rotary encoder reads the position of a disk attached to the motor. This position information is sent back to the FPGA Controller so it knows how much further the motor needs to be turned or if the motor has turned too far.
Fig.1.Typical FPGA structure
Jidhu Mohan M, Prashant Kumar Tripathi, K.V Gangadharan DRDO Sponsored Eighth Control Instrumentation System Conference, CISCON-2011(An International Conference) 197 II. SYSTEM OVERVIEW
The design concept is implemented with the help of robot arm model. Robot Arm is a 5 axis robotic manipulator each has two possible orientations consist of a rotating base, three links and a gripper. The five axes consist of the Shoulder, elbow, wrist having 180, 300, 60 degree rotational limit with vertical movement. The axis at base is having 270 degree rotational limit with horizontal movement. The control signals to the motor define the movement of each arm in three phases. The NI 9472/9474 provides connections for eight digital output channels were used to run this servo motors Figure 2.
Fig.2. NI 9472/9474 Terminal and Pin Assignments.
Servo Motors come with three wires or leads. Two of these wires are to provide ground and positive supply to the servo DC motor. The third wire is for the control signal. These wires of a servo motor are color coded. The red wire is the DC supply lead and must be connected to a DC voltage supply in the range of 4.8 V to 6V. The black wire is to provide ground. The color for the third wire (to provide control signal) varies for different manufacturers. It can be yellow (in case of Hitec), white (in case of Futaba), brown etc. were used with aluminum link Figure 3.
Fig.3. Servo motor used with aluminum link.
Remote vision on robotic arm is developed using wireless camera includes power adapters, receiver and it ranges up to 30m.Wireless camera is interfaced with Lab VIEW IMAQ through 'G` programming to capture images and real time video Figure 4.
Fig. 4. Wireless camera for remote vision.
Fig. 5.WiFi router for robotic arm.
For Wi-Fi control of robotic arm a router is used with robotic arm mounted on same station to transmit data over the Wi-Fi to the cRIO (compact reconfigurable input output device) from a remote location. National Instruments provides multiple hardware platforms with FPGA technology. Figure 6 shows the CompactRIO programmable automation controller with an FPGA on the backplane of the chassis. NI also provides programmable plug-in FPGA boards for desktop computers.
Fig.8.NI CompactRIO automation controller DRDO Sponsored Eighth Control Instrumentation System Conference, CISCON-2011(An International Conference) 198 III. LABVIEW AND FPGA PROGRAMMING LabVIEW, (Laboratory Virtual Instrumentation Engineering Workbench) developed by National Instruments, is a graphical programming environment suited for high level or system level design. It allows integrating different signal processing components or subsystems within a graphical framework. This software package is one of the first graphical programming products, and is currently used in academia and industries for data acquisition, remote control, simulation, and analysis [5]. LabVIEW uses dataflow programming, where the flow of data determines execution. LabVIEW incorporates a graphical user interface (GUI) programming environment to produce programs that mimic laboratory instruments. These programs are called Virtual Instruments. Direct Control mode enables the user to control the static arm and a graphical simulator arm using the joystick. The flow chart and LabVIEW programme of the direct control panel is presented in Figure 9.
Fig.9. Flow chart of direct control panel
The FPGA program has two parts host and target. The target will be deployed into the cRIO. The host runs in the FPGA ASIC (application specific integrated chip) in the cRIO. G- programming is shown in Figure 10,12 & 13 . Here the PWM generation program was deployed into FPGA. The LabVIEW program was converted to the VHDL code and deployed into the Xilinx by the inbuilt compiler. After the compilation the target was opened in the host and the PWM pulse width is changed for the rotation of the servos. At host the program was made in such a way that the control robotic arm can be done in two ways (i) Joystick Control (ii) Keyboard control The operator has a flexibility to select any of the control to define profile path of robotic arm.Future work is to give user best path using fuzzy logic.
Fig.10.Target VI G programming
The key press was detected in the program using the data connectivity tool kit in the LabVIEW. The keys were assigned for the servos. So if the desired key press was detected, the corresponding servo angle was changed in a controlled manner block diagram in Figure 11.
Fig.11. Key Press Detection G programming
Rare motions like the rotation of the end effector were controlled by multiple key presses. Robot Station D-Link cRIO Robot Arm Remote vision User Joystick/controller Simulator/GUI Wi-Fi DRDO Sponsored Eighth Control Instrumentation System Conference, CISCON-2011(An International Conference) 199
Fig.12. Servo angle to pulse width conversion
Fig.13. Incrementing servo angle for the key press
The real time image and Video acquisition was made possible using the LabVIEW IMAQ in Figure 11. The Video was stored in system and image processing was done in LabVIEW.
Fig.14. IMAQ Image acquisition
IV. CONCLUSION
Robot arm control in nuclear power plants is an active research area, covering many different fields of science and engineering such as artificial intelligence, interfacing with computer, converting signals (A/D), machine learning, and kinematics. However, when cleaning of nuclear plants and replacing moderators in nuclear plants, intrinsic difficulties like health hazards for human being and system shutdown due to replacement work occurs. This paper presents the LabVIEW based data acquisition card system to control the robot arm mimics the human arm. The 5-joint mechanical arm which is built from scratch; a hardware robot arm was completely and successfully implemented and linked them using the LabVIEW & cRIO DAQ.The interface developed is powerful tool for controlling the robotic arm. Software has been designed in such a way to make it more user- friendly and understandable. It has been tested in many areas and competitions. Its performance was observed to be excellent. The GUI is published on HTML and the robotic arm can be controlled remotely throught the controls at user end. Just as it was an educating experience conducting this project, its outcome, can be used as an educational tool for introducing the LabVIEW based data acquisition card real- time applications.
REFERENCES
[1] Ying-Shieh Kung, Gua-Shieh Shu, FPGA-based Motion Control IC for Robot Arm, IEEE-2005, pp 1397-140. [2] Swagat Kumar, Amit Shuklay, Ashish Duttaz and Laxmidhar Beherax, Technique for Visual Motor Coordination of a 6 DOF robot manipulator, Intelligent Control Part of IEEE Multi-conference on Systems and Control 1-3 October 2007, pp 544-549. [3] S. Kawahito, CMOS Sensors for Smart and Advanced Imaging, the 3rd Korean-Japanese Student Workshop, Oct.2007, pp 6-15. [4] Sung Su Kim and Seul Jung, Hardware Implementation of a Real Time Neural Network Controller with a DSP and an FPGA, Proceedings of the IEEE International Conference on Robotics and Automation, New Orleans, LA. 2004, pp 4739- 4644. [5] Korrapati R.; Anderson, J.A; Swain, N.K; Swain M; System Modeling Using Virtual Instruments Southeast Con, 2002.Proceedings IEEE Digital ObjectIdentifier:10.1109/ .2002.995570Publication Year: 2002, Page(s): 121 - 126. [6] Norman S. Nise.Control Systems Engineering, 4th edition. 2004, John Wily & Sons, Inc [7] The Canandarm: Remote Manipulator System (RMS),Available:http://ffden2.phys.uaf.edu/211.w eb.stuff/Adamczak/rms.html. [8] G. Hirzinger, N. Sporer, M. Schedl, J. Butterfass, M. Grebenstein, Robotics and Mechatronics in aerospace, The 7th International Workshop on Advanced Motion Control, 2002, pp. 19-27. DRDO Sponsored Eighth Control Instrumentation System Conference, CISCON-2011(An International Conference) 200 [9] Y. Woo-Keun, T. Goshozono, H. Kawabe, M. Kinami, Y. Tsumaki, M. Uchiyama, M. Oda, and T. Doi, Model-based space robot teleoperation of ets-vii manipulator, IEEE Trans. on Robotics and Automation, vol. 20, no. 3, pp. 602-612, 2004. [10] T. Tayh-Jong, A. Bejczy, G. Chuanfan, and X. Ning, Intelligent planning and control for telerobotic operations, Proc. of IEEE/RSJ Int. Conf. Intelligent Robots and Systems, pp. 389- 396, 1994. [11] J. Park and O. Khatib, A haptic teleoperation approach based on contact force control, International Journal of Robotics Research, vol. 25, no. 5-6, pp. 575-591, 2006. [12] T. Asfour and R. Dillmann, Human-like motion of a HumanoidRobot Arm Based on a Closed-Form Solution of the InverseKinematics Problem, Industrial Application of Informatics andMicrosystems (IAIM), Computer science Department, University of Karlsruhe, Germany. [13] John. J. Craig, Introduction to Robotics, Mechanics and Control, 2nd Edition, Addison- Wesley, 1989. [14] National Instruments, cRIO-9022, NI-9472 and NI- 9427, user manual: January 1999 Edition. [15] D. F. Styer, The strange world of quantum mechanics ~cambridge U.P., New York, 2000.
Fig.6.Front Panel for robotic arm control
Fig.7.Robotic station with robot arm DRDO Sponsored Eighth Control Instrumentation System Conference, CISCON-2011(An International Conference) 201
