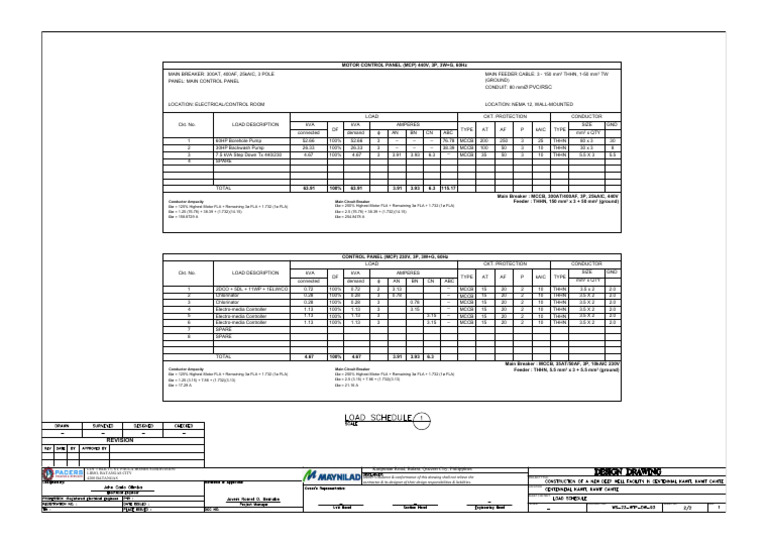

MOTOR CONTROL PANEL (MCP) 440V, 3P, 3W+G, 60Hz

MAIN BREAKER: 300AT, 400AF, 25kAIC, 3 POLE MAIN FEEDER CABLE: 3 - 150 mm² THHN, 1-50 mm² TW
PANEL: MAIN CONTROL PANEL (GROUND)
CONDUIT: 80 mmØ PVC/RSC

LOCATION: ELECTRICAL/CONTROL ROOM LOCATION: NEMA 12, WALL-MOUNTED

LOAD CKT. PROTECTION CONDUCTOR

Ckt. No. LOAD DESCRIPTION kVA kVA AMPERES SIZE GND
DF TYPE AT AF P kAIC TYPE
connected demand ϕ AN BN CN ABC mm² x QTY
_ _ _
1 60HP Borehole Pump 52.66 100% 52.66 3 76.78 MCCB 200 250 3 25 THHN 80 x 3 30
_ _ _ 30 x 3 8
2 30HP Backwash Pump 26.33 100% 26.33 3 38.39 MCCB 100 50 3 10 THHN
_
3 7.5 kVA Step Down Tx 440/230 4.67 100% 4.67 3 3.91 3.93 6.3 MCCB 35 50 3 10 THHN 5.5 X 3 5.5
4 SPARE

TOTAL 63.91 100% 63.91 3.91 3.93 6.3 115.17

Main Breaker : MCCB, 300AT/400AF, 3P, 25kAIC, 440V
Conductor Ampacity Main Circuit Breaker Feeder : THHN, 150 mm² x 3 + 50 mm² (ground)
I3ø = 125% Highest Motor FLA + Remaining 3ø FLA + 1.732 (1ø FLA) I3ø = 250% Highest Motor FLA + Remaining 3ø FLA + 1.732 (1ø FLA)
I3ø = 1.25 (76.78) + 38.39 + (1.732)(14.15) I3ø = 2.5 (76.78) + 38.39 + (1.732)(14.15)
I3ø = 158.8729 A I3ø = 254.8478 A

CONTROL PANEL (MCP) 230V, 3P, 3W+G, 60Hz

LOAD CKT. PROTECTION CONDUCTOR
Ckt. No. LOAD DESCRIPTION kVA kVA AMPERES SIZE GND
DF TYPE AT AF P kAIC TYPE
connected demand ϕ AN BN CN ABC mm² x QTY
_ 3.5 x 2 2.0
1 2DCO + 5DL + 11WP + 1ELW/CO 0.72 100% 0.72 2 3.13 MCCB 15 20 2 10 THHN
_
2 Chlorinator 0.28 100% 0.28 3 0.78 MCCB 15 20 2 10 THHN 3.5 X 2 2.0
_ 3.5 X 2 2.0
3 Chlorinator 0.28 100% 0.28 3 0.78 MCCB 15 20 2 10 THHN
_
4 Electro-media Controller 1.13 100% 1.13 3 3.15 MCCB 15 20 2 10 THHN 3.5 X 2 2.0
_ 3.5 X 2 2.0
5 Electro-media Controller 1.13 100% 1.13 3 3.15 MCCB 15 20 2 10 THHN
_ 3.5 X 2 2.0
6 Electro-media Controller 1.13 100% 1.13 3 3.15 MCCB 15 20 2 10 THHN
7 SPARE
8 SPARE

TOTAL 4.67 100% 4.67 3.91 3.93 6.3

Main Breaker : MCCB, 35AT/50AF, 3P, 10kAIC 230V
Conductor Ampacity Main Circuit Breaker Feeder : THHN, 5.5 mm² x 3 + 5.5 mm² (ground)
I3ø = 125% Highest Motor FLA + Remaining 3ø FLA + 1.732 (1ø FLA) I3ø = 250% Highest Motor FLA + Remaining 3ø FLA + 1.732 (1ø FLA)
I3ø = 1.25 (3.15) + 7.86 + (1.732)(3.13) I3ø = 2.5 (3.15) + 7.86 + (1.732)(3.13)
I3ø = 17.29 A I3ø = 21.16 A
