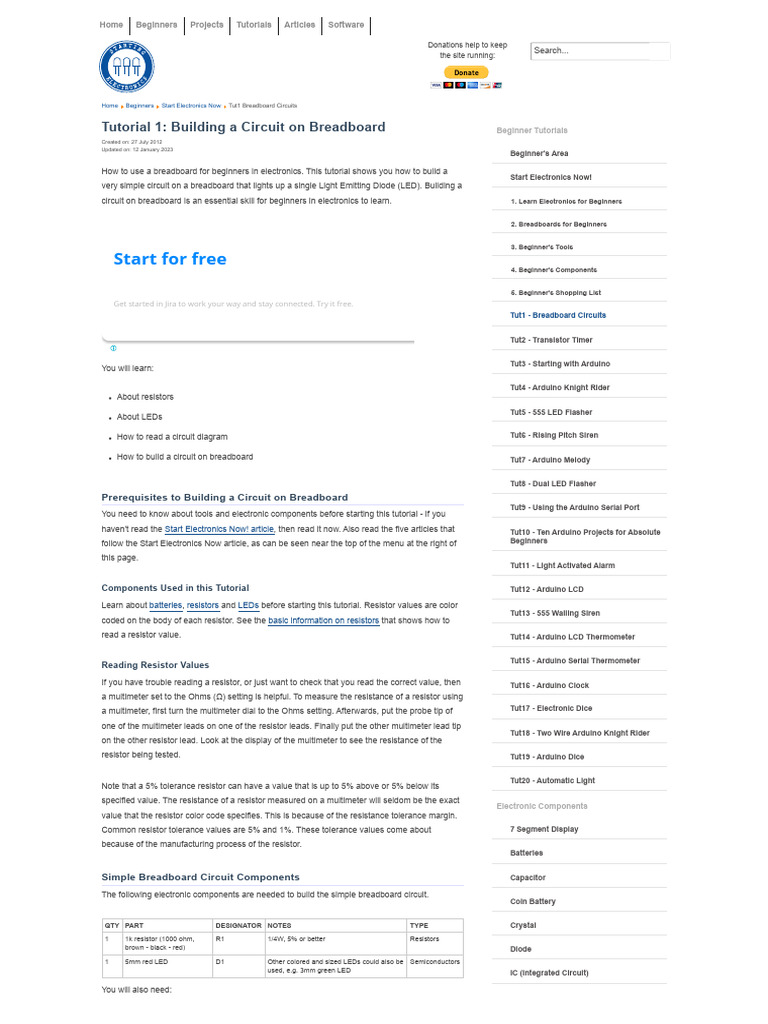

Tutorial 1: Building a Circuit on Breadboard Beginner Tutorials

Created on: 27 July 2012
Updated on: 12 January 2023
Beginner's Area

How to use a breadboard for beginners in electronics. This tutorial shows you how to build a
Start Electronics Now!
very simple circuit on a breadboard that lights up a single Light Emitting Diode (LED). Building a
circuit on breadboard is an essential skill for beginners in electronics to learn. 1. Learn Electronics for Beginners

2. Breadboards for Beginners

3. Beginner's Tools

Start for free 4. Beginner's Components

5. Beginner's Shopping List

Get started in Jira to work your way and stay connected. Try it free.
Tut1 - Breadboard Circuits

Tut2 - Transistor Timer

Jira

Tut3 - Starting with Arduino

You will learn:

Tut4 - Arduino Knight Rider

About resistors
Tut5 - 555 LED Flasher
About LEDs

How to read a circuit diagram Tut6 - Rising Pitch Siren

How to build a circuit on breadboard Tut7 - Arduino Melody

Tut8 - Dual LED Flasher

Prerequisites to Building a Circuit on Breadboard
Tut9 - Using the Arduino Serial Port
You need to know about tools and electronic components before starting this tutorial - if you
haven't read the Start Electronics Now! article, then read it now. Also read the five articles that Tut10 - Ten Arduino Projects for Absolute
follow the Start Electronics Now article, as can be seen near the top of the menu at the right of Beginners

this page.
Tut11 - Light Activated Alarm

Components Used in this Tutorial Tut12 - Arduino LCD

Learn about batteries, resistors and LEDs before starting this tutorial. Resistor values are color
Tut13 - 555 Wailing Siren
coded on the body of each resistor. See the basic information on resistors that shows how to
read a resistor value. Tut14 - Arduino LCD Thermometer

Tut15 - Arduino Serial Thermometer

Reading Resistor Values

If you have trouble reading a resistor, or just want to check that you read the correct value, then Tut16 - Arduino Clock
a multimeter set to the Ohms (Ω) setting is helpful. To measure the resistance of a resistor using
a multimeter, first turn the multimeter dial to the Ohms setting. Afterwards, put the probe tip of Tut17 - Electronic Dice

one of the multimeter leads on one of the resistor leads. Finally put the other multimeter lead tip
Tut18 - Two Wire Arduino Knight Rider
on the other resistor lead. Look at the display of the multimeter to see the resistance of the
resistor being tested. Tut19 - Arduino Dice

Tut20 - Automatic Light

Note that a 5% tolerance resistor can have a value that is up to 5% above or 5% below its
specified value. The resistance of a resistor measured on a multimeter will seldom be the exact
Electronic Components
value that the resistor color code specifies. This is because of the resistance tolerance margin.
Common resistor tolerance values are 5% and 1%. These tolerance values come about 7 Segment Display

because of the manufacturing process of the resistor.

Batteries

Simple Breadboard Circuit Components Capacitor

The following electronic components are needed to build the simple breadboard circuit.
Coin Battery

QTY PART DESIGNATOR NOTES TYPE Crystal

1 1k resistor (1000 ohm, R1 1/4W, 5% or better Resistors
brown - black - red) Diode
1 5mm red LED D1 Other colored and sized LEDs could also be Semiconductors
used, e.g. 3mm green LED IC (Integrated Circuit)

You will also need:

 1. A breadboard
LCD (Liquid Crystal Display)
2. Breadboard wire links
LDR (Photoresistor)
3. 9V battery (nine volt battery)
LED (Light Emitting Diode)
4. Battery clip

Loudspeaker

Operational Amplifier (Op-Amp)

Piezo Disk

Potentiometer

Reed Switch

Battery Clip, LED, Resistor and Wire Link

Resistor

Switch

Reading the Circuit Diagram Transistor

Transistor - NPN

Get 7 Day Trial Transistor - PNP

Tools
Over 6000 Brands Across 78 Countries prefer Wati as their end-to-end WhatsApp
Solution
Half-round Nose Pliers

Side Cutters
[Link]

The circuit diagram (also known as a schematic diagram) is shown below: Soldering Iron

LED Circuit Diagram

This circuit diagram tells us (clockwise from the battery): Connect the positive terminal of the
battery (red battery clip lead) to the 1 kilo-ohm resistor. Connect the other lead of the resistor to
the anode of the LED. Connect the cathode of the LED to the negative terminal of the battery
(black battery clip lead).

Get 7 Day Trial

Over 6000 Brands Across 78 Countries prefer Wati as their end-to-end WhatsApp
Solution

[Link]

Often the battery or power source is not shown in the circuit diagram. It is instead represented
by text that shows what voltage must be connected across the circuit. This diagram shows the
alternate circuit:

Alternate Circuit Diagram

Building the Circuit on a Breadboard

 Free PCB CAD
Libraries

Ultra Librarian Download

Before starting to assemble the circuit on the electronic breadboard, get the parts and tools
ready. That is, get a battery clip, LED, 1k or 1000Ω resistor, wire link and breadboard ready.

Parts and Tools for the LED Breadboard Circuit

This video clip shows what you will be doing – step by step instructions follow:

0:00

Step 1: Insert the LED into the Breadboard

Start by bending the longer lead of the LED as shown in the previous photo. Plug the longer
lead (anode) of the LED into the top rail of the breadboard and the other lead into a hole in the
main part of the breadboard as shown below. See the beginner's article on LEDs that explains
how to identify the anode and cathode of an LED.

Step 1: Insert the LED into the Breadboard

Step 2: Insert the Resistor into the Breadboard

Use the side cutters to remove a 1k resistor from the string of resistors if they are taped
together. Cut the resistor lead as near to the tape as possible. Don't try to remove the tape as
this will leave a sticky mess on the end of the resistor lead which will then end up in your
breadboard.
Bend the leads of the resistor as shown below. Plug one of the resistor leads into a hole directly
below the cathode lead of the LED and the other lead into a hole below the middle channel of
the breadboard. This connects the LED cathode to one of the resistor leads. It does not matter
which way around the resistor is plugged into the breadboard.

Step 2: Insert the 1kΩ Resistor into the Breadboard

Step 3: Insert the Wire Link into the Breadboard

Insert a wire connector into a hole directly below the resistor lead and into the bottom rail of the
breadboard.

Step 3: Insert the Wire Link

Step 4: Insert the Battery Clip into the Breadboard

Plug the red (positive) wire of the battery clip into the top rail of the breadboard. Plug the black
(negative) wire of the battery clip into the bottom rail of the breadboard.

Step 4: Insert the Battery Clip into the Breadboard

Step 5: Plug the Battery into the Battery Clip

Finally plug the battery into the battery clip to power up the circuit and switch the LED on. Make
sure to connect the battery clip to the battery the right way around. The opposite type of
connector on the battery clip must be connected to the battery terminals, i.e. the battery and
battery clip each have a pair of terminals and they will only connect to each other one way. If
you try to connect them the wrong way, they won't clip together, but they will put reverse polarity
on the circuit for a moment which may destroy the circuit, so be sure to connect the battery the
right way around the first time.
 Step 5: Connect the Battery to the Breadboard Circuit

How the Breadboard and Circuit Work

After building a breadboard circuit for beginners for the first time, it is important to know how the
breadboard and basic circuit work.

Below is an explanation of how a breadboard is connected internally, including how the internal
connections are insulated from each other. An explanation of the LED breadboard circuit
connections for this tutorial follows.

Internal Breadboard Connections

Red lines in the photo below show how a breadboard is connected internally. The figure shows
only some of the vertical connections, they repeat as shown.

Internal Connections or Wiring of the Breadboard

Top and bottom parts of the breadboard are identical and have four horizontal connecting strips
each. The middle of the breadboard has vertical connecting strips separated by a horizontal
channel in the middle. Each individual red line or connecting strip is electrically isolated from
every other strip.

Note that narrower full-size breadboards usually have continuous horizontal connecting strips
as the following image shows. Whereas the breadboard shown above has split horizontal rails.
This means that the top and bottom of narrow breadboards only have two horizontal connecting
strips each.

Internal Connections of a Narrow Breadboard

Any component lead that is plugged into a hole or "tie point" of the breadboard will be
connected to whatever is plugged into a hole of the same connecting strip as marked in red in
the photo.

LED Circuit Breadboard Connections

This photo shows the circuit built in this tutorial with the connecting strips of the breadboard that
are used by the circuit in blue.
 Breadboard Connecting Strips used in the LED Circuit

The red lead from the battery is joined to the LED via the top horizontal strip of the breadboard.
The LED connects to the resistor using a top vertical strip. The resistor is not shorted out
because it jumps across the middle insulated channel of the breadboard to a vertical connecting
strip below. The wire link connects the bottom resistor lead to the bottom horizontal connecting
strip which is then connected to the black lead of the battery.

I hope that you enjoyed this tutorial and found it useful. This tutorial was kept simple as an
introduction to some basic electronic components and so that you can learn how a breadboard
works before tackling more complex circuits.

Breadboard Circuit Frequently Asked Questions (FAQ)

Q: The position of the LED in the circuit diagram is different from the breadboard circuit.
Does this make a difference?
A: The circuit in this example is a series circuit – the resistor and LED are connected in series
rather than in parallel. It does not matter whether the LED and resistor are swapped. What
does matter is that the LED is connected the correct way around so that current flows into the
anode.

What is the purpose of the resistor in the circuit?

A: The purpose of the resistor is to limit the current flowing through the LED so that the LED is
not burned out. Limiting the current also limits the brightness of the LED.

Q: How do you choose the correct resistor for the circuit?

A: First subtract the LED forward voltage from the battery voltage. Different colored LEDs
have different forward voltages, so check the LED datasheet for this value. If the LED forward
voltage is 1.7V and the battery is 9V, we subtract 1.7 from 9: 9 – 1.7 = 7.3V. Now decide how
much current must flow through the LED, for example 10mA (ten milliamps, which is 0.01A).
Divide the calculated voltage by the desired LED current. 7.3 ÷ 0.01 = 730Ω. Choose a
resistor value that is close to the calculated value.
