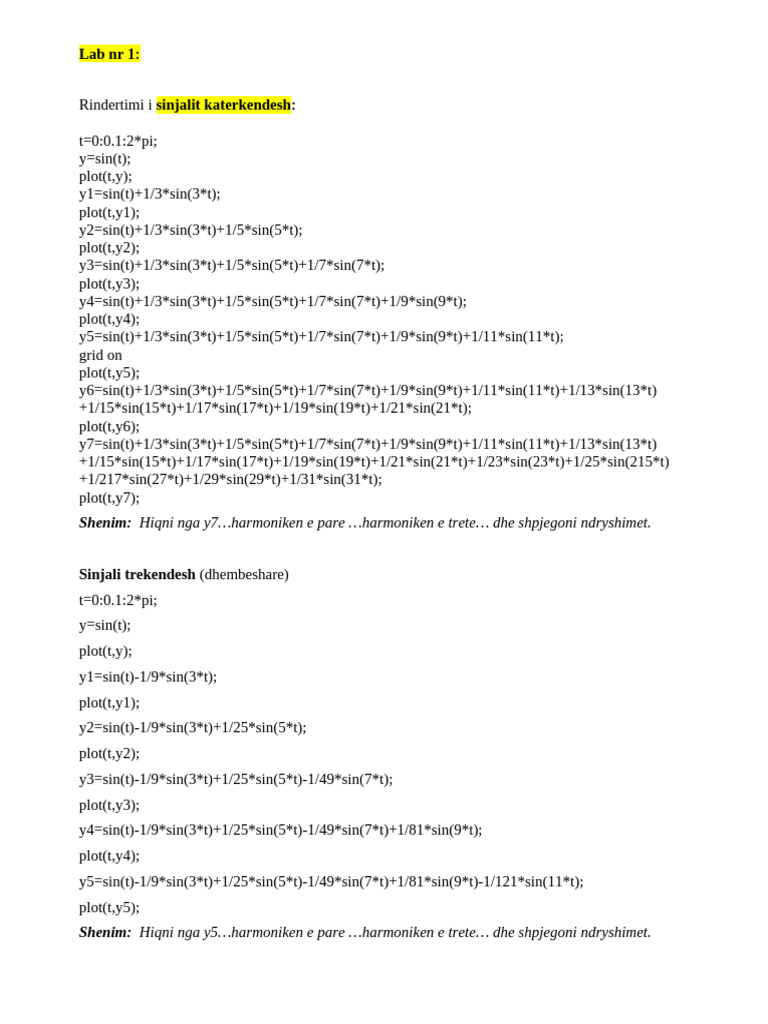

Lab nr 1:

Rindertimi i sinjalit katerkendesh:

t=0:0.1:2*pi;
y=sin(t);
plot(t,y);
y1=sin(t)+1/3*sin(3*t);
plot(t,y1);
y2=sin(t)+1/3*sin(3*t)+1/5*sin(5*t);
plot(t,y2);
y3=sin(t)+1/3*sin(3*t)+1/5*sin(5*t)+1/7*sin(7*t);
plot(t,y3);
y4=sin(t)+1/3*sin(3*t)+1/5*sin(5*t)+1/7*sin(7*t)+1/9*sin(9*t);
plot(t,y4);
y5=sin(t)+1/3*sin(3*t)+1/5*sin(5*t)+1/7*sin(7*t)+1/9*sin(9*t)+1/11*sin(11*t);
grid on
plot(t,y5);
y6=sin(t)+1/3*sin(3*t)+1/5*sin(5*t)+1/7*sin(7*t)+1/9*sin(9*t)+1/11*sin(11*t)+1/13*sin(13*t)
+1/15*sin(15*t)+1/17*sin(17*t)+1/19*sin(19*t)+1/21*sin(21*t);
plot(t,y6);
y7=sin(t)+1/3*sin(3*t)+1/5*sin(5*t)+1/7*sin(7*t)+1/9*sin(9*t)+1/11*sin(11*t)+1/13*sin(13*t)
+1/15*sin(15*t)+1/17*sin(17*t)+1/19*sin(19*t)+1/21*sin(21*t)+1/23*sin(23*t)+1/25*sin(215*t)
+1/217*sin(27*t)+1/29*sin(29*t)+1/31*sin(31*t);
plot(t,y7);
Shenim: Hiqni nga y7…harmoniken e pare …harmoniken e trete… dhe shpjegoni ndryshimet.

Sinjali trekendesh (dhembeshare)


t=0:0.1:2*pi;
y=sin(t);
plot(t,y);
y1=sin(t)-1/9*sin(3*t);
plot(t,y1);
y2=sin(t)-1/9*sin(3*t)+1/25*sin(5*t);
plot(t,y2);
y3=sin(t)-1/9*sin(3*t)+1/25*sin(5*t)-1/49*sin(7*t);
plot(t,y3);
y4=sin(t)-1/9*sin(3*t)+1/25*sin(5*t)-1/49*sin(7*t)+1/81*sin(9*t);
plot(t,y4);
y5=sin(t)-1/9*sin(3*t)+1/25*sin(5*t)-1/49*sin(7*t)+1/81*sin(9*t)-1/121*sin(11*t);
plot(t,y5);
Shenim: Hiqni nga y5…harmoniken e pare …harmoniken e trete… dhe shpjegoni ndryshimet.
