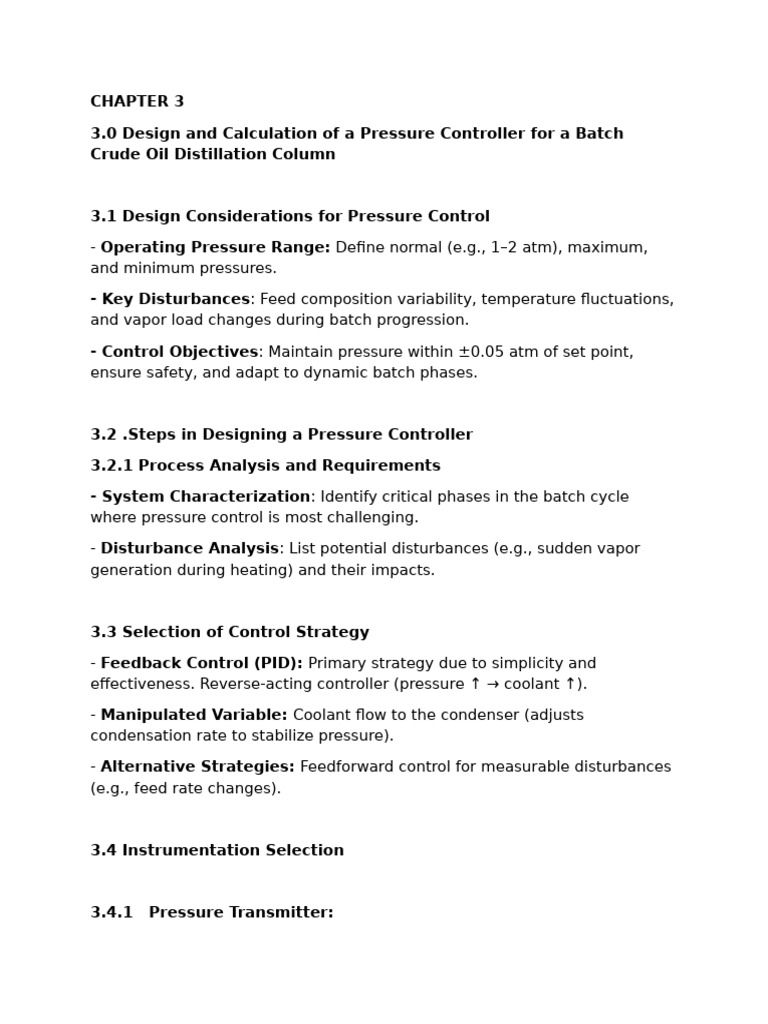

CHAPTER 3
3.0 Design and Calculation of a Pressure Controller for a Batch
Crude Oil Distillation Column
3.1 Design Considerations for Pressure Control
- Operating Pressure Range: Define normal (e.g., 1–2 atm), maximum,
and minimum pressures.
- Key Disturbances: Feed composition variability, temperature fluctuations,
and vapor load changes during batch progression.
- Control Objectives: Maintain pressure within ±0.05 atm of set point,
ensure safety, and adapt to dynamic batch phases.
3.2 .Steps in Designing a Pressure Controller
3.2.1 Process Analysis and Requirements
- System Characterization: Identify critical phases in the batch cycle
where pressure control is most challenging.
- Disturbance Analysis: List potential disturbances (e.g., sudden vapor
generation during heating) and their impacts.
3.3 Selection of Control Strategy
- Feedback Control (PID): Primary strategy due to simplicity and
effectiveness. Reverse-acting controller (pressure ↑ → coolant ↑).
- Manipulated Variable: Coolant flow to the condenser (adjusts
condensation rate to stabilize pressure).
- Alternative Strategies: Feedforward control for measurable disturbances
(e.g., feed rate changes).
3.4 Instrumentation Selection
3.4.1 Pressure Transmitter:
- Range: 0–2.5 atm (gauge for a 0.5–2 atm operating range.
- Accuracy: ±0.1% of full scale.
- Type: Absolute or gauge pressure sensor based on process needs.
3.4.2 Control Valve:
- Type: Globe valve (linear characteristics for proportional control).
The basic formula for calculating the flow coefficient (Cv) for a liquid is:
- Sizing: Calculate using
- Example:
- Actuator: Pneumatic, fail-open (air-to-close) for safety.
3.5 Control Loop Configuration
- P&ID Diagram: Illustrate the loop with transmitter, PID controller, and
control valve on the coolant line.
- Signal Types: 4–20 mA signals for pressure measurement and valve
positioning.
- Controller Action: Reverse-acting (output ↑ → valve opens ↑ → pressure
↓).
3.6 Controller Tuning
-Ziegler-Nichols Method:
- Ultimate gain (\( K_u \)) and period (\( P_u \)) from step tests
In this method, you analyze the open-loop step response of the system to
determine the time delay (L), time constant (T), and steady-state gain (K).
The “equations” for calculating the PID controller parameters are given by
this table:
Here, these tables represent the “equations” of the Ziegler-Nichols ultimate
cycle tuning method. They provide direct formulas to calculate the controller
parameters based on the experimentally found K_u and P_u.
-Empirical Tuning: Start with conservative settings (e.g.,
3.7 .Safety and Redundancy Measures
- Overpressure Protection: Safety relief valve set at 2.2 atm.
- Fail-Safe Design: Valve fails open to maximize cooling.
- Alarms: High/low pressure alerts with shutdown protocols.
3.8 Calculations for Control Valve Sizing and Controller Parameters
- Control Valve Sizing (Example)
- Transmitter Range: 0–2.5 atm (covers operating range with margin).
- PID Tuning:
3.9 Conclusion
-Design Summary: The controller maintains pressure via coolant flow
adjustments, with fail-safe mechanisms for safety.
REFERENCE
Al-Arfaj, M. A., Al-Obaid, F., & Al-Mutairi, E. M. (2020). Dynamic modeling and
control of distillation columns. Journal of Process Control, 87, 137-146.
Kister, H. Z. (2020). Distillation: Principles and Practices. CRC Press.
Kumar, S., Kumar, N., & Singh, J. (2020). Distillation: A review of recent
advances. Journal of Chemical Technology and Biotechnology, 95(1), 15-27.
Luyben, W. L. (2020). Distillation Design and Control Using Aspen Simulation.
John Wiley & Sons.
Sadhukhan, J., Zhao, Y., & Leach, M. (2019). Energy and resource efficiency in
chemical processing. Energy & Environmental Science, 12(10), 2846-2857.
Seider, W. D., Seader, J. D., & Lewin, D. R. (2019). Product and Process
Design Principles: Synthesis, Analysis, and Evaluation. John Wiley & Sons.
Skogestad, S. (2020). Control structure design for distillation columns.
Computers & Chemical Engineering, 134, 107-115.
Geankoplis, C. J. (2003). Transport processes and separation process
principles. Prentice Hall.
Kister, H. Z. (1992). Distillation design. McGraw-Hill.
Perry, R. H. (1997). Perry’s chemical engineers’ handbook. McGraw-Hill.
Diwekar, U. M. (2019). Batch distillation: Simulation, optimal design, and
control. CRC Press.
Skogestad, S. (2017). Chemical engineering design: Principles, practice, and
economics of plant and process design. John Wiley & Sons.
Stephanopoulos, G. (1984). Chemical process control: An introduction to
theory and practice. Prentice Hall.
Wittgens, B. (2013). Batch distillation. In Encyclopedia of Separation Science
(pp. 134-141). Academic Press.
Humphrey, J. L. (1997). Separation process principles. McGraw-Hill.
Luyben, W. L. (2013). Distillation design and control using Aspen simulation.
John Wiley & Sons.
Seader, J. D. (2016). Separation process principles. John Wiley & Sons.
Treybal, R. E. (1980). Mass transfer operations. McGraw-Hill.
Wankat, P. C. (2017). Separation process engineering. Prentice Hall.Astrom,
K. J. (2006). Advanced PID control. ISA.
Blevins, T. L. (2003). Process control and optimization. ISA.
Dorf, R. C. (2006). Modern control systems. Prentice Hall.
Erickson, K. T. (2000). Feedforward control of a distillation column. Chemical
Engineering Communications.
Ioannou, P. A. (2006). Adaptive control of linear and nonlinear systems.
Springer.
Rawlings, J. B. (2009). Model predictive control: Theory and applications. Nob
Hill Publishing.
Garcia, C. E. (1989). “Internal Model Control: A Unifying Review and Some
New Results.” Industrial & Engineering Chemistry Research, 28(11), 1738-
1744
Riggs, J. B. (1943). “Dynamic Behavior of a Distillation Column.” Transactions
of the American Institute of Chemical Engineers, 39, 93-116.
Qin, S. J. (2003). “Model Predictive Control: Past, Present, and Future.”
Chemical Process Control, 93, 1-15.
